1 |

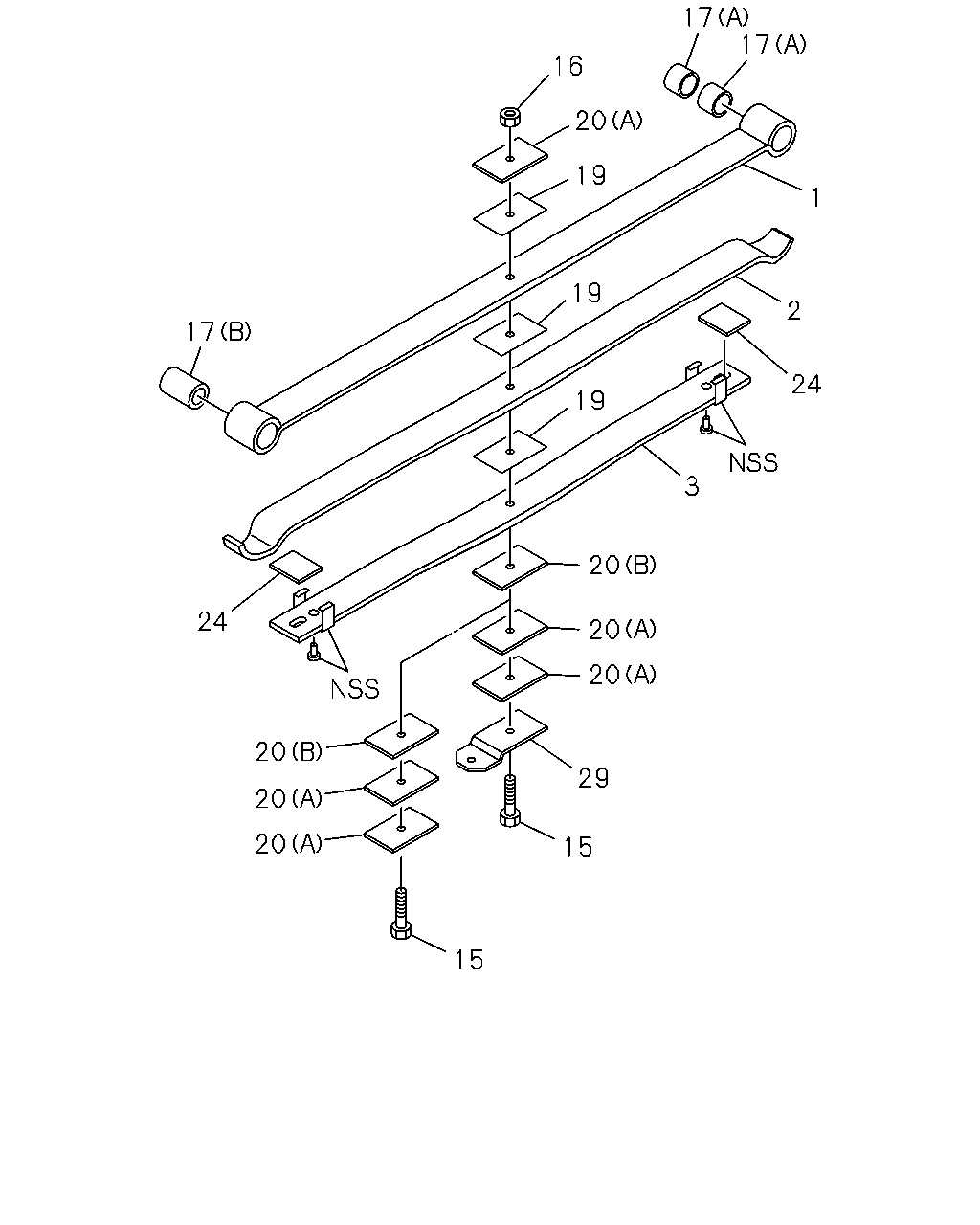

07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98075-743-0, 98075743, C = 8-98079-917-0, 98079917,
E = 8-98079-965-0, 98079965
|
8-98077-437-0 |
01 |
1 |
- |
| |
1 |
07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98075-745-0, 98075745, D = 8-98079-918-0, 98079918,
F = 8-98079-966-0, 98079966
|
8-98077-441-0 |
01 |
1 |
- |
| |
2 |
07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98075-743-0, 98075743, C = 8-98079-917-0, 98079917,
E = 8-98079-965-0, 98079965
|
8-98077-438-0 |
01 |
1 |
- |
| |
2 |
07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98075-745-0, 98075745, D = 8-98079-918-0, 98079918,
F = 8-98079-966-0, 98079966
|
8-98077-442-0 |
01 |
1 |
- |
| |
3 |
07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98075-743-0, 98075743, C = 8-98079-917-0, 98079917
|
8-98077-439-0 |
01 |
1 |
- |
| |
3 |
07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98075-745-0, 98075745, D = 8-98079-918-0, 98079918
|
8-98077-443-0 |
01 |
1 |
- |
| |
3 |
07.415 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-98079-965-0, 98079965
|
8-98115-639-0 |
01 |
1 |
- |
| |
3 |
07.415 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-98079-966-0, 98079966
|
8-98115-640-0 |
01 |
1 |
- |
| |
15 |
07.428 BOLT; CENTER,LEAF SPR,FRT
L=100
ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
C = 8-98079-917-0, 98079917, D = 8-98079-918-0, 98079918,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
8-98063-771-0 |
01 |
1 |
- |
| |
16 |
07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
C = 8-98079-917-0, 98079917, D = 8-98079-918-0, 98079918,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
1-09400-055-0 |
01 |
1 |
- |
| |
17 |
07.413 BUSHING; LEAF SPR,FRT
07.524, (A)
ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
C = 8-98079-917-0, 98079917, D = 8-98079-918-0, 98079918,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
8-94118-588-1 |
02 |
1 |
- |
| |
17 |
07.413 BUSHING; LEAF SPR,FRT
07.105, (B)
ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
C = 8-98079-917-0, 98079917, D = 8-98079-918-0, 98079918,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
8-94130-354-0 |
01 |
1 |
- |
| |
19 |
07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
C = 8-98079-917-0, 98079917, D = 8-98079-918-0, 98079918,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
8-97084-845-0 |
03 |
1 |
- |
| |
20 |
07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
C = 8-98079-917-0, 98079917, D = 8-98079-918-0, 98079918,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
8-98034-521-0 |
03 |
1 |
- |
| |
20 |
07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
8-98034-522-0 |
01 |
1 |
- |
| |
20 |
07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: C = 8-98079-917-0, 98079917, D = 8-98079-918-0, 98079918
|
8-98034-522-0 |
02 |
1 |
- |
| |
24 |
07.436 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
C = 8-98079-917-0, 98079917, D = 8-98079-918-0, 98079918,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
8-97084-848-0 |
02 |
1 |
- |
| |
29 |
07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-98075-743-0, 98075743, B = 8-98075-745-0, 98075745,
E = 8-98079-965-0, 98079965, F = 8-98079-966-0, 98079966
|
8-97141-927-1 |
01 |
1 |
- |
