Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#7738) — 538 parça

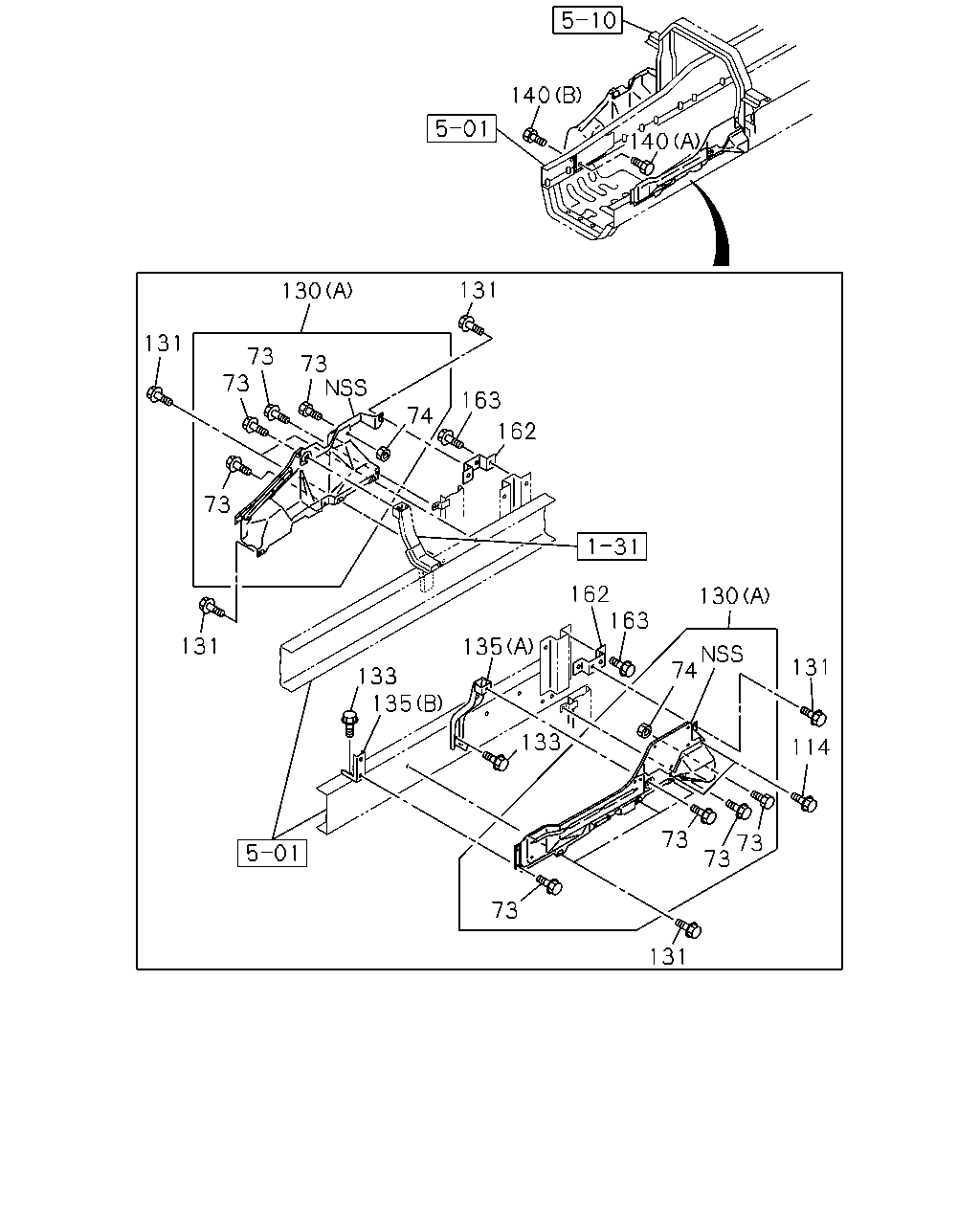

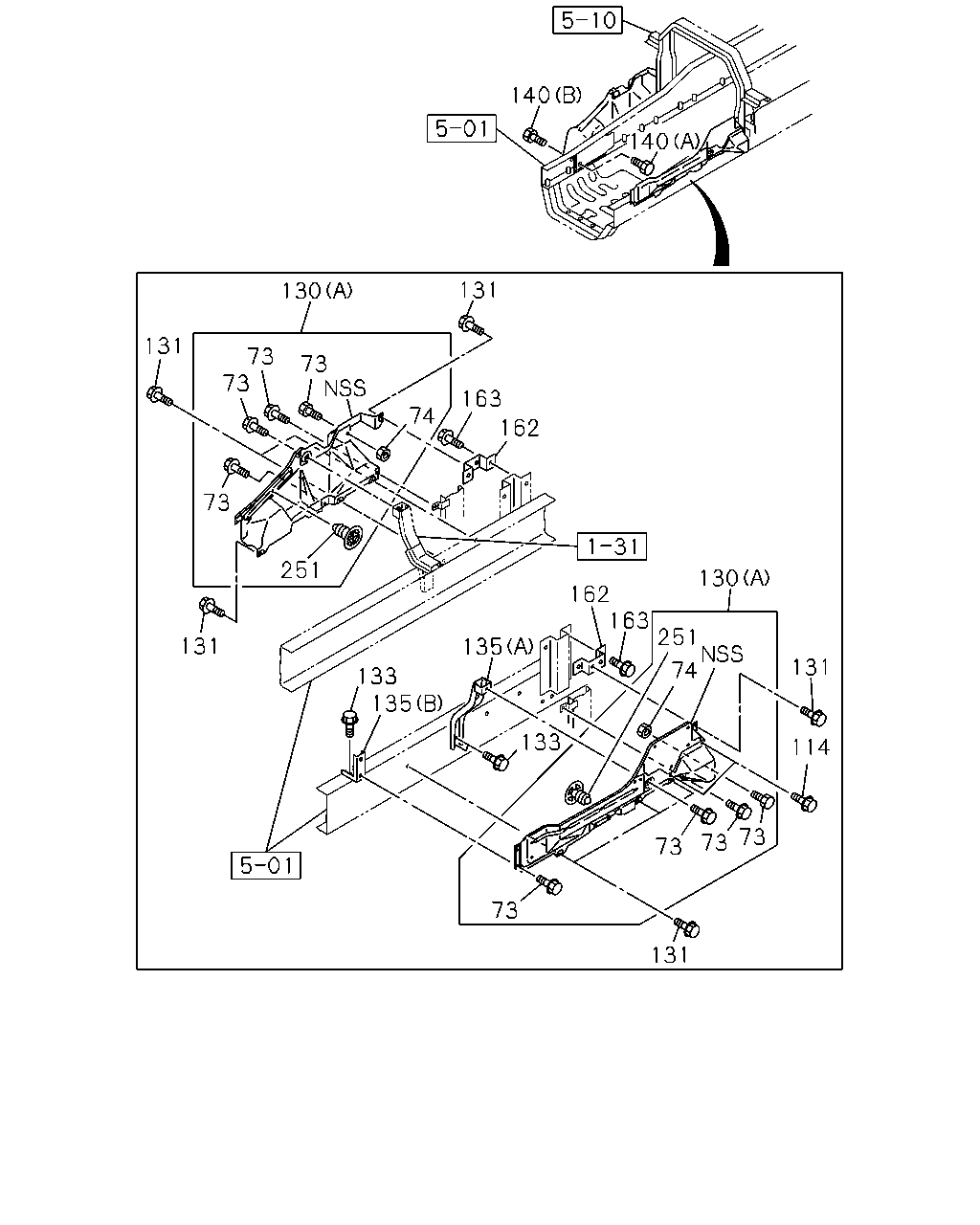

114 251 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	RUBBER; SEAL 6WG1 TC-R(75L)	1-21593-092-1	01	1	9905-	●
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9902-9904	●
114	BOLT EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9905-0003	●
114	BOLT EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	0004-	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	0004-		●
114	BOLT RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	9905-	●
114	BOLT 6WG1 TC-R(75L) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	14	1	9902-0003	●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	14	1	0004-	●	●
251	CLIP; NOISE INSULATOR 6WG1 TC-R(75L)	5-09987-033-0	05	1	9905-	●

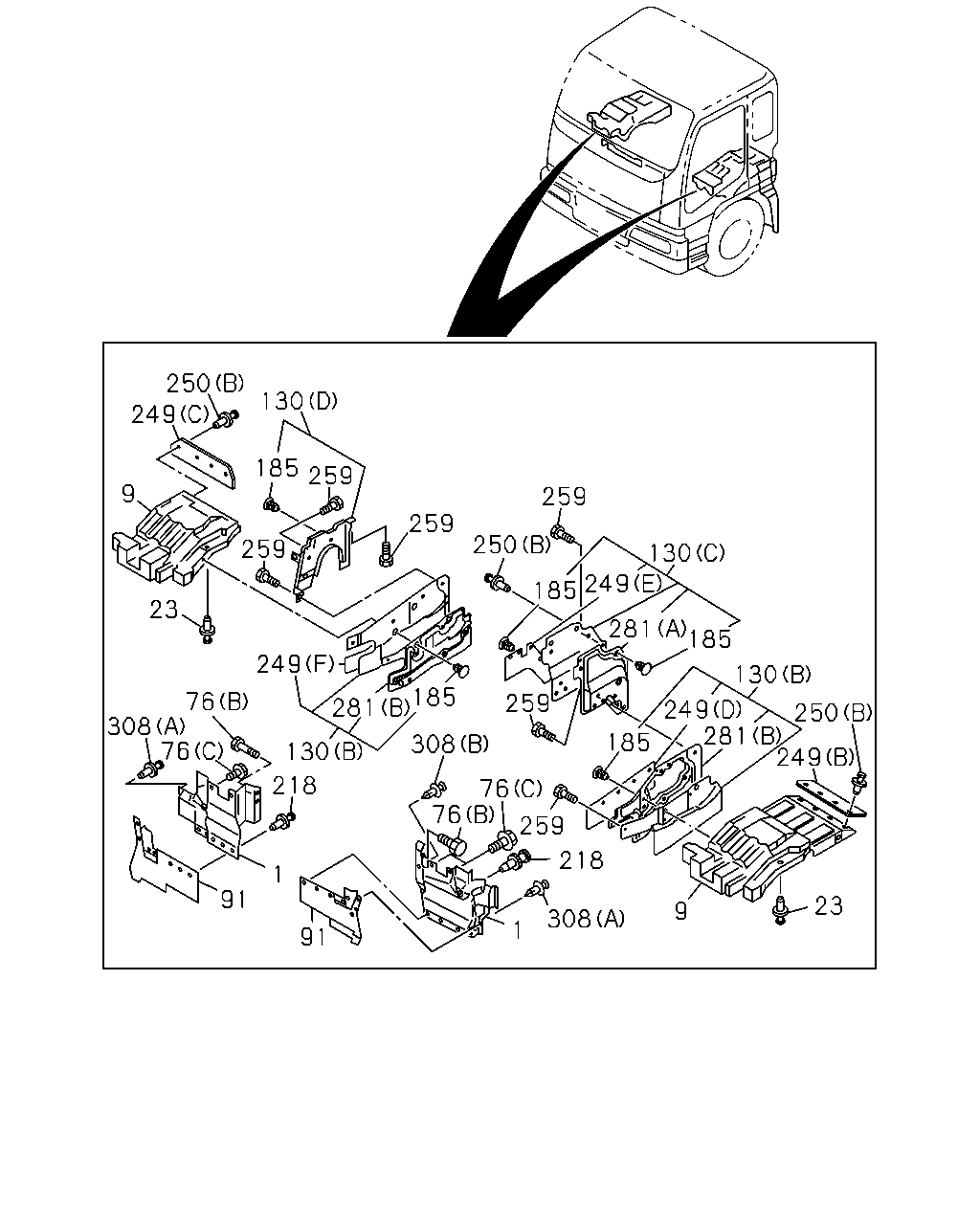

250 130 249 185 259 9 259 259 250 259 130 249 185 23 281 185 249 130 185 281 259 76 308 76 249 281 249 250 185 308 130 218 76 76 259 218 1 91 23 9 308 1 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9902-0003	●
1	GUARD; MUD,FRT	1-79937-895-4	01	1	0004-	●	●
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9902-0003	●
1	GUARD; MUD,FRT	1-79937-894-5	01	1	0004-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-3	01	1	9902-0003	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-3	01	1	0004-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-3	01	1	9902-0003	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-3	01	1	0004-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	9902-0003	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0004-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9902-0003	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0004-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9902-0003	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0004-	●	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9902-0003	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0004-	●	●
91	COVER; MUD,FRT	1-79931-204-1	01	1	9902-9908	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	9909-0003	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0004-	●
91	COVER; MUD,FRT	1-79931-204-1	01	1	0004-		●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	9902-0003	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0004-	●
91	COVER; MUD,FRT	1-79931-203-1	01	1	0004-		●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9902-	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE (D)	1-79937-945-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-200-3	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-200-3	01	1	9905-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-207-3	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-207-3	01	1	9905-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-790-5	01	1	9905-0003	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-790-5	01	1	0004-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	0004-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-5	01	1	9905-0003	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-6	01	1	0004-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	0004-		●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-333-2	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (A)	1-53193-333-2	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-332-1	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-332-1	01	1	9905-	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-686-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-1	01	1	9902-0003	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	0004-	●
130	PANEL; SHUTTER NOISE (B)	1-79937-960-2	01	1	0004-		●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-990-2	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-952-3	01	1	9902-	●
130	PANEL; SHUTTER NOISE (C)	1-79937-969-1	01	1	0004-		●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-2	01	1	0004-		●
130	PANEL; SHUTTER NOISE (B)	1-79937-959-1	01	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	12	1	9902-	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	26	1	9902-	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	16	1	9902-	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	19	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	09	1	0004-		●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	9902-0003	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0004-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9902-0003	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	0004-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	0004-	●
249	RUBBER; SHUTTER (C)	1-79937-979-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	0004-	●
249	RUBBER; SHUTTER (B)	1-79937-981-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	0004-	●
249	RUBBER; SHUTTER (D)	1-79937-966-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	0004-	●
249	RUBBER; SHUTTER (E)	1-79937-967-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-989-0	01	1	9902-	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-902-2	01	1	9902-	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-975-0	01	1	9902-	●
249	RUBBER; SHUTTER (F)	1-79937-965-0	01	1	0004-		●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9902-	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9902-0003	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0004-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9902-0003	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0004-	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	04	1	0004-		●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9902-	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0004-		●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0004-		●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0004-		●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9902-	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0004-		●
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	9902-0003	●
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	0004-	●
281	INSULATOR; NOISE (B)	1-71907-171-1	01	1	9902-0003	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0004-	●	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	9902-0003	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	0004-	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9902-9904	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK) (C)	1-73237-445-3	01	1	9905-0003	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK) (C)	1-73237-445-3	01	1	0004-	●
281	INSULATOR; NOISE (C)	1-73237-445-3	01	1	0004-		●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK) (C)	1-73237-594-0	01	1	9905-	●
281	INSULATOR; NOISE (A)	1-71907-455-0	01	1	0004-		●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0004-		●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0004-		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	9902-0003	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0004-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	9902-0003	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0004-	●	●

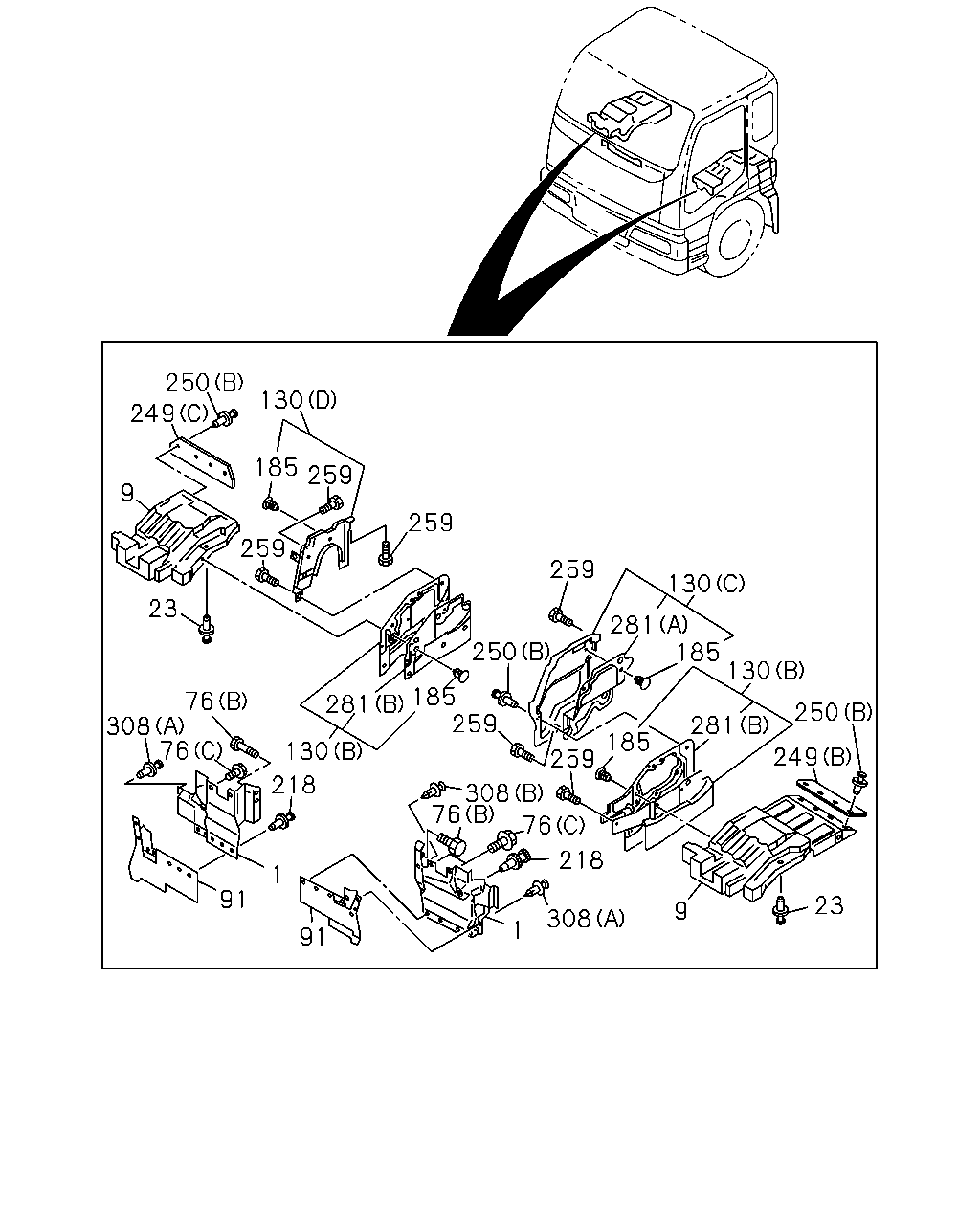

250 130 249 185 259 9 259 259 259 130 23 281 185 130 250 185 281 259 76 308 76 250 281 185 259 130 249 218 308 76 76 218 1 91 23 9 308 1 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9902-0003	●
1	GUARD; MUD,FRT	1-79937-895-4	01	1	0004-	●	●
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9902-0003	●
1	GUARD; MUD,FRT	1-79937-894-5	01	1	0004-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-3	01	1	9902-0003	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-3	01	1	0004-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-3	01	1	9902-0003	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-3	01	1	0004-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	9902-0003	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0004-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9902-0003	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0004-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9902-0003	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0004-	●	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9902-0003	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0004-	●	●
91	COVER; MUD,FRT	1-79931-204-1	01	1	9902-9908	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	9909-0003	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0004-	●
91	COVER; MUD,FRT	1-79931-204-1	01	1	0004-		●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	9902-0003	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0004-	●
91	COVER; MUD,FRT	1-79931-203-1	01	1	0004-		●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9902-	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE (D)	1-79937-945-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-200-3	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-200-3	01	1	9905-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-207-3	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-207-3	01	1	9905-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-790-5	01	1	9905-0003	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-790-5	01	1	0004-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	0004-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-5	01	1	9905-0003	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-6	01	1	0004-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	0004-		●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-333-2	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (A)	1-53193-333-2	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-332-1	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-332-1	01	1	9905-	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-686-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-1	01	1	9902-0003	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	0004-	●
130	PANEL; SHUTTER NOISE (B)	1-79937-960-2	01	1	0004-		●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-990-2	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-952-3	01	1	9902-	●
130	PANEL; SHUTTER NOISE (C)	1-79937-969-1	01	1	0004-		●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-2	01	1	0004-		●
130	PANEL; SHUTTER NOISE (B)	1-79937-959-1	01	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	12	1	9902-	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	26	1	9902-	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	16	1	9902-	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	19	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	09	1	0004-		●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	9902-0003	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0004-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9902-0003	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	0004-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	0004-	●
249	RUBBER; SHUTTER (C)	1-79937-979-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	0004-	●
249	RUBBER; SHUTTER (B)	1-79937-981-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	0004-	●
249	RUBBER; SHUTTER (D)	1-79937-966-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	0004-	●
249	RUBBER; SHUTTER (E)	1-79937-967-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-989-0	01	1	9902-	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-902-2	01	1	9902-	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-975-0	01	1	9902-	●
249	RUBBER; SHUTTER (F)	1-79937-965-0	01	1	0004-		●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9902-	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9902-0003	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0004-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9902-0003	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0004-	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	04	1	0004-		●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9902-	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0004-		●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0004-		●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0004-		●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9902-	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0004-		●
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	9902-0003	●
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	0004-	●
281	INSULATOR; NOISE (B)	1-71907-171-1	01	1	9902-0003	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0004-	●	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	9902-0003	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	0004-	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9902-9904	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK) (C)	1-73237-445-3	01	1	9905-0003	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK) (C)	1-73237-445-3	01	1	0004-	●
281	INSULATOR; NOISE (C)	1-73237-445-3	01	1	0004-		●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK) (C)	1-73237-594-0	01	1	9905-	●
281	INSULATOR; NOISE (A)	1-71907-455-0	01	1	0004-		●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0004-		●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0004-		●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	9902-0003	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0004-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	9902-0003	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0004-	●	●

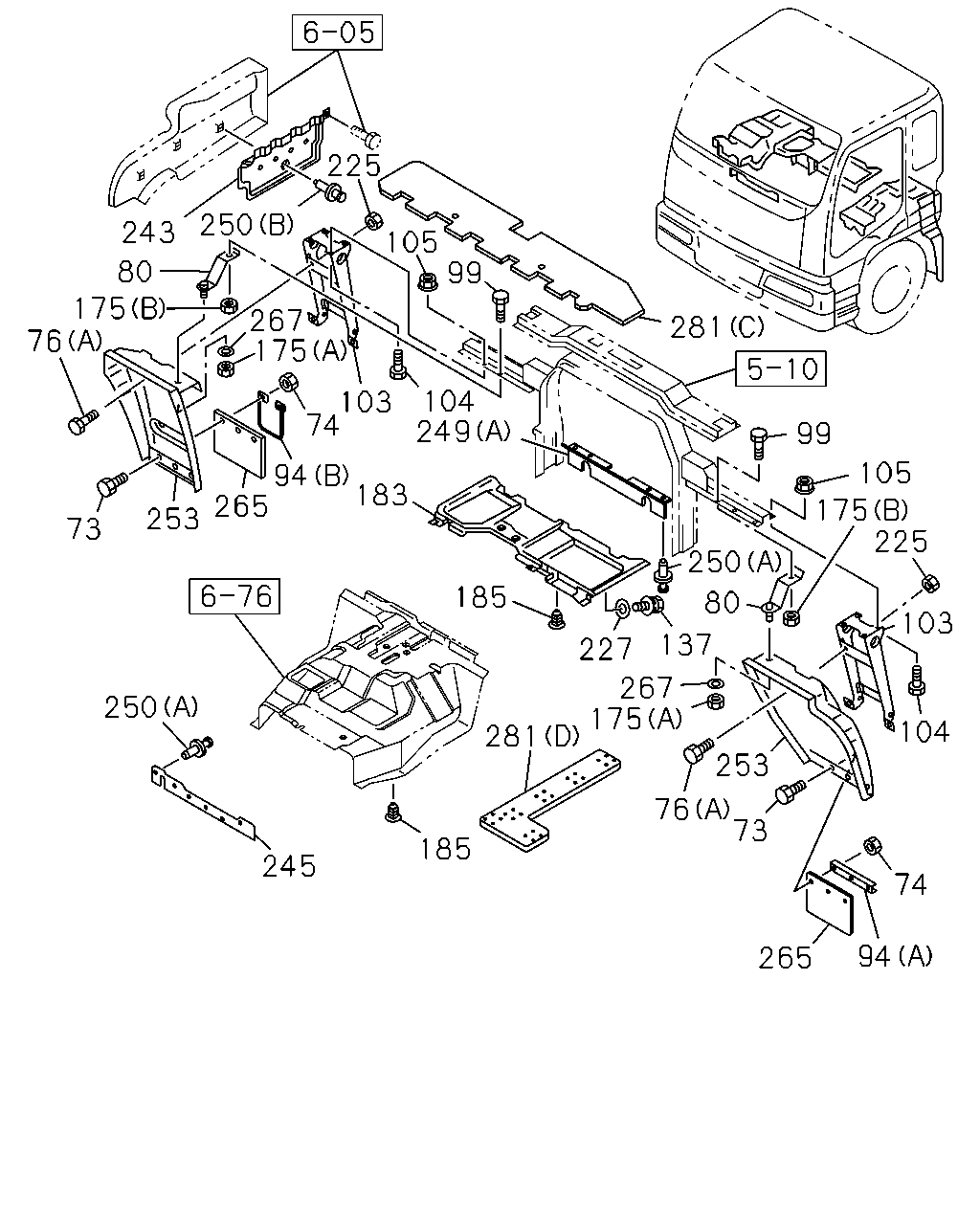

225 250 105 99 243 80 175 76 281 267 175 104 249 103 74 99 105 94 183 265 175 225 253 73 250 103 185 80 137 227 267 175 281 250 104 253 76 73 185 245 74 94 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9902-0003	●
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	0004-	●	●
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	0004-		●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9902-9904	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9905-0003	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	0004-	●
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9902-9904	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9905-0003	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	0004-	●
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9902-9904	●
73	BOLT; MUD COVER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9905-0003	●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9905-0003	●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	0004-	●	●
73	BOLT; MUD COVER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	02	1	9902-9904	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	9902-9904	●
74	NUT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	9905-0003	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	9905-0003	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
74	NUT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	0004-		●
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9905-	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9902-0003	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0004-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9902-0003	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0004-	●	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9902-0003	●
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0004-	●	●
80	BRACKET; MUD GUARD STAY	1-79931-159-0	02	1	9902-0003	●
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	0004-	●	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	9902-0003	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	0004-	●	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	0004-		●
94	RETAINER; FLAP RUBBER EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-194-0	01	1	9902-0003	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	01	1	9902-0003	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	01	1	0004-	●	●
94	RETAINER; FLAP RUBBER EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-79931-194-0	01	1	0004-	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	01	1	0004-		●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	02	1	9902-0003	●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	02	1	0004-	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-347-1	01	1	9902-	●
103	BRACKET ASM; RR MUD FLAP	1-79931-307-1	01	1	9902-0003	●
103	BRACKET ASM; RR MUD FLAP LHD RH/RHD LH	1-79931-307-1	01	1	0004-	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-308-1	01	1	0004-		●
104	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	06	1	9902-0003	●
104	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	06	1	0004-	●	●
105	NUT; BRKT M10 FLANGE	0-91150-210-0	06	1	9902-0003	●
105	NUT; BRKT M10 FLANGE	0-91150-210-0	06	1	0004-	●	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9902-0003	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0004-	●	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	02	1	9902-0003	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	01	1	0004-	●	●
183	INSULATOR; HEAT,BED PAN	1-71907-539-2	01	1	9902-	●
183	INSULATOR; HEAT,BED PAN	1-71907-526-2	01	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	12	1	9902-	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	26	1	9902-	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	16	1	9902-	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	19	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0004-		●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	09	1	0004-		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	9902-0003	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	0004-	●	●
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	9902-0003	●
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	0004-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-1	01	1	9902-0003	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-1	01	1	0004-	●	●
245	RUBBER; SHUTTER,RAD	1-79937-949-0	01	1	9902-	●
245	RUBBER; SHUTTER,RAD	1-79937-982-0	01	1	0004-		●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9902-0003	●
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	0004-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-979-0	01	1	0004-	●
249	RUBBER; SHUTTER (C)	1-79937-979-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-981-0	01	1	0004-	●
249	RUBBER; SHUTTER (B)	1-79937-981-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	0004-	●
249	RUBBER; SHUTTER (D)	1-79937-966-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	9902-0003	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-0	01	1	0004-	●
249	RUBBER; SHUTTER (E)	1-79937-967-0	01	1	0004-		●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-989-0	01	1	9902-	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-902-2	01	1	9902-	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-975-0	01	1	9902-	●
249	RUBBER; SHUTTER (F)	1-79937-965-0	01	1	0004-		●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	12	1	9902-	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9902-0003	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0004-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9902-0003	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0004-	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	04	1	0004-		●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9902-	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0004-		●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0004-		●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0004-		●
253	GUARD; MUD	1-79931-067-7	01	1	9902-0003	●
253	GUARD; MUD	1-79931-067-7	01	1	0004-	●	●
253	GUARD; MUD	1-79931-065-7	01	1	9902-0003	●
253	GUARD; MUD	1-79931-065-7	01	1	0004-	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	02	1	9902-0003	●
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	0004-	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	0004-		●
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	9902-0003	●
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	0004-	●	●
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	9902-0003	●
281	INSULATOR; NOISE (A)	1-71907-167-0	01	1	0004-	●
281	INSULATOR; NOISE (B)	1-71907-171-1	01	1	9902-0003	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0004-	●	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	9902-0003	●
281	INSULATOR; NOISE (B)	1-79937-956-1	01	1	0004-	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9902-9904	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK) (C)	1-73237-445-3	01	1	9905-0003	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> EXC. BRAZIL EQUIPMENT(TKK) (C)	1-73237-445-3	01	1	0004-	●
281	INSULATOR; NOISE (C)	1-73237-445-3	01	1	0004-		●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> BRAZIL EQUIPMENT(TKK) (C)	1-73237-594-0	01	1	9905-	●
281	INSULATOR; NOISE (A)	1-71907-455-0	01	1	0004-		●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0004-		●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0004-		●

140 140 131 130 131 73 73 73 163 74 162 73 162 163 130 131 135 74 131 133 135 133 114 73 73 73 73 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9902-0003	●
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	0004-	●	●
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	0004-		●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9902-9904	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9905-0003	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	0004-	●
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9902-9904	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9905-0003	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	0004-	●
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9902-9904	●
73	BOLT; MUD COVER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9905-0003	●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9905-0003	●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	0004-	●	●
73	BOLT; MUD COVER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	02	1	9902-9904	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	9902-9904	●
74	NUT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	9905-0003	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	9905-0003	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
74	NUT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	0004-		●
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9905-	●
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9902-9904	●
114	BOLT EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9905-0003	●
114	BOLT EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	0004-	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	0004-		●
114	BOLT RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	9905-	●
114	BOLT 6WG1 TC-R(75L) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE (D)	1-79937-945-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-200-3	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-200-3	01	1	9905-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-207-3	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-207-3	01	1	9905-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-790-5	01	1	9905-0003	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-790-5	01	1	0004-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	0004-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-5	01	1	9905-0003	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-6	01	1	0004-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	0004-		●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-333-2	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (A)	1-53193-333-2	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-332-1	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-332-1	01	1	9905-	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-686-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-1	01	1	9902-0003	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	0004-	●
130	PANEL; SHUTTER NOISE (B)	1-79937-960-2	01	1	0004-		●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-990-2	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-952-3	01	1	9902-	●
130	PANEL; SHUTTER NOISE (C)	1-79937-969-1	01	1	0004-		●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-2	01	1	0004-		●
130	PANEL; SHUTTER NOISE (B)	1-79937-959-1	01	1	0004-		●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9902-0003	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0004-	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28680-825-0	04	1	9902-9904	●
133	BOLT; FRAME EXC. RADIATOR HEAVY DUTY<V05> M8X25 FLANGE	0-28680-825-0	04	1	9905-0003	●
133	BOLT; FRAME EXC. RADIATOR HEAVY DUTY<V05> M8X25 FLANGE	0-28680-825-0	04	1	0004-	●
133	BOLT; FRAME M8X25 FLANGE	0-28680-825-0	04	1	0004-		●
133	BOLT; FRAME RADIATOR HEAVY DUTY<V05> M8X25 FLANGE	0-28680-825-0	02	1	9905-	●
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	9902-9904	●
135	BRACKET; SIDE PANEL EXC. RADIATOR HEAVY DUTY<V05> (B)	1-53441-507-0	01	1	9905-0003	●
135	BRACKET; SIDE PANEL EXC. RADIATOR HEAVY DUTY<V05> (B)	1-53441-507-0	01	1	0004-	●
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	0004-		●
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-509-0	01	1	9902-0003	●
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-509-0	01	1	0004-	●
135	BRACKET; SIDE PANEL (A)	1-53441-509-0	01	1	0004-		●
135	BRACKET; SIDE PANEL EXC. ELECTRONIC GOV RED3(KG5) (A)	1-53441-508-0	01	1	9902-	●
140	BOLT; SIDE PANEL CAB UP +110MM<TGG> (A) M8X20 FLANGE	0-28680-820-0	01	1	9903-0003	●
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
140	BOLT; SIDE PANEL CAB UP +110MM<TGG> (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-0003	●
140	BOLT; SIDE PANEL (B) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
162	BRACKET	1-53441-520-0	02	1	9902-0003	●
162	BRACKET	1-53441-520-0	02	1	0004-	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9902-0003	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0004-	●	●

140 140 131 130 131 73 73 73 163 74 162 73 251 130 162 163 251 74 131 135 131 133 135 133 114 73 73 73 73 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9902-0003	●
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	0004-	●	●
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	0004-		●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9902-9904	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9905-0003	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	0004-	●
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9902-9904	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9905-0003	●
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	0004-	●
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9902-9904	●
73	BOLT; MUD COVER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9905-0003	●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9905-0003	●
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	0004-	●	●
73	BOLT; MUD COVER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	02	1	9902-9904	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9905-0003	●
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	9902-9904	●
74	NUT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	9905-0003	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	9905-0003	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	0004-	●	●
74	NUT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	0004-	●
74	NUT M8 FLANGE	0-91150-108-0	03	1	0004-		●
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9905-	●
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9902-9904	●
114	BOLT EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9905-0003	●
114	BOLT EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	0004-	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	0004-		●
114	BOLT RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	9905-	●
114	BOLT 6WG1 TC-R(75L) M8X20 FLANGE	0-28680-820-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE (D)	1-79937-945-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-200-3	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-200-3	01	1	9905-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-207-3	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-207-3	01	1	9905-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-790-5	01	1	9905-0003	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-790-5	01	1	0004-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	0004-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-5	01	1	9905-0003	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-6	01	1	0004-	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	0004-		●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-333-2	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (A)	1-53193-333-2	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-332-1	01	1	9902-9904	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-332-1	01	1	9905-	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-686-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9905-	●
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9905-	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-1	01	1	9902-0003	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	0004-	●
130	PANEL; SHUTTER NOISE (B)	1-79937-960-2	01	1	0004-		●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-993-1	01	1	9902-	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-990-2	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-918-2	01	1	9902-	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-952-3	01	1	9902-	●
130	PANEL; SHUTTER NOISE (C)	1-79937-969-1	01	1	0004-		●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-2	01	1	0004-		●
130	PANEL; SHUTTER NOISE (B)	1-79937-959-1	01	1	0004-		●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9902-0003	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0004-	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28680-825-0	04	1	9902-9904	●
133	BOLT; FRAME EXC. RADIATOR HEAVY DUTY<V05> M8X25 FLANGE	0-28680-825-0	04	1	9905-0003	●
133	BOLT; FRAME EXC. RADIATOR HEAVY DUTY<V05> M8X25 FLANGE	0-28680-825-0	04	1	0004-	●
133	BOLT; FRAME M8X25 FLANGE	0-28680-825-0	04	1	0004-		●
133	BOLT; FRAME RADIATOR HEAVY DUTY<V05> M8X25 FLANGE	0-28680-825-0	02	1	9905-	●
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	9902-9904	●
135	BRACKET; SIDE PANEL EXC. RADIATOR HEAVY DUTY<V05> (B)	1-53441-507-0	01	1	9905-0003	●
135	BRACKET; SIDE PANEL EXC. RADIATOR HEAVY DUTY<V05> (B)	1-53441-507-0	01	1	0004-	●
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	0004-		●
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-509-0	01	1	9902-0003	●
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-509-0	01	1	0004-	●
135	BRACKET; SIDE PANEL (A)	1-53441-509-0	01	1	0004-		●
135	BRACKET; SIDE PANEL EXC. ELECTRONIC GOV RED3(KG5) (A)	1-53441-508-0	01	1	9902-	●
140	BOLT; SIDE PANEL CAB UP +110MM<TGG> (A) M8X20 FLANGE	0-28680-820-0	01	1	9903-0003	●
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28680-820-0	01	1	0004-	●	●
140	BOLT; SIDE PANEL CAB UP +110MM<TGG> (B) M8X30 FLANGE	0-28680-830-0	02	1	9903-0003	●
140	BOLT; SIDE PANEL (B) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
162	BRACKET	1-53441-520-0	02	1	9902-0003	●
162	BRACKET	1-53441-520-0	02	1	0004-	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9902-0003	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0004-	●	●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	14	1	9902-0003	●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	14	1	0004-	●	●
251	CLIP; NOISE INSULATOR 6WG1 TC-R(75L)	5-09987-033-0	05	1	9905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
