Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#77375) — 243 parça

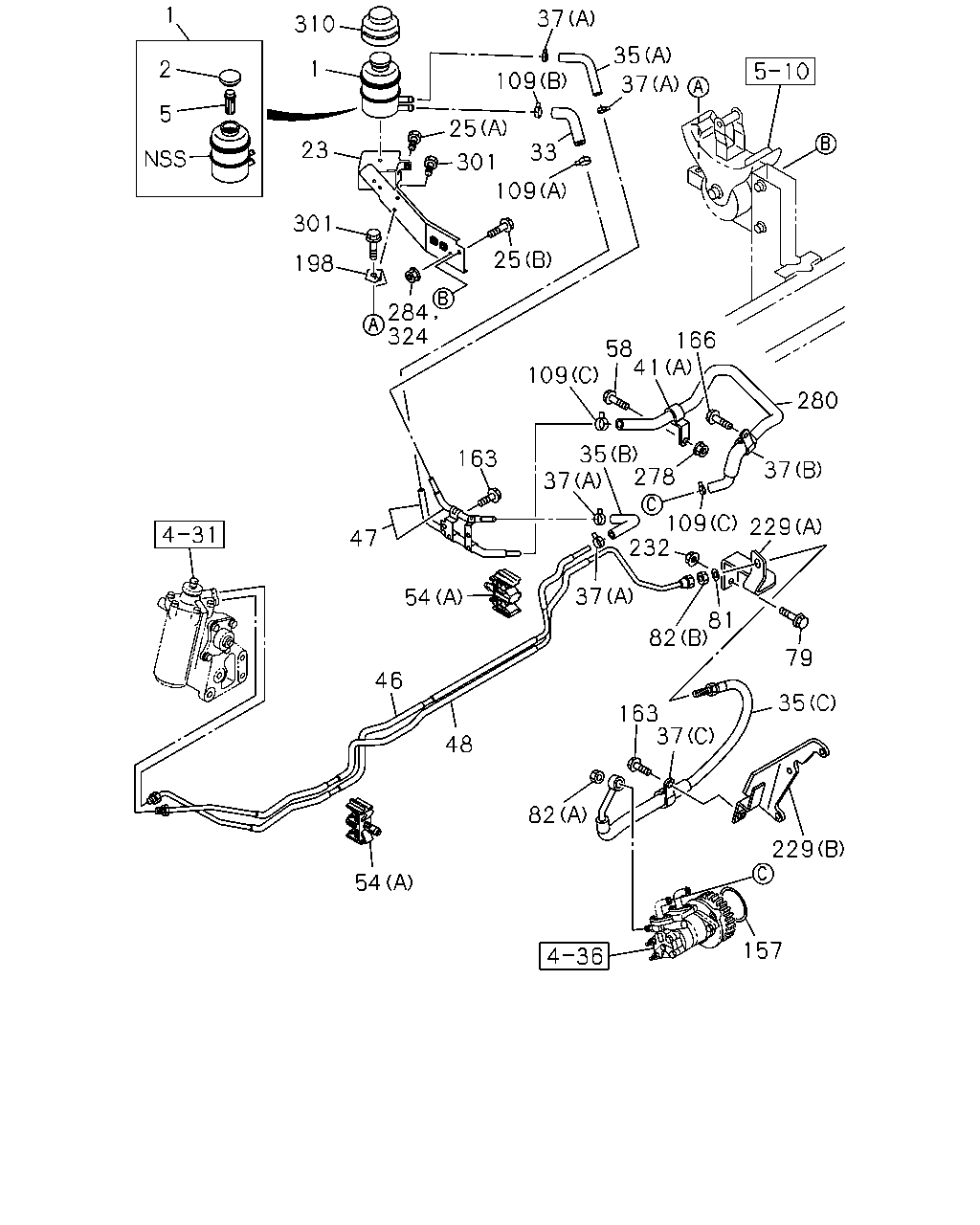

1 37 310 35 2 1 109 37 5 25 23 33 301 109 301 25 198 284 324 166 58 41 109 280 35 37 278 163 37 109 232 229 47 37 54 81 82 79 46 35 163 37 48 82 229 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0905-0906	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0907-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0905-0906	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0907-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0905-0906	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0907-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0905-0906	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0907-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0905-0906	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0907-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0905-0906	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0907-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-490-3	01	1	0907-		●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0905-0906	●
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	0907-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0905-0906	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0907-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0905-0906	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0907-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98092-679-0	01	1	0905-0906		●
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-679-0	01	1	0907-		●
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911			●
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-			●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	0905-0906	●	●
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	0907-	●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0905-0906	●	●
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0907-	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0905-0906	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0907-0911	●	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=21	8-94242-034-0	01	1	0907-0911	●	●
41	06.672 CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0907-0911			●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	0912-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	0912-			●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	0907-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	0907-			●
41	06.672 CLIP; HOSE,P/S (A)	8-98074-004-0	01	1	0905-0906	●
41	06.672 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-004-0	01	1	0907-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0905-0906	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ>	8-98041-184-3	01	1	0907-	●	●
47	06.671 PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	0907-	●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	0907-			●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	0905-0906	●
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98033-896-4	01	1	0907-	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	0905-0906		●
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98043-420-4	01	1	0907-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-081-2	01	1	0907-1012	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98068-081-2	01	1	0907-1012			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-808-0	01	1	1101-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1101-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0905-0906	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ>	8-98041-185-4	01	1	0907-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	0905-0906		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ>	8-98069-442-4	01	1	0907-		●
54	06.672 CLIP; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-283-0	02	1	0907-	●	●
54	06.672 CLIP; OIL PIPE (B)	8-98057-283-0	02	1	0907-			●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	02	1	0905-0906	●	●
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	02	1	0907-	●	●
58	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
58	06.672 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0907-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0907-			●
79	06.672 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0905-0906		●
79	06.672 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0907-		●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0905-0906	●	●
81	06.672 WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0907-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0905-0906	●	●
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	0907-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0905-0906	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0907-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0905-0906	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=21	8-94242-034-0	02	1	0905-0906	●	●
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=21	8-94242-034-0	02	1	0907-0911	●	●
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> 04.681 (C) ID=21	8-98150-355-0	02	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0905-0906	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003	●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0905-0906	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97101-875-2	01	1	0907-	●	●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0907-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0907-			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●	●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
166	06.672 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0905-0906	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0907-	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98034-114-2	01	1	0905-0906	●	●
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98034-114-2	01	1	0907-1106	●	●
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1107-	●	●
229	06.606 BRACKET; HOSE,POWER STRG (A)	8-98079-341-0	01	1	0905-0906	●
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-341-0	01	1	0907-	●
229	06.606 BRACKET; HOSE,POWER STRG 06.672 (A)	8-98043-418-2	01	1	0905-0906		●
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> 06.672 (A)	8-98043-418-2	01	1	0907-		●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0905-0906	●	●
232	06.672 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906	●
278	06.670 NUT; HOSE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	0907-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	0907-			●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	0907-	●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98043-489-0	01	1	0907-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-247-1	01	1	0905-0906	●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98052-247-1	01	1	0907-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98043-488-1	01	1	0905-0906		●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98043-488-1	01	1	0907-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906	●	●
284	06.670 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0905-0906	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0907-	●		●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906		●
324	06.660 NUT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-		●

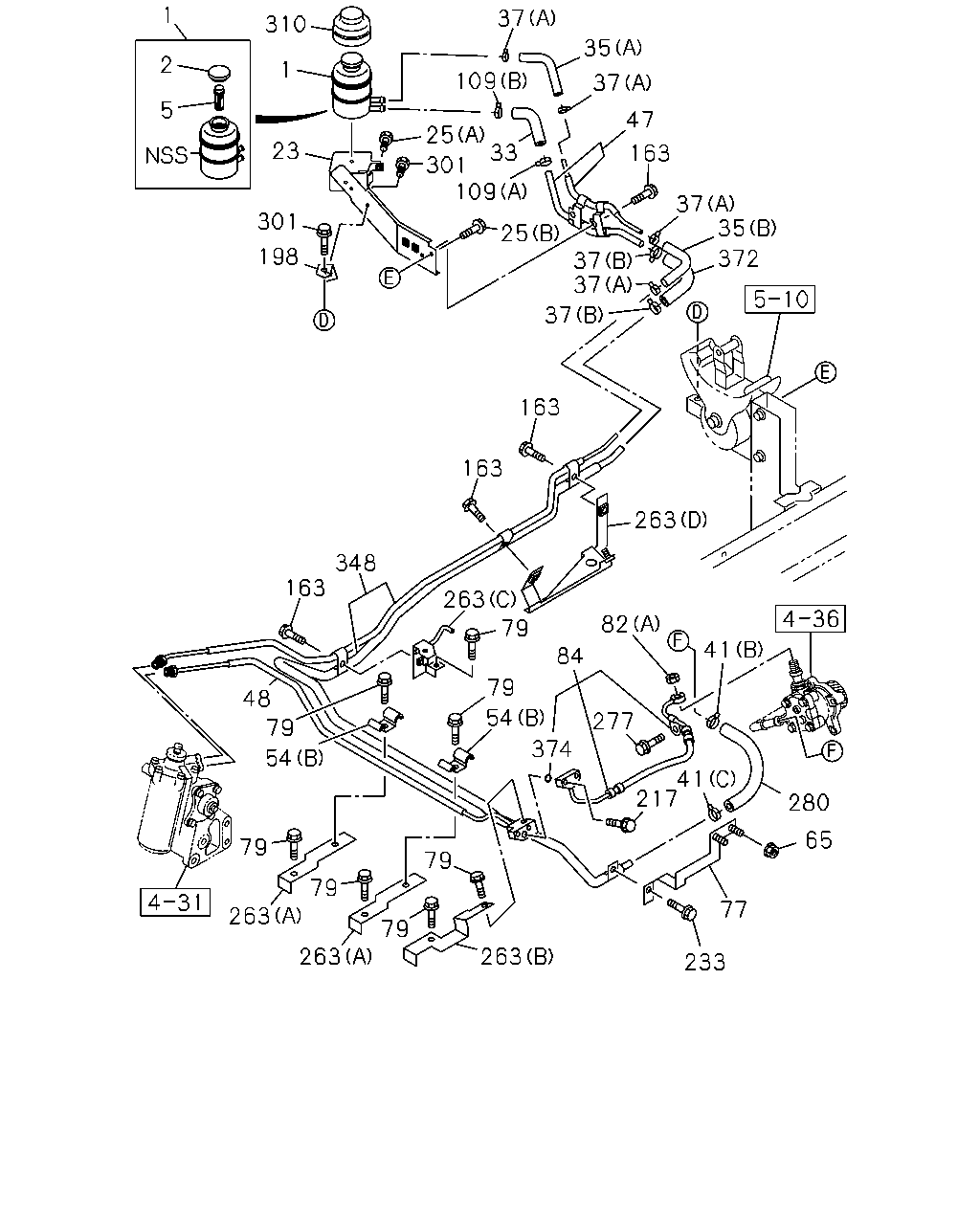

1 37 310 35 2 1 109 37 5 47 25 33 23 163 301 109 37 35 25 301 198 372 37 37 37 163 163 263 348 163 263 82 79 41 84 79 48 54 277 79 374 54 41 217 280 79 65 79 79 77 263 79 263 263 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0905-0906	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0907-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0905-0906	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0907-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0905-0906	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0907-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0905-0906	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0907-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0905-0906	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0907-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0905-0906	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0907-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-490-3	01	1	0907-		●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0905-0906	●
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	0907-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0905-0906	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0907-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0905-0906	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0907-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98092-679-0	01	1	0905-0906		●
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-679-0	01	1	0907-		●
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911			●
37	01.762 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	02	1	0912-	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-			●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	0905-0906	●	●
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	0907-	●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0905-0906	●	●
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0907-	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0905-0906	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0907-0911	●	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=21	8-94242-034-0	01	1	0907-0911	●	●
41	06.672 CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0907-0911			●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 (B) ID=21	8-98150-355-0	01	1	0912-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	0912-			●
41	06.672 CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 08.846 (C) ID=21.7	8-97203-074-0	01	1	0907-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	0907-			●
41	06.672 CLIP; HOSE,P/S (A)	8-98074-004-0	01	1	0905-0906	●
41	06.672 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-004-0	01	1	0907-	●
47	06.671 PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	0907-	●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	0907-			●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	0905-0906	●
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98033-896-4	01	1	0907-	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	0905-0906		●
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98043-420-4	01	1	0907-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98068-081-2	01	1	0907-1012	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98068-081-2	01	1	0907-1012			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-808-0	01	1	1101-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-808-0	01	1	1101-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0905-0906	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ>	8-98041-185-4	01	1	0907-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	0905-0906		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ>	8-98069-442-4	01	1	0907-		●
54	06.672 CLIP; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-283-0	02	1	0907-	●	●
54	06.672 CLIP; OIL PIPE (B)	8-98057-283-0	02	1	0907-			●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	02	1	0905-0906	●	●
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	02	1	0907-	●	●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-			●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	0907-	●	●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC)	8-98047-049-2	01	1	0907-			●
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0907-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0907-			●
79	06.672 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0905-0906		●
79	06.672 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0907-		●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0905-0906	●	●
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	0907-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0905-0906	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0907-	●	●	●
84	06.670 HOSE; FLEX,P/S EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-698-3	01	1	0907-	●	●
84	06.670 HOSE; FLEX,P/S	8-98046-698-3	01	1	0907-			●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0905-0906	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=21	8-94242-034-0	02	1	0905-0906	●	●
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=21	8-94242-034-0	02	1	0907-0911	●	●
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> 04.681 (C) ID=21	8-98150-355-0	02	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0905-0906	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003	●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0907-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0907-			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●	●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0905-0906	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0907-	●	●	●
217	06.672 BOLT; FLEX HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0907-	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0907-			●
233	06.672 BOLT; PIPE CLIP,P/S EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
233	06.672 BOLT; PIPE CLIP,P/S 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	0907-	●	●
263	06.672 BRACKET; P/S PIPE (D)	8-98006-233-1	01	1	0907-			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	0907-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98047-047-1	02	1	0907-			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	0907-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	0907-			●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98047-050-1	01	1	0907-	●	●
263	06.672 BRACKET; P/S PIPE (C)	8-98047-050-1	01	1	0907-			●
277	06.672 BOLT; HOSE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-			●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	0907-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	0907-			●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	0907-	●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98043-489-0	01	1	0907-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-247-1	01	1	0905-0906	●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98052-247-1	01	1	0907-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98043-488-1	01	1	0905-0906		●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98043-488-1	01	1	0907-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0905-0906	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0907-	●		●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-610-1	01	1	0907-	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-610-1	01	1	0907-			●
372	06.673 HOSE; RUBBER EXC. FRAME STRAIGHT TYPE<7KJ> 06.672	8-98000-700-0	01	1	0907-1008	●	●
372	06.673 HOSE; RUBBER 06.672	8-98000-700-0	01	1	0907-1008			●
372	06.673 HOSE; RUBBER EXC. FRAME STRAIGHT TYPE<7KJ> 06.672	8-98171-278-0	01	1	1009-	●	●
372	06.673 HOSE; RUBBER 06.672	8-98171-278-0	01	1	1009-			●
374	06.673 GASKET; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ>	8-98139-036-0	01	1	0907-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	0907-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
