4-10 — FRONT AXLE (#77368) — 129 parça

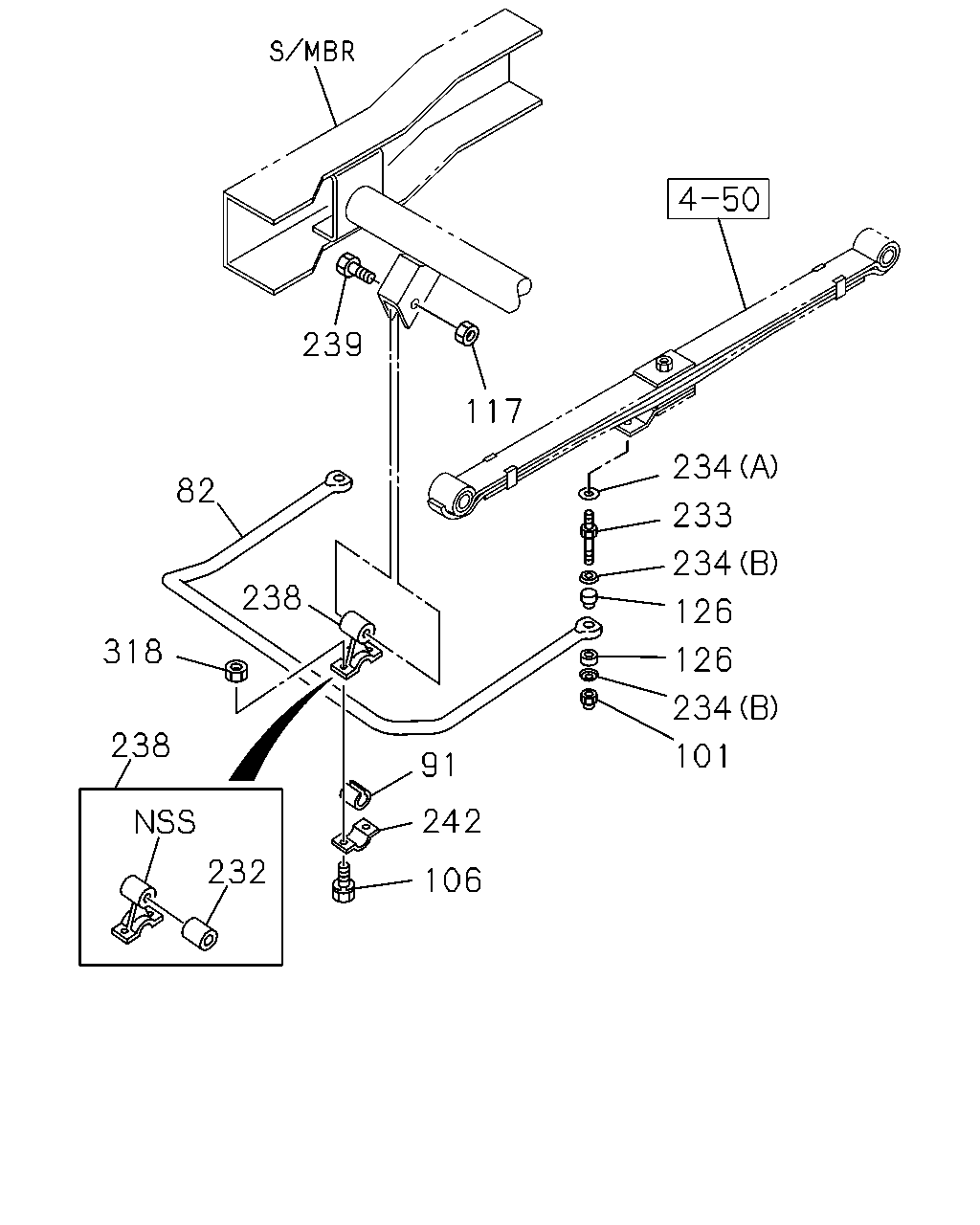

çizim 122524
239 117 234 82 233 234 238 126 318 126 234 238 101 91 242 232 106
BalonParca AdiParca NoAdetTipApplied Date A B C
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98006-957-0 01 1 0905-0906 ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98006-957-0 01 1 0907- ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0905-0906 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0907- ● ● ●
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 0905-0906 ● ●
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 0907- ● ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0905-0906 ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0907- ● ● ●
117 06.174 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 0905-0906 ● ●
117 06.174 NUT; STAB BAR BUSHING
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		8-97360-124-0 02 1 0907- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 0905-0906 ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-083-0 04 1 0907- ● ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0905-0906 ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0907- ● ● ●
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 0905-0906 ● ●
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 0907- ● ● ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 0905-0906 ● ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 0907- ● ● ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) 		8-97360-055-0 04 1 0905-0906 ● ●
234 07.242 WASHER; STAB
FRONT STABILIZER SHAFT<F59> (B) 		8-97360-055-0 04 1 0907- ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0905-0906 ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0907- ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 0905-0906 ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 0907- ● ● ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0905-0906 ● ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0907- ● ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0905-0906 ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0907-1006 ● ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1007- ● ● ●

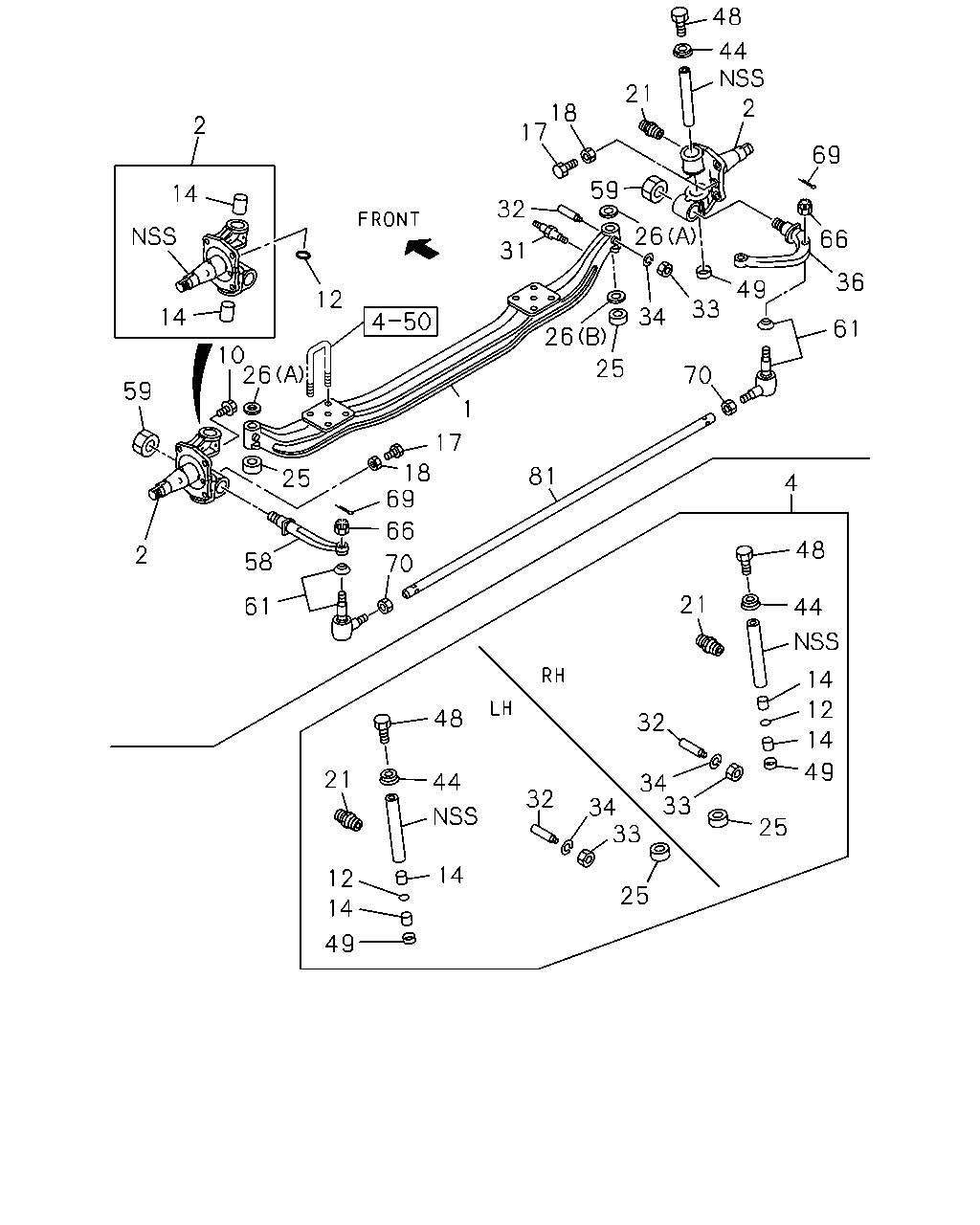

çizim 186563
48 44 2 21 18 17 2 69 59 4 32 26 66 31 26 36 49 12 33 34 14 61 10 26 25 70 59 1 17 18 69 81 25 4 66 48 2 58 70 21 61 44 14 12 48 32 14 49 21 44 34 33 32 34 33 25 14 12 25 14 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.008 AXLE; FRT 8-98038-384-0 01 1 0905-0906 ● ●
1 06.008 AXLE; FRT 8-98038-384-3 01 1 0907- ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98009-941-0 01 1 0907-1111 ● ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98009-941-1 01 1 1112- ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98009-942-0 01 1 0907-1111 ● ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98009-942-1 01 1 1112- ● ●
2 06.020 KNUCKLE; FRT AXLE 8-98120-606-1 01 1 0907- ●
2 06.020 KNUCKLE; FRT AXLE 8-98120-607-1 01 1 0907- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0905-0906 ● ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97261-549-1 01 1 0907-1111 ● ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97261-549-2 01 1 1112- ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97261-549-2 01 1 1112- ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0905-0906 ● ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97261-550-1 01 1 0907-1111 ● ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97261-550-2 01 1 1112- ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97261-550-2 01 1 1112- ● ●
4 06.203 KING PIN KIT
W/NOTCH 		5-87832-252-1 01 1 0907- ●
4 06.203 KING PIN KIT
FRAME STRAIGHT TYPE<7KJ> 		5-87832-220-2 01 1 1403- ● ●
4 06.203 KING PIN KIT 5-87832-219-2 01 1 0905-1402 ● ●
4 06.203 KING PIN KIT
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87832-219-2 01 1 1403- ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0905-0906 ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0907- ● ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 0905-0906 ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 0907- ● ● ●
14 06.021 BUSHING; KING PIN
W/NOTCH 		8-98113-104-0 04 1 0907- ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 0905- ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0905-0906 ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0907- ● ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 0905-0906 ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 0907- ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 0905-0906 ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 0907- ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 		8-94248-883-2 02 1 0905-0906 ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 		8-94248-883-2 02 1 0907-1402 ● ● ●
25 06.210 BEARING; THRUST,KING PIN
EXC. FRAME STRAIGHT TYPE<7KJ> 06.021 		8-94248-883-2 02 1 1403- ● ●
25 06.210 BEARING; THRUST,KING PIN
FRAME STRAIGHT TYPE<7KJ> 06.021 		8-94248-883-2 01 1 1403- ● ●
25 06.210 BEARING; THRUST,KING PIN
FRAME STRAIGHT TYPE<7KJ> 		8-97141-943-1 01 1 1403- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0905-0906 ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0907- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0905-0906 ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0907- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0905-0906 ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0907- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0905-0906 ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0907- ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 02 1 0905-0906 ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 02 1 0907-1402 ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ● ●
26 06.022 SHIM; KING PIN,BRG
EXC. FRAME STRAIGHT TYPE<7KJ> 05.460 (B) T=1.95 		8-94168-490-0 01 1 1403- ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0905-0906 ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0907- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0905-0906 ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0907- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0905-0906 ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0907- ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 0905-0906 ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 0907- ● ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-1 02 1 0905-0906 ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 0907- ● ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 0905-0906 ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 0907- ● ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 0905-0906 ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 0907- ● ● ●
36 06.103 ARM; KNUCKLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) 		8-97226-688-3 01 1 0907-1008 ●
36 06.103 ARM; KNUCKLE 8-97226-688-3 01 1 0907-1008 ●
36 06.103 ARM; KNUCKLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) 		8-97226-688-4 01 1 1009- ●
36 06.103 ARM; KNUCKLE 8-97226-688-4 01 1 1009- ●
36 06.103 ARM; KNUCKLE 8-97202-776-3 01 1 0905-0906 ● ●
36 06.103 ARM; KNUCKLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 		8-97202-776-4 01 1 0907-1201 ●
36 06.103 ARM; KNUCKLE 8-97202-776-4 01 1 0907-1201 ●
36 06.103 ARM; KNUCKLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 		8-97202-776-4 01 1 1202- ●
36 06.103 ARM; KNUCKLE 8-97202-776-4 01 1 1202- ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0905-0906 ● ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0907- ● ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0905-0906 ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0907- ● ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 0905-0906 ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 0907- ● ● ●
58 06.103 ARM; TIE ROD 8-97138-304-0 01 1 0905-0906 ● ●
58 06.103 ARM; TIE ROD 8-97138-304-1 01 1 0907- ● ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 0905-0906 ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 0907- ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1311- ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 0905-0906 ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 0907-1310 ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-348-2 01 1 1311- ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 0905-0906 ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 0907-1310 ● ● ●
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0905-0906 ● ●
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0907-1204 ● ● ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0905-0906 ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0907- ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1311- ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0905-0906 ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0907-1310 ● ● ●
70 06.234 NUT; TIE ROD END
M20 		8-98043-530-0 01 1 0905-0906 ● ●
70 06.234 NUT; TIE ROD END
M20 		8-98043-530-0 01 1 0907- ● ● ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 0905-0906 ● ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 0907- ● ● ●
