3-52 — BRAKE PIPING; OIL,FRONT (#77363) — 331 parça

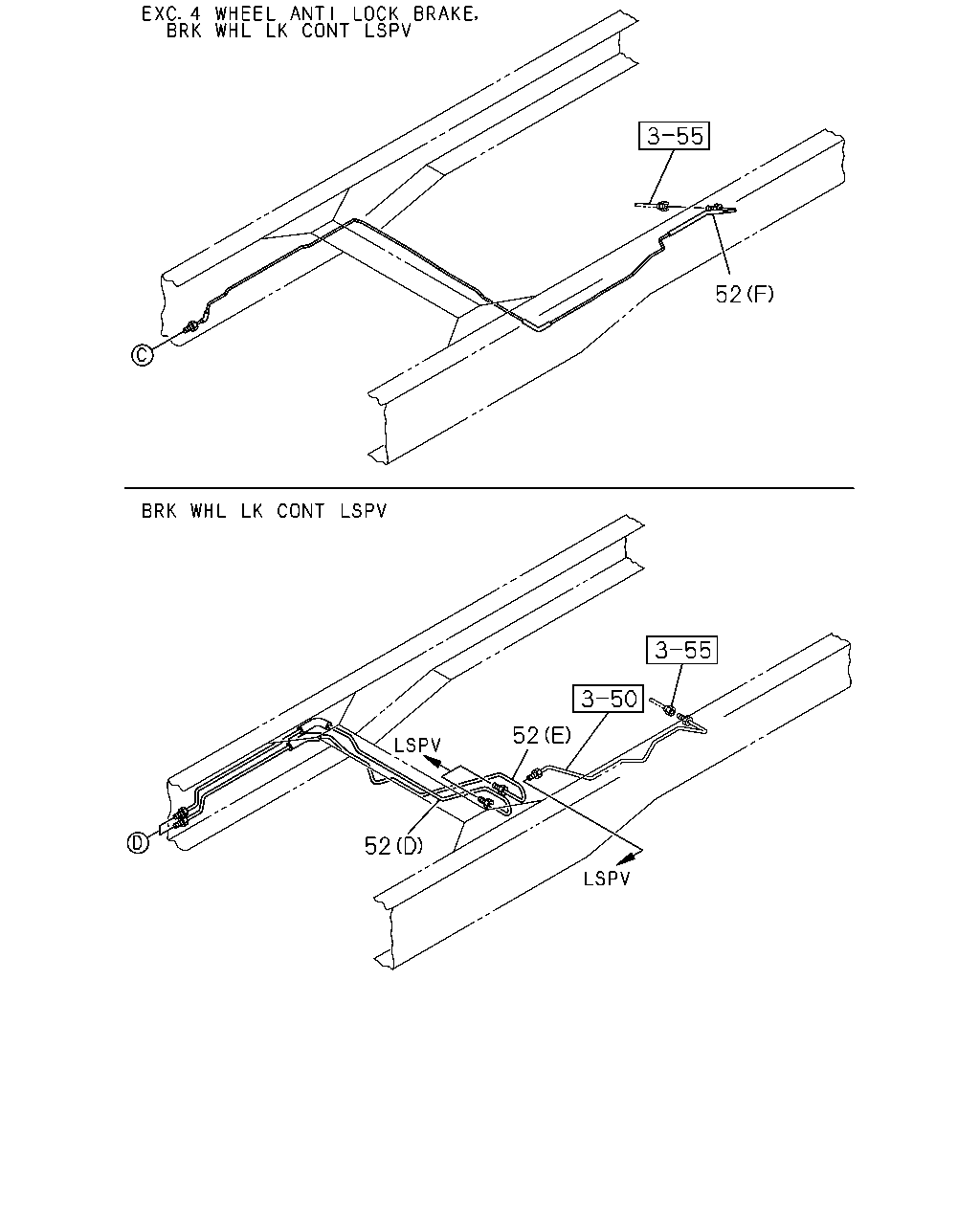

çizim 119671
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98057-262-0 01 1 1112- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98057-263-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (F) 2WAY TO REAR 		8-98056-415-0 01 1 1112- ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1112- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1112- ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1112- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-319-0 01 1 0907-1111 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (F) 2WAY TO REAR 		8-98056-319-0 01 1 1112- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-319-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1309- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1309- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1112- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1309- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1309- ● ●
52 04.685 PIPE; BRK
4HK1-TCS ENG(RJS) (C) 		8-98036-162-0 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 0907- ● ●
çizim 119725
1 9 9 5 8 8 1 9 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-97039-543-1 02 1 0907- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-481-0 02 1 0905-0906 ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-481-0 02 1 0907-0907 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97365-481-1 02 1 0907- ● ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97365-481-1 02 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 0907- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 0907- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 0905-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0907-1308 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 1309- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 0905-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0907-1308 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 1309- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0905-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0905-0906 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0907-0907 ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M10X22 		8-98014-005-0 02 1 0907- ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0907- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0905-0906 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0907-0907 ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0907- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0907- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0905-0906 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0907-0907 ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0907- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97360-054-0 02 1 0907- ● ●

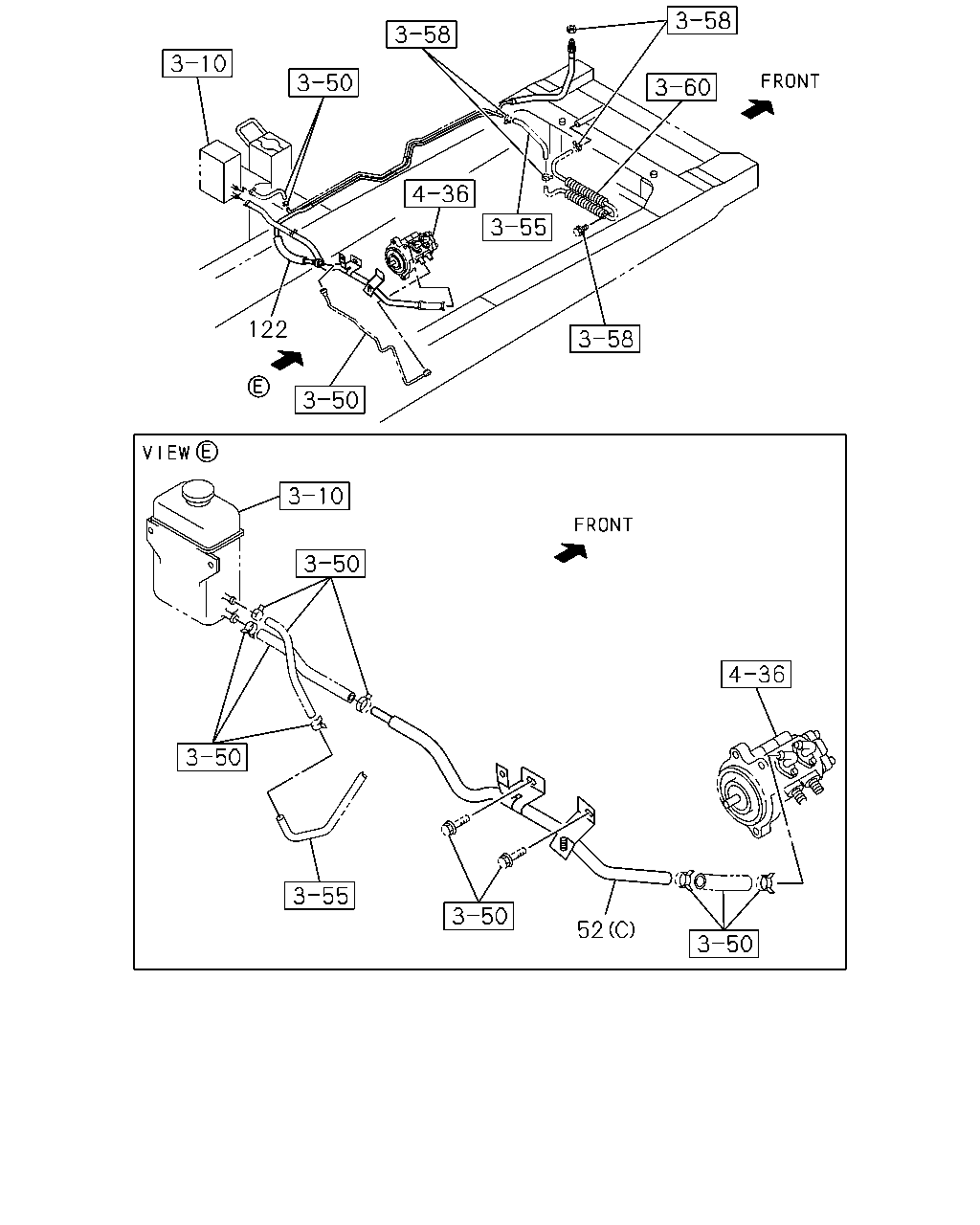

çizim 119820
122 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98057-262-0 01 1 1112- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98057-263-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (F) 2WAY TO REAR 		8-98056-415-0 01 1 1112- ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1112- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1112- ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1112- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-319-0 01 1 0907-1111 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (F) 2WAY TO REAR 		8-98056-319-0 01 1 1112- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-319-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1309- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1309- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1112- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1309- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1309- ● ●
52 04.685 PIPE; BRK
4HK1-TCS ENG(RJS) (C) 		8-98036-162-0 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 0907- ● ●
122 04.685 PIPE ASM; BRK,2 WAY 8-98041-325-3 01 1 0905-0906 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98041-325-3 01 1 0907-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1839 		8-98136-573-0 01 1 0910- ●
122 04.685 PIPE ASM; BRK,2 WAY 8-98069-783-3 01 1 0905-0906 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98069-783-3 01 1 0907-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1958 		8-98136-574-0 01 1 0910- ●

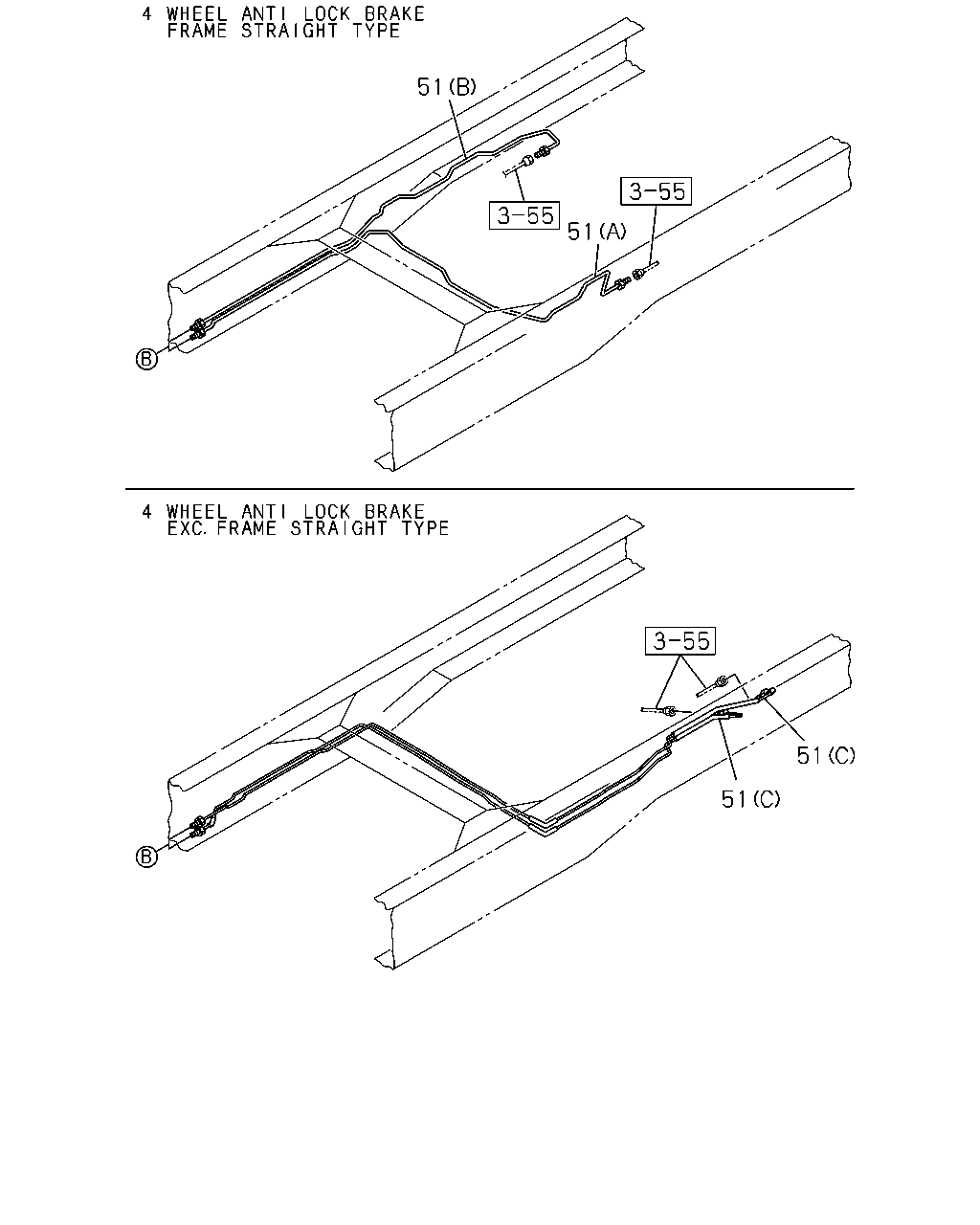

çizim 119868
51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1112-1308 ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1309- ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1112-1308 ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1309- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1112- ●
51 04.685 PIPE; BRK

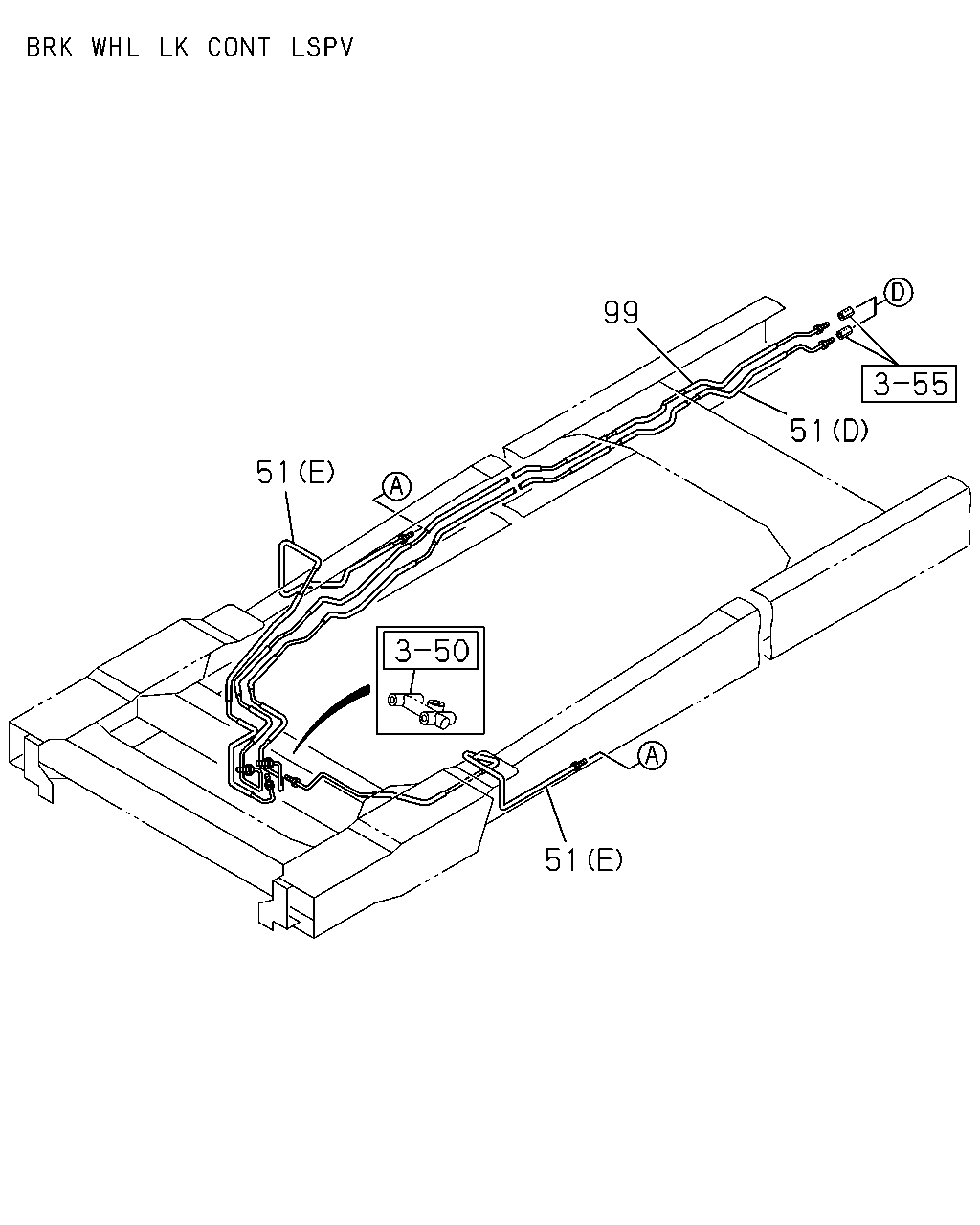

BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 1112- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0907-1111 ●
51 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0905-0906 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0905-0906 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1112- ● ●

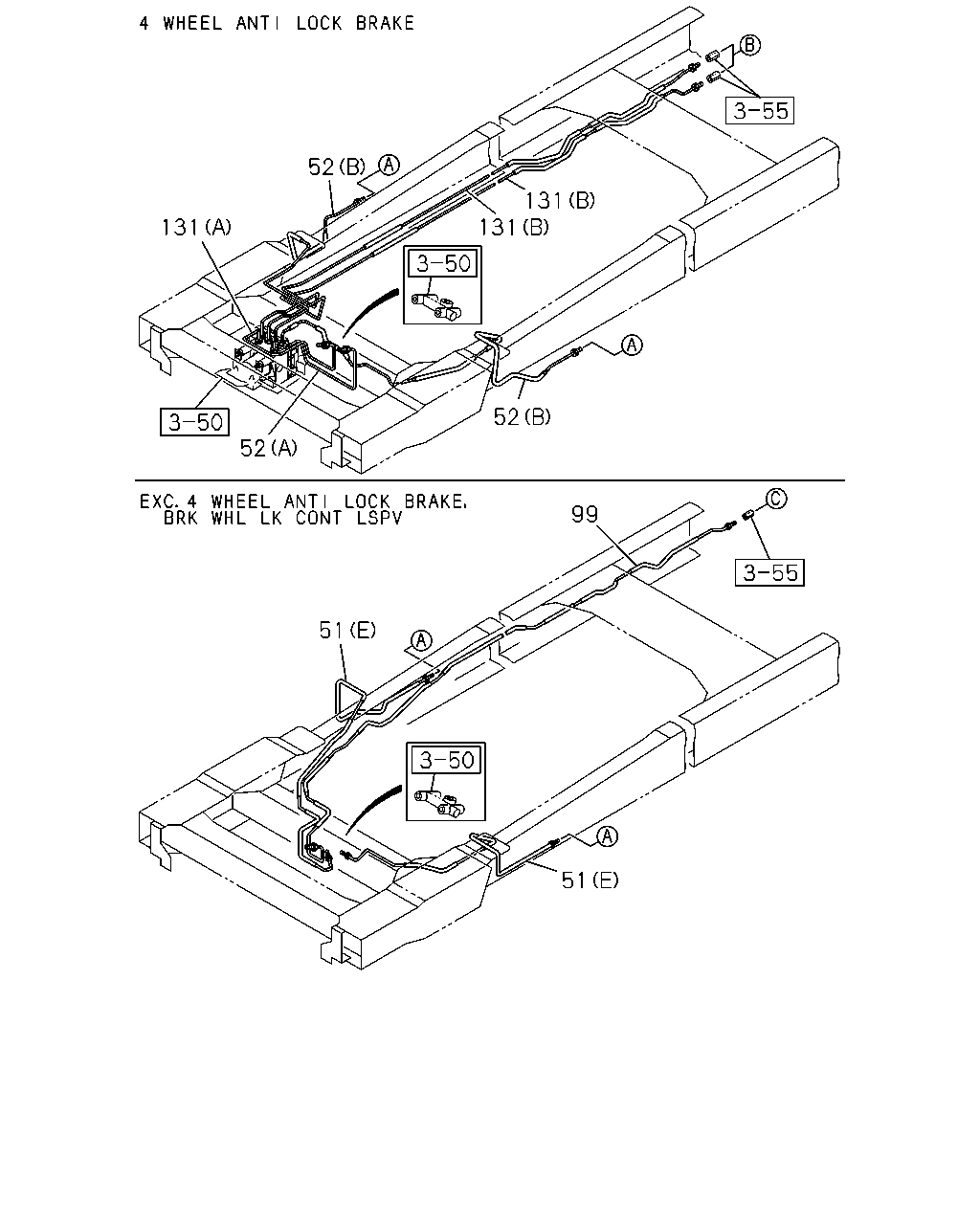

çizim 119910
52 131 131 131 52 52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1112-1308 ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1309- ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1112-1308 ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1309- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1112- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 1112- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0907-1111 ●
51 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0905-0906 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0905-0906 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1112- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98057-262-0 01 1 1112- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) 2WAY TO REAR 		8-98057-263-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (F) 2WAY TO REAR 		8-98056-415-0 01 1 1112- ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1112- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98046-877-2 01 1 1112- ●
52 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1112- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-878-1 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-319-0 01 1 0907-1111 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (F) 2WAY TO REAR 		8-98056-319-0 01 1 1112- ● ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (F) 2WAY TO REAR 		8-98056-319-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1309- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1309- ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0907-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1112- ● ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1309- ● ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0907-1111 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1112-1308 ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1309- ● ●
52 04.685 PIPE; BRK
4HK1-TCS ENG(RJS) (C) 		8-98036-162-0 01 1 0905-0906 ● ●
52 04.685 PIPE; BRK
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 0907- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1112- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907-1111 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1112- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1112- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0907-1106 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0907-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107-1111 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107-1111 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1112- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1112- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0907-1106 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0907-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107-1111 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107-1111 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1112- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1112- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0905-0906 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0907-1111 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0907-1111 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 1112- ● ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0905-0906 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0907-1111 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 1112- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0905-0906 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0907-1111 ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 1112- ● ●
çizim 186558
99 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1112-1308 ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1309- ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1112-1308 ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (E) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1309- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>, FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1112- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98051-643-1 01 1 1112- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 0907-1111 ●
51 04.685 PIPE; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-598-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0905-0906 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0905-0906 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 1112- ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0905-0906 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 0907-1111 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1112- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1112- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907-1111 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1112- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1112- ●

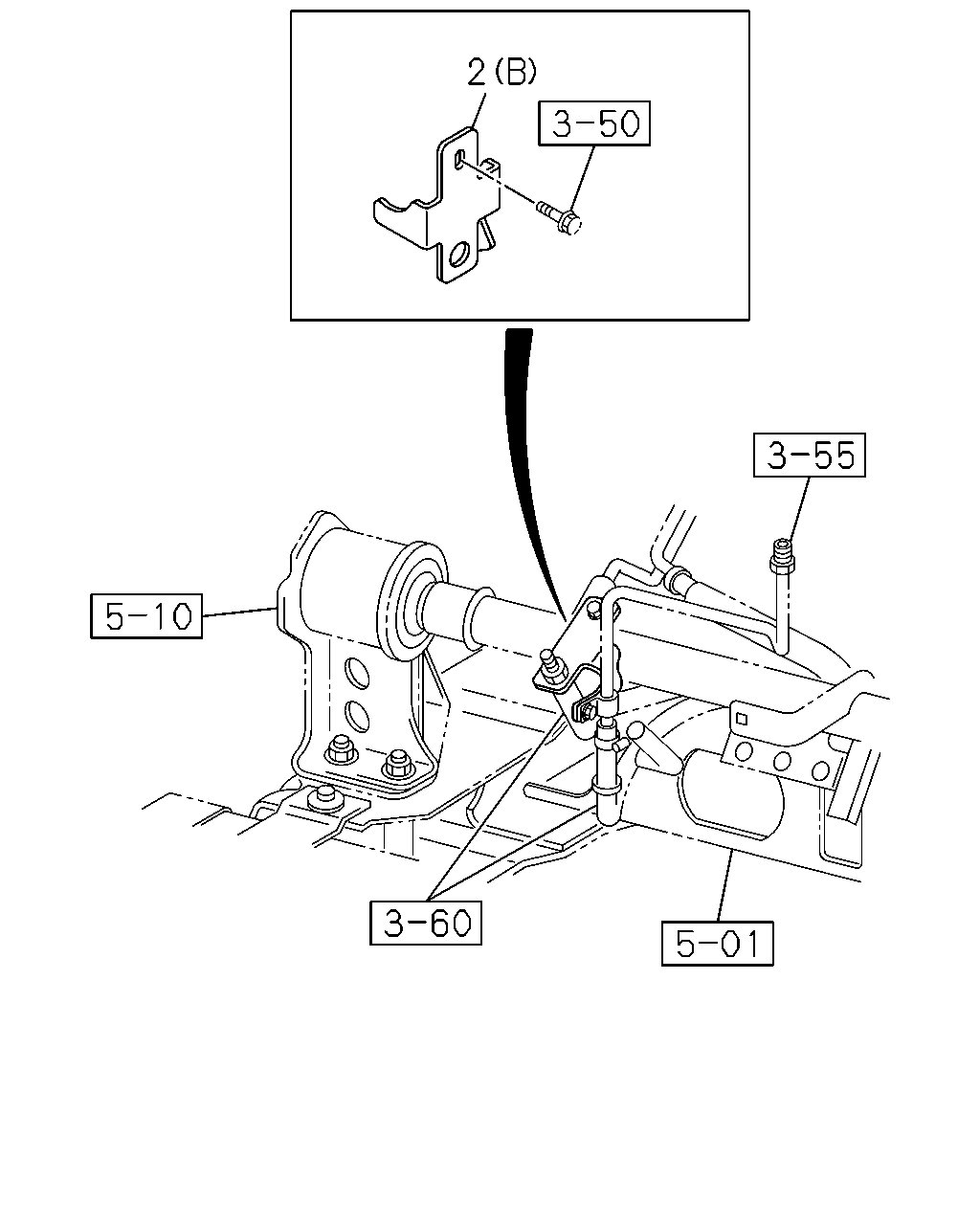

çizim 186590
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 0907- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 0907- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-1 01 1 0907- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 0905-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 0907-1308 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 1309- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 0905-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 0907-1308 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 1309- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98042-478-1 01 1 0905-0906 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98042-478-1 01 1 0907-0909 ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-577-0 01 1 0910- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
