Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#77362) — 274 parça

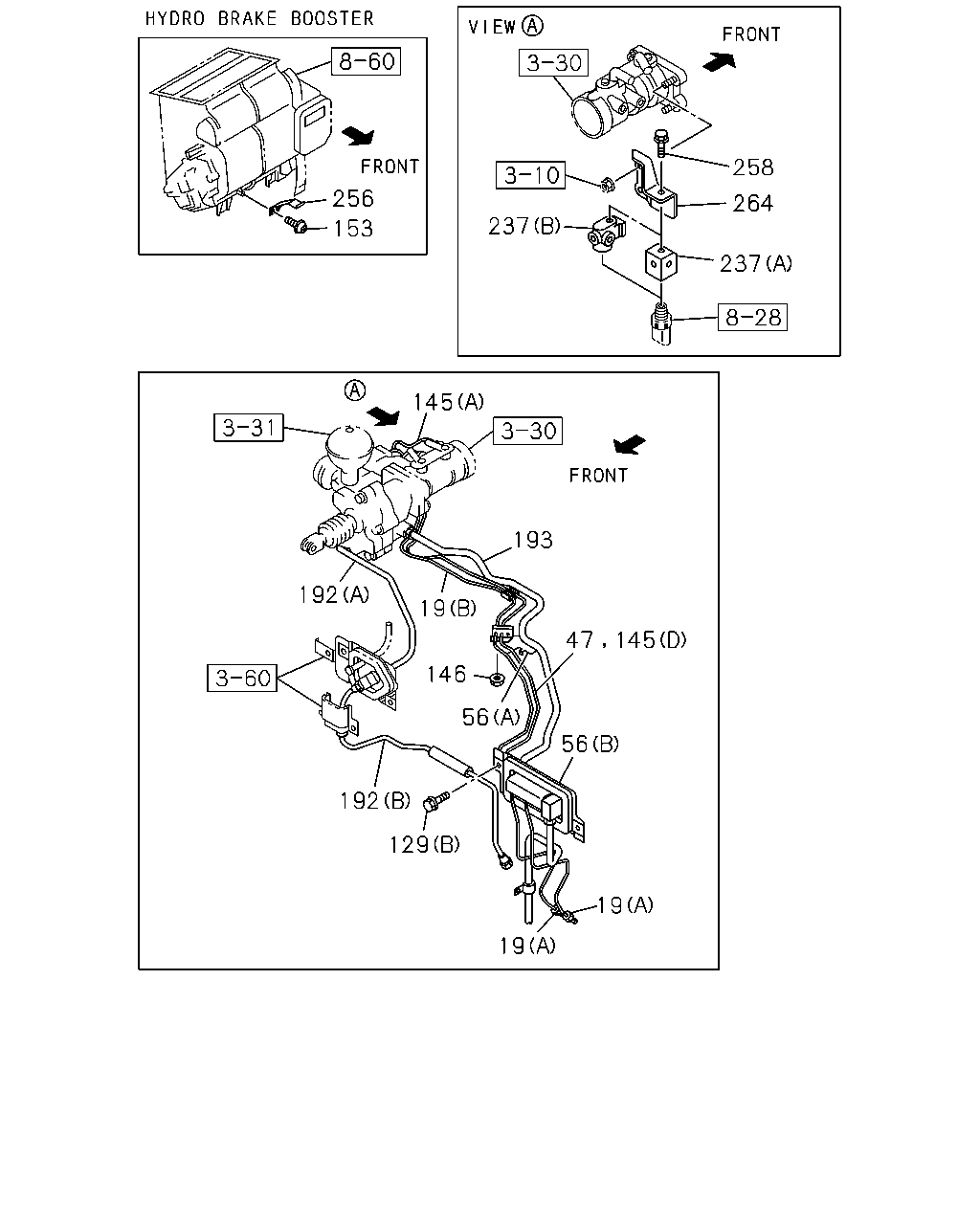

258 256 264 237 153 237 145 193 192 19 47 145 146 56 56 192 129 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-337-3	01	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-97389-337-3	01	1	0907-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0907-			●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98043-501-2	02	1	0905-0906	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98043-501-2	02	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98098-682-1	01	1	0905-0906	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98098-682-1	01	1	0907-	●	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	0907-1111	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1173	8-98133-413-0	01	1	0907-1111			●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	1112-	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1173	8-98133-413-0	01	1	1112-			●
47	04.685 PIPE; OIL,FRT BRK L=1150	8-98098-681-0	01	1	0905-0906	●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	0907-1111	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	1112-	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-282-1	01	1	0907-1005	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97389-282-1	01	1	0907-1005			●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98154-265-1	01	1	1006-	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-265-1	01	1	1006-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97389-281-1	01	1	0907-1005	●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97389-281-1	01	1	0907-1005			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-264-1	01	1	1006-	●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-264-1	01	1	1006-			●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0905-0906	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0907-1005	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	0905-0906	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	0907-	●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0905-0906	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0907-1005	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-	●	●

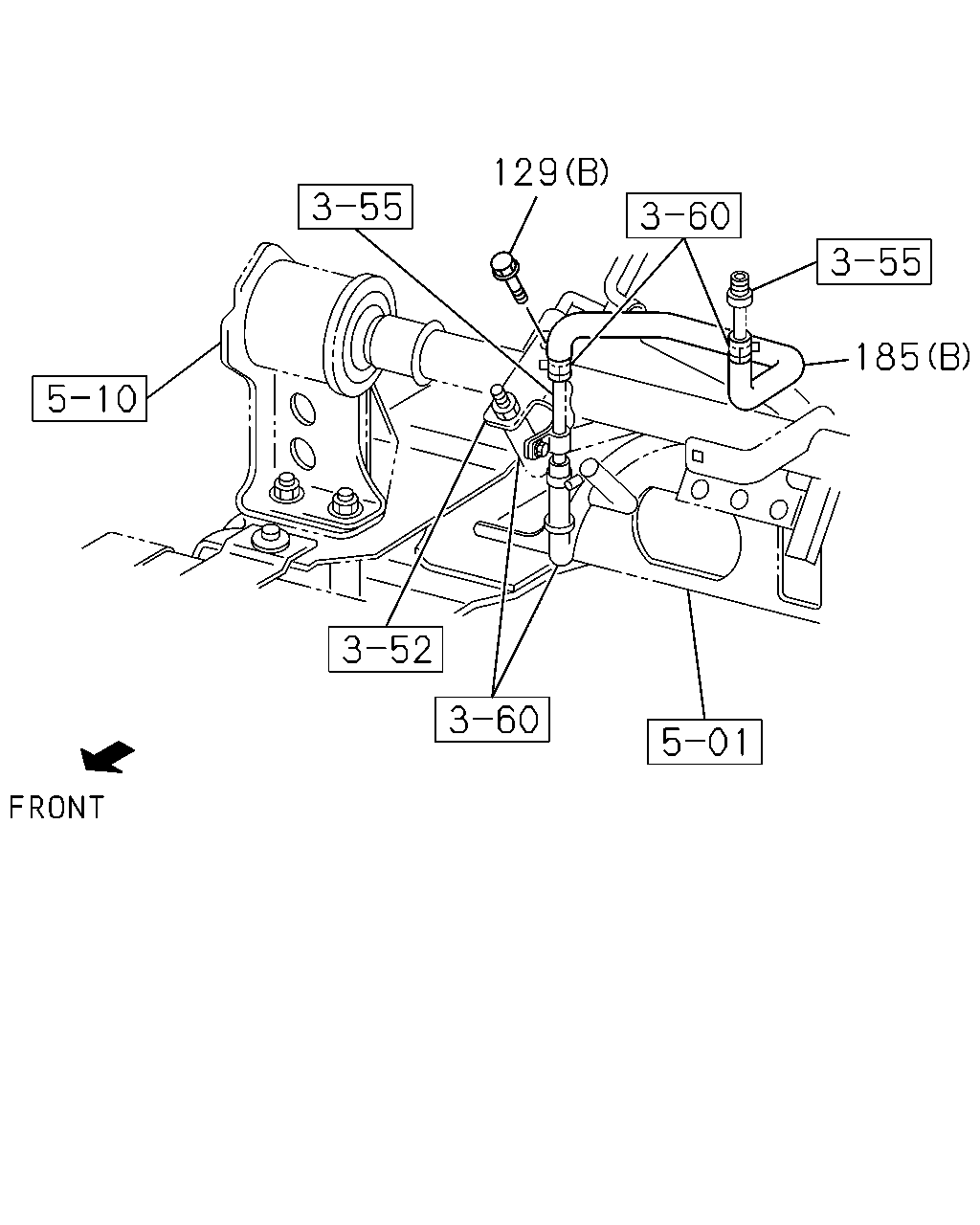

129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0905-0906	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0907-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0905-0906	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0907-	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98098-680-1	01	1	1112-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	0907-1111	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201	8-98133-407-0	01	1	0907-1111			●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	1112-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201	8-98133-407-0	01	1	1112-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97389-295-3	01	1	0907-1111			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-295-3	01	1	1112-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97389-295-3	01	1	1112-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-98075-345-0	01	1	0905-0906	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (A) L=268	8-98133-409-0	01	1	0907-1111	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) L=268	8-98133-409-0	01	1	1112-	●	●
146	04.685 NUT; BRKT 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	0905-0906	●	●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	0907-	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0905-0906	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0907-1001	●	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-	●	●	●
192	04.685 PIPE; PRESSURE (B)	8-98042-052-1	01	1	0905-0906	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98042-052-1	01	1	0907-1103	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98193-137-0	01	1	1104-	●	●
192	04.685 PIPE; PRESSURE (A)	8-98127-262-0	01	1	0905-0906	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98127-262-0	01	1	0907-	●	●
193	04.685 PIPE; RETURN	8-98098-683-0	01	1	0905-0906	●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98098-683-0	01	1	0907-	●	●
237	04.840 CONNECTOR; MODULATOR (A)	8-98007-865-3	01	1	0905-0906	●	●
237	04.840 CONNECTOR; MODULATOR (B)	8-98111-748-1	01	1	0907-1111	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98111-748-1	01	1	0907-1111			●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98111-748-1	01	1	1112-	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98034-784-1	01	1	0905-0906	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98034-784-1	01	1	0907-1001	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98034-784-1	01	1	1002-1005	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-	●	●	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0905-0906	●	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-1111	●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-1111			●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0905-0906	●	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0907-1111	●	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	0907-1111			●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1112-	●	●	●

11 35 164 13 263 260 262 261 261 11 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> 04.730	8-94368-455-2	01	1	0907-	●
13	04.686 BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0907-	●
26	04.730 BRACKET; PROPORTIONING VLV BRK WHL LK CONT LSPV<6PH>	8-98029-822-0	01	1	0907-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97389-541-2	01	1	0907-	●
104	04.730 BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0907-	●
164	04.730 SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	0907-	●
260	04.685 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97173-366-0	01	1	0907-	●
261	04.685 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97145-631-0	02	1	0907-	●
262	04.685 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97139-186-0	01	1	0907-	●
263	04.685 CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	0907-	●

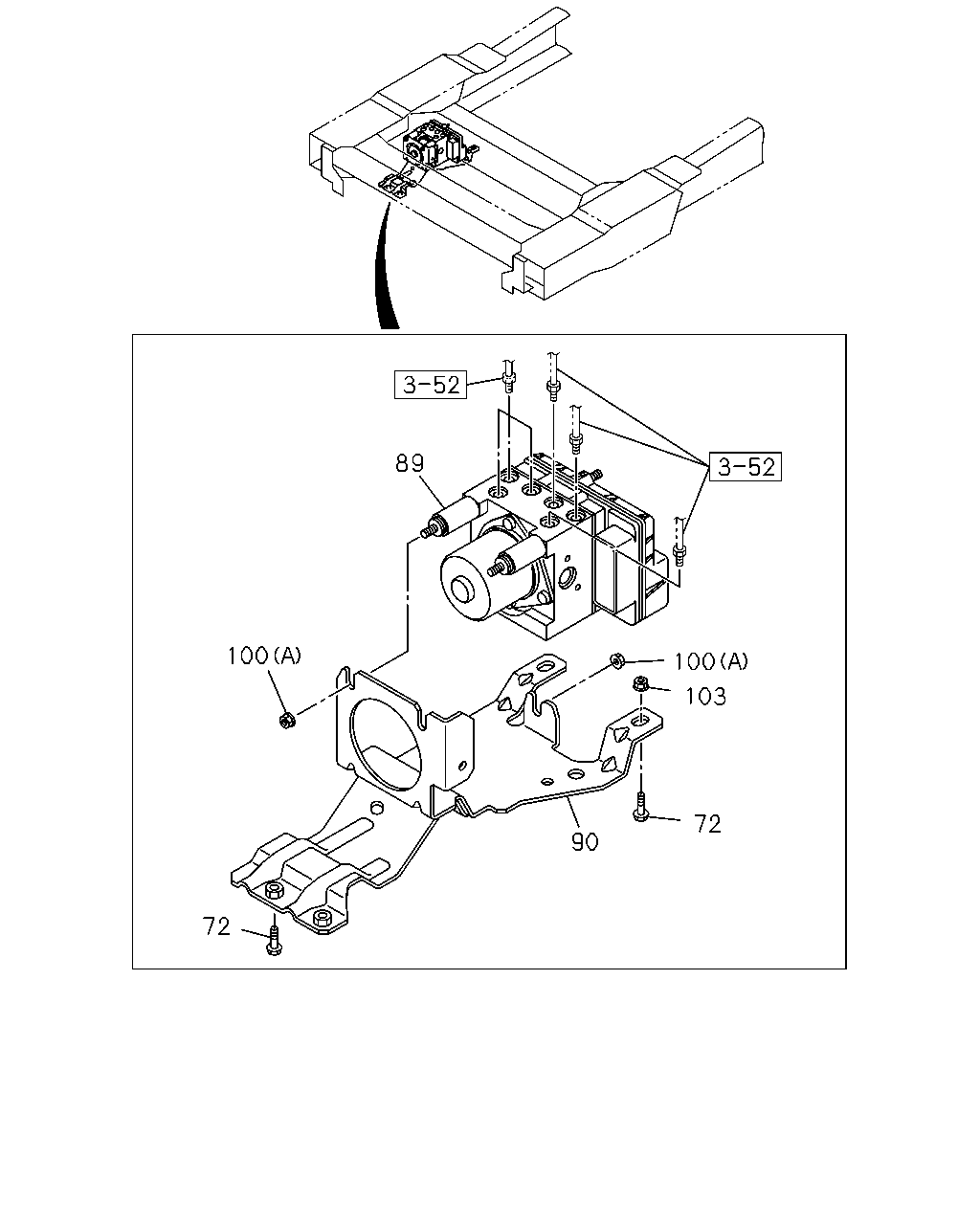

89 100 100 103 72 90 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0905-0906	●	●
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0907-1111	●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0907-1111			●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1112-	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL DISC BRAKE<JF9>	8-98081-564-1	01	1	0907-1006	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98081-564-1	01	1	0907-1006			●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL DISC BRAKE<JF9>	8-98158-009-1	01	1	1007-1111	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-009-1	01	1	1007-1111			●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>	8-98158-009-1	01	1	1112-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-009-1	01	1	1112-			●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98081-562-1	01	1	0907-1006	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98158-007-1	01	1	1007-1111	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98158-007-1	01	1	1112-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98081-561-1	01	1	0907-1006	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98158-006-0	01	1	1007-1111	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1112-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98081-563-1	01	1	0905-0906	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ)	8-98081-563-1	01	1	0907-1006	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ)	8-98158-008-1	01	1	1007-1111	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ)	8-98158-008-1	01	1	1112-	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	0905-0906	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	0907-1111	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	0907-1111			●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	1112-	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0905-0906	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0907-1111	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0907-1111			●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1112-	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) (B)	8-97358-958-0	01	1	0905-0906	●	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0907-	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-1111	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1112-1507	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●

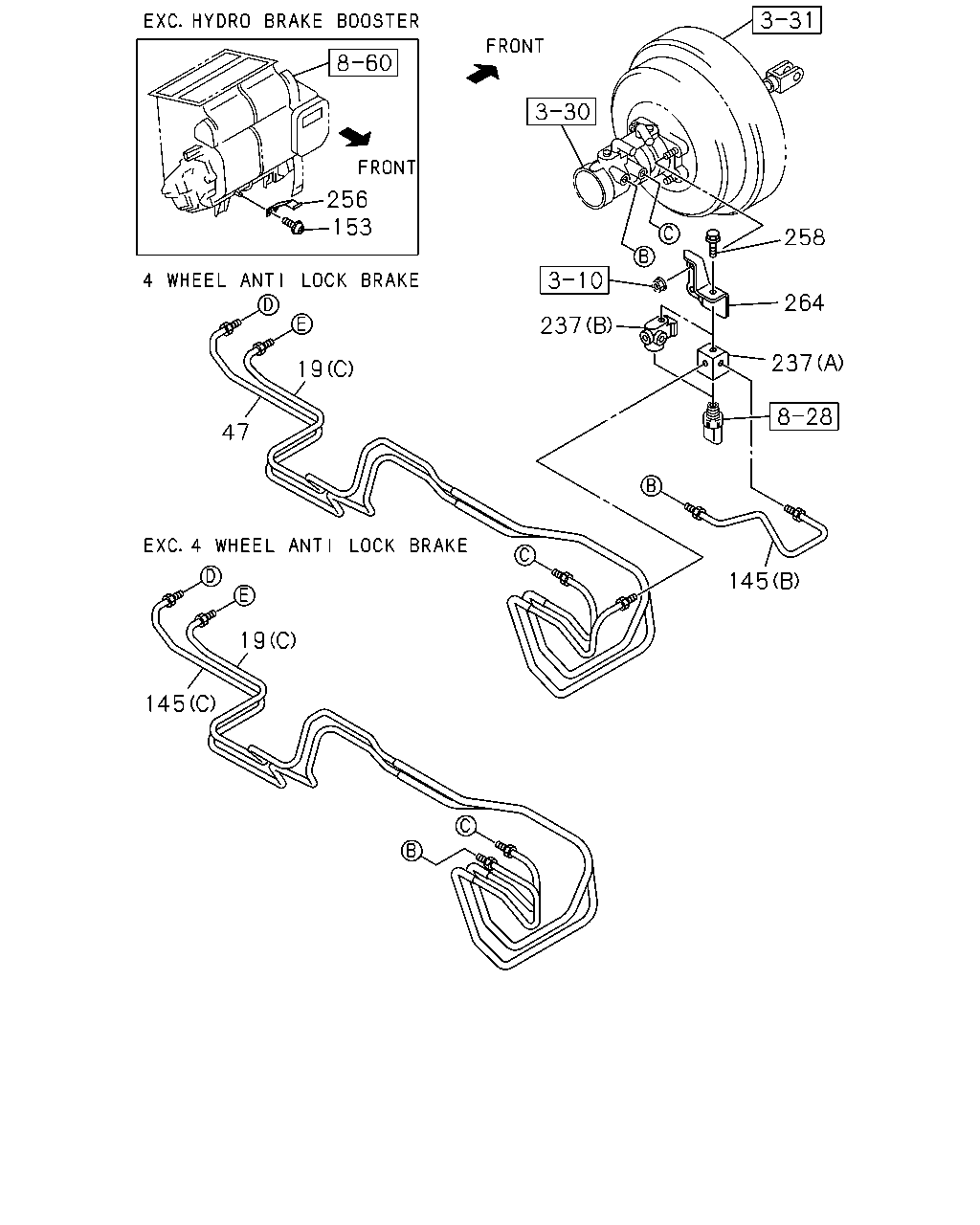

256 153 258 264 237 237 19 47 145 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-337-3	01	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-97389-337-3	01	1	0907-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0907-			●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98043-501-2	02	1	0905-0906	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98043-501-2	02	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98098-682-1	01	1	0905-0906	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98098-682-1	01	1	0907-	●	●
47	04.685 PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	0907-1111	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1173	8-98133-413-0	01	1	0907-1111			●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	1112-	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1173	8-98133-413-0	01	1	1112-			●
47	04.685 PIPE; OIL,FRT BRK L=1150	8-98098-681-0	01	1	0905-0906	●	●
47	04.685 PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	0907-1111	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	1112-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98098-680-1	01	1	1112-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	0907-1111	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201	8-98133-407-0	01	1	0907-1111			●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	1112-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201	8-98133-407-0	01	1	1112-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97389-295-3	01	1	0907-1111			●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-295-3	01	1	1112-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97389-295-3	01	1	1112-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-98075-345-0	01	1	0905-0906	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (A) L=268	8-98133-409-0	01	1	0907-1111	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) L=268	8-98133-409-0	01	1	1112-	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0905-0906	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0907-1001	●	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-	●	●	●
237	04.840 CONNECTOR; MODULATOR (A)	8-98007-865-3	01	1	0905-0906	●	●
237	04.840 CONNECTOR; MODULATOR (B)	8-98111-748-1	01	1	0907-1111	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98111-748-1	01	1	0907-1111			●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98111-748-1	01	1	1112-	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98034-784-1	01	1	0905-0906	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98034-784-1	01	1	0907-1001	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98034-784-1	01	1	1002-1005	●	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-	●	●	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0905-0906	●	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-1111	●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-1111			●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0905-0906	●	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0907-1111	●	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	0907-1111			●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1112-	●	●	●

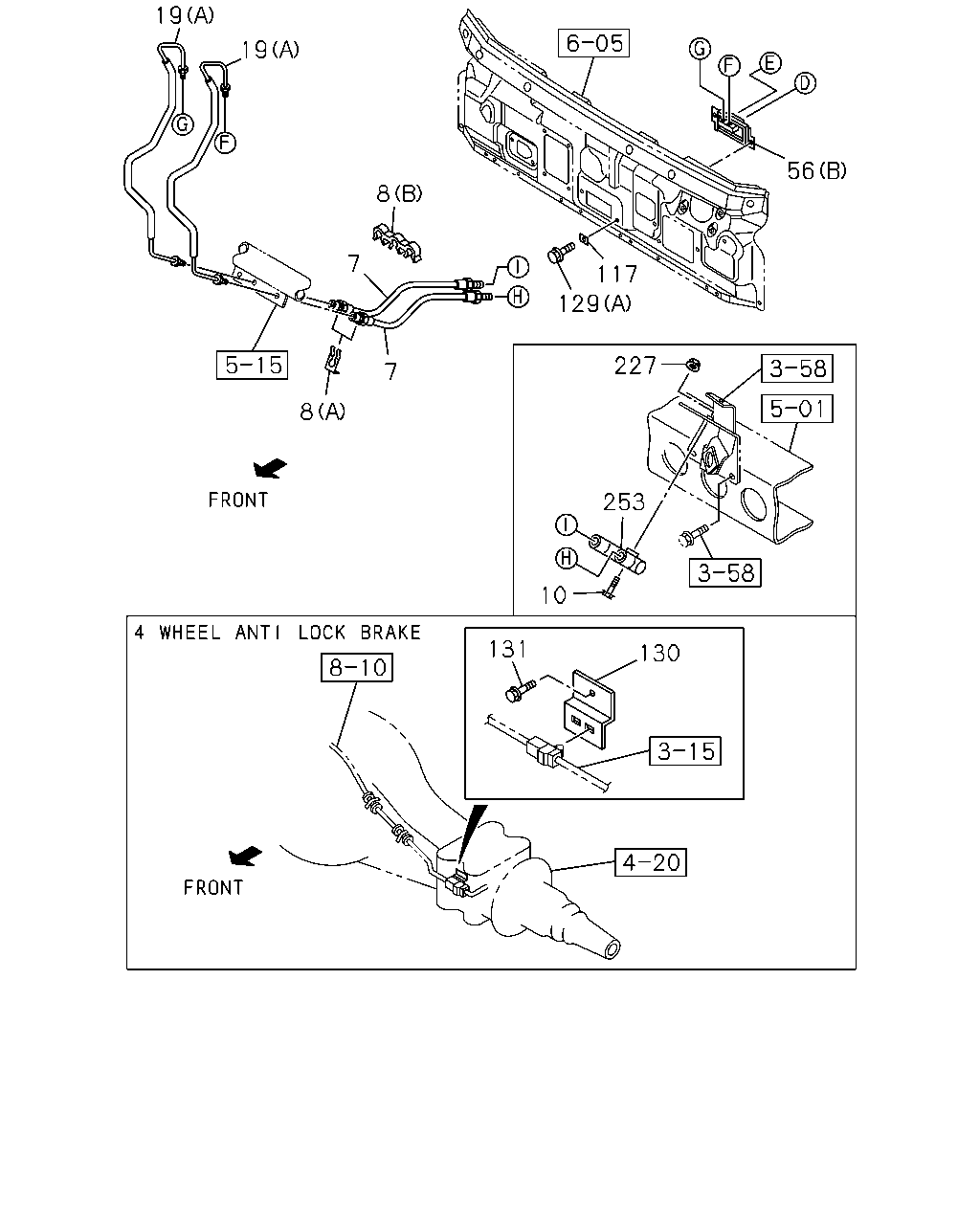

19 19 56 8 7 117 129 227 7 8 253 10 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0905-0906	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0907-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0905-0906	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0907-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0905-0906	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0907-	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0905-0906	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0907-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-337-3	01	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-97389-337-3	01	1	0907-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	0907-			●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98043-501-2	02	1	0905-0906	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98043-501-2	02	1	0907-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98098-682-1	01	1	0905-0906	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98098-682-1	01	1	0907-	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-282-1	01	1	0907-1005	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97389-282-1	01	1	0907-1005			●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98154-265-1	01	1	1006-	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-265-1	01	1	1006-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97389-281-1	01	1	0907-1005	●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97389-281-1	01	1	0907-1005			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-264-1	01	1	1006-	●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-264-1	01	1	1006-			●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0905-0906	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98056-776-1	01	1	0907-1005	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1006-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	0905-0906	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	0907-	●	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0905-0906	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-939-1	01	1	0907-1005	●	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1006-	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0905-0906	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0907-	●	●	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0905-0906	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0907-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0905-0906	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0907-	●	●	●
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0905-0906	●	●
130	04.686 BRACKET; SPEED SENSOR EXC. 4 WHEEL DISC BRAKE<JF9>	8-97080-060-2	02	1	0907-1111	●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>	8-97080-060-2	02	1	1112-	●	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0905-0906	●	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0907-1111	●	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0907-1111			●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1112-	●	●	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-			●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97120-033-2	01	1	0907-			●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	0907-1111			●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	1112-	●	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	1112-			●
253	04.840 JOINT	8-97038-940-1	01	1	0905-0906	●	●
253	04.840 JOINT	8-97038-940-1	01	1	0907-1111	●	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	0907-1111			●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1112-	●	●	●

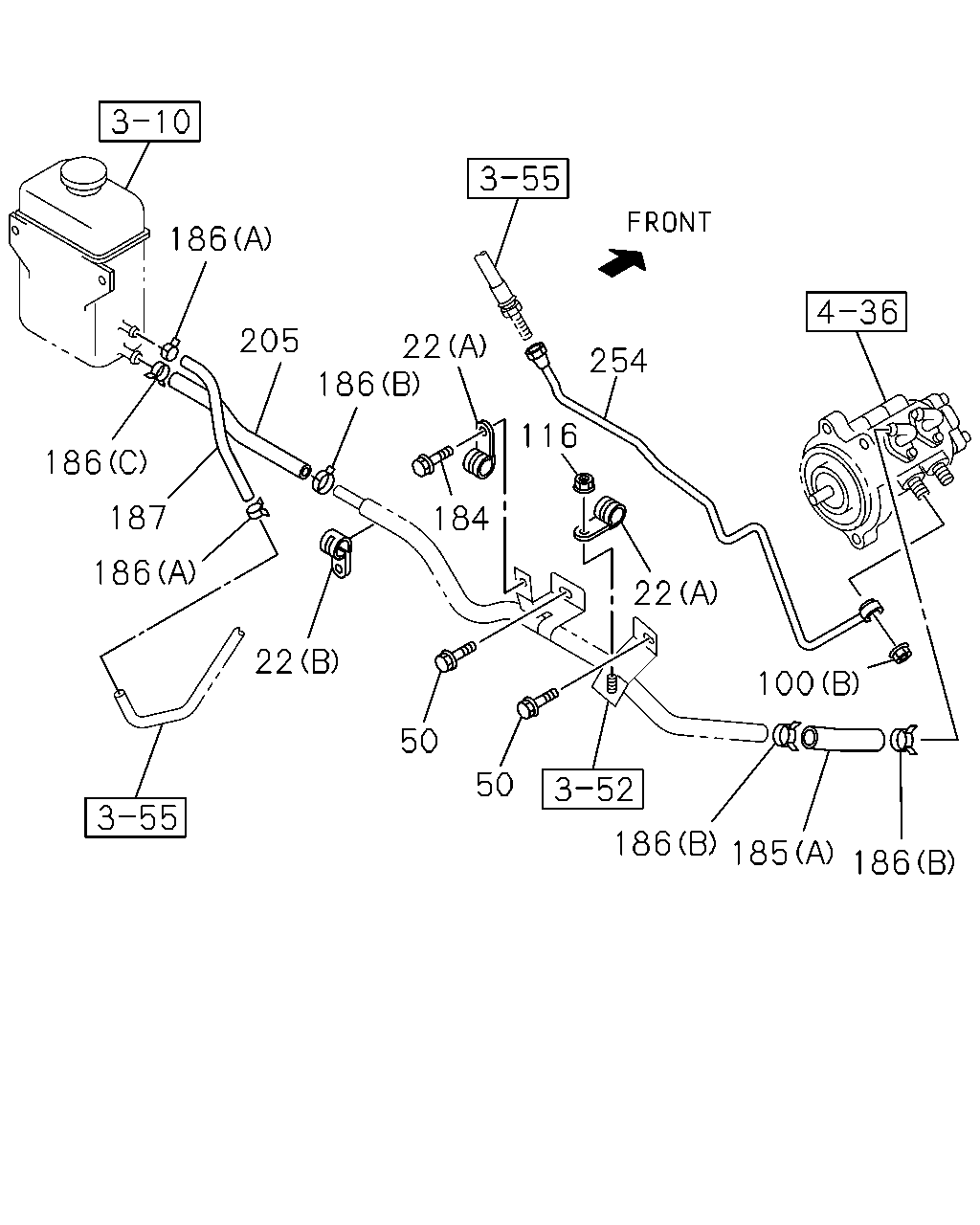

186 205 22 186 254 116 186 187 184 186 22 22 100 50 50 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.685 CLIP 4HK1-TCS ENG(RJS) (A) ID=10 L=16.5	8-98082-034-0	02	1	0905-0906	●	●
22	04.685 CLIP 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	0907-	●	●
22	04.685 CLIP 4HK1-TCS ENG(RJS) (B) ID=17 L=21	8-98082-035-0	01	1	0905-0906	●	●
22	04.685 CLIP 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	0907-	●	●
50	04.710 BOLT; PIPE 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0905-0906	●	●
50	04.710 BOLT; PIPE 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0907-	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0905-0906	●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0907-1111	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0907-1111			●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1112-	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) (B)	8-97358-958-0	01	1	0905-0906	●	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0907-	●	●
116	04.686 NUT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906	●	●
116	04.686 NUT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
184	04.681 BOLT; CLIP 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0905-0906	●	●
184	04.681 BOLT; CLIP 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCS ENG(RJS) (A)	8-97330-513-0	01	1	0905-0906	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0907-	●	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	0905-0906	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0907-	●	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0905-0906	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	01	1	0905-0906	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21	8-94242-034-0	01	1	0907-0911	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-98150-355-0	01	1	0912-	●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) 06.672 (B) ID=21	8-94242-034-0	02	1	0905-0906	●	●
186	04.681 CLIP; HOSE 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 06.672 (B) ID=21	8-94242-034-0	02	1	0907-	●	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0905-0906	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 08.846 (C) ID=22	8-94382-401-0	01	1	0907-1003	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22	8-97359-141-0	01	1	1004-	●	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0905-0906	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0907-	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0905-0906		●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0907-		●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0905-0906	●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0907-	●
205	04.681 HOSE; TANK TO PIPE 06.670 L=200 SERVICED BY L=300	0-09814-300-0	01	1	0905-0906		●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 L=200 SERVICED BY L=300	0-09814-300-0	01	1	0907-		●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCS ENG(RJS)	8-98036-161-0	01	1	0905-0906	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	0907-	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCS ENG(RJS)	8-98053-548-0	01	1	0905-0906		●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ)	8-98053-548-0	01	1	0907-		●

35 11

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> 04.730	8-94368-455-2	01	1	0907-			●
	35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97389-541-2	01	1	0907-			●

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0905-0906	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0907-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0905-0906	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0907-	●	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCS ENG(RJS) (A)	8-97330-513-0	01	1	0905-0906	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0907-	●	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	0905-0906	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
