◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-21 - VACUUM TANK ▶
3-21 — VACUUM TANK (#77358) — 30 parça

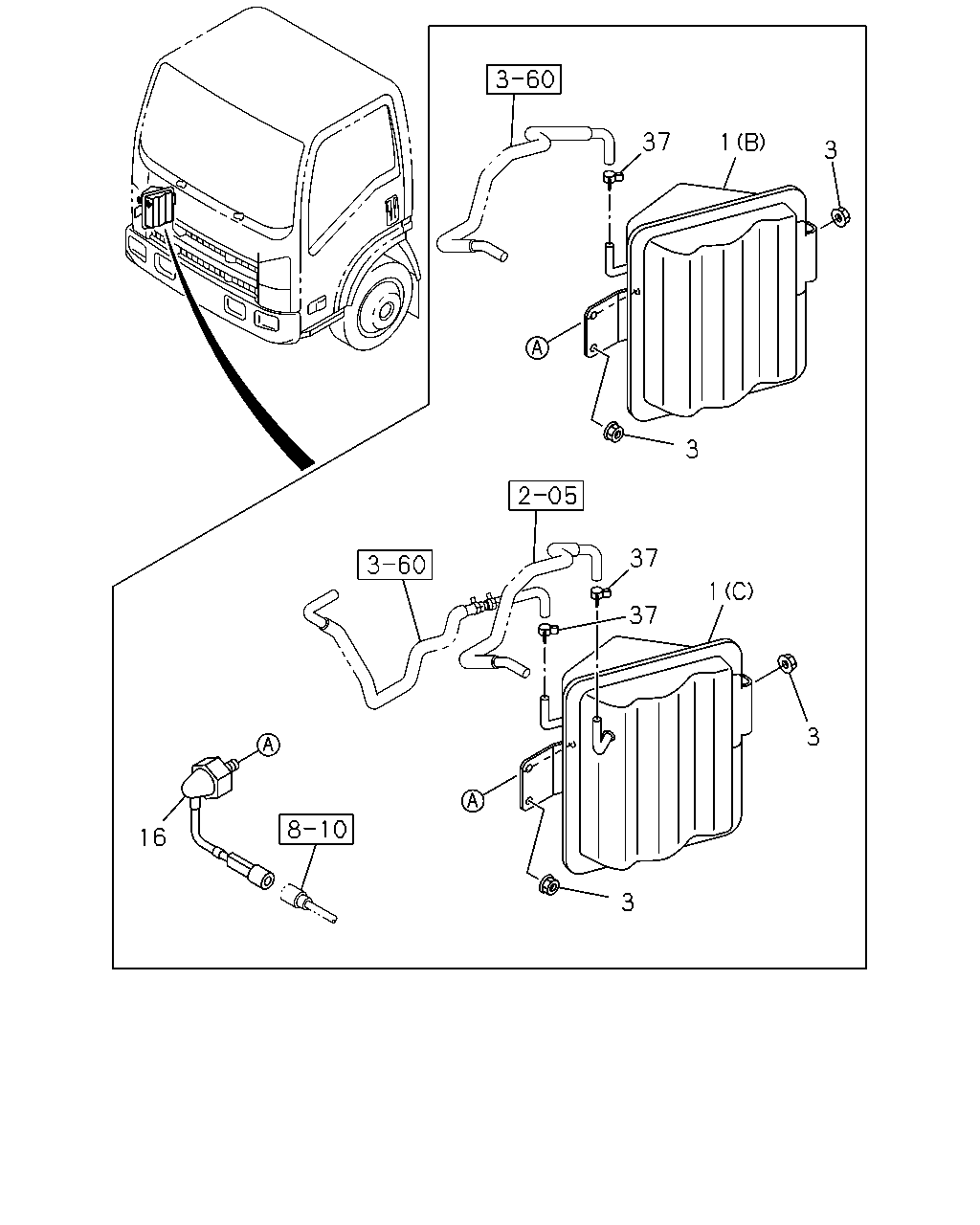

çizim 115417
37 1 3 3 37 1 37 3 16 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98009-121-2 01 1 0907- ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C) 		8-98009-121-2 01 1 0907- ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98009-122-2 01 1 0907- ● ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-122-2 01 1 0907- ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98032-291-0 01 1 0905-0906 ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98032-291-0 01 1 0907- ● ●
3 04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 04.785 		8-98008-071-0 03 1 0905-0906 ● ●
3 04.902 NUT; VAC TANK TO BRKT
04.785 		8-98008-071-0 03 1 0907- ● ● ●
16 04.906 SWITCH; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98049-417-0 01 1 0907- ● ●
16 04.906 SWITCH; VAC 8-98049-417-0 01 1 0907- ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 01 1 0907- ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 01 1 0907- ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 0907- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 0905-0906 ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 02 1 0907- ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 02 1 0907- ●
çizim 115631
37 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98009-121-2 01 1 0907- ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C) 		8-98009-121-2 01 1 0907- ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98009-122-2 01 1 0907- ● ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-122-2 01 1 0907- ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98032-291-0 01 1 0905-0906 ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98032-291-0 01 1 0907- ● ●
3 04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 04.785 		8-98008-071-0 03 1 0905-0906 ● ●
3 04.902 NUT; VAC TANK TO BRKT
04.785 		8-98008-071-0 03 1 0907- ● ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 01 1 0907- ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 01 1 0907- ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 0907- ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 01 1 0905-0906 ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5 		8-94367-944-0 02 1 0907- ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5 		8-94367-944-0 02 1 0907- ●
