3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#77357) — 204 parça

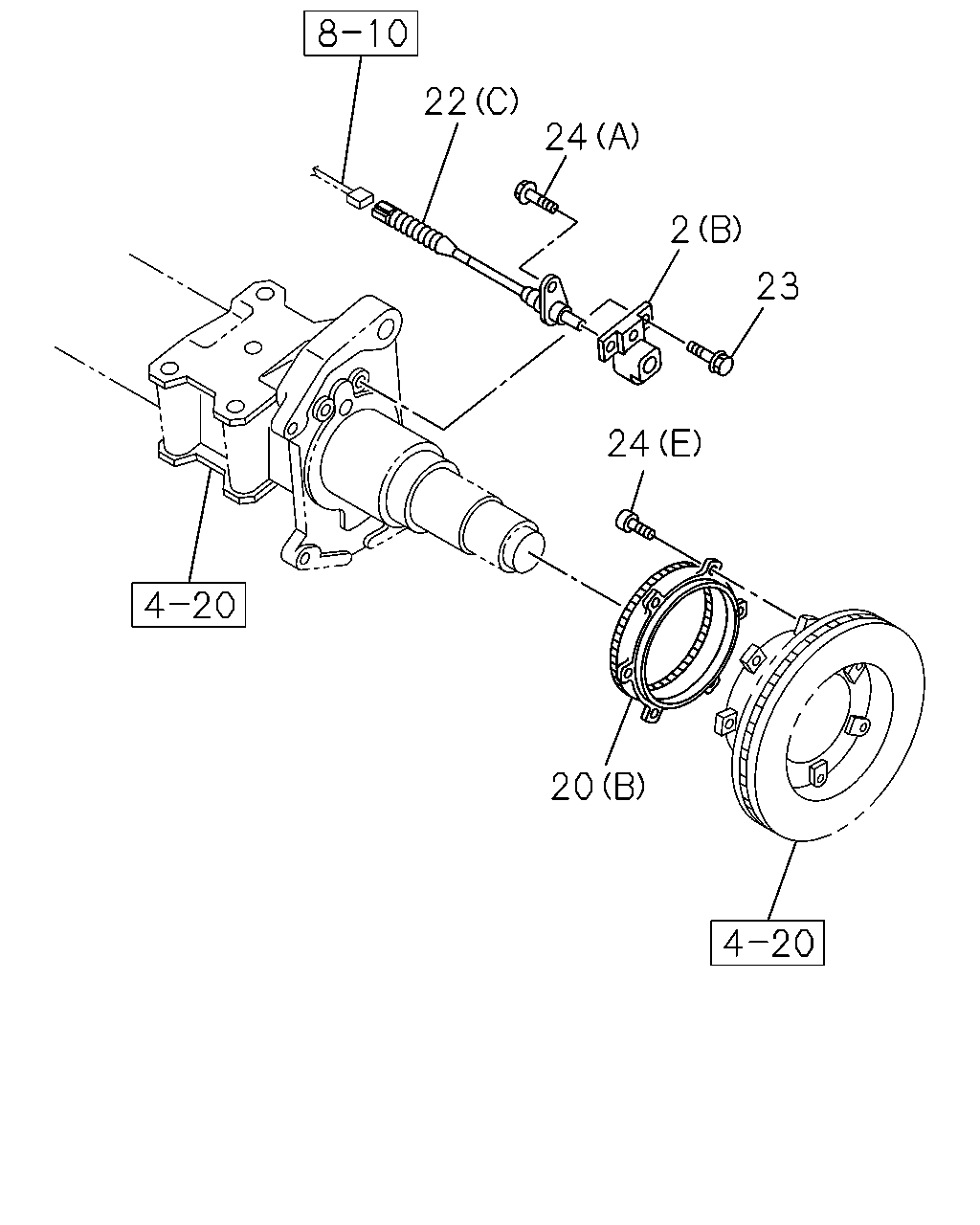

çizim 115404
22 24 2 23 24 20
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98045-222-0 02 1 0907- ● ●
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98045-222-0 02 1 0907- ●
2 04.730 BRACKET; SENSOR
EXC. LIMITED SLIP DIFF<6LV> (A) 		8-98002-440-0 02 1 0905-0905 ● ●
2 04.730 BRACKET; SENSOR
(A) 		8-98002-440-0 02 1 0906-0906 ● ●
2 04.730 BRACKET; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98002-440-1 02 1 0907- ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98207-952-0 02 1 1309- ● ●
20 04.710 ROTOR; SENSOR
EXC. LIMITED SLIP DIFF<6LV> (A) 		8-97206-775-3 02 1 0905-0905 ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-775-3 02 1 0906-0906 ● ●
20 04.710 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97206-775-3 02 1 0907- ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-97387-160-0 02 1 0907-1102 ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B) 		8-97387-160-0 02 1 0907-1102 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-98187-136-0 02 1 1103-1512 ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B) 		8-98187-136-0 02 1 1103-1512 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98312-785-0 02 1 1601- ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98312-785-0 02 1 1601- ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> (B) 		8-98042-652-0 02 1 0907-1007 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98042-652-0 02 1 1008-1102 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98187-137-0 02 1 1103-1310 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98187-137-0 02 1 1311-1401 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98207-952-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
EXC. LIMITED SLIP DIFF<6LV> (A) 		8-98002-215-0 02 1 0905-0905 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 0906-0906 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98002-215-1 02 1 0907-1401 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 0905-0906 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-184-0 01 1 0907-1111 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-184-0 01 1 1112-1408 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98219-391-0 01 1 1409- ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 0905-0906 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-185-0 01 1 0907-1111 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-185-0 01 1 1112-1408 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98219-392-0 01 1 1409- ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 0907- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98012-753-1 02 1 0907- ●
23 04.710 BOLT; BRKT
4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 0907- ● ●
23 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 0907- ●
24 04.730 BOLT; SENSOR
EXC. LIMITED SLIP DIFF<6LV> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0905-0905 ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0906-0906 ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1401 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1401 ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1112-1310 ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1112- ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1112- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1112- ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 00.349 (E) M6X10 HEX SOCKET 		0-58330-610-0 12 1 0907-1303 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (E) M6X10 HEX SOCKET 		0-58330-610-0 12 1 0907-1303 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304- ●
çizim 186553
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.730 BRACKET; SENSOR
4 WHEEL DISC BRAKE<JF9> (B) 		8-98045-222-0 02 1 0907- ● ●
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98045-222-0 02 1 0907- ●
2 04.730 BRACKET; SENSOR
EXC. LIMITED SLIP DIFF<6LV> (A) 		8-98002-440-0 02 1 0905-0905 ● ●
2 04.730 BRACKET; SENSOR
(A) 		8-98002-440-0 02 1 0906-0906 ● ●
2 04.730 BRACKET; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98002-440-1 02 1 0907- ● ●
20 04.710 ROTOR; SENSOR
REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98207-952-0 02 1 1309- ● ●
20 04.710 ROTOR; SENSOR
EXC. LIMITED SLIP DIFF<6LV> (A) 		8-97206-775-3 02 1 0905-0905 ● ●
20 04.710 ROTOR; SENSOR
(A) 		8-97206-775-3 02 1 0906-0906 ● ●
20 04.710 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97206-775-3 02 1 0907- ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-97387-160-0 02 1 0907-1102 ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B) 		8-97387-160-0 02 1 0907-1102 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> 05.809 (B) 		8-98187-136-0 02 1 1103-1512 ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B) 		8-98187-136-0 02 1 1103-1512 ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98312-785-0 02 1 1601- ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98312-785-0 02 1 1601- ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> (B) 		8-98042-652-0 02 1 0907-1007 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98042-652-0 02 1 1008-1102 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98187-137-0 02 1 1103-1310 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98187-137-0 02 1 1311-1401 ● ●
20 04.710 ROTOR; SENSOR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98207-952-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
EXC. LIMITED SLIP DIFF<6LV> (A) 		8-98002-215-0 02 1 0905-0905 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 0906-0906 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98002-215-1 02 1 0907-1401 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 0905-0906 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-184-0 01 1 0907-1111 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-184-0 01 1 1112-1408 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98219-391-0 01 1 1409- ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 0905-0906 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-185-0 01 1 0907-1111 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-185-0 01 1 1112-1408 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98219-392-0 01 1 1409- ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 0907- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98012-753-1 02 1 0907- ●
24 04.730 BOLT; SENSOR
EXC. LIMITED SLIP DIFF<6LV> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0905-0905 ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0906-0906 ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1401 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1401 ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1112-1310 ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1112- ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1112- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1112- ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 00.349 (E) M6X10 HEX SOCKET 		0-58330-610-0 12 1 0907-1303 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (E) M6X10 HEX SOCKET 		0-58330-610-0 12 1 0907-1303 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304- ●

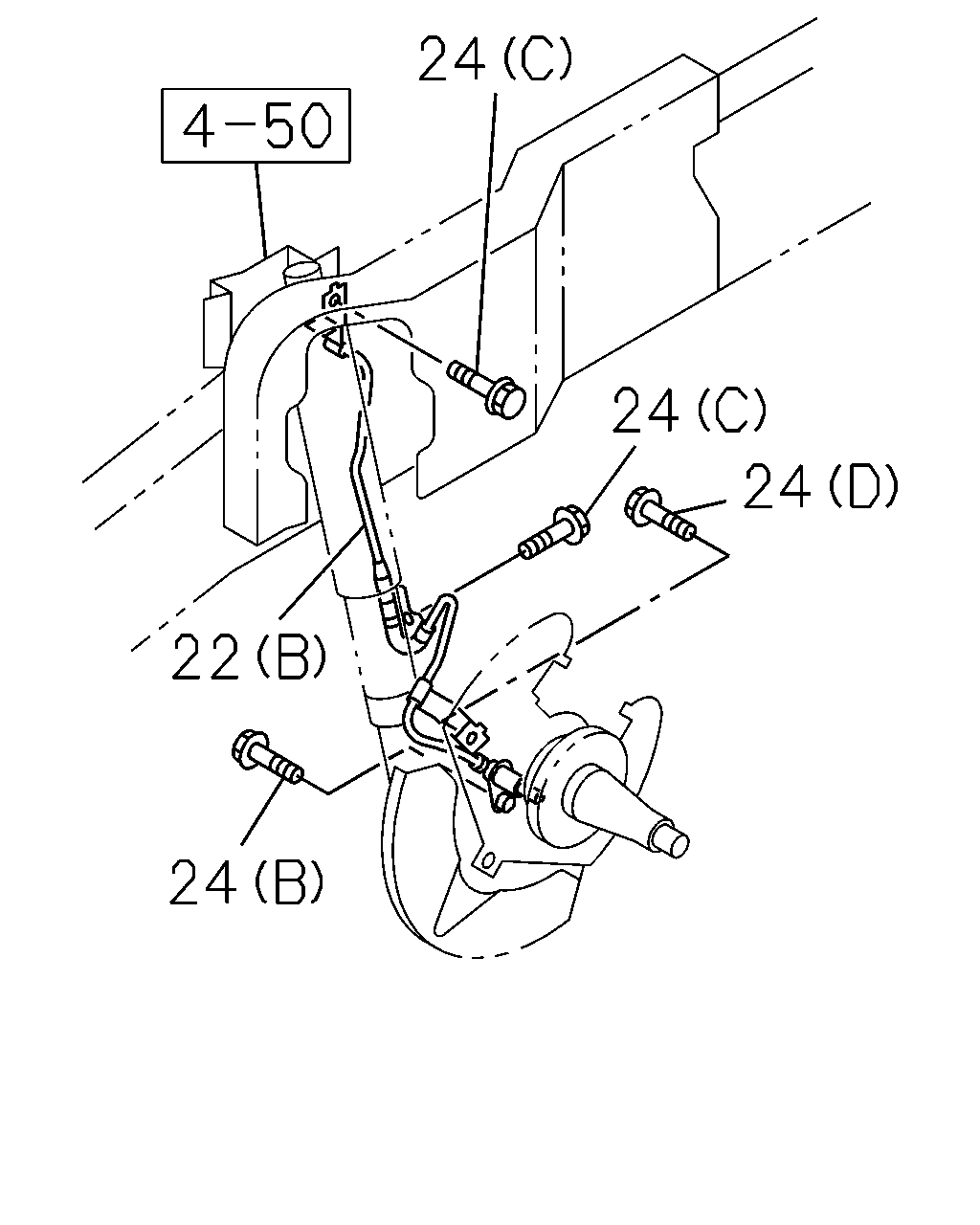

çizim 186556
24 24 24 22 24
BalonParca AdiParca NoAdetTipApplied Date A B C
22 04.710 SENSOR; SPEED
EXC. LIMITED SLIP DIFF<6LV> (A) 		8-98002-215-0 02 1 0905-0905 ● ●
22 04.710 SENSOR; SPEED
(A) 		8-98002-215-0 02 1 0906-0906 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-98002-215-1 02 1 0907-1401 ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A) 		8-98219-354-0 02 1 1402- ● ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 0905-0906 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-184-0 01 1 0907-1111 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-184-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-184-0 01 1 1112-1408 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-391-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98219-391-0 01 1 1409- ●
22 04.710 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 0905-0906 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-185-0 01 1 0907-1111 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-185-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98006-185-0 01 1 1112-1408 ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-392-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98219-392-0 01 1 1409- ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-186-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-393-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 0907-1111 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98006-187-0 01 1 1112-1408 ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98219-394-0 01 1 1409- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL DISC BRAKE<JF9> (C) 		8-98012-753-1 02 1 0907- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98012-753-1 02 1 0907- ●
24 04.730 BOLT; SENSOR
EXC. LIMITED SLIP DIFF<6LV> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0905-0905 ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0906-0906 ● ●
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1401 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1401 ●
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1112-1310 ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1112- ● ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1112- ● ● ●
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0905-0906 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1111 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1111 ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1112- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1112- ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 00.349 (E) M6X10 HEX SOCKET 		0-58330-610-0 12 1 0907-1303 ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (E) M6X10 HEX SOCKET 		0-58330-610-0 12 1 0907-1303 ●
24 04.730 BOLT; SENSOR
4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (E) M6X12 HEX SOCKET 		0-58330-612-0 12 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
