Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#77356) — 357 parça

53 238 238 338 225 225 91 91 324 91 91 8 181 238 238 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	04.592 GUIDE; PARKING BRK	8-98096-374-0	01	1	0905-0906	●	●
8	04.592 GUIDE; PARKING BRK	8-98096-374-0	01	1	0907-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-116-1	01	1	1112-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-116-1	01	1	1112-			●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98052-066-1	01	1	0907-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98052-066-1	01	1	0907-			●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-119-2	01	1	0907-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98144-780-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-315-3	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-118-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-117-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-316-3	01	1	0905-0906	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-316-3	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98062-232-3	01	1	0905-0906	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98062-232-3	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=24 L=40	1-09701-139-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40	1-09701-139-0	01	1	0907-			●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97036-332-1	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97036-332-1	01	1	0907-			●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98023-698-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98023-698-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)	8-98023-697-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)	8-98023-697-0	01	1	0907-	●	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-		●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0905-0906	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0905-0906	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0907-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MZZ6F(RSR) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-	●	●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98014-921-0	01	1	0907-		●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	0905-0906	●	●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	0907-	●	●	●
324	04.785 BRACKET 04.047 (B)	8-98034-185-1	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (B)	8-98034-185-1	01	1	0907-	●	●
324	04.785 BRACKET (D)	8-98087-330-1	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (D)	8-98087-330-1	01	1	0907-	●	●
324	04.785 BRACKET (C)	8-98099-516-0	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98099-516-0	01	1	0907-1508	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98216-763-1	01	1	1509-	●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	0905-0906	●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	0907-	●	●	●

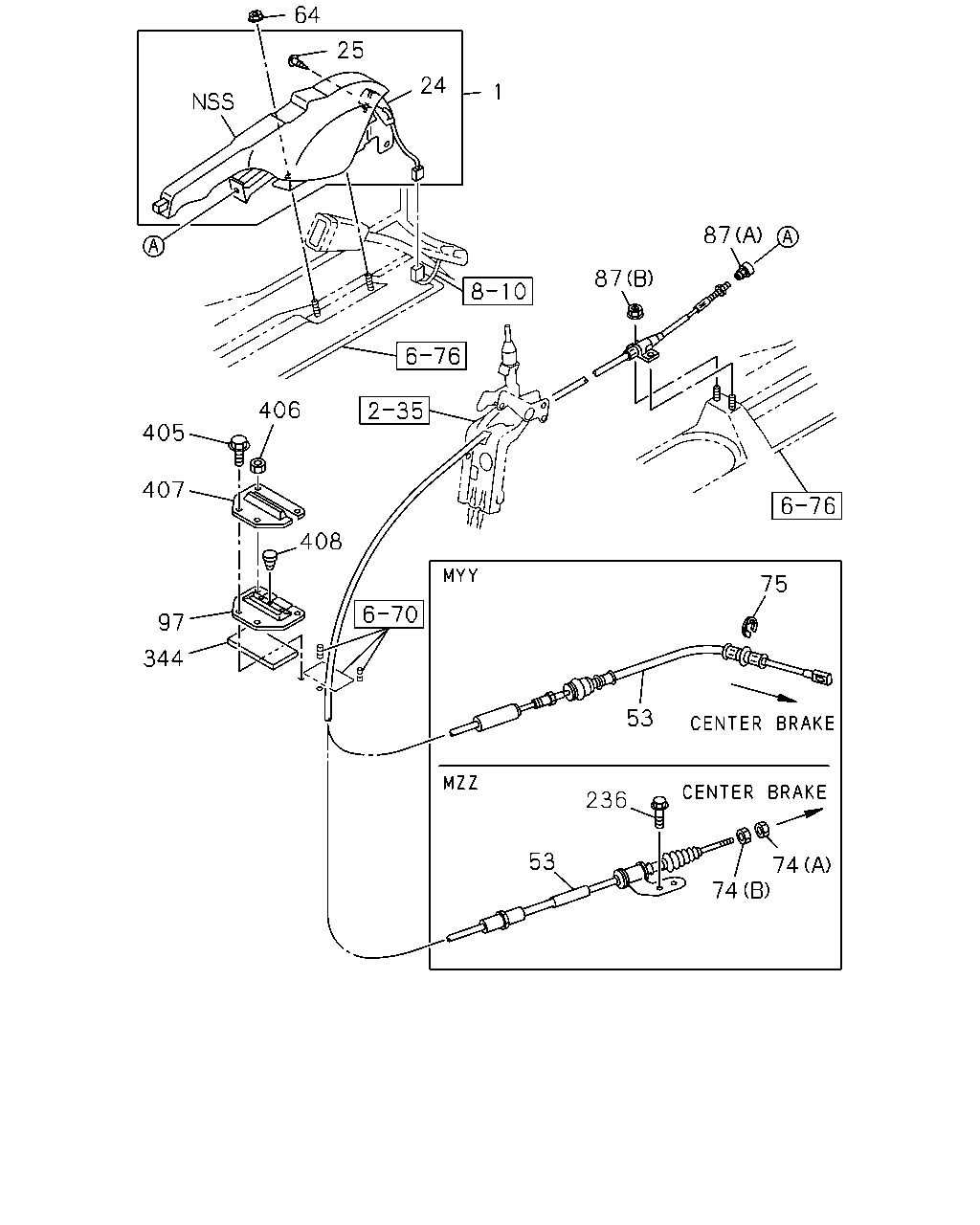

74 74 236 53 53 75 87 87 1 24 25 64 406 405 407 97 344 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	0905-0906	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97405-353-0	01	1	0907-1303	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1304-	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0905-0906	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0907-1303	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1304-	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0905-0906	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0907-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-116-1	01	1	1112-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-116-1	01	1	1112-			●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98052-066-1	01	1	0907-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98052-066-1	01	1	0907-			●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-119-2	01	1	0907-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98144-780-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-315-3	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-118-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-117-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-316-3	01	1	0905-0906	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-316-3	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98062-232-3	01	1	0905-0906	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98062-232-3	01	1	0907-	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0905-0906	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0907-	●	●	●
74	04.785 NUT; CONT WIRE M/T MZZ6F(RSR) 02.334 (A) M8	0-91110-508-0	01	1	0905-0906	●	●
74	04.785 NUT; CONT WIRE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.334 (A) M8	0-91110-508-0	01	1	0907-	●	●
74	04.785 NUT; CONT WIRE M/T MZZ6F(RSR) (B) M8 FLANGE	9-46259-016-0	01	1	0905-0906	●	●
74	04.785 NUT; CONT WIRE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	9-46259-016-0	01	1	0907-	●	●
75	04.790 RING; SNAP,HAND BRK CABLE M/T MYY5T(RSM),M/T MYY6S(RST) ID=12	0-91805-512-0	01	1	0907-	●	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
87	04.785 NUT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0905-0906	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0907-	●	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	0905-0906	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	0907-	●	●	●
236	04.785 BOLT; BRKT TO FRAME M/T MZZ6F(RSR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0905-0906	●	●
236	04.785 BOLT; BRKT TO FRAME M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0907-	●	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	0905-0906	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	0907-	●		●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	0905-0906	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	0907-	●	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	0905-0906	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-	●	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	0905-0906	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	0907-	●	●	●
408	04.785 CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010	8-97371-108-0	02	1	0905-0906	●	●
408	04.785 CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010	8-97371-108-0	02	1	0907-	●	●	●

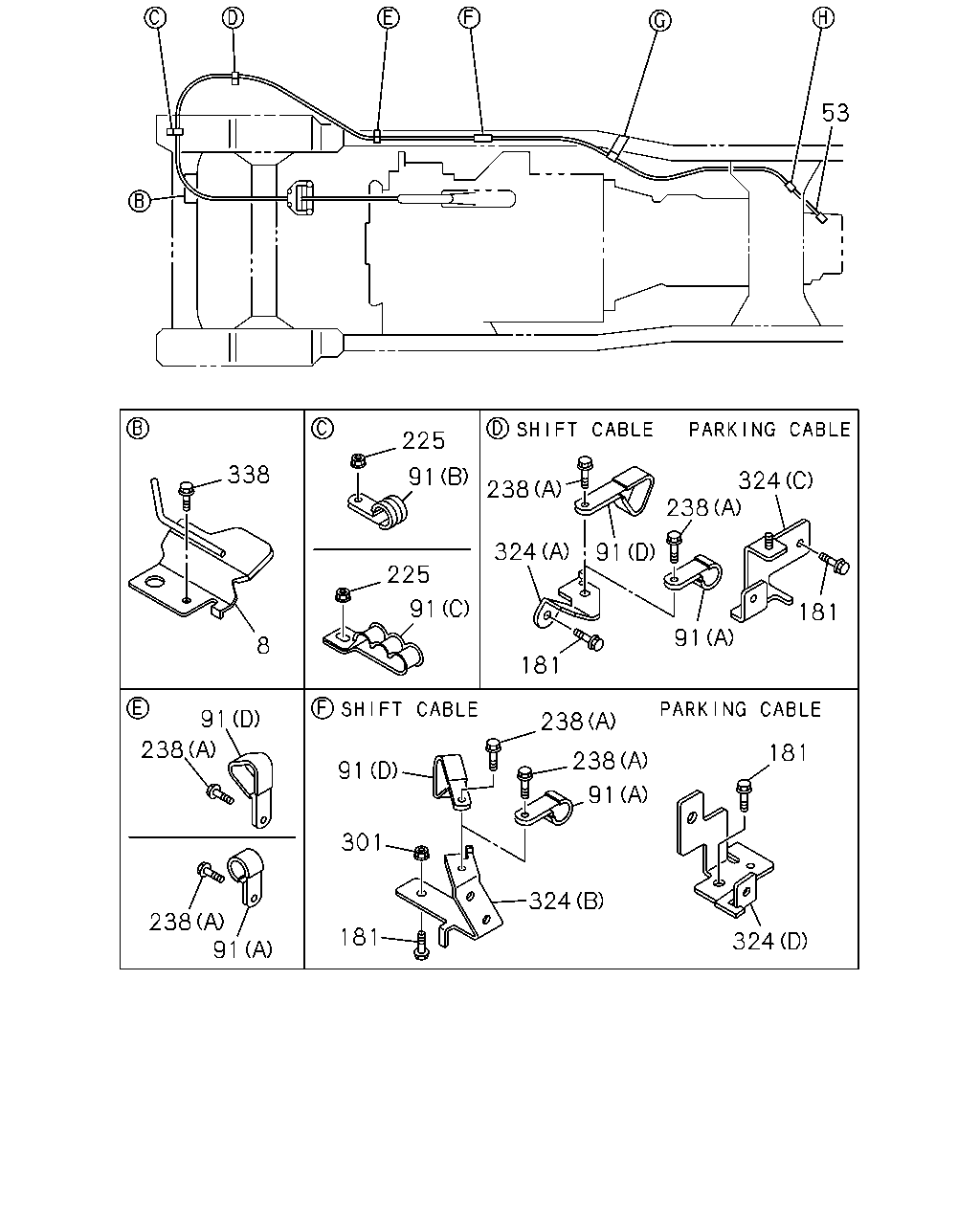

53 225 338 91 324 238 238 324 91 225 91 181 91 8 181 91 238 238 181 238 91 91 301 324 238 91 181 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	04.592 GUIDE; PARKING BRK	8-98096-374-0	01	1	0905-0906	●	●
8	04.592 GUIDE; PARKING BRK	8-98096-374-0	01	1	0907-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-116-1	01	1	1112-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-116-1	01	1	1112-			●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98052-066-1	01	1	0907-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98052-066-1	01	1	0907-			●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-119-2	01	1	0907-	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98144-780-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-315-3	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-118-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MYY6S(RST) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-117-1	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-316-3	01	1	0905-0906	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-316-3	01	1	0907-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98062-232-3	01	1	0905-0906	●	●
53	04.779 CABLE; PARK BRK,FRT LWR M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98062-232-3	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=24 L=40	1-09701-139-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40	1-09701-139-0	01	1	0907-			●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97036-332-1	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97036-332-1	01	1	0907-			●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98023-698-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98023-698-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)	8-98023-697-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)	8-98023-697-0	01	1	0907-	●	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-		●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0905-0906	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0905-0906	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0907-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MZZ6F(RSR) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-		●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98014-921-0	01	1	0907-		●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	0905-0906	●	●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	0907-	●	●	●
324	04.785 BRACKET 04.047 (B)	8-98034-185-1	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (B)	8-98034-185-1	01	1	0907-	●	●
324	04.785 BRACKET (D)	8-98087-330-1	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (D)	8-98087-330-1	01	1	0907-	●	●
324	04.785 BRACKET (C)	8-98099-516-0	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98099-516-0	01	1	0907-1508	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98216-763-1	01	1	1509-	●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	0905-0906	●	●
338	04.785 SCREW; GUIDE 16.069 M8X35 FLANGE	8-98046-876-0	01	1	0907-	●	●	●

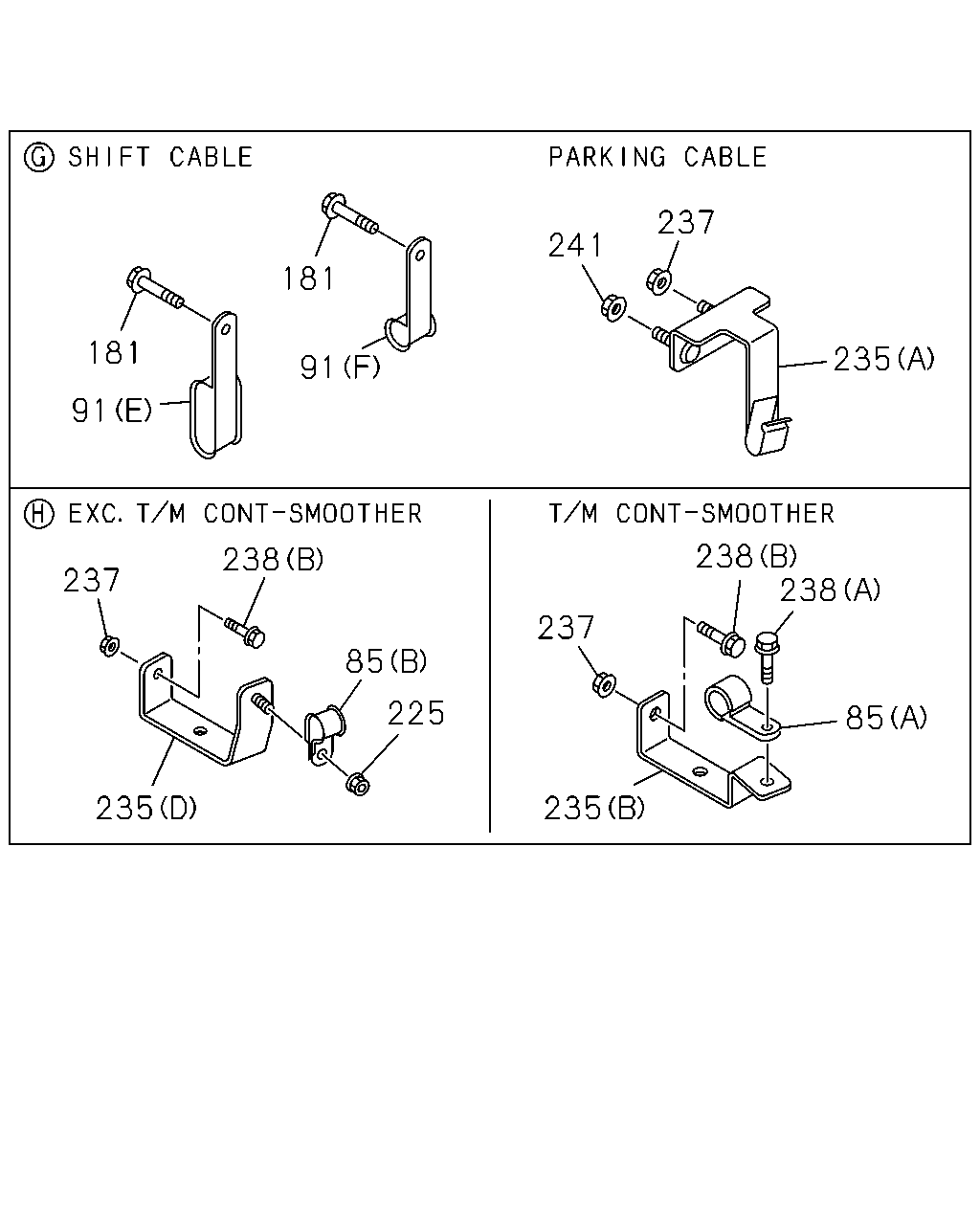

237 241 181 181 235 91 91 238 238 238 237 237 85 225 85 235 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
85	04.785 CLIP; BRKT EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=14.5 L=20	1-09701-012-0	01	1	0907-	●	●	●
85	04.785 CLIP; BRKT M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) ID=14.5 L=20	1-09701-012-0	01	1	0907-	●	●
85	04.785 CLIP; BRKT M/T MZZ6F(RSR) (A) ID=13 L=20	0-95235-236-0	01	1	0905-0906	●	●
85	04.785 CLIP; BRKT M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=20	0-95235-236-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=24 L=40	1-09701-139-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40	1-09701-139-0	01	1	0907-			●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97036-332-1	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97036-332-1	01	1	0907-			●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98023-698-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98023-698-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)	8-98023-697-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)	8-98023-697-0	01	1	0907-	●	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-		●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0905-0906	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0905-0906	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0907-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98034-410-3	01	1	0907-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98034-410-3	01	1	0907-			●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98087-322-0	01	1	0907-	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98087-322-0	01	1	0907-		●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MZZ6F(RSR) (B)	8-98033-907-0	01	1	0905-0906	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B)	8-98033-907-0	01	1	0907-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-907-0	01	1	0907-	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-907-0	01	1	0907-		●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98074-995-0	01	1	0905-0906	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-995-0	01	1	0907-	●	●
237	04.785 NUT; BRKT TO FRAME M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0905-0906	●	●
237	04.785 NUT; BRKT TO FRAME M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0905-0906	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0905-0906		●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-		●
237	04.785 NUT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-			●
238	04.785 BOLT; CLIP TO BRKT M/T MZZ6F(RSR) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-	●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
241	04.785 NUT; BRKT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●

238 91 181 324 238 91 241 87 237 85 225 235 368 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
85	04.785 CLIP; BRKT EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=14.5 L=20	1-09701-012-0	01	1	0907-	●	●	●
85	04.785 CLIP; BRKT M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (B) ID=14.5 L=20	1-09701-012-0	01	1	0907-	●	●
85	04.785 CLIP; BRKT M/T MZZ6F(RSR) (A) ID=13 L=20	0-95235-236-0	01	1	0905-0906	●	●
85	04.785 CLIP; BRKT M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=20	0-95235-236-0	01	1	0907-	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
87	04.785 NUT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0905-0906	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=24 L=40	1-09701-139-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=24 L=40	1-09701-139-0	01	1	0907-			●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97036-332-1	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97036-332-1	01	1	0907-			●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98023-698-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98023-698-0	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	0907-	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	0907-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)	8-98023-697-0	01	1	0905-0906	●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)	8-98023-697-0	01	1	0907-	●	●
181	04.785 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-		●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0905-0906	●	●
181	04.785 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0907-	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0905-0906	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0907-	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20	1-09701-138-1	01	1	0907-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20	1-09701-138-1	01	1	0907-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
225	04.785 NUT; CABLE CLIP M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98034-410-3	01	1	0907-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98034-410-3	01	1	0907-			●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98087-322-0	01	1	0907-	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98087-322-0	01	1	0907-		●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MZZ6F(RSR) (B)	8-98033-907-0	01	1	0905-0906	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B)	8-98033-907-0	01	1	0907-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-907-0	01	1	0907-	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-907-0	01	1	0907-		●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98074-995-0	01	1	0905-0906	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98074-995-0	01	1	0907-	●	●
237	04.785 NUT; BRKT TO FRAME M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0905-0906	●	●
237	04.785 NUT; BRKT TO FRAME M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0907-	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0905-0906	●	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0905-0906		●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-		●
237	04.785 NUT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0907-			●
238	04.785 BOLT; CLIP TO BRKT M/T MZZ6F(RSR) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0907-	●	●
238	04.785 BOLT; CLIP TO BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0905-0906	●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-	●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
241	04.785 NUT; BRKT M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
324	04.785 BRACKET EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98014-921-0	01	1	0907-		●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	0905-0906	●	●
324	04.785 BRACKET (A)	8-98034-115-0	01	1	0907-	●	●	●
324	04.785 BRACKET 04.047 (B)	8-98034-185-1	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (B)	8-98034-185-1	01	1	0907-	●	●
324	04.785 BRACKET (D)	8-98087-330-1	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (D)	8-98087-330-1	01	1	0907-	●	●
324	04.785 BRACKET (C)	8-98099-516-0	01	1	0905-0906	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98099-516-0	01	1	0907-1508	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (C)	8-98216-763-1	01	1	1509-	●	●
368	04.785 BRACKET; T/M SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97372-863-1	01	1	0907-	●	●
368	04.785 BRACKET; T/M SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97372-863-1	01	1	0907-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
