◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#77351) — 89 parça

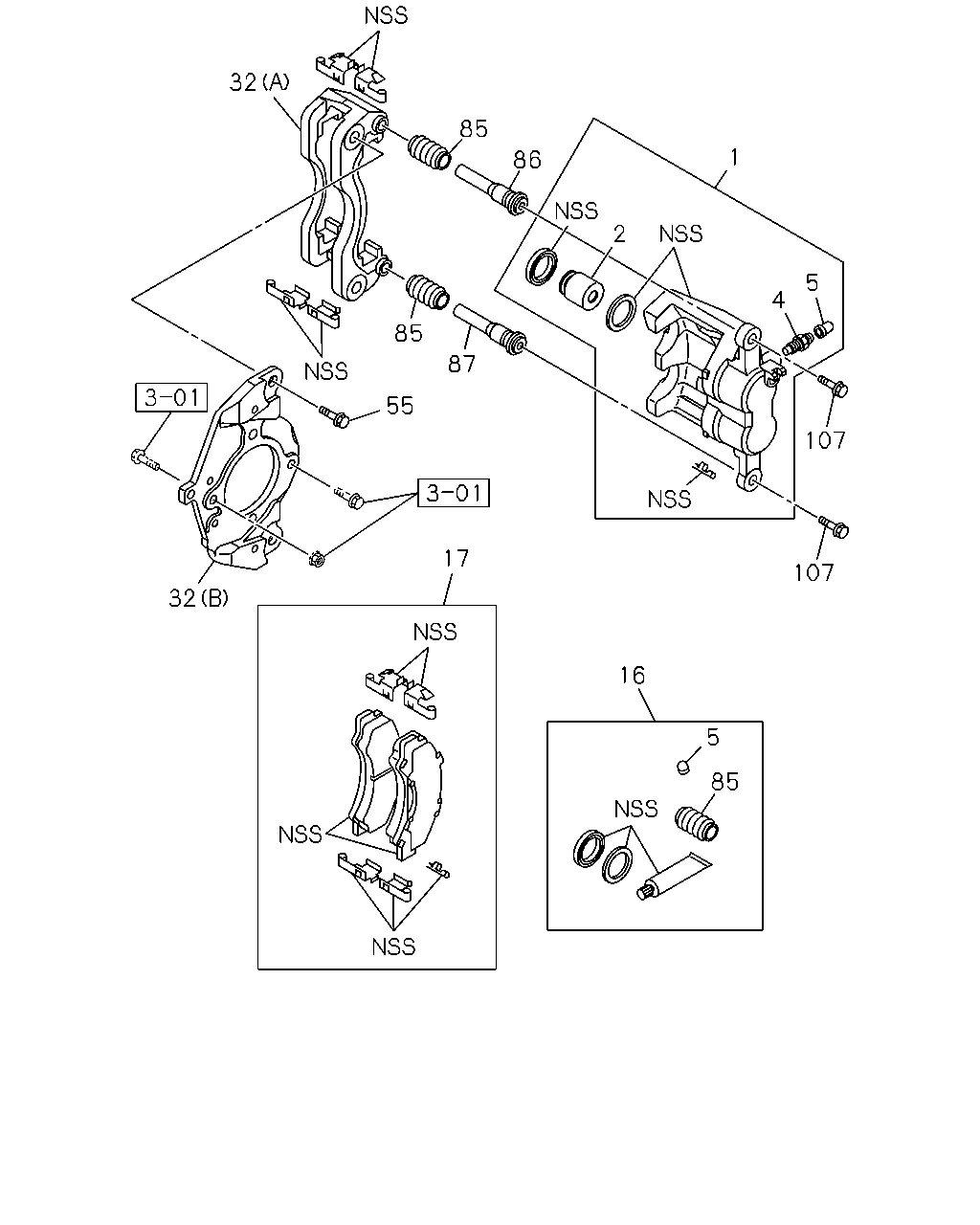

çizim 114819
32 85 1 86 2 5 4 85 87 55 107 17 107 32 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-907-0 01 1 0907-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0907-1310 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98247-730-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98303-461-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-908-0 01 1 0907-1310 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0907-1310 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98247-731-0 01 1 1311-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98303-462-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ●
1 04.665 CALIPER; FRT DISC BRK 8-97368-919-0 01 1 0905-0906 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97368-919-0 01 1 0907-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98303-465-0 01 1 1501- ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97368-920-0 01 1 0905-0906 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97368-920-0 01 1 0907-1412 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98303-466-0 01 1 1501- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-269-0 04 1 0907- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0907- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 0905-0906 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97365-279-0 04 1 0907- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98050-476-0 02 1 1311-1412 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311-1412 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1501- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1501- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0905-0906 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 0907-1310 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0907-1310 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 1311-1412 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98050-479-0 02 1 1311-1412 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311-1412 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1501- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1501- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0905-0906 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0907-1310 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0907-1310 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 1311-1412 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-358-0 01 1 0905-0906 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98120-358-0 01 1 0907-1412 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98302-532-0 01 1 1501- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98120-357-0 01 1 0907-1310 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-357-0 01 1 0907-1310 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98248-904-0 01 1 1311-1412 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98248-904-0 01 1 1311-1412 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98302-531-0 01 1 1501- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98302-531-0 01 1 1501- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97329-266-0 01 1 0907-1212 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0907-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98216-922-0 01 1 1301- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97168-634-0 01 1 0905-0906 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97168-634-0 01 1 0907-1212 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98244-794-0 01 1 1301- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97365-271-0 02 1 0907- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0907- ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-728-0 01 1 0907- ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-729-0 01 1 0907- ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-281-0 02 1 0905-0906 ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) 		8-97365-281-0 02 1 0907- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 0905-0906 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 0907-0907 ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-726-0 01 1 0907-0907 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98009-726-0 01 1 0907- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-726-0 01 1 0907- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 0905-0906 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 0907-0907 ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-727-0 01 1 0907-0907 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (B) 		8-98009-727-0 01 1 0907- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98009-727-0 01 1 0907- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0905-0906 ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0907-0907 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 0907- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0907- ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0905-0906 ● ●
85 04.665 BOOT; PIN
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 0907- ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0907- ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0905-0906 ● ●
86 04.665 PIN; GUIDE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 0907- ● ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0907- ●
87 04.665 PIN; LOCK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98248-005-0 02 1 1311- ● ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1311- ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0905-0906 ● ●
87 04.665 PIN; LOCK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 0907-1310 ● ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0907-1310 ●
87 04.665 PIN; LOCK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 1311- ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0905-0906 ● ●
107 04.665 BOLT; PIN
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97365-264-0 04 1 0907- ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0907- ●
