Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#77349) — 187 parça

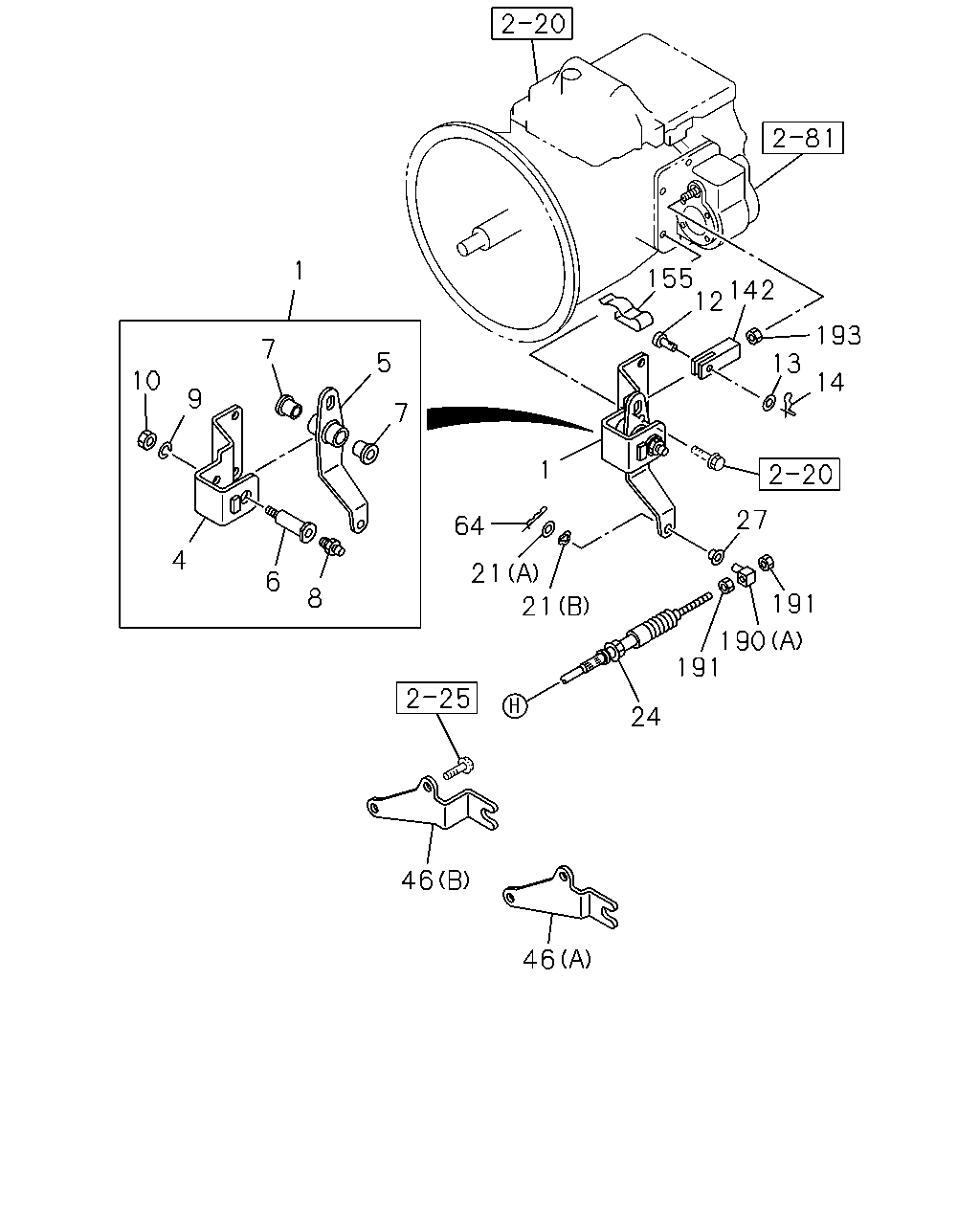

1 155 142 12 193 7 5 13 10 14 9 7 1 27 64 4 21 21 6 8 191 190 191 24 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0907-1107	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-1402	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1403-	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0907-1107	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-1402	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1403-	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0907-1402	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1403-	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0907-1107	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-1402	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1403-	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0907-1402	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1403-	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0907-1402	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1403-	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0907-1402	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1403-	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0907-1402	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1403-	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0907-1402	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1403-	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0907-1402	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1403-	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0907-1402	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1403-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0907-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0907-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	0905-			●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98085-639-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98085-640-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98223-344-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98085-641-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98223-353-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98085-642-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98223-352-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	0905-0906			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	0907-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	0905-0906			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	0907-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1208-			●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0907-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-815-0	01	1	0907-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-829-2	01	1	0907-	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0907-	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0907-1402	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1403-	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	0907-1402	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	1403-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0907-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	0905-			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0905-0906			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0907-	●	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0907-	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0907-1402	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1403-	●	●

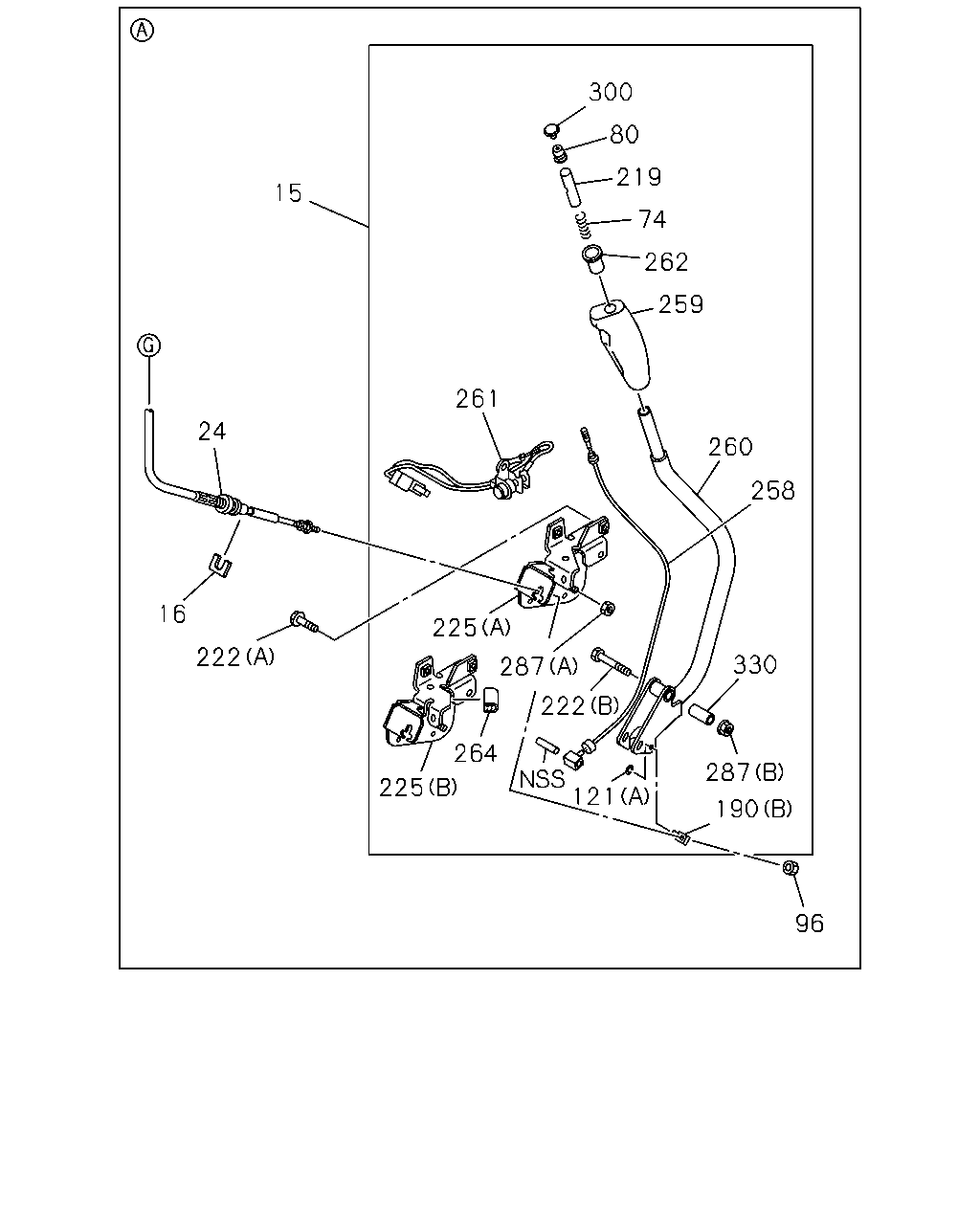

15 300 80 219 74 262 259 260 258 330 287 190 96 121 222 287 225 264 225 222 16 24 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98029-208-6	01	1	0905-0906			●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98029-208-7	01	1	0907-1204	●	●	●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1205-	●	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0905-0906			●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0907-	●	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98085-639-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98085-640-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98223-344-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98085-641-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98223-353-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98085-642-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98223-352-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	0905-0906			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	0907-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	0905-0906			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	0907-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1208-			●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0905-0906			●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0907-	●	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0905-0906			●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0907-	●	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0905-0906			●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0907-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	0905-0906			●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	0907-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	0905-			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0907-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	0905-			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0905-0906			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0907-	●	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0905-0906			●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0907-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0905-0906			●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0907-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0905-0906			●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0907-	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98029-873-2	01	1	0905-0906			●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98029-873-3	01	1	0907-1204	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98152-960-1	01	1	1205-	●	●	●
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	0905-0906			●
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	0907-	●	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0905-0906			●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0907-	●	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	0905-0906			●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	0907-	●	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	0905-0906			●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	0907-	●	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0905-0906			●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0907-	●	●	●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1205-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	0905-0906			●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	0907-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0905-0906			●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0907-	●	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0905-0906			●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0907-	●	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0905-0906			●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0907-	●	●	●

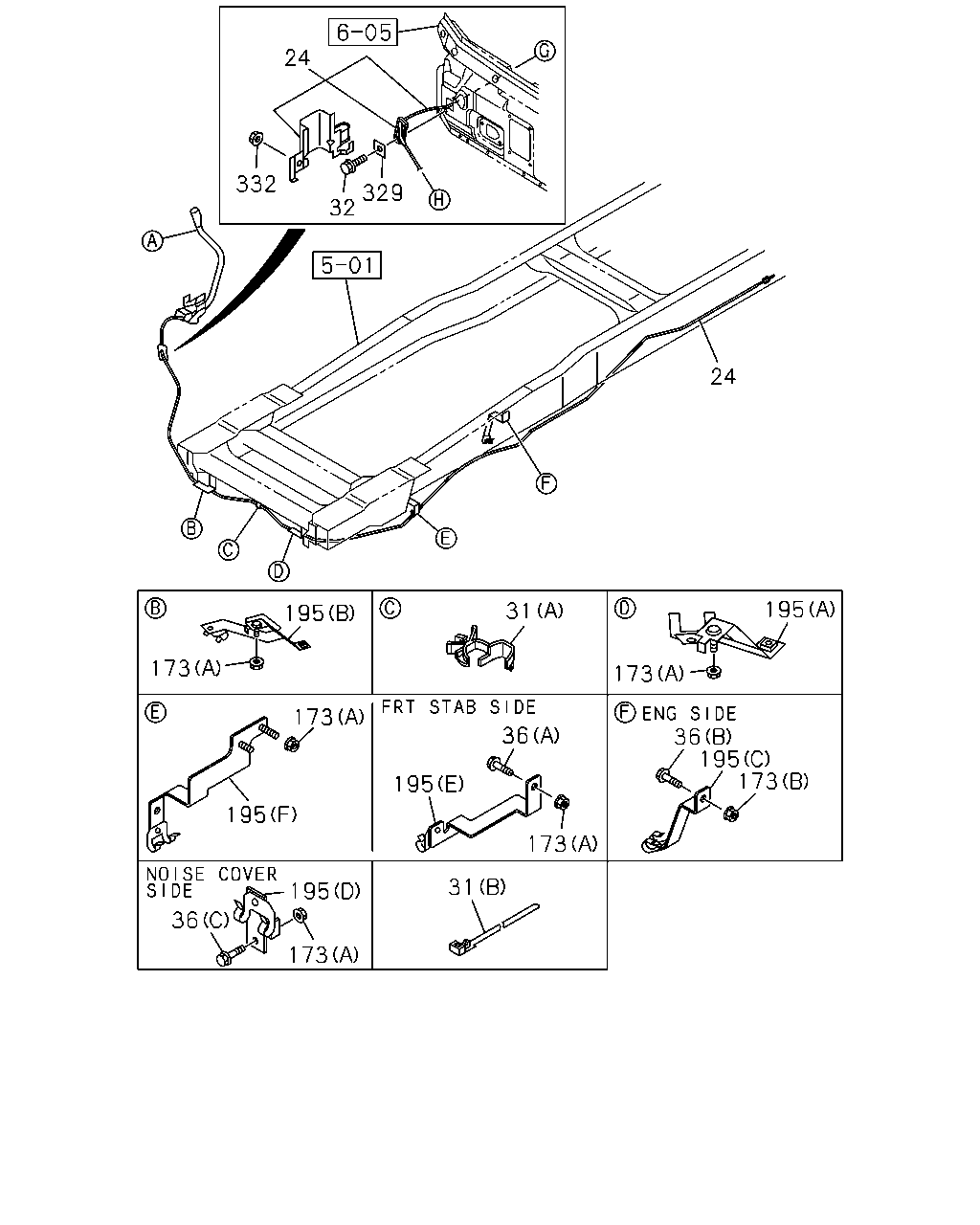

24 332 329 32 24 195 31 195 173 173 36 195 173 173 36 195 195 173 31 195 36 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98085-639-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98085-640-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98223-344-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98085-641-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98223-353-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98085-642-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98223-352-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	0905-0906			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	0907-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	0905-0906			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	0907-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1208-			●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	0905-0906			●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) L=250	5-09707-030-1	01	1	0907-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	0905-0906			●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) ID=16	8-97040-812-0	01	1	0907-	●	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	0905-0906			●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	0907-	●	●	●
36	04.439 BOLT; PTO BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0905-0906			●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0905-0906			●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-			●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-			●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0905-0906			●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0907-			●
173	04.439 NUT; BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0905-0906			●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0905-0906			●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0907-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0907-			●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0905-0906			●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (A)	8-98049-570-1	01	1	0907-	●	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (C)	8-98101-144-0	01	1	0907-	●	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (F)	8-98101-145-0	01	1	0907-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98098-618-0	01	1	0905-0906			●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98098-618-0	01	1	0907-	●	●	●
195	04.439 BRACKET; CONT CABLE NPR(NP***N) 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (E)	8-98102-494-0	01	1	0905-	●	●	●
195	04.439 BRACKET; CONT CABLE NPR(NP***N) 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (A)	8-98102-495-1	01	1	0905-	●	●	●
195	04.439 BRACKET; CONT CABLE NPR(NP***N) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98086-271-2	01	1	0905-			●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	0905-0906			●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	0907-	●	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0905-0906			●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-	●	●	●

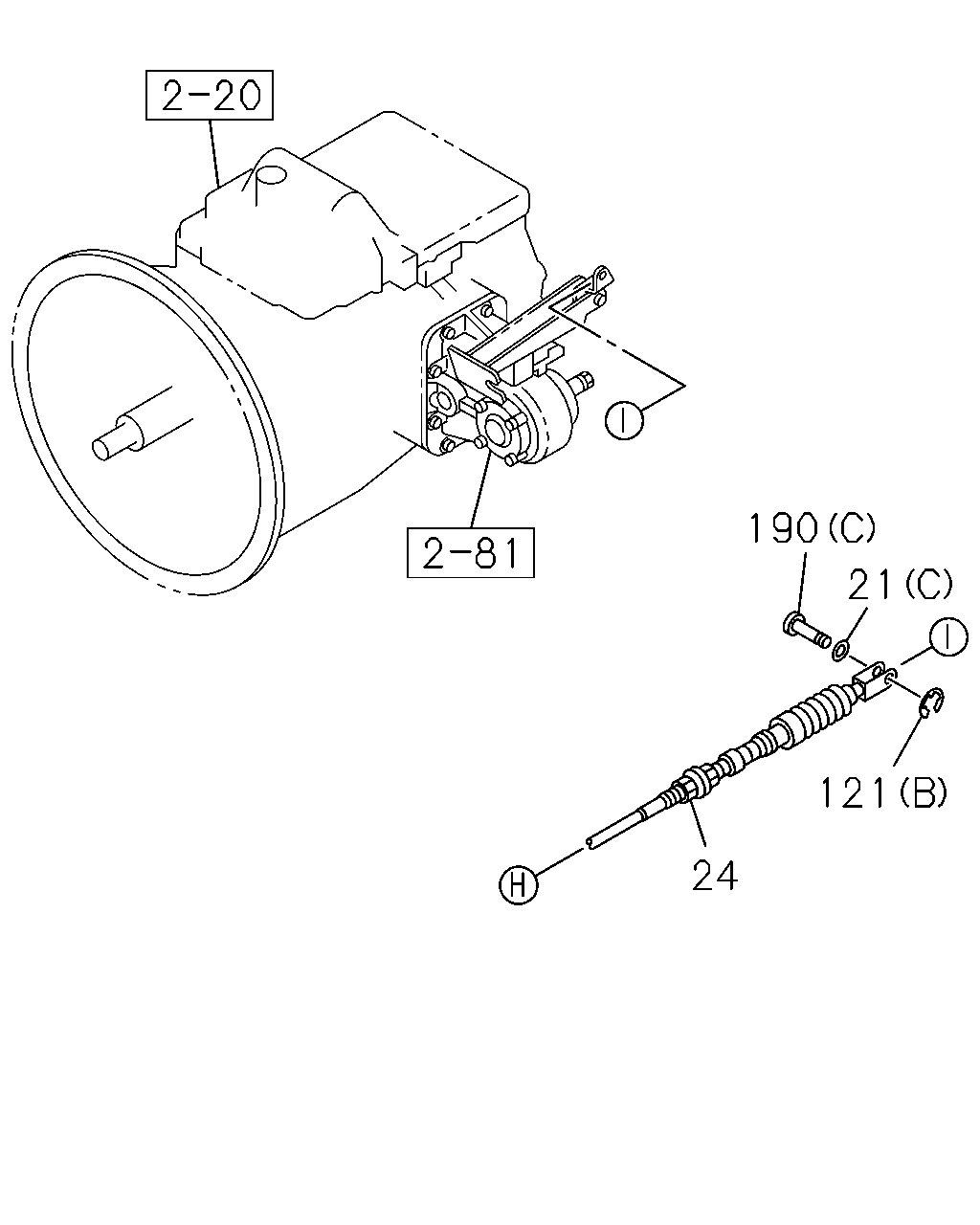

190 21 121 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0907-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0907-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	0905-			●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98085-639-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3610	8-98223-345-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98085-640-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3532	8-98223-344-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98085-641-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3680	8-98223-353-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98085-642-1	01	1	0907-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3602	8-98223-352-0	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	0905-0906			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98070-961-2	01	1	0907-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=3904	8-98223-357-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	0905-0906			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98070-960-2	01	1	0907-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3844	8-98223-356-0	01	1	1208-			●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	0905-0906			●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	0907-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	0905-			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0907-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	0905-			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0905-0906			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0907-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
