2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#77346) — 10 parça

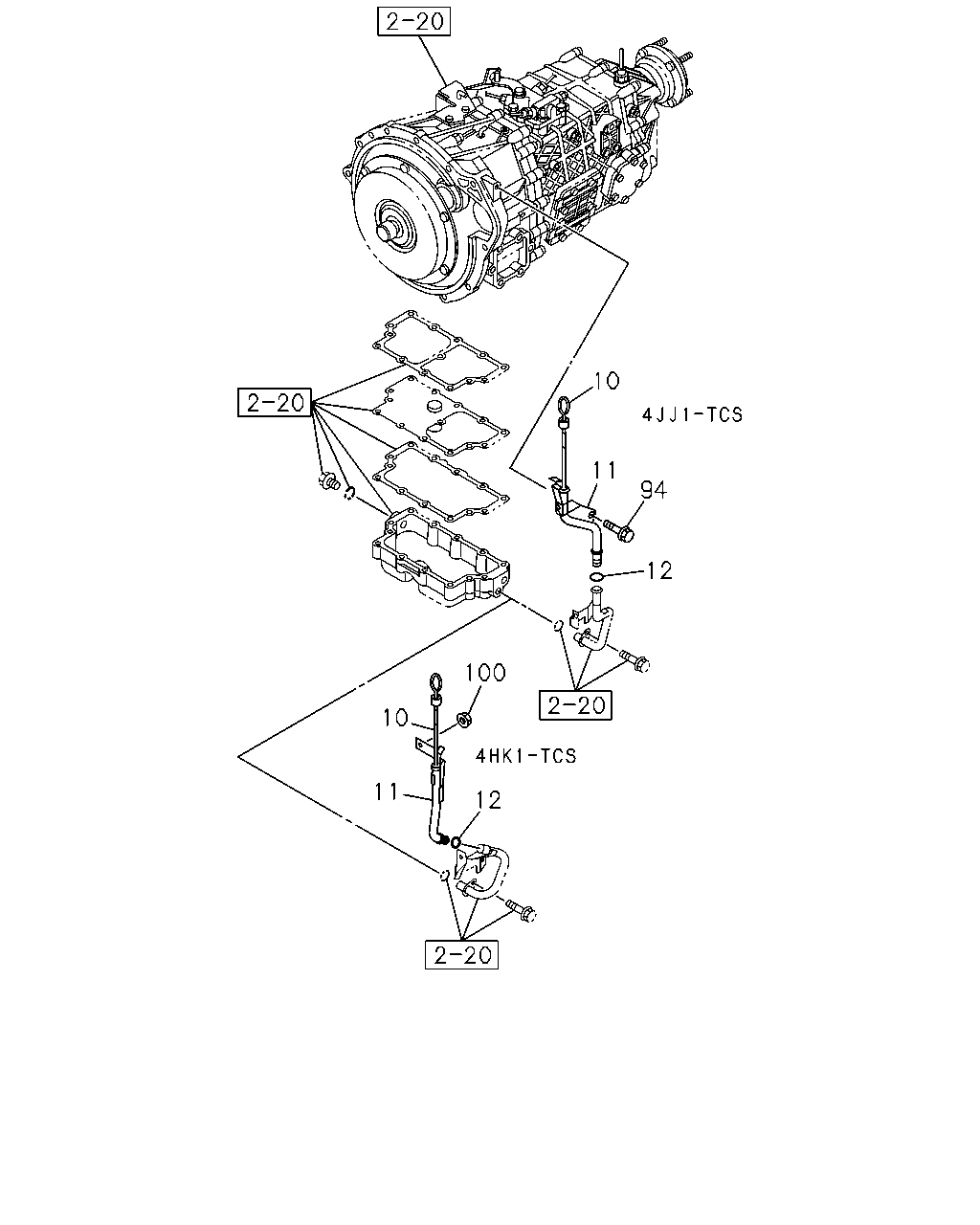

çizim 114431
10 11 94 12 100 10 11 12
BalonParca AdiParca NoAdetTipApplied Date A B C
10 04.197 GAUGE; OIL LEVEL
SGL CAB(NP**S*) 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97325-010-1 01 1 0907- ● ● ●
10 04.197 GAUGE; OIL LEVEL
DBL CAB(NP**W*) 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-447-1 01 1 0907- ● ● ●
10 04.197 GAUGE; OIL LEVEL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-446-0 01 1 0905- ●
11 04.197 TUBE; OIL FILLER
SGL CAB(NP**S*) 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98050-297-0 01 1 0907- ● ● ●
11 04.197 TUBE; OIL FILLER
DBL CAB(NP**W*) 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97368-278-1 01 1 0907- ● ● ●
11 04.197 TUBE; OIL FILLER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-185-0 01 1 0905- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 0905-0906 ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 0907- ● ● ●
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 0907- ● ●
100 04.197 NUT; FILLER TUBE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0905- ●
