◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#77337) — 78 parça
çizim 102755
8 9 1 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-641-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98098-250-0 01 1 0905-0906 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98098-250-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 0905-0906 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 0905- ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 0905-0906 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 0907- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0905-0906 ●
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0907- ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0905-0906 ●
3 00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0907- ● ● ●
4 00.777 NUT; JAW JOINT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0905-0906 ●
4 00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0907- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0905-0906 ●
5 00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0907- ● ● ●
6 00.775 BOOT; CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0905-0906 ●
6 00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0907- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 0905-0906 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 0907- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0905-0906 ●
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0907- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 0905-0906 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 0907- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 0905-0906 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 0907- ● ● ●
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 0905-0906 ●
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 0907- ● ● ●

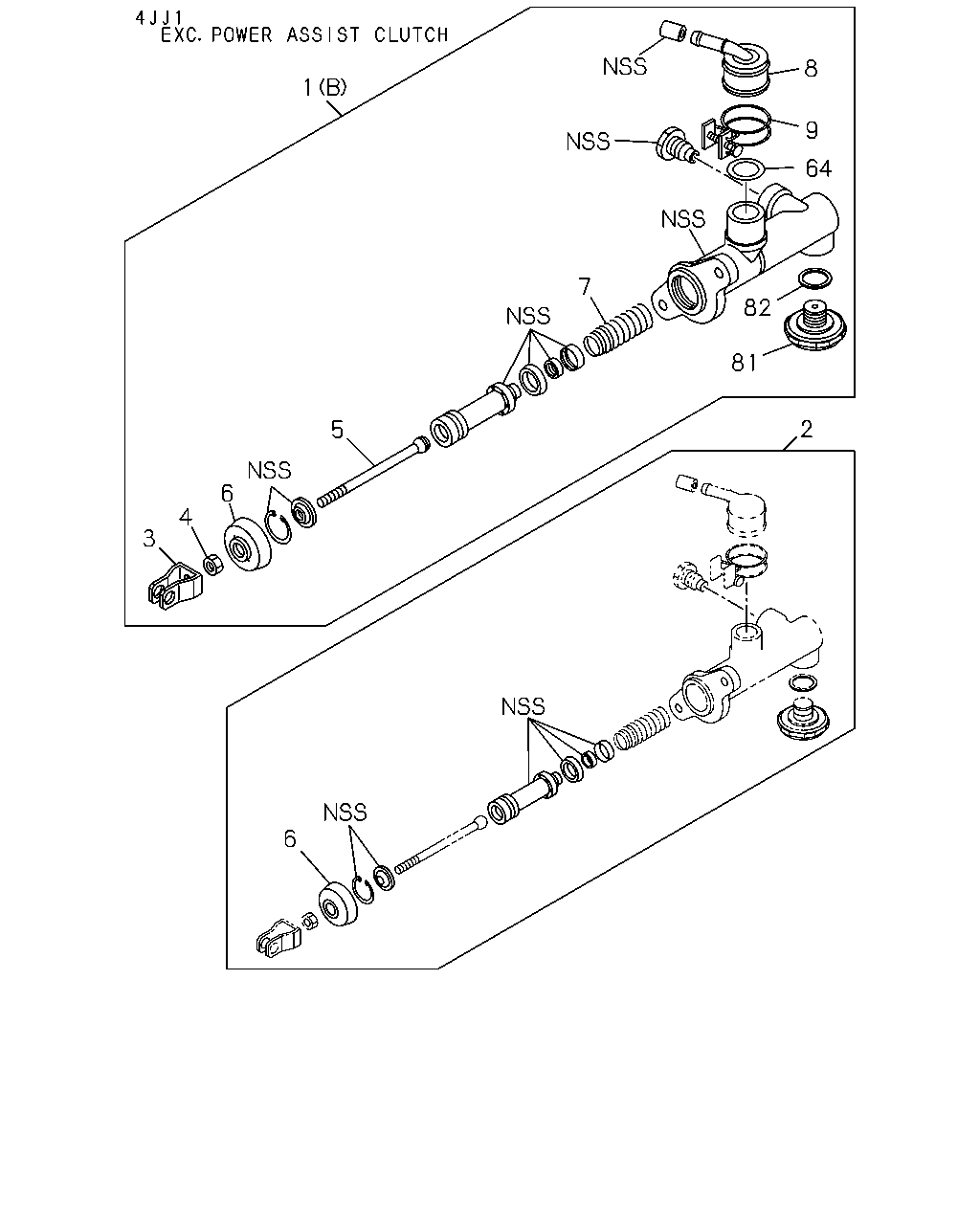

çizim 102990
8 1 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-641-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98098-250-0 01 1 0905-0906 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98098-250-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 0905-0906 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 0905- ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 0905-0906 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 0907- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0905-0906 ●
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0907- ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0905-0906 ●
3 00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0907- ● ● ●
4 00.777 NUT; JAW JOINT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0905-0906 ●
4 00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0907- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0905-0906 ●
5 00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0907- ● ● ●
6 00.775 BOOT; CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0905-0906 ●
6 00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0907- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 0905-0906 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 0907- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0905-0906 ●
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0907- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 0905-0906 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 0907- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 0905-0906 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 0907- ● ● ●
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 0905-0906 ●
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 0907- ● ● ●
81 00.777 DAMPER; MASTER CYL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97190-913-0 01 1 0907- ● ● ●
82 00.777 GASKET; DAMPER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97191-396-0 01 1 0907- ● ● ●
çizim 186565
1 8 9 2 64 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98117-641-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98098-250-0 01 1 0905-0906 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98098-250-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 0905-0906 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98062-277-0 01 1 0907- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 0905- ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 0905-0906 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 0907- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0905-0906 ●
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0907- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 0905-0906 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 0907- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0905-0906 ●
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0907- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 0905-0906 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 0907- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 0905-0906 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 0907- ● ● ●
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 0905-0906 ●
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 0907- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
