1-56 — EXHAUST BRAKE SYSTEM (#77331) — 96 parça

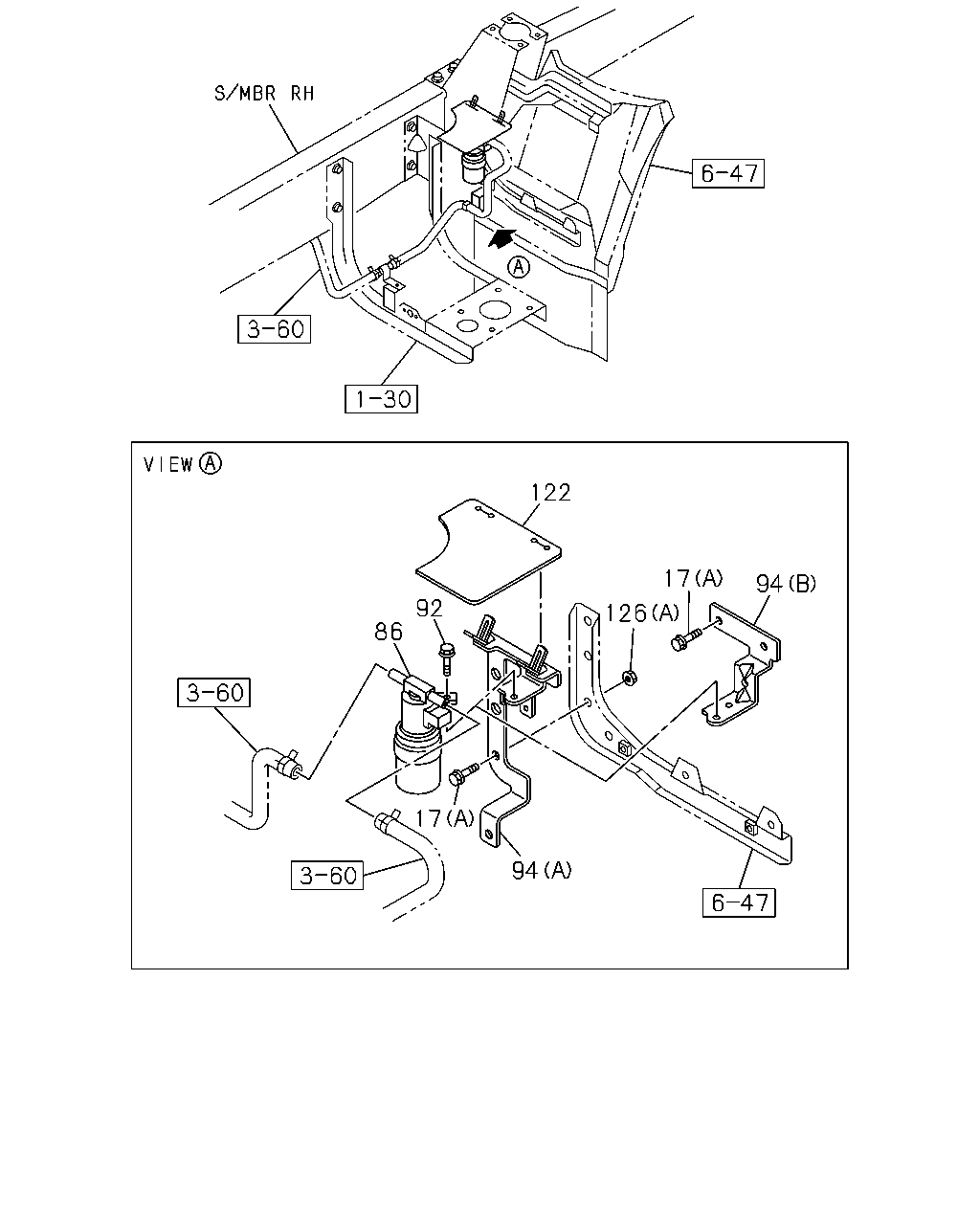

122 17 94 92 126 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	03.634 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-	●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0905-0906		●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-		●	●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0905-0906	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0907-	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-97370-883-2	01	1	0907-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	0907-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	0907-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	0907-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	0907-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	0907-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-97387-681-1	01	1	0907-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98089-211-0	01	1	0907-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	0905-0906		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	0907-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	0905-0906	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	0907-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-636-1	01	1	0905-0906	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98040-636-1	01	1	0907-	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	0905-0906		●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	0907-		●	●
126	03.634 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0907-	●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0905-0906		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0907-		●	●
126	03.634 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0907-	●

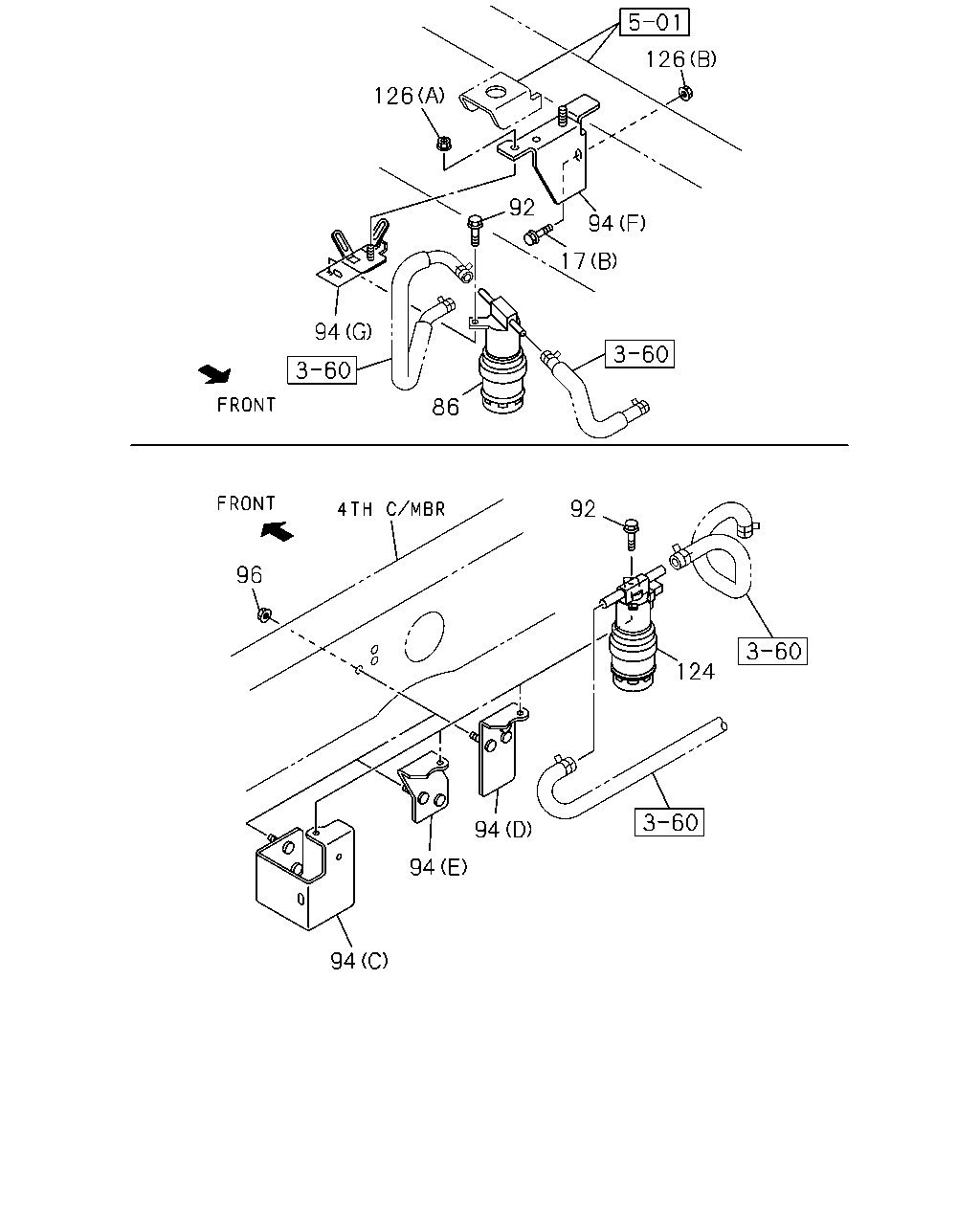

126 126 92 94 17 94 86 92 96 124 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	03.634 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-	●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0905-0906		●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-		●	●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0905-0906	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0907-	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D)	8-97370-883-2	01	1	0907-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	0907-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	0907-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E)	8-98032-122-0	01	1	0907-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	0907-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	0907-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-97387-681-1	01	1	0907-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98089-211-0	01	1	0907-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98034-053-3	01	1	0905-0906		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (A)	8-98034-053-3	01	1	0907-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (C)	8-98040-096-2	01	1	0905-0906	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (C)	8-98040-096-2	01	1	0907-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (B)	8-98040-636-1	01	1	0905-0906	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98040-636-1	01	1	0907-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	0905-0906	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	0907-	●	●	●
126	03.634 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0907-	●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0905-0906		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0907-		●	●
126	03.634 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0907-	●

1 8 5 5 1 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-97384-098-2	01	1	0907-1012	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98167-677-1	01	1	1101-1310	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1311-	●	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) (B)	8-98035-862-2	01	1	0905-1012	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) (B)	8-98167-678-1	01	1	1101-1310	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) (B)	8-98258-269-0	01	1	1311-	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) (A)	8-98068-178-1	01	1	0905-0906	●	●
1	03.632 BRAKE UNIT; EXH (A)	8-98068-178-1	01	1	0907-1212	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A)	8-98068-178-1	01	1	0907-1212			●
1	03.632 BRAKE UNIT; EXH (A)	8-98227-170-0	01	1	1301-	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A)	8-98227-170-0	01	1	1301-			●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCS ENG(RJS) 03.611 ID=64	8-97373-108-0	02	1	0905-0906	●	●
5	03.634 GASKET; EXH BRAKE UNIT 03.611 ID=64	8-97373-108-0	02	1	0907-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	0907-			●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0905-0906	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0907-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0907-			●
10	03.634 NUT; BRKT,EXH BRAKE IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8	1-09400-118-1	04	1	1204-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8	1-09400-118-1	04	1	1204-			●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCS ENG(RJS) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	0905-0906	●	●
10	03.634 NUT; BRKT,EXH BRAKE 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	0907-1203	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	0907-1203			●
10	03.634 NUT; BRKT,EXH BRAKE EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1204-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1204-			●

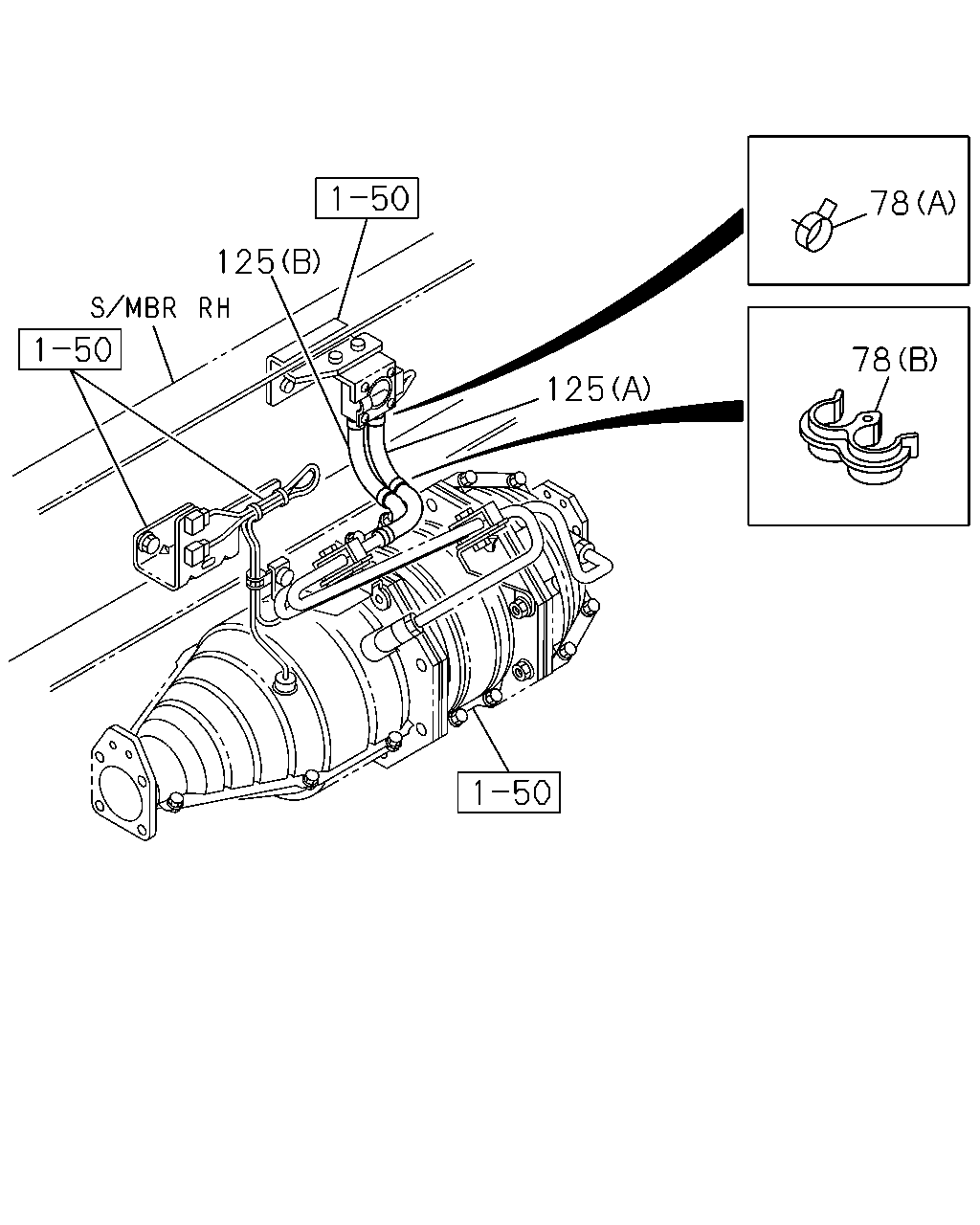

78 125 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B)	8-97173-119-0	01	1	0907-	●	●	●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) 03.162 (A) ID=13	8-97329-627-0	04	1	0905-0906	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	0907-	●	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (A) ID=13	8-97329-627-0	04	1	0907-			●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98004-348-0	01	1	0907-	●	●	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98004-349-0	01	1	0907-	●	●	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0905-	●	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A) L=170	8-98068-068-0	01	1	0905-	●	●
