6-31 — FRONT DOOR GLASS AND REGULATOR (#7733) — 233 parça
çizim 6514
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 0004- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9902-0003 ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0004- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9902-0003 ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0004- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-0003 ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0004- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-0003 ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0004- ● ●

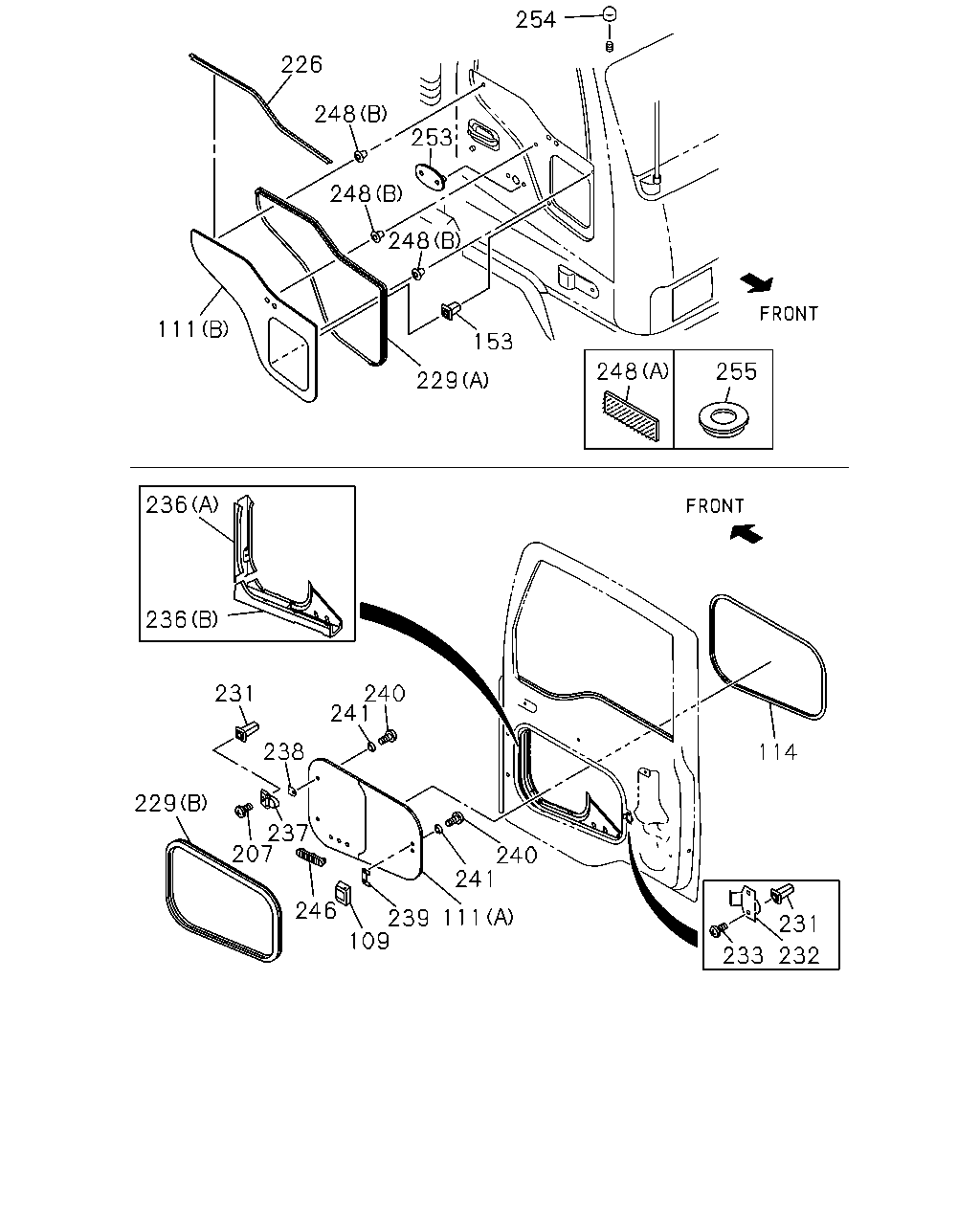

çizim 44307
254 226 248 253 248 248 111 153 248 255 229 236 236 231 240 241 238 114 229 237 207 240 241 231 246 111 239 109 233 232
BalonParca AdiParca NoAdetTipApplied Date A B
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 9902- ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76148-081-2 01 1 9902- ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-150-0 01 1 9902-9910 ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		8-97893-167-0 01 1 9911- ●
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-037-1 01 1 9902- ●
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 9902- ●
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9902- ●
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-156-0 01 1 9902- ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76738-160-2 01 1 9902- ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76738-161-1 01 1 9902- ●
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9902- ●
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 9902- ●
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9902- ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-461-2 01 1 9902- ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-462-0 01 1 9902- ●
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 9902- ●
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 9902- ●
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 9902- ●
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 9902- ●
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 9902- ●
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 9902- ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74998-072-0 01 1 9902- ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) ID=5.4 OD=6.8 		1-09989-019-0 03 1 9902- ●
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-97865-049-0 01 1 9910- ●
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-97865-049-0 01 1 9902- ●
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-94276-413-1 02 1 9902- ●
255 GROMMET; MIRROR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 		8-94225-442-0 02 1 9902- ●

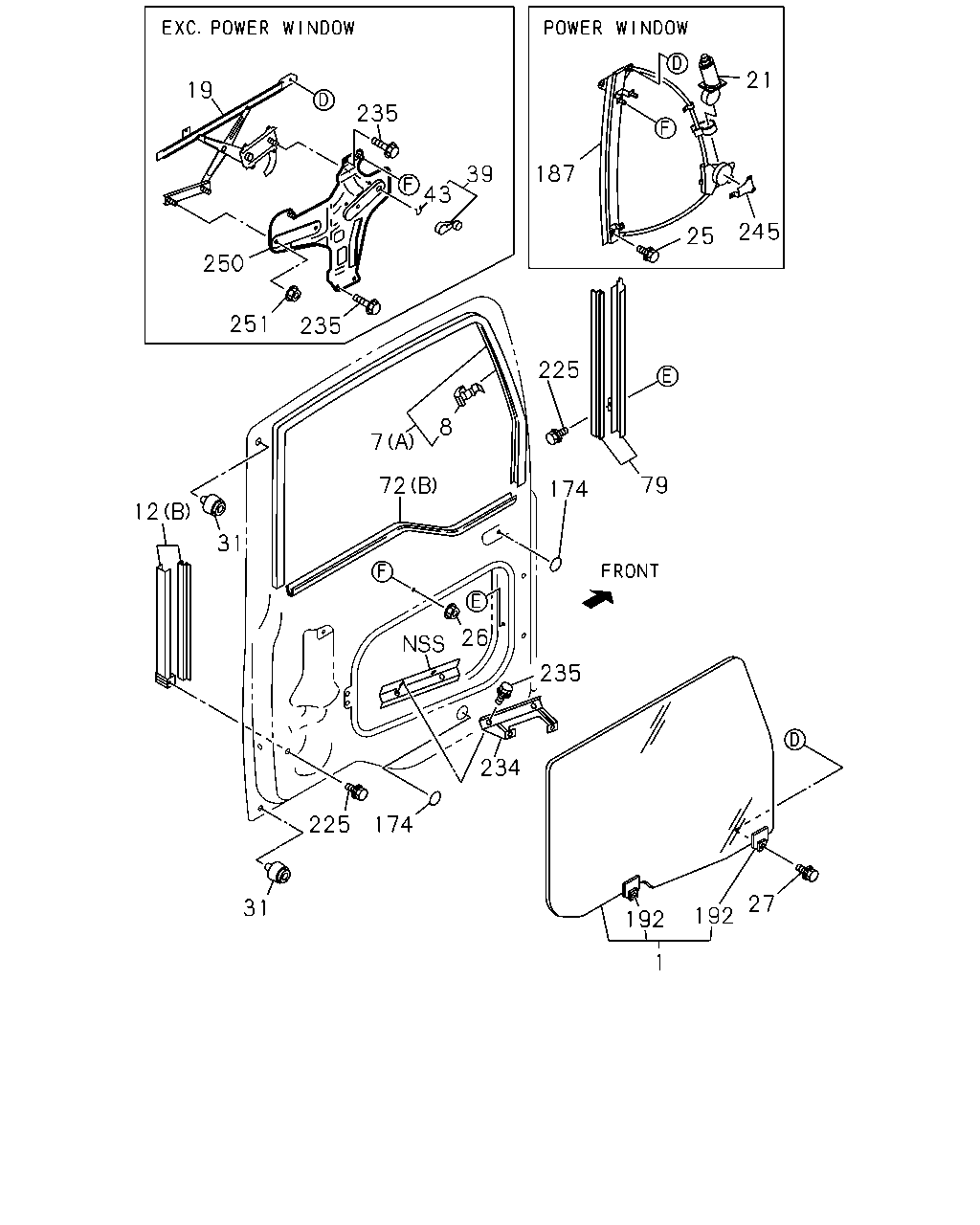

çizim 44788
21 19 235 187 39 43 245 25 250 251 235 225 8 7 79 72 174 12 31 26 235 234 225 174 192 27 31 192 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-0 01 1 9902-0003 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-1 01 1 0004- ●
1 GLASS; FRT DOOR 1-76148-095-1 01 1 0004- ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9902-9905 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-0 01 1 9906-0003 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-1 01 1 0004- ●
1 GLASS; FRT DOOR 1-76167-177-1 01 1 0004- ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-1 01 1 9902- ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-1 01 1 9902- ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9902-0003 ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 0004- ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9902-0003 ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 0004- ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-042-0 01 1 9902- ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9902-0003 ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0004- ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-071-2 01 1 9902-0003 ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-071-2 01 1 0004- ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-070-2 01 1 9902-0003 ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-070-2 01 1 0004- ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-036-0 01 1 9902- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9902- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9902- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9902-0003 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0004-0004 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0004- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 0004- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9902-0003 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004-0004 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0004- ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9902-0003 ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0004- ●
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0004- ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9902-0003 ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0004- ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 0004- ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9902-0003 ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0004- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9902-0003 ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0004- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9902- ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9902- ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 0004- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9902-0003 ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 0004- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 9902-0003 ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 0004- ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 0004- ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9902- ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9902-0003 ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 0004- ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 0004- ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9902- ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9902- ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-1 01 1 9902-0003 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-0 01 1 0004-0004 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-2 01 1 0004- ●
187 REGULATOR ASM; DOOR 1-74418-179-2 01 1 0004- ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9902-0003 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-0 01 1 0004-0004 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004- ●
187 REGULATOR ASM; DOOR 1-74418-178-2 01 1 0004- ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9902-0003 ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0004- ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0004- ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0004- ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9902-0003 ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0004 ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004- ● ●
234 BRACKET; OK WINDOW 1-74998-057-2 01 1 9902-0003 ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0004- ● ●
234 BRACKET; OK WINDOW 1-74998-062-2 01 1 9902-0003 ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0004- ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-0003 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-0003 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0004- ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0004- ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 02 1 9902-0003 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-180-0 01 1 0004-0004 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-180-0 01 1 0004- ●
245 DAMPER; WINDOW REGULATOR 1-74418-180-0 01 1 0004- ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-181-0 01 1 0004-0004 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-181-0 01 1 0004- ●
245 DAMPER; WINDOW REGULATOR 1-74418-181-0 01 1 0004- ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9902- ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9902- ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9902- ●

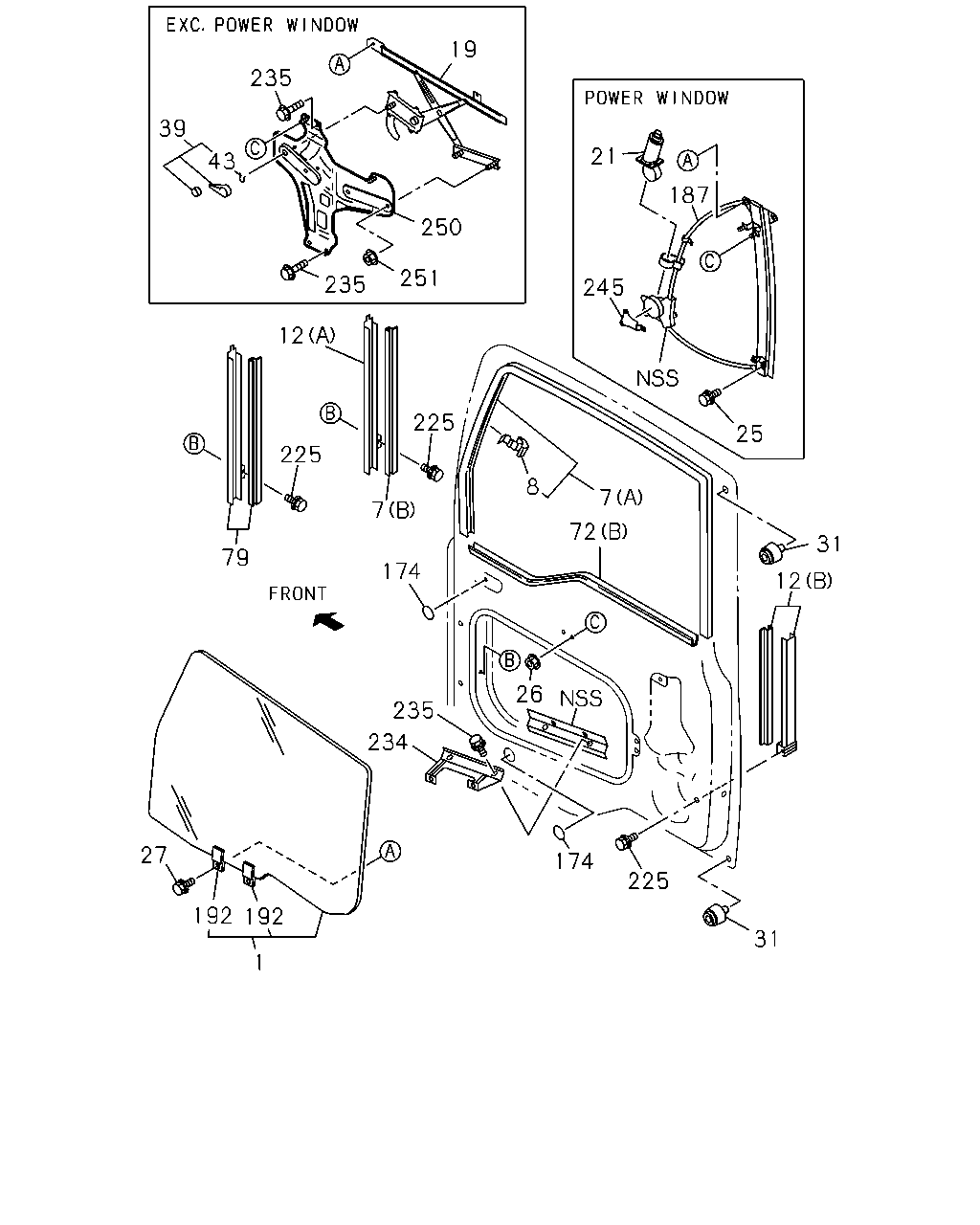

çizim 47053
19 235 39 21 43 187 250 251 235 245 12 225 25 225 8 7 7 72 31 79 12 174 26 235 234 27 174 225 192 192 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-0 01 1 9902-0003 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-1 01 1 0004- ●
1 GLASS; FRT DOOR 1-76148-095-1 01 1 0004- ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9902-9905 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-0 01 1 9906-0003 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-1 01 1 0004- ●
1 GLASS; FRT DOOR 1-76167-177-1 01 1 0004- ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-1 01 1 9902- ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-1 01 1 9902- ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9902-0003 ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 0004- ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9902-0003 ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 0004- ● ●
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-042-0 01 1 9902- ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9902-0003 ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0004- ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-071-2 01 1 9902-0003 ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-071-2 01 1 0004- ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-070-2 01 1 9902-0003 ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-070-2 01 1 0004- ● ●
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-036-0 01 1 9902- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9902- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9902- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9902-0003 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0004-0004 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0004- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 0004- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9902-0003 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004-0004 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0004- ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9902-0003 ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0004- ●
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0004- ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9902-0003 ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0004- ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 0004- ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9902-0003 ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0004- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9902-0003 ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0004- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9902- ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9902- ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 0004- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 9902-0003 ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 0004- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 9902-0003 ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 0004- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 9902-0003 ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 0004- ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 0004- ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 9902- ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 9902-0003 ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 0004- ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 0004- ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 9902- ●
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 9902- ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-1 01 1 9902-0003 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-0 01 1 0004-0004 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-2 01 1 0004- ●
187 REGULATOR ASM; DOOR 1-74418-179-2 01 1 0004- ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9902-0003 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-0 01 1 0004-0004 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004- ●
187 REGULATOR ASM; DOOR 1-74418-178-2 01 1 0004- ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9902-0003 ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0004- ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0004- ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0004- ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9902-0003 ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0004 ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004- ● ●
234 BRACKET; OK WINDOW 1-74998-057-2 01 1 9902-0003 ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0004- ● ●
234 BRACKET; OK WINDOW 1-74998-062-2 01 1 9902-0003 ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0004- ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-0003 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9902-0003 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0004- ● ●
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0004- ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-146-0 02 1 9902-0003 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-180-0 01 1 0004-0004 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-180-0 01 1 0004- ●
245 DAMPER; WINDOW REGULATOR 1-74418-180-0 01 1 0004- ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-181-0 01 1 0004-0004 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74418-181-0 01 1 0004- ●
245 DAMPER; WINDOW REGULATOR 1-74418-181-0 01 1 0004- ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9902- ●
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9902- ●
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9902- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
