◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#77329) — 699 parça

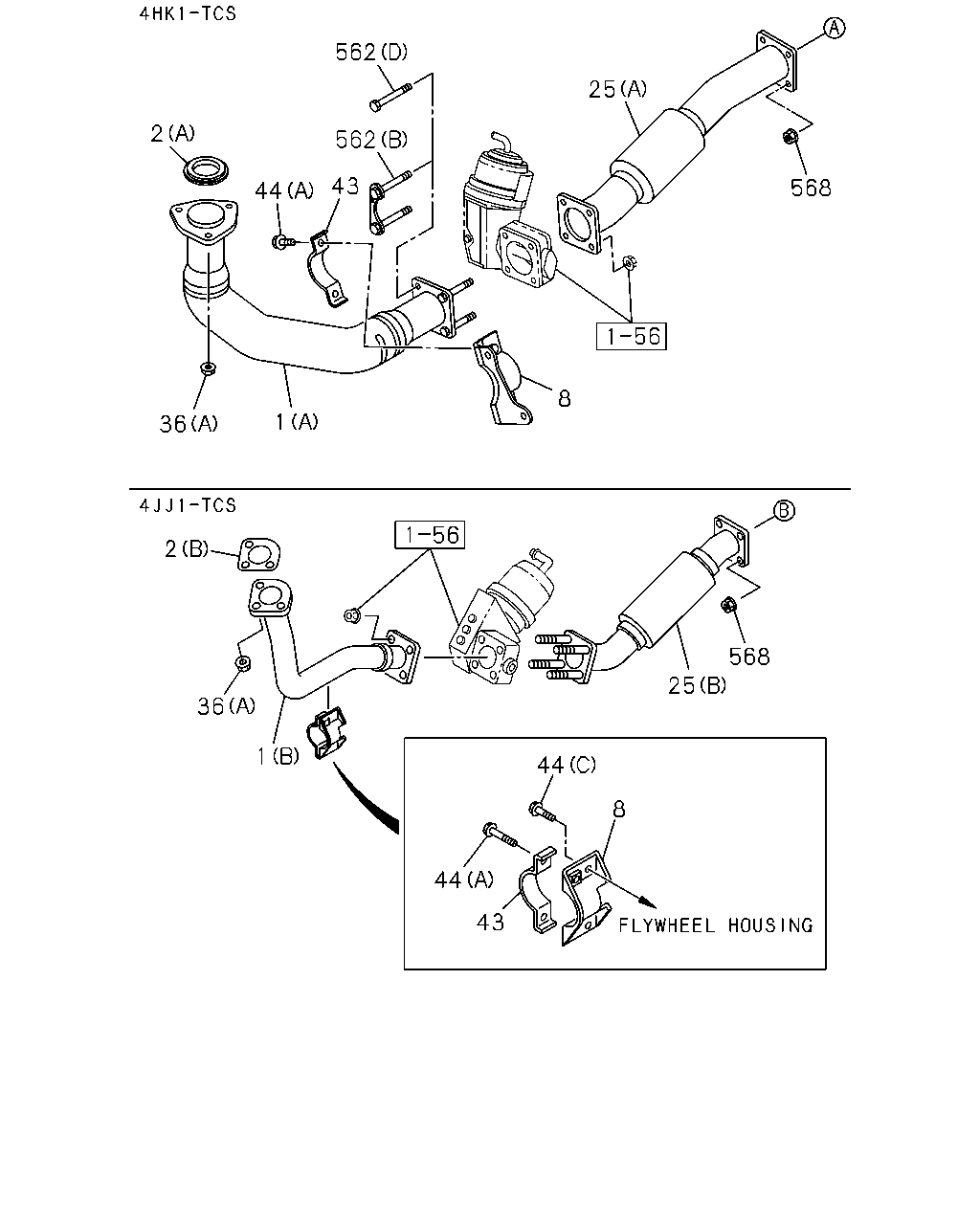

çizim 96579
562 25 2 562 43 568 44 8 1 36 2 568 25 36 1 44 8 44 43
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (B) 		8-98026-060-0 01 1 0907- ● ● ●
1 03.609 PIPE; EXH
4HK1-TCS ENG(RJS) (A) 		8-98006-765-2 01 1 0905- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) (B) 		8-97384-590-0 01 1 0907- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4HK1-TCS ENG(RJS) (A) 		8-97381-455-0 01 1 0905- ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 		8-98026-063-0 01 1 0907- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.613 		8-98020-555-0 01 1 0905- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) (B) 		8-98026-062-2 01 1 0907- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) (A) 		8-98006-766-0 01 1 0905- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907- ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0905- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0905- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 0905-0906 ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0907- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) (A) M10 FLANGE 		8-97096-192-1 03 1 0907- ●
43 03.611 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) 		8-97351-200-1 01 1 0905-0906 ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 0907- ● ●
43 03.611 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97351-200-1 01 1 0907- ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (C) M10X25 FLANGE 		0-28151-025-0 02 1 0907- ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
44 03.613 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0905-0906 ● ●
44 03.613 BOLT; BRKT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (E) M8X35 FLANGE 		0-28050-835-0 04 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE 		0-28050-870-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (C) M12X35 FLANGE 		0-28051-235-0 04 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) (A) 		8-97373-966-0 02 1 0907-1205 ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97373-966-0 02 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.685 (A) M12X35 		1-22131-963-0 02 1 0905-1203 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.613 (A) 		1-22131-962-0 02 1 1204-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) (B) 		8-98030-175-0 01 1 0905-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1206- ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0907- ● ● ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 0905- ● ●

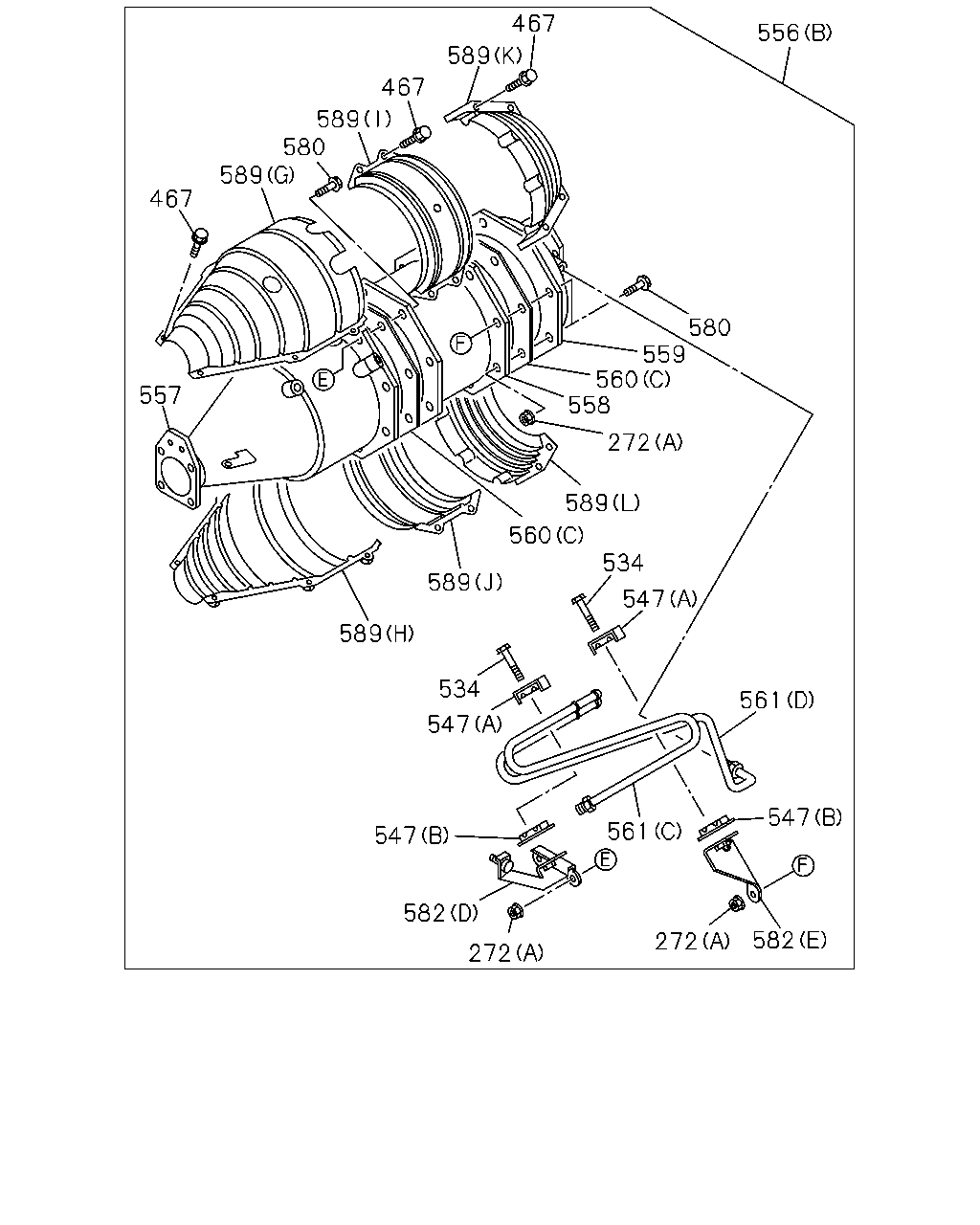

çizim 97139
467 556 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272
BalonParca AdiParca NoAdetTipApplied Date A B C
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 16 1 0907- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 20 1 0905- ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) M6X16 		8-98019-179-0 14 1 0905-0906 ● ●
467 03.685 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0907- ● ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB) M6X16 		8-98019-179-0 14 1 0907- ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE 		0-28650-635-0 02 1 0907- ● ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) 03.162 M6X35 FLANGE 		0-28650-635-0 03 1 0905- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-97381-635-0 02 1 0907- ● ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97381-636-0 02 1 0907- ● ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) (A) 		8-97381-635-0 03 1 0905- ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) (B) 		8-97381-636-0 03 1 0905- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98036-810-7 01 1 0907-1011 ● ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98039-162-6 01 1 0905-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98084-602-4 01 1 1011- ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98036-815-7 01 1 0907- ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-97608-055-8 01 1 0905- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98032-908-2 01 1 0907- ● ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-97608-057-3 01 1 0905- ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB) 		8-98084-599-0 01 1 0907-1011 ● ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB) 		8-98093-507-0 01 1 1012- ● ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) 		8-97611-078-0 01 1 0905-1010 ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) 		8-97622-887-0 01 1 1011- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 02 1 0907- ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 0907- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0905- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		8-97611-080-0 02 1 0905- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98032-910-0 01 1 0907-1011 ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98084-600-0 01 1 1012- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98032-911-1 01 1 0907-1011 ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98084-601-0 01 1 1012- ● ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98039-239-0 01 1 0905-1010 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98084-603-0 01 1 1011- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98039-241-0 01 1 0905-1010 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98084-604-0 01 1 1011- ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE 		0-28650-835-0 16 1 0907- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 01.060 M8X35 FLANGE 		0-28650-835-0 20 1 0905- ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98032-919-0 01 1 0907- ● ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB) (E) 		8-98032-920-0 01 1 0907- ● ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (A) 		8-97611-083-0 01 1 0905- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (B) 		8-97611-084-0 01 1 0905- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (C) 		8-97611-085-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (I) 		8-97383-660-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (L) 		8-97383-663-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-921-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-923-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (J) 		8-98032-924-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (K) 		8-98032-926-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97605-172-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-97611-087-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97611-088-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (E) 		8-97611-089-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (F) 		8-97613-390-0 01 1 0905- ● ●

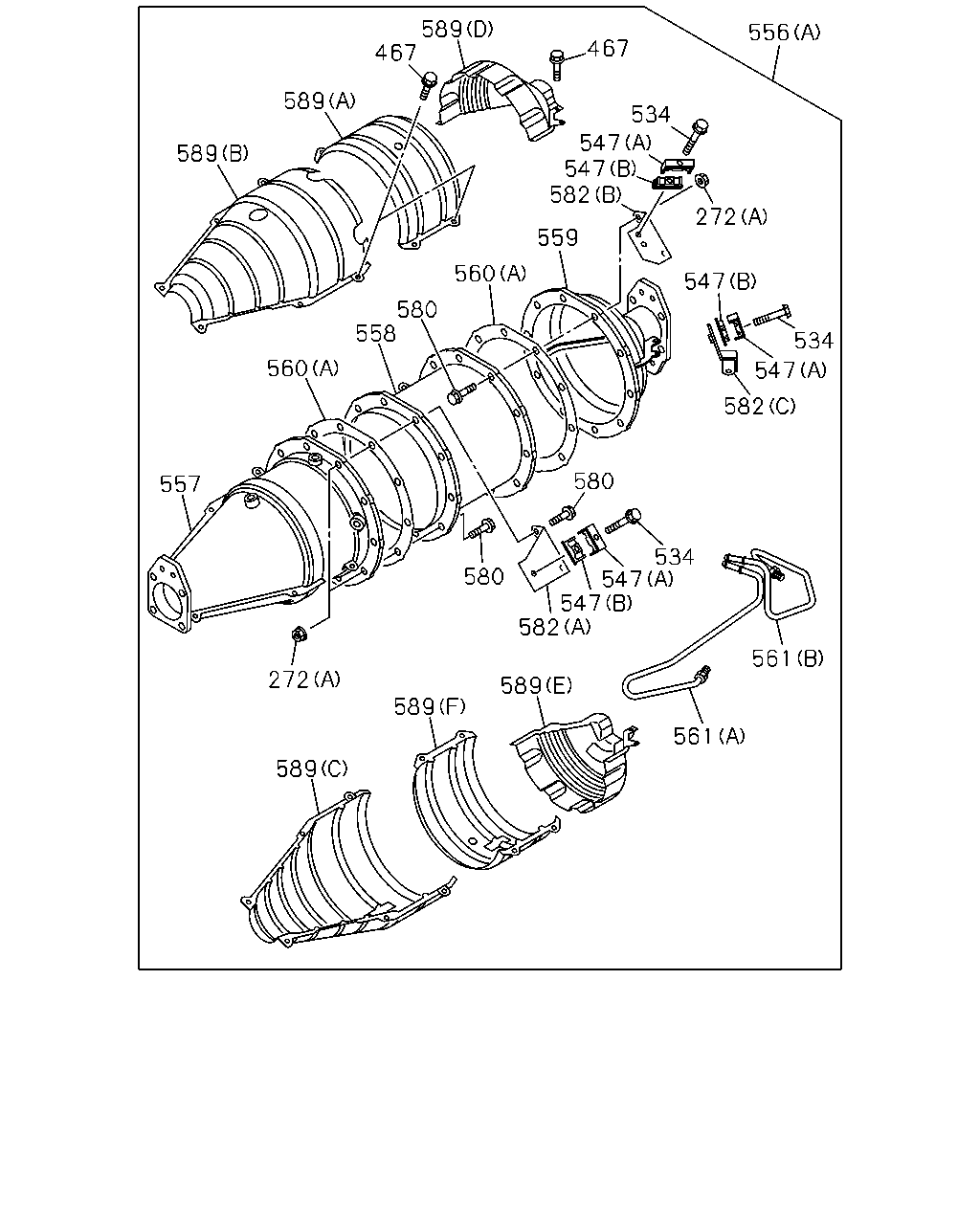

çizim 97197
589 467 556 467 589 534 547 547 582 589 272 559 560 547 580 558 534 560 547 582 580 557 534 547 547 582 580 561 272 589 589 561 589
BalonParca AdiParca NoAdetTipApplied Date A B C
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 16 1 0907- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 20 1 0905- ● ●
467 03.685 BOLT; PROTECTOR
4HK1-TCS ENG(RJS) M6X16 		8-98019-179-0 14 1 0905-0906 ● ●
467 03.685 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0907- ● ●
467 03.685 BOLT; PROTECTOR
4JJ1-TCS ENG(LFB) M6X16 		8-98019-179-0 14 1 0907- ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE 		0-28650-635-0 02 1 0907- ● ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) 03.162 M6X35 FLANGE 		0-28650-635-0 03 1 0905- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (A) 		8-97381-635-0 02 1 0907- ● ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97381-636-0 02 1 0907- ● ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) (A) 		8-97381-635-0 03 1 0905- ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) (B) 		8-97381-636-0 03 1 0905- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98036-810-7 01 1 0907-1011 ● ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98039-162-6 01 1 0905-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98084-602-4 01 1 1011- ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB) 		8-98036-815-7 01 1 0907- ● ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-97608-055-8 01 1 0905- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB) 		8-98032-908-2 01 1 0907- ● ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-97608-057-3 01 1 0905- ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB) 		8-98084-599-0 01 1 0907-1011 ● ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB) 		8-98093-507-0 01 1 1012- ● ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) 		8-97611-078-0 01 1 0905-1010 ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) 		8-97622-887-0 01 1 1011- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 02 1 0907- ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 0907- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0905- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		8-97611-080-0 02 1 0905- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98032-910-0 01 1 0907-1011 ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (C) 		8-98084-600-0 01 1 1012- ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98032-911-1 01 1 0907-1011 ● ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB) (D) 		8-98084-601-0 01 1 1012- ● ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98039-239-0 01 1 0905-1010 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (A) 		8-98084-603-0 01 1 1011- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98039-241-0 01 1 0905-1010 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (B) 		8-98084-604-0 01 1 1011- ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE 		0-28650-835-0 16 1 0907- ● ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 01.060 M8X35 FLANGE 		0-28650-835-0 20 1 0905- ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB) (D) 		8-98032-919-0 01 1 0907- ● ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB) (E) 		8-98032-920-0 01 1 0907- ● ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (A) 		8-97611-083-0 01 1 0905- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (B) 		8-97611-084-0 01 1 0905- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (C) 		8-97611-085-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (I) 		8-97383-660-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (L) 		8-97383-663-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (G) 		8-98032-921-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (H) 		8-98032-923-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (J) 		8-98032-924-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB) (K) 		8-98032-926-0 01 1 0907- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (A) 		8-97605-172-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (B) 		8-97611-086-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (C) 		8-97611-087-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (D) 		8-97611-088-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (E) 		8-97611-089-0 01 1 0905- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (F) 		8-97613-390-0 01 1 0905- ● ●

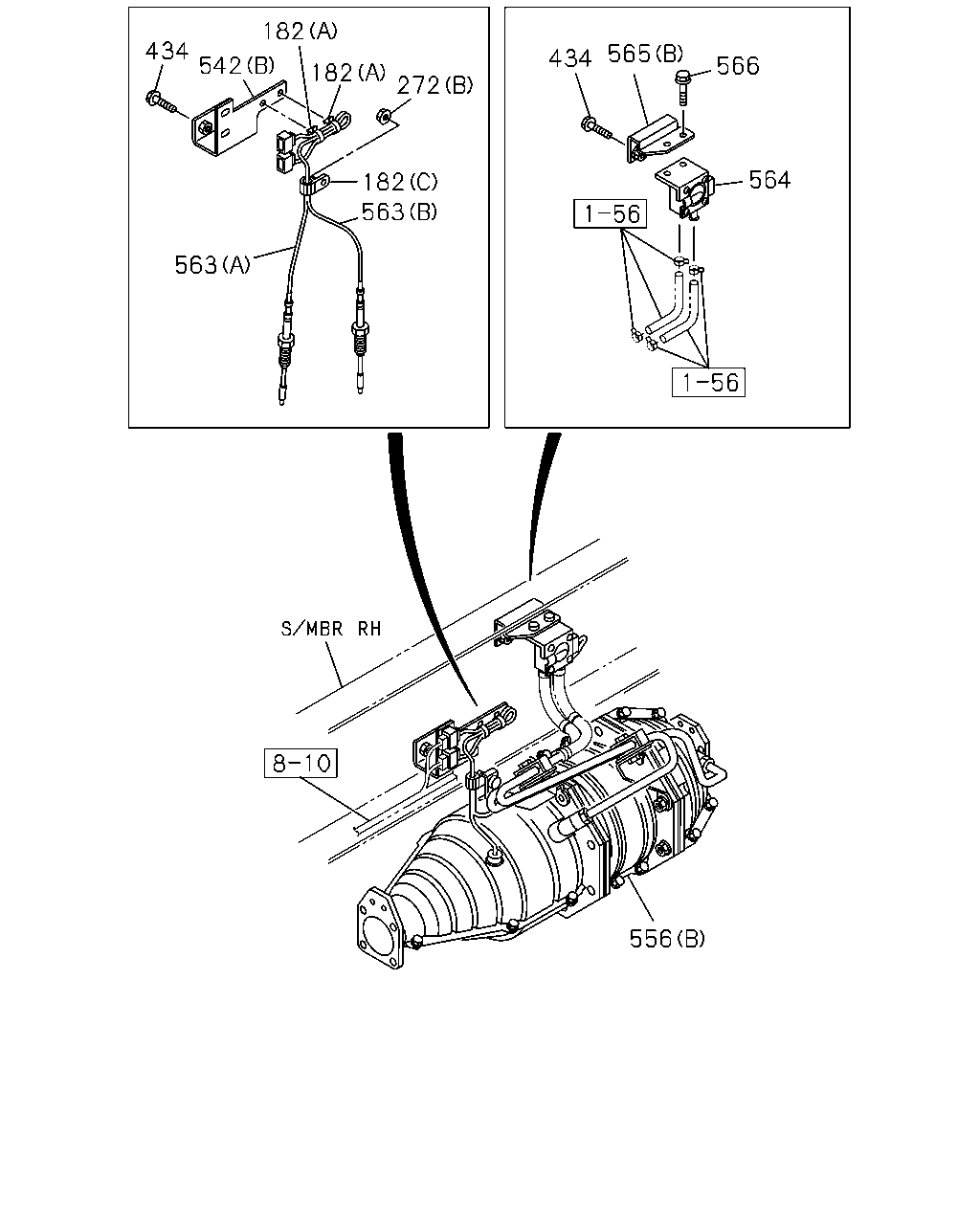

çizim 97426
182 434 565 434 542 566 182 272 564 182 563 563 556
BalonParca AdiParca NoAdetTipApplied Date A B C
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) (C) ID=7 		8-98002-767-0 01 1 0907- ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) 02.587 (A) L=112 		8-94232-618-0 02 1 0905-0906 ● ●
182 03.682 CLIP; HARNESS
02.587 (A) L=112 		8-94232-618-0 02 1 0907- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (A) L=112 		8-94232-618-0 02 1 0907- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (B) ID=7 L=7.5 		8-97369-561-0 01 1 0905- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE 		0-91180-108-0 16 1 0907- ● ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 20 1 0905- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0907-1503 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 1504- ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0905- ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0905- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (B) 		8-98004-026-1 01 1 0907- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98039-602-0 01 1 0905- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98036-810-7 01 1 0907-1011 ● ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98039-162-6 01 1 0905-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98084-602-4 01 1 1011- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) (A) 		8-98004-329-0 01 1 0905-0906 ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98004-329-0 01 1 0907- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) (A) 		8-98004-329-0 01 1 0907- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) (B) 		8-98004-330-0 01 1 0905-0906 ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98004-330-0 01 1 0907- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) (B) 		8-98004-330-0 01 1 0907- ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 0905-0906 ● ●
564 01.150 SENSOR; PRESSURE,DPD 8-97359-985-2 01 1 0907- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) 		8-97359-985-2 01 1 0907- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (B) 		8-98012-396-0 01 1 0907-1503 ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (B) 		8-98303-548-0 01 1 1504- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) (A) 		8-98029-347-0 01 1 0905- ● ●
566 03.706 BOLT; SENSOR
4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0905-0906 ● ●
566 03.706 BOLT; SENSOR
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0907- ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0907- ●

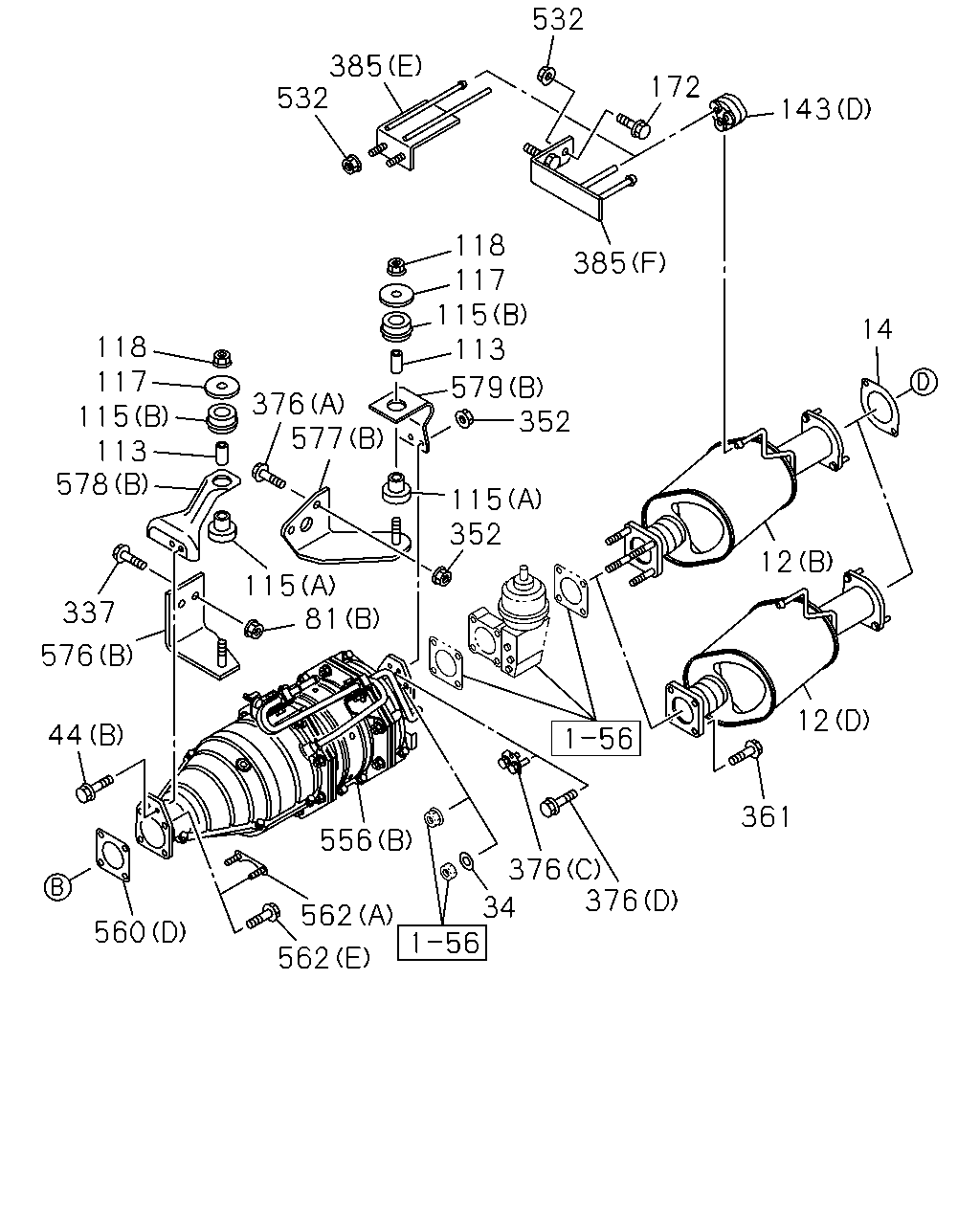

çizim 97453
532 385 532 172 143 118 117 115 113 385 14 118 117 115 113 578 579 352 376 577 115 352 12 115 81 337 576 12 44 361 556 376 376 34 562 560 562
BalonParca AdiParca NoAdetTipApplied Date A B C
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98214-241-0 01 1 1204-1308 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98254-792-0 01 1 1309- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98214-243-0 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (B) 		8-97387-244-1 01 1 0907-1203 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97387-244-1 01 1 1204-1308 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98254-780-0 01 1 1309- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (A) 		8-98020-562-1 01 1 0905-0912 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (A) 		8-98020-562-1 01 1 1001-1203 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98020-562-1 01 1 1204- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) 03.611 ID=65 		8-97148-757-1 01 1 0907- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCS ENG(RJS) ID=85.8 		1-22116-043-0 01 1 0905- ● ●
34 03.613 WASHER; EXH PIPE
IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9 		5-09500-012-0 04 1 1204- ● ●
34 03.613 WASHER; EXH PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9 		5-09500-012-0 04 1 1204- ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (C) M10X25 FLANGE 		0-28151-025-0 02 1 0907- ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
44 03.613 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0905-0906 ● ●
44 03.613 BOLT; BRKT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
81 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0905- ● ●
81 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4JJ1-TCS ENG(LFB) 03.706 L=37.5 		9-22151-217-0 02 1 0907- ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 03 1 0905- ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB) (A) 		8-94457-277-1 02 1 0907- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB) (B) 		8-94457-278-1 02 1 0907- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 03 1 0905- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 03 1 0905- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4JJ1-TCS ENG(LFB) OD=55 		9-09852-169-0 02 1 0907- ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 03 1 0905- ● ●
118 03.704 NUT; SILENCER MTG BRKT
4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0907- ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (D) 		8-97080-694-0 01 1 0907- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (A) 		8-98034-767-0 01 1 0905-0906 ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (A) 		8-98034-767-0 01 1 0907- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98034-767-0 01 1 0907- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) 		8-98034-767-0 01 1 0907- ● ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ● ●
172 03.708 BOLT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0905- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0905-0906 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ●
361 03.704 BOLT; EXH PIPE TO PIPE
IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE 		8-98213-301-0 04 1 1204- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE 		8-98213-301-0 04 1 1204- ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE 		0-28051-030-0 02 1 1206- ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.690 (C) W/PLATE 		8-98005-985-0 01 1 0907-1205 ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (C) W/PLATE 		8-98005-985-0 01 1 1206- ● ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
376 03.708 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0905- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 		8-98001-889-1 01 1 0907- ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-97387-251-1 01 1 0907- ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (F) 		8-97387-251-1 01 1 0907- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A) 		8-98006-774-0 01 1 0905-0906 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A) 		8-98006-774-0 01 1 0907- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (B) 		8-98073-376-0 01 1 0905- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (C) 		8-98073-377-0 01 1 0905- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (D) 		8-98006-776-0 01 1 0905-0906 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (D) 		8-98006-776-0 01 1 0905-0906 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) (D) 		8-98006-776-1 01 1 0907- ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
532 03.704 NUT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ●
532 03.704 NUT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
532 03.704 NUT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
532 03.704 NUT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98036-810-7 01 1 0907-1011 ● ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98039-162-6 01 1 0905-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98084-602-4 01 1 1011- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 02 1 0907- ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 0907- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0905- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		8-97611-080-0 02 1 0905- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (E) M8X35 FLANGE 		0-28050-835-0 04 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE 		0-28050-870-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (C) M12X35 FLANGE 		0-28051-235-0 04 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) (A) 		8-97373-966-0 02 1 0907-1205 ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97373-966-0 02 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.685 (A) M12X35 		1-22131-963-0 02 1 0905-1203 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.613 (A) 		1-22131-962-0 02 1 1204-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) (B) 		8-98030-175-0 01 1 0905-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1206- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) (B) 		8-97387-245-0 01 1 0907- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98006-770-0 01 1 0905-0912 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98006-770-0 01 1 1001- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) (B) 		8-97387-246-2 01 1 0907- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98048-292-1 01 1 0905-0912 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98048-292-1 01 1 1001- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (B) 		8-97387-248-1 01 1 0907- ● ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98048-296-0 01 1 0905- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (B) 		8-97387-249-1 01 1 0907- ● ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (A) 		8-98048-300-1 01 1 0905-0912 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (A) 		8-98048-300-1 01 1 1001- ● ●

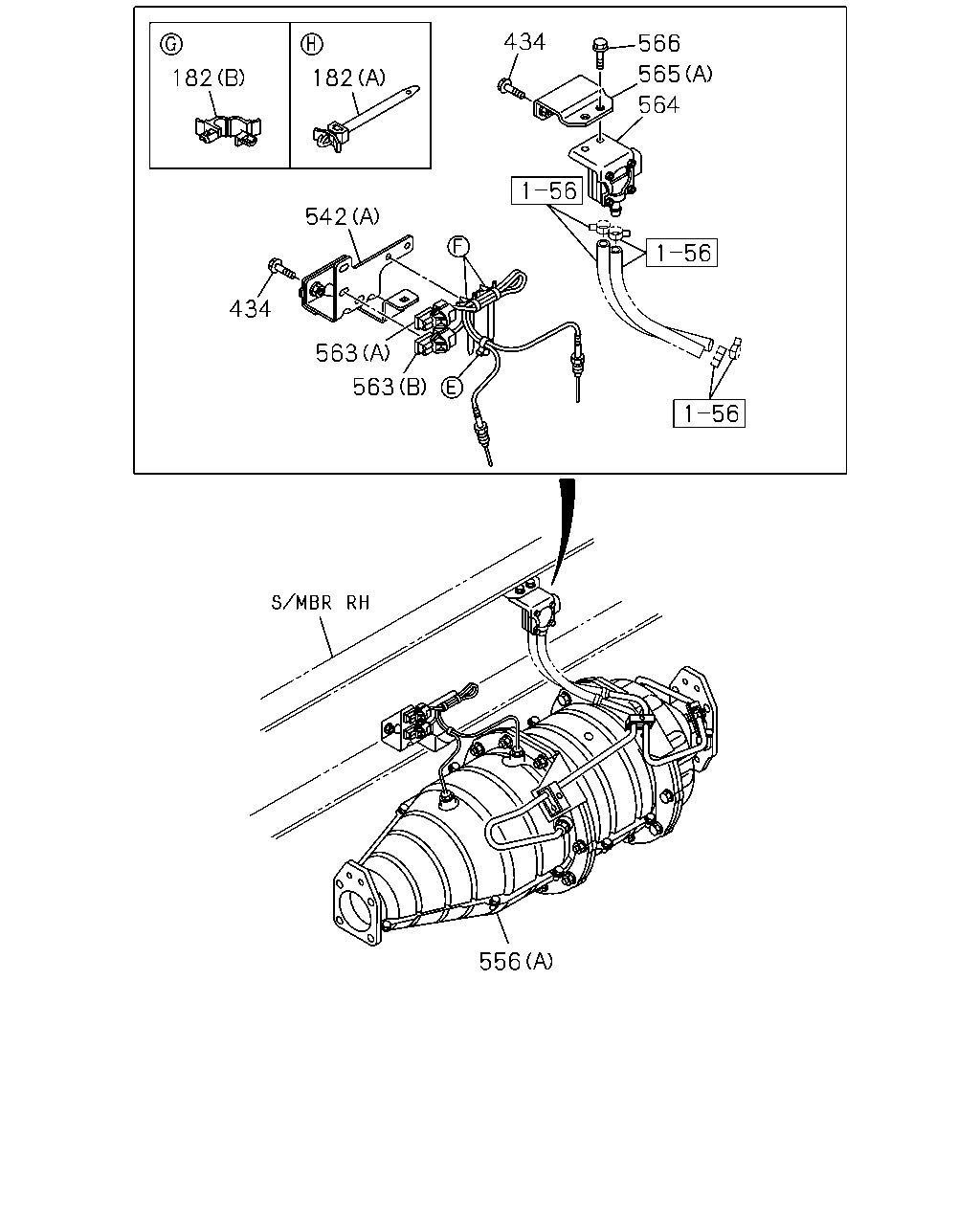

çizim 186511
434 566 565 182 182 564 542 434 563 563 556
BalonParca AdiParca NoAdetTipApplied Date A B C
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) (C) ID=7 		8-98002-767-0 01 1 0907- ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) 02.587 (A) L=112 		8-94232-618-0 02 1 0905-0906 ● ●
182 03.682 CLIP; HARNESS
02.587 (A) L=112 		8-94232-618-0 02 1 0907- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (A) L=112 		8-94232-618-0 02 1 0907- ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (B) ID=7 L=7.5 		8-97369-561-0 01 1 0905- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0907-1503 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 1504- ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0905- ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0905- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (B) 		8-98004-026-1 01 1 0907- ● ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98039-602-0 01 1 0905- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98036-810-7 01 1 0907-1011 ● ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98039-162-6 01 1 0905-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98084-602-4 01 1 1011- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) (A) 		8-98004-329-0 01 1 0905-0906 ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98004-329-0 01 1 0907- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) (A) 		8-98004-329-0 01 1 0907- ●
563 01.150 SENSOR; TEMPERATURE,DPD
4HK1-TCS ENG(RJS) (B) 		8-98004-330-0 01 1 0905-0906 ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98004-330-0 01 1 0907- ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
4JJ1-TCS ENG(LFB) (B) 		8-98004-330-0 01 1 0907- ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) 		8-97359-985-2 01 1 0905-0906 ● ●
564 01.150 SENSOR; PRESSURE,DPD 8-97359-985-2 01 1 0907- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) 		8-97359-985-2 01 1 0907- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (B) 		8-98012-396-0 01 1 0907-1503 ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (B) 		8-98303-548-0 01 1 1504- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) (A) 		8-98029-347-0 01 1 0905- ● ●
566 03.706 BOLT; SENSOR
4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0905-0906 ● ●
566 03.706 BOLT; SENSOR
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0907- ● ●
566 03.706 BOLT; SENSOR
4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0907- ●

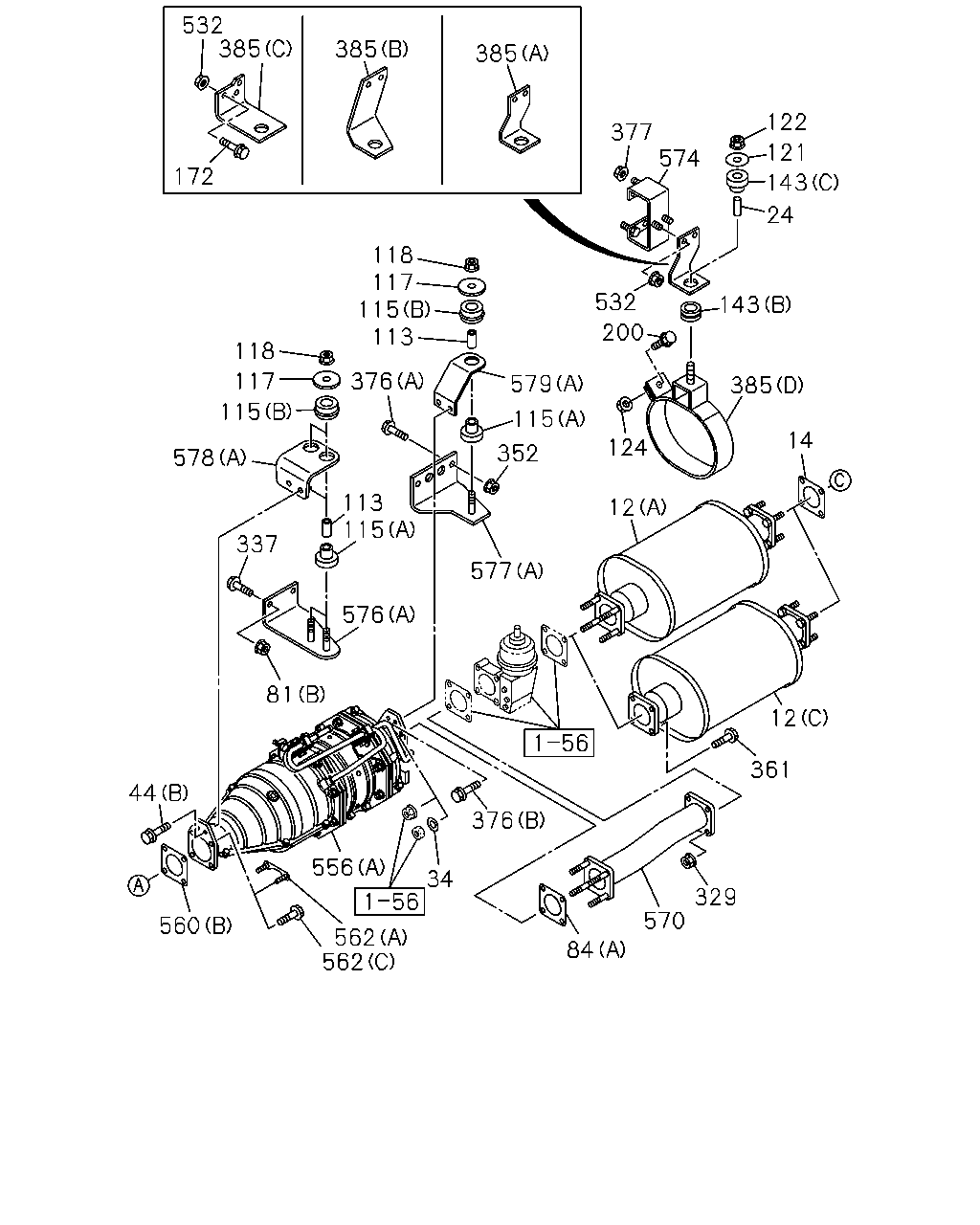

çizim 186536
532 385 38 385 122 377 574 121 172 143 24 118 117 115 113 532 143 200 118 376 117 579 385 115 115 14 124 352 578 113 115 12 337 577 576 81 12 361 44 376 556 34 329 570 560 562 562 84
BalonParca AdiParca NoAdetTipApplied Date A B C
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98214-241-0 01 1 1204-1308 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98254-792-0 01 1 1309- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98214-243-0 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (B) 		8-97387-244-1 01 1 0907-1203 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97387-244-1 01 1 1204-1308 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98254-780-0 01 1 1309- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (A) 		8-98020-562-1 01 1 0905-0912 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (A) 		8-98020-562-1 01 1 1001-1203 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98020-562-1 01 1 1204- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) 03.611 ID=65 		8-97148-757-1 01 1 0907- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCS ENG(RJS) ID=85.8 		1-22116-043-0 01 1 0905- ● ●
24 03.613 COLLAR; DIST,CLAMP
4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 01 1 0905- ● ●
34 03.613 WASHER; EXH PIPE
IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9 		5-09500-012-0 04 1 1204- ● ●
34 03.613 WASHER; EXH PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9 		5-09500-012-0 04 1 1204- ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0905- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (C) M10X25 FLANGE 		0-28151-025-0 02 1 0907- ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
44 03.613 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
44 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0905-0906 ● ●
44 03.613 BOLT; BRKT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
81 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0905- ● ●
81 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) ID=65 		8-97148-757-1 01 1 0907- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8 		1-22116-043-0 01 1 0905- ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8 		1-22116-043-0 01 1 0905- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4JJ1-TCS ENG(LFB) 03.706 L=37.5 		9-22151-217-0 02 1 0907- ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 03 1 0905- ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB) (A) 		8-94457-277-1 02 1 0907- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB) (B) 		8-94457-278-1 02 1 0907- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 03 1 0905- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 03 1 0905- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4JJ1-TCS ENG(LFB) OD=55 		9-09852-169-0 02 1 0907- ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 03 1 0905- ● ●
118 03.704 NUT; SILENCER MTG BRKT
4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0907- ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0905- ● ●
121 03.704 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 01 1 0905- ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCS ENG(RJS) 07.874 M10 FLANGE 		5-09440-006-0 01 1 0905- ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (D) 		8-97080-694-0 01 1 0907- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (A) 		8-98034-767-0 01 1 0905-0906 ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (A) 		8-98034-767-0 01 1 0907- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98034-767-0 01 1 0907- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) 		8-98034-767-0 01 1 0907- ● ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907- ● ●
172 03.708 BOLT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0905- ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0905- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0905- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0905-0906 ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0907- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ●
352 03.613 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1008- ●
361 03.704 BOLT; EXH PIPE TO PIPE
IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE 		8-98213-301-0 04 1 1204- ● ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE 		8-98213-301-0 04 1 1204- ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE 		0-28051-030-0 02 1 1206- ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.690 (C) W/PLATE 		8-98005-985-0 01 1 0907-1205 ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (C) W/PLATE 		8-98005-985-0 01 1 1206- ● ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
376 03.708 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 02 1 0905- ● ●
377 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ●
377 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
377 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (E) 		8-98001-889-1 01 1 0907- ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-97387-251-1 01 1 0907- ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (F) 		8-97387-251-1 01 1 0907- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A) 		8-98006-774-0 01 1 0905-0906 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A) 		8-98006-774-0 01 1 0907- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (B) 		8-98073-376-0 01 1 0905- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (C) 		8-98073-377-0 01 1 0905- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (D) 		8-98006-776-0 01 1 0905-0906 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (D) 		8-98006-776-0 01 1 0905-0906 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) (D) 		8-98006-776-1 01 1 0907- ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
532 03.704 NUT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ●
532 03.704 NUT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
532 03.704 NUT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
532 03.704 NUT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98036-810-7 01 1 0907-1011 ● ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB) (B) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98039-162-6 01 1 0905-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) (A) 		8-98084-602-4 01 1 1011- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (C) 		8-97331-947-0 02 1 0907- ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB) (D) ID=64 		8-97373-108-0 01 1 0907- ● ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0905- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (A) 		8-97611-080-0 02 1 0905- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (E) M8X35 FLANGE 		0-28050-835-0 04 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE 		0-28050-870-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (C) M12X35 FLANGE 		0-28051-235-0 04 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) (A) 		8-97373-966-0 02 1 0907-1205 ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97373-966-0 02 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.685 (A) M12X35 		1-22131-963-0 02 1 0905-1203 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.613 (A) 		1-22131-962-0 02 1 1204-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A) 		1-22131-962-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) (B) 		8-98030-175-0 01 1 0905-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1206- ● ●
570 03.704 ADAPTER; EXH PIPE
4HK1-TCS ENG(RJS) 		8-98073-373-0 01 1 0905- ● ●
574 03.706 SPACER; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-98044-774-0 01 1 0905-0906 ●
574 03.706 SPACER; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-98044-774-0 01 1 0907- ●
574 03.706 SPACER; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 		8-98044-774-0 01 1 0907- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) (B) 		8-97387-245-0 01 1 0907- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98006-770-0 01 1 0905-0912 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98006-770-0 01 1 1001- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) (B) 		8-97387-246-2 01 1 0907- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98048-292-1 01 1 0905-0912 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98048-292-1 01 1 1001- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (B) 		8-97387-248-1 01 1 0907- ● ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98048-296-0 01 1 0905- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (B) 		8-97387-249-1 01 1 0907- ● ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (A) 		8-98048-300-1 01 1 0905-0912 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (A) 		8-98048-300-1 01 1 1001- ● ●

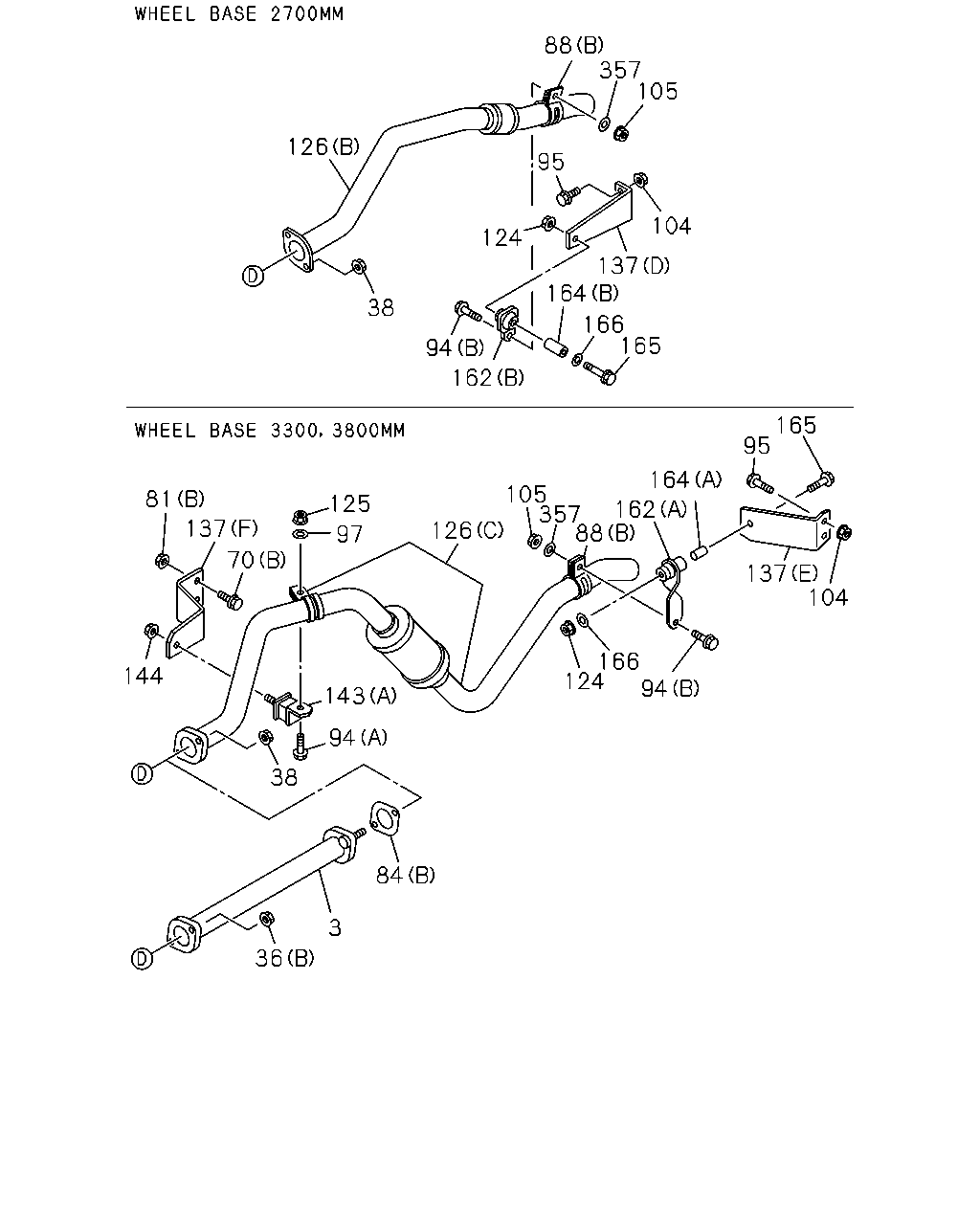

çizim 186538
88 357 105 126 95 104 124 137 164 38 166 165 94 162 165 95 164 105 162 357 88 81 125 137 126 97 70 137 104 166 124 94 144 143 94 38 84 3 36
BalonParca AdiParca NoAdetTipApplied Date A B C
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98005-237-0 01 1 0907- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) 		8-97387-264-0 01 1 0907- ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 		8-98020-602-0 01 1 0905- ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 		8-98099-062-0 01 1 0905- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907- ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0905- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0905- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 0905-0906 ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0907- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) (A) M10 FLANGE 		8-97096-192-1 03 1 0907- ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0905- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
70 03.706 BOLT; BRKT
4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0905- ● ●
81 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0905- ● ●
81 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) ID=65 		8-97148-757-1 01 1 0907- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8 		1-22116-043-0 01 1 0905- ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8 		1-22116-043-0 01 1 0905- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97373-158-0 01 1 0907- ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97373-158-0 01 1 0907- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98034-766-0 01 1 0905- ● ●
94 03.704 BOLT; CLAMP
4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0905-0906 ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0907- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0907- ●
94 03.704 BOLT; CLAMP
4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0905-0906 ● ●
94 03.704 BOLT; CLAMP
4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0907- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0907- ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0907- ● ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0905-0906 ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0905-0906 ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ● ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
105 03.704 NUT; CLAMP
4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0905-0906 ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0907- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB) 00.833 M10 		0-91110-510-0 01 1 0907- ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
125 03.708 NUT; CLAMP
4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0905-0906 ● ●
125 03.708 NUT; CLAMP
4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0907- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0907- ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.833 M10 		0-91110-510-0 01 1 0907- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) 		8-98020-604-0 01 1 0907- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) 		8-98079-101-0 01 1 0907- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) 		8-98079-101-0 01 1 0907- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98045-047-0 01 1 0905-0906 ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98045-047-0 01 1 0907- ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A) 		8-98045-047-0 01 1 0907- ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (A) 		8-98099-064-0 01 1 0905- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) 		8-97387-256-1 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (E) 		8-98001-913-0 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 		8-98001-913-0 01 1 0907- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98019-904-2 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (F) 		8-98019-904-2 01 1 0907- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97116-588-2 01 1 0905-0906 ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97116-588-2 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A) 		8-97116-588-2 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (B) 		8-97185-801-0 01 1 0905- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) 03.613 (C) 		8-97096-651-0 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (D) 		8-97080-694-0 01 1 0907- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (A) 		8-98034-767-0 01 1 0905-0906 ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (A) 		8-98034-767-0 01 1 0907- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98034-767-0 01 1 0907- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) 		8-98034-767-0 01 1 0907- ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=115 		8-98032-151-0 01 1 0907- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCS ENG(RJS) (A) L=115 		8-98034-765-0 01 1 0905-0906 ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCS ENG(RJS) (A) L=115 		8-98034-765-0 01 1 0907- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=115 		8-98034-765-0 01 1 0907- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) L=115 		8-98034-765-0 01 1 0907- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=23 		8-98006-011-0 01 1 0907- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCS ENG(RJS) (A) L=37.5 		9-22151-217-0 01 1 0905-0906 ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCS ENG(RJS) (A) L=37.5 		9-22151-217-0 01 1 0907- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=37.5 		9-22151-217-0 01 1 0907- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) L=37.5 		9-22151-217-0 01 1 0907- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0907- ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 0905-0906 ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 0907- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE 		0-28051-070-0 01 1 0907- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) M10X70 FLANGE 		0-28051-070-0 01 1 0907- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0905-0906 ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0907- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0907- ●
357 03.708 WASHER; PL,CLAMP
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0905-0906 ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ●
çizim 186539
125 126 88 97 81 70 105 12 164 165 166 144 137 143 357 88 104 94 94 95 124 38 137 166 137 164 95 104 165 124 162 84 105 94 88 3 357 36
BalonParca AdiParca NoAdetTipApplied Date A B C
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-98005-237-0 01 1 0907- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) 		8-97387-264-0 01 1 0907- ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 		8-98020-602-0 01 1 0905- ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 		8-98099-062-0 01 1 0905- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98214-241-0 01 1 1204-1308 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98254-792-0 01 1 1309- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98214-243-0 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (B) 		8-97387-244-1 01 1 0907-1203 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97387-244-1 01 1 1204-1308 ● ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98254-780-0 01 1 1309- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (A) 		8-98020-562-1 01 1 0905-0912 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (A) 		8-98020-562-1 01 1 1001-1203 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98020-562-1 01 1 1204- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907- ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0905- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0905- ●
36 03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (A) M10 FLANGE 		8-97096-192-1 03 1 0905-0906 ● ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0907- ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) (A) M10 FLANGE 		8-97096-192-1 03 1 0907- ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0905- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
70 03.706 BOLT; BRKT
4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0905- ● ●
81 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0905- ● ●
81 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0907-1007 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) (B) ID=65 		8-97148-757-1 01 1 0907- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8 		1-22116-043-0 01 1 0905- ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8 		1-22116-043-0 01 1 0905- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97373-158-0 01 1 0907- ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) (B) 		8-97373-158-0 01 1 0907- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98034-766-0 01 1 0905- ● ●
94 03.704 BOLT; CLAMP
4HK1-TCS ENG(RJS) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0905-0906 ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0907- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0907- ●
94 03.704 BOLT; CLAMP
4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0905-0906 ● ●
94 03.704 BOLT; CLAMP
4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0907- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0907- ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0907- ● ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0905-0906 ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907- ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ● ●
95 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0905-0906 ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ● ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ● ●
104 03.704 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ●
105 03.704 NUT; CLAMP
4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0905-0906 ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0907- ● ●
105 03.704 NUT; CLAMP
4JJ1-TCS ENG(LFB) 00.833 M10 		0-91110-510-0 01 1 0907- ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0907- ●
125 03.708 NUT; CLAMP
4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0905-0906 ● ●
125 03.708 NUT; CLAMP
4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0907- ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0907- ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.833 M10 		0-91110-510-0 01 1 0907- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) 		8-98020-604-0 01 1 0907- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) 		8-98079-101-0 01 1 0907- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C) 		8-98079-101-0 01 1 0907- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98045-047-0 01 1 0905-0906 ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98045-047-0 01 1 0907- ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A) 		8-98045-047-0 01 1 0907- ●
126 03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (A) 		8-98099-064-0 01 1 0905- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) 		8-97387-256-1 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (E) 		8-98001-913-0 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 		8-98001-913-0 01 1 0907- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98019-904-2 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (F) 		8-98019-904-2 01 1 0907- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97116-588-2 01 1 0905-0906 ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97116-588-2 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (A) 		8-97116-588-2 01 1 0907- ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (B) 		8-97185-801-0 01 1 0905- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS) 03.613 (C) 		8-97096-651-0 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (D) 		8-97080-694-0 01 1 0907- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 0905- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (A) 		8-98034-767-0 01 1 0905-0906 ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS) (A) 		8-98034-767-0 01 1 0907- ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-98034-767-0 01 1 0907- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) 		8-98034-767-0 01 1 0907- ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=115 		8-98032-151-0 01 1 0907- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCS ENG(RJS) (A) L=115 		8-98034-765-0 01 1 0905-0906 ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCS ENG(RJS) (A) L=115 		8-98034-765-0 01 1 0907- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=115 		8-98034-765-0 01 1 0907- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) L=115 		8-98034-765-0 01 1 0907- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (B) L=23 		8-98006-011-0 01 1 0907- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCS ENG(RJS) (A) L=37.5 		9-22151-217-0 01 1 0905-0906 ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCS ENG(RJS) (A) L=37.5 		9-22151-217-0 01 1 0907- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) L=37.5 		9-22151-217-0 01 1 0907- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) L=37.5 		9-22151-217-0 01 1 0907- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0907- ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 0905-0906 ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 0907- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE 		0-28051-070-0 01 1 0907- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) M10X70 FLANGE 		0-28051-070-0 01 1 0907- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0905-0906 ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0907- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0907- ●
357 03.708 WASHER; PL,CLAMP
4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0905-0906 ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
