◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#77324) — 55 parça

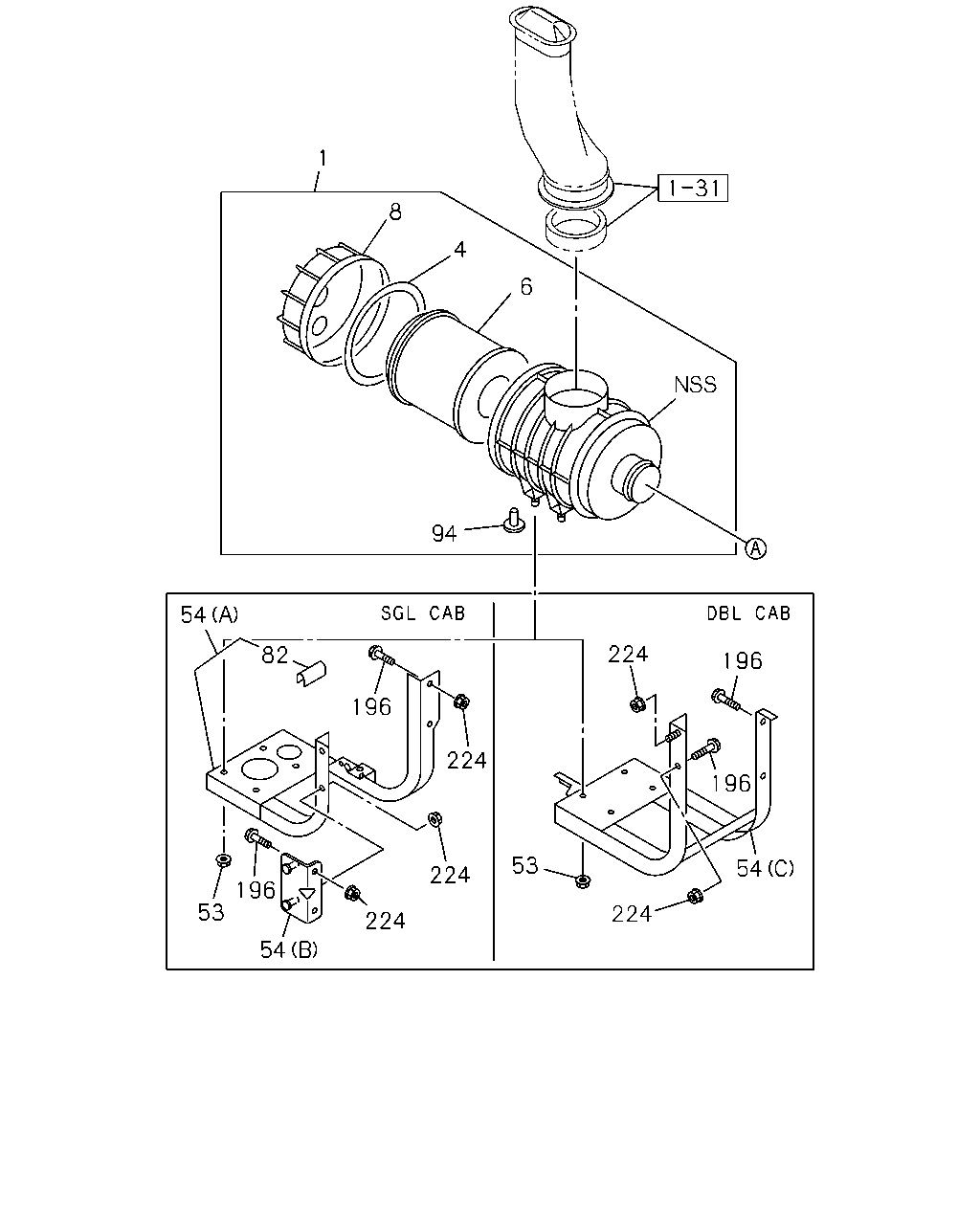

çizim 90810
1 8 4 6 94 54 224 82 196 196 224 196 53 54 224 196 53 224 224 54
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.402 CLEANER ASM; AIR
4HK1-TCS ENG(RJS) 		8-98050-415-2 01 1 0905-0906 ●
1 03.402 CLEANER ASM; AIR 8-98050-415-2 01 1 0907- ●
1 03.402 CLEANER ASM; AIR
4JJ1-TCS ENG(LFB) 		8-98050-415-2 01 1 0907- ●
1 03.402 CLEANER ASM; AIR
4HK1-TCS ENG(RJS) 		8-98116-638-0 01 1 0905-0906 ●
1 03.402 CLEANER ASM; AIR 8-98116-638-0 01 1 0907- ●
4 03.403 GASKET; COVER TO BODY
4HK1-TCS ENG(RJS) 		8-97352-113-0 01 1 0905-0906 ● ●
4 03.403 GASKET; COVER TO BODY 8-97352-113-0 01 1 0907- ● ●
4 03.403 GASKET; COVER TO BODY
4JJ1-TCS ENG(LFB) 		8-97352-113-0 01 1 0907- ●
6 03.410 FILTER; ACL
4HK1-TCS ENG(RJS) 		8-97062-294-0 01 1 0905-0906 ● ●
6 03.410 FILTER; ACL 8-97062-294-0 01 1 0907- ● ●
6 03.410 FILTER; ACL
4JJ1-TCS ENG(LFB) 		8-97062-294-0 01 1 0907- ●
6 03.410 FILTER; ACL
4HK1-TCS ENG(RJS) BEST VALUE PARTS 		5-87610-020-0 01 1 0905-0906 ● ●
6 03.410 FILTER; ACL
BEST VALUE PARTS 		5-87610-020-0 01 1 0907- ● ●
6 03.410 FILTER; ACL
4JJ1-TCS ENG(LFB) BEST VALUE PARTS 		5-87610-020-0 01 1 0907- ●
8 03.410 COVER ASM; ACL
4HK1-TCS ENG(RJS) 		8-98050-434-1 01 1 0905-0906 ●
8 03.410 COVER ASM; ACL 8-98050-434-1 01 1 0907- ●
8 03.410 COVER ASM; ACL
4JJ1-TCS ENG(LFB) 		8-98050-434-1 01 1 0907- ●
8 03.410 COVER ASM; ACL
4HK1-TCS ENG(RJS) 		8-98116-639-0 01 1 0905-0906 ●
8 03.410 COVER ASM; ACL 8-98116-639-0 01 1 0907- ●
53 03.403 NUT; ACL
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0905-0906 ● ●
53 03.403 NUT; ACL
01.062 M8 FLANGE 		0-91180-108-0 04 1 0907- ● ●
53 03.403 NUT; ACL
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0907- ●
54 03.405 BRACKET; ACL
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98251-988-0 01 1 1401- ●
54 03.405 BRACKET; ACL
4JJ1-TCS ENG(LFB) (A) 		8-98026-092-3 01 1 0907- ● ●
54 03.405 BRACKET; ACL
4JJ1-TCS ENG(LFB) (B) 		8-98070-835-3 01 1 0907- ● ●
54 03.405 BRACKET; ACL
4JJ1-TCS ENG(LFB) (C) 		8-98061-669-1 01 1 0907- ●
54 03.405 BRACKET; ACL
4HK1-TCS ENG(RJS) (B) 		8-98032-125-1 01 1 0905-0906 ●
54 03.405 BRACKET; ACL
4HK1-TCS ENG(RJS) (B) 		8-98032-125-1 01 1 0907- ●
54 03.405 BRACKET; ACL
4HK1-TCS ENG(RJS) (A) 		8-98047-140-3 01 1 0905-0906 ●
54 03.405 BRACKET; ACL
4HK1-TCS ENG(RJS) (A) 		8-98047-140-3 01 1 0907-1312 ●
54 03.405 BRACKET; ACL
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98047-140-3 01 1 1401- ●
54 03.405 BRACKET; ACL
4HK1-TCS ENG(RJS) (C) 		8-98023-879-3 01 1 0905-0906 ●
54 03.405 BRACKET; ACL
4HK1-TCS ENG(RJS) (C) 		8-98023-879-3 01 1 0907- ●
82 03.403 PROTECTOR
4JJ1-TCS ENG(LFB) 03.671 		8-97327-172-0 01 1 0907- ● ●
94 03.415 VALVE; VACUATOR 8-97093-694-0 01 1 0908- ●
94 03.415 VALVE; VACUATOR
4JJ1-TCS ENG(LFB) 		8-97093-694-0 01 1 0908- ●
94 03.415 VALVE; VACUATOR
4HK1-TCS ENG(RJS) 		8-97352-112-0 01 1 0905-0906 ● ●
94 03.415 VALVE; VACUATOR 8-97352-112-0 01 1 0907-0907 ● ●
94 03.415 VALVE; VACUATOR
4JJ1-TCS ENG(LFB) 		8-97352-112-0 01 1 0907-0907 ●
94 03.415 VALVE; VACUATOR 8-97352-112-0 01 1 0908- ●
196 03.417 BOLT; BRKT,ACL
4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0905-0906 ●
196 03.417 BOLT; BRKT,ACL
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
196 03.417 BOLT; BRKT,ACL
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0907- ●
196 03.417 BOLT; BRKT,ACL
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0905-0906 ●
196 03.417 BOLT; BRKT,ACL
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
196 03.417 BOLT; BRKT,ACL
4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0907- ●
196 03.417 BOLT; BRKT,ACL
4HK1-TCS ENG(RJS) 02.277 M10X35 FLANGE 		0-28651-035-0 03 1 0905-0906 ●
196 03.417 BOLT; BRKT,ACL
02.277 M10X35 FLANGE 		0-28651-035-0 03 1 0907- ●
224 03.407 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 06 1 0907- ● ●
224 03.407 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 0905-0906 ●
224 03.407 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 05 1 0907- ●
224 03.407 NUT; BRKT
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0905-0906 ●
224 03.407 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ●

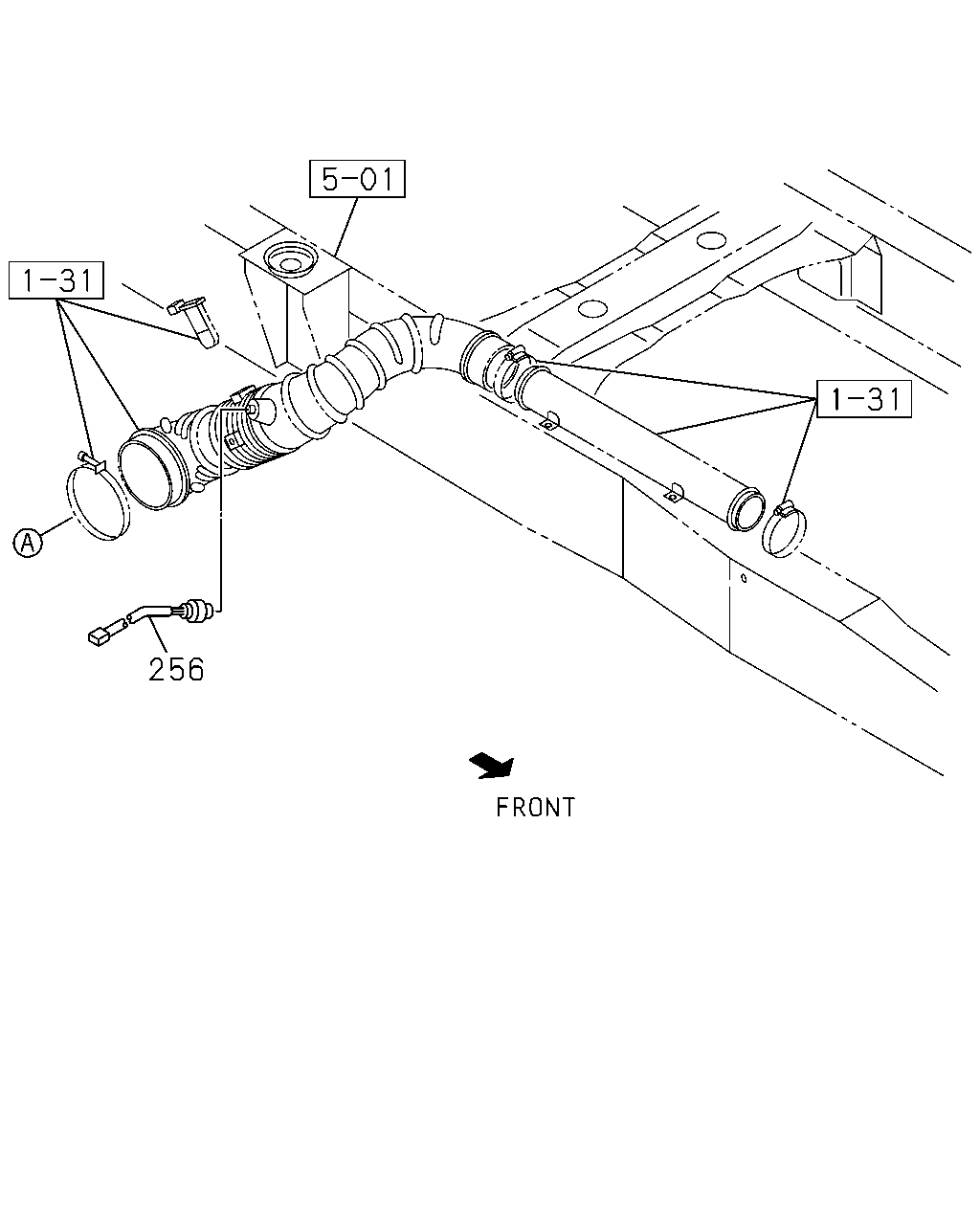

çizim 186531
256
BalonParca AdiParca NoAdetTipApplied Date A B C
256 03.405 SENSOR; AIRFLOW
MULTI INFORMATION DISPLAY<7NY> 		8-98081-565-1 01 1 0905-0912 ●
256 03.405 SENSOR; AIRFLOW
MULTI INFORMATION DISPLAY<7NY> 		8-98156-478-1 01 1 1001- ●
