Isuzu WW
▶
TRUCKS
▶
NNR
▶
51240 - NNR/NPR EU-RHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#77321) — 45 parça
Tümü
A - NPR5SN
B - NPR5WN
C - NPR5SE
◀

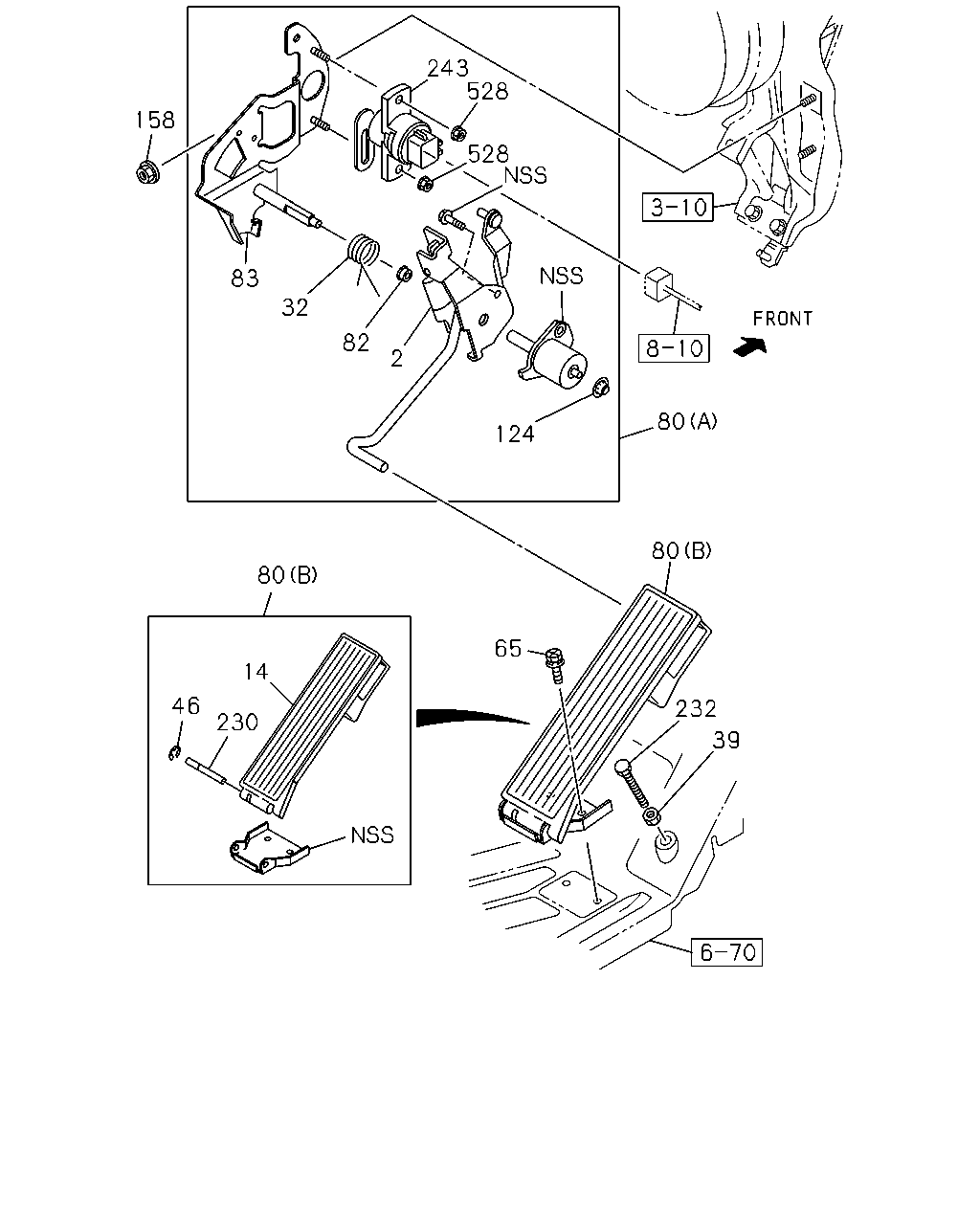

[101A] ACCEL PEDAL (35 parça)
[101A] IDLE ACCEL SWITCH (10 parça)
▶
243
528
158
528
83
32
82
2
80
124
80
80
65
14
46
232
230
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
03.454 LEVER; ENG CONT
8-98002-158-2
01
1
0905-0906
●
●
2
03.454 LEVER; ENG CONT
8-98002-158-2
01
1
0907-
●
●
●
14
03.451 PAD; PEDAL,ACCEL
8-97853-062-2
01
1
0905-0906
●
●
14
03.451 PAD; PEDAL,ACCEL
8-97853-062-2
01
1
0907-
●
●
●
32
03.459 SPRING; RETURN,ACCEL PEDAL
8-98031-665-0
01
1
0905-0906
●
●
32
03.459 SPRING; RETURN,ACCEL PEDAL
8-98031-665-0
01
1
0907-
●
●
●
39
03.459 NUT; ACCEL PEDAL STOPPER
02.334 M8
0-91110-508-0
01
1
0905-0906
●
●
39
03.459 NUT; ACCEL PEDAL STOPPER
02.334 M8
0-91110-508-0
01
1
0907-
●
●
●
46
03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
0905-0906
●
●
46
03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
0907-
●
●
●
65
03.483 BOLT
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
0905-0906
●
●
65
03.483 BOLT
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
0907-1002
●
●
●
65
03.483 BOLT
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
1003-1003
●
●
●
65
03.483 BOLT
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
1004-
●
●
●
80
03.452 LINK ASM; ENG CONT
(A)
8-97387-358-3
01
1
0905-0906
●
●
80
03.452 LINK ASM; ENG CONT
(A)
8-97387-358-3
01
1
0907-
●
●
●
80
03.452 LINK ASM; ENG CONT
(B)
8-97853-061-2
01
1
0905-0906
●
●
80
03.452 LINK ASM; ENG CONT
(B)
8-97853-061-2
01
1
0907-
●
●
●
82
03.463 BUSHING; ENG CONT LVR
8-97581-053-0
01
1
0905-0906
●
●
82
03.463 BUSHING; ENG CONT LVR
8-97581-053-0
01
1
0907-
●
●
●
83
03.452 BRACKET; CONT LINK
8-98023-885-2
01
1
0905-0906
●
●
83
03.452 BRACKET; CONT LINK
8-98023-885-2
01
1
0907-
●
●
●
124
03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT
8-94368-617-0
01
1
0905-0906
●
●
124
03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT
8-94368-617-0
01
1
0907-
●
●
●
158
03.452 NUT; BRKT
08.857 M8 FLANGE
8-94279-060-0
02
1
0905-0906
●
●
158
03.452 NUT; BRKT
08.857 M8 FLANGE
8-94279-060-0
02
1
0907-
●
●
●
230
03.452 PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
0905-0906
●
●
230
03.452 PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
0907-
●
●
●
232
03.459 BOLT; STOPPER,ACCEL PEDAL
M8X45
8-97378-461-0
01
1
0905-0906
●
●
232
03.459 BOLT; STOPPER,ACCEL PEDAL
M8X45
8-97378-461-0
01
1
0907-
●
●
●
243
03.425 SENSOR; ACCEL
8-97602-416-0
01
1
0905-0906
●
●
243
03.425 SENSOR; ACCEL
8-97602-416-0
01
1
0907-0910
●
●
●
243
03.425 SENSOR; ACCEL
8-98131-263-0
01
1
0911-
●
●
●
528
03.463 NUT; ACCEL SENSOR
12.183 M5
8-94169-022-0
02
1
0905-0906
●
●
528
03.463 NUT; ACCEL SENSOR
12.183 M5
8-94169-022-0
02
1
0907-
●
●
●
262
773
170
792
863
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
170
03.480 KNOB
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>
8-98013-420-0
01
1
0905-0906
●
●
170
03.480 KNOB
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>
8-98013-420-0
01
1
0907-
●
●
●
262
03.452 SWITCH; ACCEL,IDLE
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>
8-98013-418-0
01
1
0905-0906
●
●
262
03.452 SWITCH; ACCEL,IDLE
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>
8-98013-418-0
01
1
0907-
●
●
●
773
03.452 HOLDER; ACCEL PEDAL
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>
8-97352-127-0
01
1
0905-0906
●
●
773
03.452 HOLDER; ACCEL PEDAL
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>
8-97352-127-0
01
1
0907-
●
●
●
792
03.483 RESISTOR; IDLE
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTR OL<NMT>
8-98013-906-0
01
1
0905-0906
●
●
792
03.483 RESISTOR; IDLE
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTR OL<NMT>
8-98013-906-0
01
1
0907-
●
●
●
863
03.463 COVER; SENSOR
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTR OL<NMT> GRAY
8-97408-816-0
01
1
0905-0906
●
●
863
03.463 COVER; SENSOR
EXC. SWITCH HIGH IDLE ENGINE SPEED CONTR OL<NMT> GRAY
8-97408-816-0
01
1
0907-
●
●
●
