◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#7732) — 18 parça

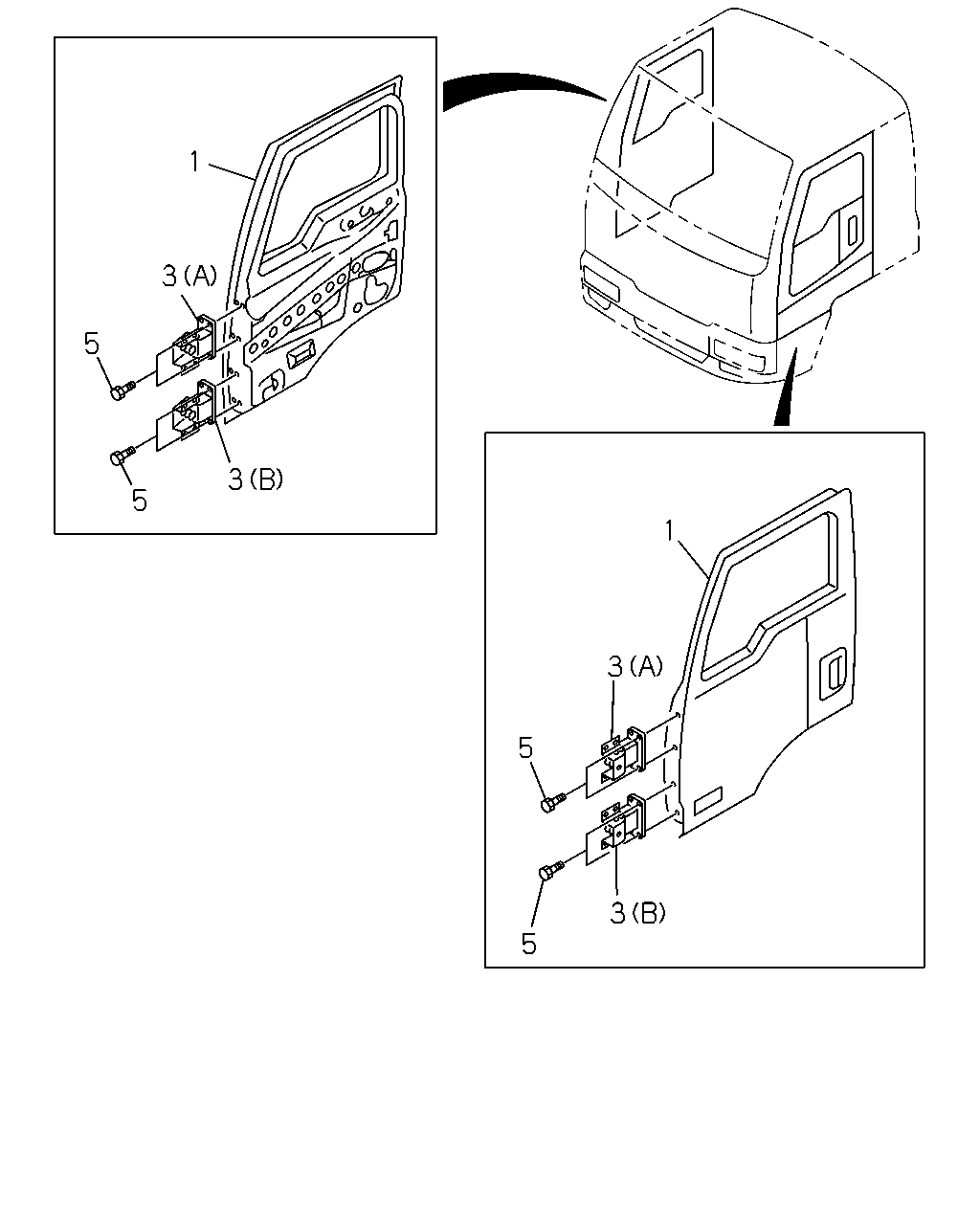

çizim 45027
1 3 5 3 5 1 3 5 3 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-2 01 1 9902- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-393-0 01 1 9902- ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-390-0 01 1 9902-0003 ●
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-390-2 01 1 0004- ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-390-2 01 1 0004- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-388-2 01 1 9902- ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-392-2 01 1 0004- ●
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-088-3 02 1 9902-0003 ●
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-088-3 01 1 0004- ●
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-089-3 02 1 9902-0003 ●
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-089-3 01 1 0004- ●
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-088-3 02 1 0004- ●
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-089-3 02 1 0004- ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 24 1 9902-0003 ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0004- ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9902-0003 ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 24 1 0004- ●
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 32 1 0004- ●
