◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#77311) — 56 parça

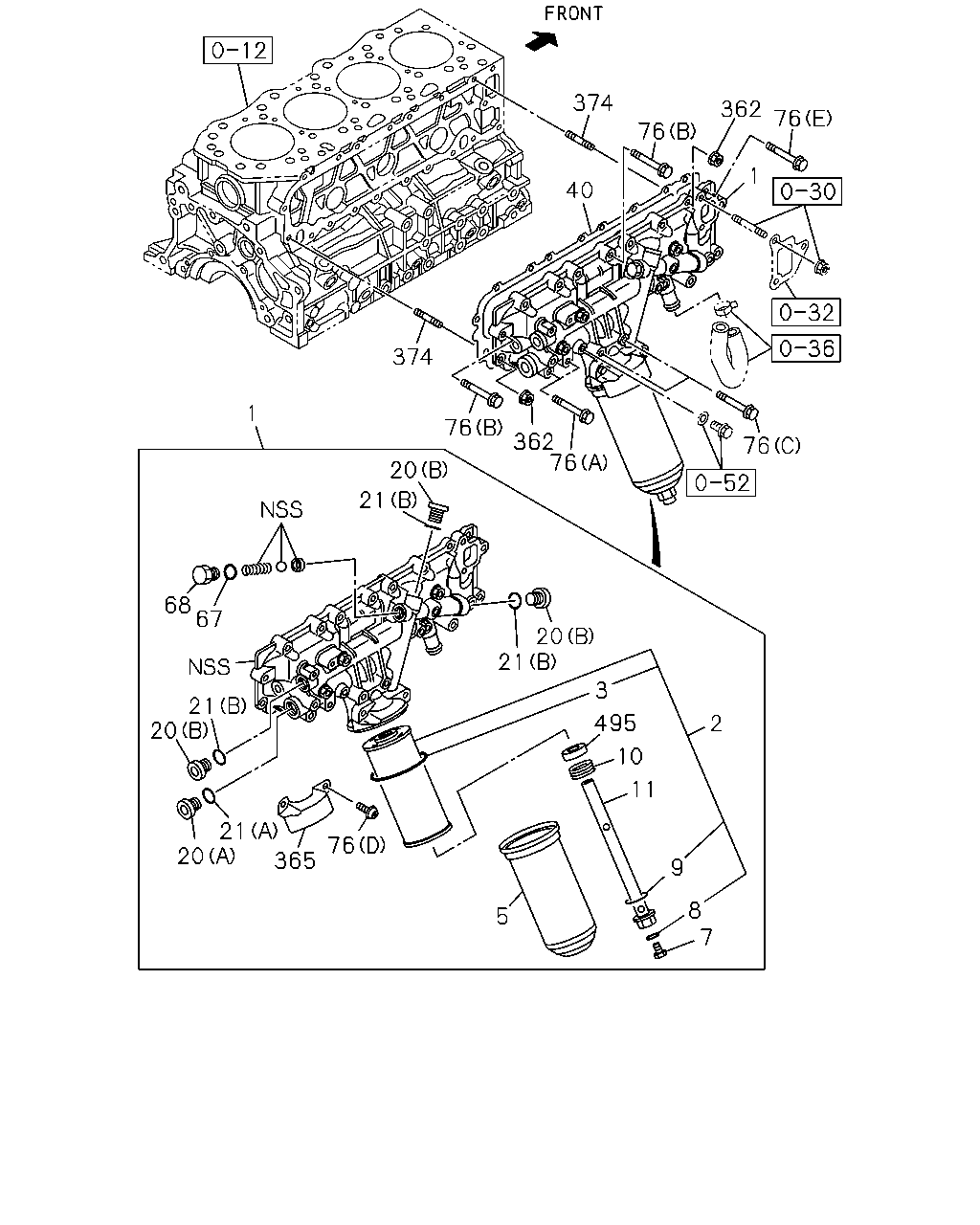

çizim 64152
374 362 76 76 1 40 374 1 76 362 76 76 20 21 68 67 20 21 3 21 20 495 2 10 11 21 20 76 365 9 8 7 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL 8-98074-745-5 01 1 0907-1408 ●
1 01.540 FILTER & COOLER ASM; OIL 8-98270-497-0 01 1 1409- ●
2 01.836 ELEMENT; OIL FILTER 8-97148-270-1 01 1 0905- ●
2 01.836 ELEMENT; OIL FILTER 8-98018-858-0 01 1 0907- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-117-0 01 1 0905- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-118-0 01 1 0907- ●
3 01.540 GASKET 8-98024-708-0 01 1 0907- ●
5 01.837 CASE; OIL FILTER 8-98018-862-0 01 1 0907- ●
7 01.840 PLUG; CENTER BOLT 8-98018-846-0 01 1 0907- ●
8 01.840 GASKET; PLUG
03.417 ID=9.8 		1-09623-055-0 01 1 0907- ●
9 01.840 GASKET; CENTER BOLT 1-09623-500-0 01 1 0907- ●
10 01.840 SPRING; ELEMENT 8-98018-850-0 01 1 0907- ●
11 01.840 BOLT; CENTER 8-98018-847-0 01 1 0907- ●
20 01.540 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0907- ●
20 01.540 PLUG; COOLER BODY
(B) 		8-98133-978-0 03 1 0907- ●
21 01.550 GASKET; PLUG
(A) 		8-98133-060-0 01 1 0907- ●
21 01.550 GASKET; PLUG
(B) 		8-98133-979-0 03 1 0907- ●
40 01.550 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98074-746-0 01 1 0907- ●
67 01.550 GASKET; VLV 8-98133-059-0 01 1 0907- ●
68 01.837 PLUG; VLV
01.540 		9-13263-010-0 01 1 0907- ●
76 01.840 BOLT; OIL FILTER
04.338 (E) M8X20 FLANGE 		0-28050-820-0 01 1 0907- ●
76 01.840 BOLT; OIL FILTER
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0907- ●
76 01.840 BOLT; OIL FILTER
02.100 (C) M8X90 FLANGE 		0-28050-890-0 02 1 0907- ●
76 01.840 BOLT; OIL FILTER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 12 1 0907- ●
76 01.840 BOLT; OIL FILTER
(D) 		8-98041-912-0 02 1 0907- ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 0907- ●
362 01.837 NUT; OIL FILTER
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905- ●
365 01.840 PROTECTOR; OIL FILTER 8-98133-061-0 01 1 0907- ●
374 01.840 STUD; OIL FILTER
02.510 M8X20 L=32 		0-41010-820-0 02 1 0907- ●
495 03.680 PLATE; OIL FILTER 8-98018-853-0 01 1 0907- ●

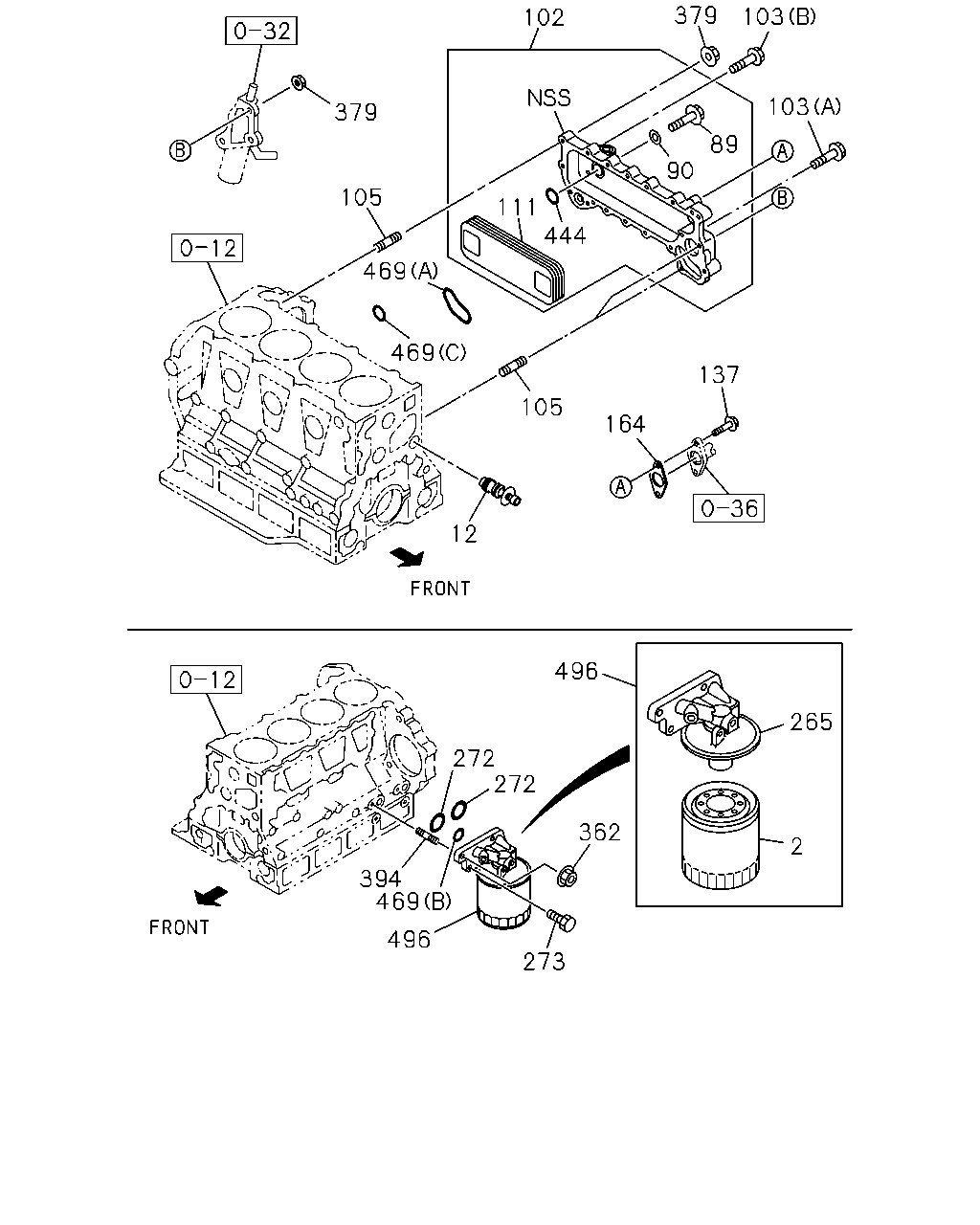

çizim 64243
379 103 102 103 379 89 90 105 111 444 469 469 137 105 164 12 496 265 272 272 362 2 394 469 496 273
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.836 ELEMENT; OIL FILTER 8-97148-270-1 01 1 0905- ●
2 01.836 ELEMENT; OIL FILTER 8-98018-858-0 01 1 0907- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-117-0 01 1 0905- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-118-0 01 1 0907- ●
12 01.540 VALVE ASM; BYPASS 8-97013-566-2 01 1 0905- ●
89 01.540 BOLT; ELEMENT TO CASE
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0905- ●
90 01.540 GASKET; BOLT,OIL COOLER
01.550 		1-21729-043-0 04 1 0905- ●
102 01.540 COOLER ASM; OIL 8-98085-312-5 01 1 0905- ●
103 01.540 BOLT; OIL COOLER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 08 1 0905- ●
103 01.540 BOLT; OIL COOLER
03.162 (B) M8X35 FLANGE 		0-28050-835-0 08 1 0905- ●
105 01.540 STUD; OIL COOLER
M8X52 L=63 		8-97016-314-0 03 1 0905- ●
111 01.540 CORE; OIL COOLER 8-97334-100-2 01 1 0905- ●
137 01.840 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0905- ●
164 01.550 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-684-0 01 1 0905- ●
265 01.837 BODY; OIL FILTER 8-97096-677-4 01 1 0905- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 02 1 0905- ●
273 01.840 BOLT; OIL FILTER
M10X30 		0-59331-030-0 03 1 0905- ●
362 01.837 NUT; OIL FILTER
01.540 M8 FLANGE 		0-91180-208-0 02 1 0907- ●
362 01.837 NUT; OIL FILTER
03.162 M10 FLANGE 		0-91180-110-0 01 1 0905- ●
379 01.540 NUT; OIL COOLER
01.062 M8 FLANGE 		0-91180-108-0 03 1 0905- ●
394 01.837 STUD; OIL FILTER
M10X25 L=48.5 		0-49241-025-0 01 1 0905- ●
444 01.550 GASKET; ELEMENT TO BODY 8-97384-130-0 02 1 0905- ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94338-878-1 01 1 0905- ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8 		8-94399-339-0 01 1 0905- ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE 		8-98045-447-0 01 1 0905- ●
496 01.835 FILTER ASM; OIL 8-97148-268-4 01 1 0905- ●
