◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#7731) — 218 parça

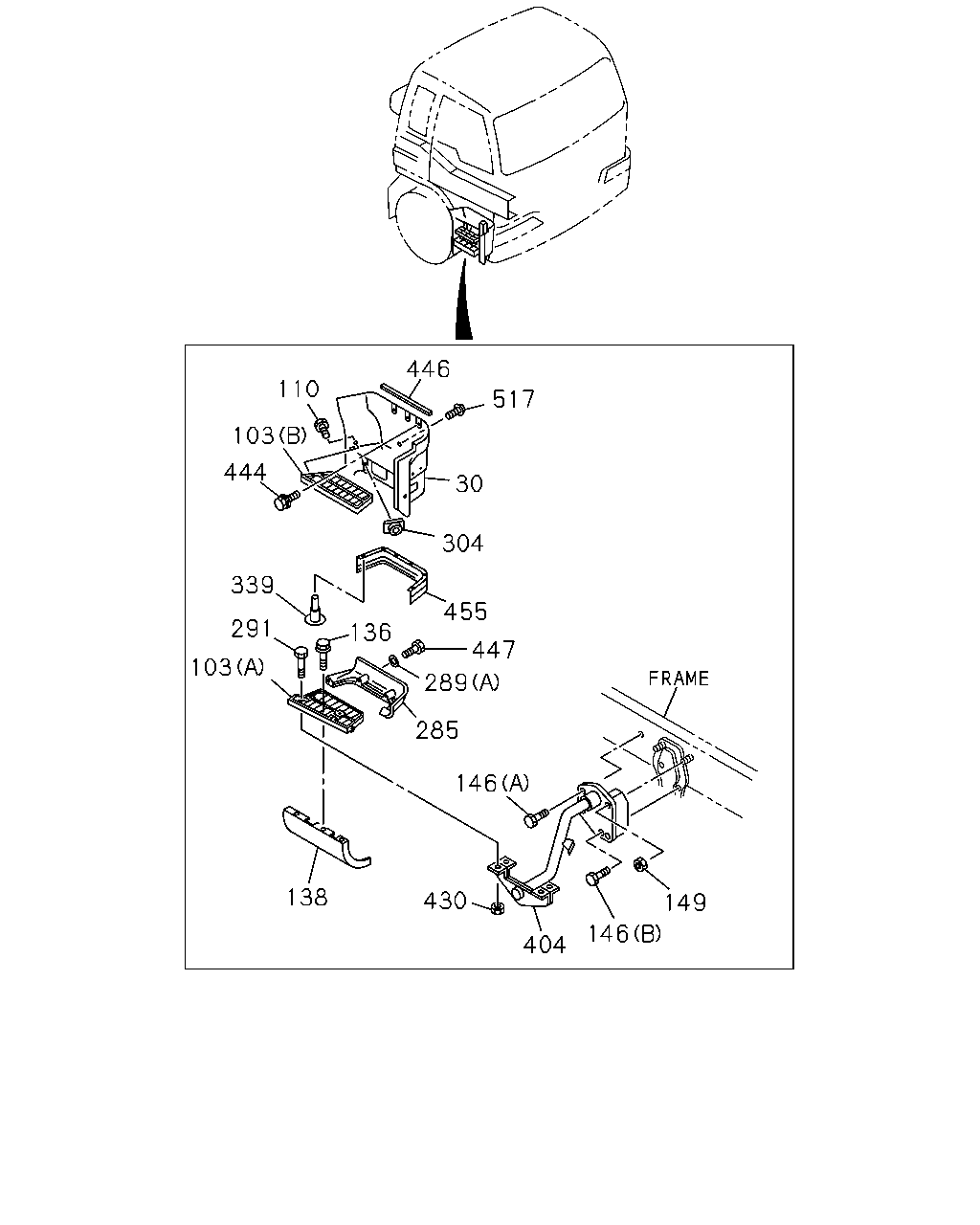

çizim 45182
446 110 517 103 444 30 304 339 455 291 136 447 103 289 285 146 138 430 149 146 404
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9902-0003 ●
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0004- ● ●
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9902-0003 ●
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0004- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9902-0003 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0004- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9902-0003 ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0004- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9902-0003 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0004- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9902-0003 ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0004- ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9902-0003 ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0004- ● ●
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 9902-0003 ●
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0004- ● ●
138 FENDER; OVER 1-79931-264-0 01 1 0004- ● ●
138 FENDER; OVER 1-79931-264-0 01 1 9902-0003 ●
138 FENDER; OVER 1-79931-263-0 01 1 9902-0003 ●
138 FENDER; OVER 1-79931-263-0 01 1 0004- ● ●
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 9902-0003 ●
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 0004- ● ●
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9902-0003 ●
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 0004- ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 9902-0003 ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 0004- ● ●
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 9902-0003 ●
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0004- ● ●
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 9902-0003 ●
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0004- ● ●
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9902-0003 ●
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0004- ● ●
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 9902-0003 ●
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 0004- ● ●
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9902-0003 ●
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0004- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9902-0003 ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0004- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9902-0003 ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0004- ● ●
404 BRACKET 1-53414-201-0 01 1 9902- ●
404 BRACKET 1-53414-200-0 01 1 9902- ●
404 BRACKET 1-53414-172-2 01 1 0004- ●
404 BRACKET 1-53414-168-3 01 1 0004- ●
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 9902-0003 ●
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0004- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9902-0003 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0004- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9902-0003 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0004- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 9902-0003 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0004- ● ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9902-0003 ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 0004- ●
455 PROTECTOR; STEP 1-71907-187-1 01 1 0004- ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9902-0003 ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 0004- ●
455 PROTECTOR; STEP 1-71907-186-1 01 1 0004- ●
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9902- ●
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9902- ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9902-0003 ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0004- ● ●
çizim 46040
446 110 517 103 444 30 304 339 455 136 291 447 289 103 285 289 494 149 138 146 404 430
BalonParca AdiParca NoAdetTipApplied Date A B
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9902-0003 ●
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0004- ● ●
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9902-0003 ●
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0004- ● ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9902-0003 ●
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0004- ● ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9902-0003 ●
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0004- ● ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9902-0003 ●
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0004- ● ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9902-0003 ●
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0004- ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9902-0003 ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0004- ● ●
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 9902-0003 ●
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0004- ● ●
138 FENDER; OVER 1-79931-264-0 01 1 0004- ● ●
138 FENDER; OVER 1-79931-264-0 01 1 9902-0003 ●
138 FENDER; OVER 1-79931-263-0 01 1 9902-0003 ●
138 FENDER; OVER 1-79931-263-0 01 1 0004- ● ●
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 9902-0003 ●
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 0004- ● ●
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 9902-0003 ●
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 0004- ● ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 9902-0003 ●
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 0004- ● ●
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 9902-0003 ●
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0004- ● ●
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 9902-0003 ●
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0004- ● ●
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9902-0003 ●
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0004- ● ●
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 9902-0003 ●
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 0004- ● ●
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9902-0003 ●
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0004- ● ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9902-0003 ●
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0004- ● ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9902-0003 ●
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0004- ● ●
404 BRACKET 1-53414-201-0 01 1 9902- ●
404 BRACKET 1-53414-200-0 01 1 9902- ●
404 BRACKET 1-53414-172-2 01 1 0004- ●
404 BRACKET 1-53414-168-3 01 1 0004- ●
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 9902-0003 ●
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0004- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9902-0003 ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0004- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9902-0003 ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0004- ● ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 9902-0003 ●
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0004- ● ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9902-0003 ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 0004- ●
455 PROTECTOR; STEP 1-71907-187-1 01 1 0004- ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9902-0003 ●
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 0004- ●
455 PROTECTOR; STEP 1-71907-186-1 01 1 0004- ●
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9902- ●
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9902- ●
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 01 1 9902-0003 ●
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 01 1 0004- ● ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9902-0003 ●
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0004- ● ●

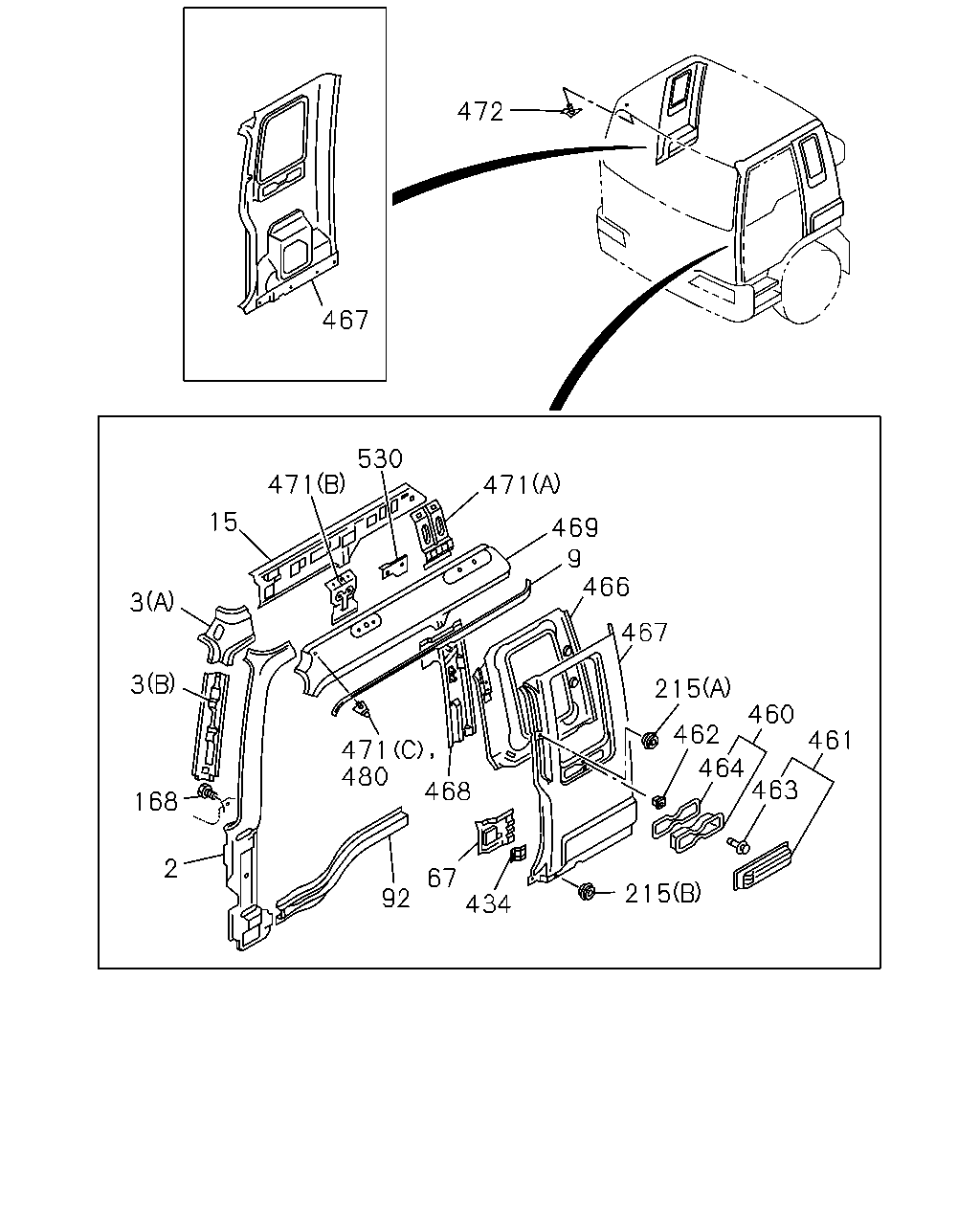

çizim 46072
472 467 530 471 471 15 469 9 466 3 467 3 215 460 462 461 471 480 464 463 468 168 2 67 434 215 92
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-410-2 01 1 9902-0003 ●
2 PILLAR; FRT 1-61281-410-2 01 1 0004- ●
2 PILLAR; FRT 1-61281-409-2 01 1 9902-0003 ●
2 PILLAR; FRT 1-61281-409-2 01 1 0004- ●
2 PILLAR; FRT 1-61281-156-4 01 1 0004- ●
2 PILLAR; FRT 1-61281-155-4 01 1 0004- ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 9902-0003 ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0004- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 9902-0003 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0004- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 9902-0003 ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0004- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 9902-0003 ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0004- ● ●
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-2 01 1 9902-0003 ●
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 0004- ● ●
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-2 01 1 9902-0003 ●
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 0004- ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-4 01 1 9902-0003 ●
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-5 01 1 0004- ● ●
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-4 01 1 9902-0003 ●
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-5 01 1 0004- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 9902-0003 ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0004- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 9902-0003 ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0004- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9902-0003 ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0004- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9902-0003 ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0004- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9902-0003 ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0004- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9902-0003 ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0004- ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9902-0003 ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9902-0003 ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0004- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9902-0003 ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0004- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9902-0003 ●
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0004- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 9902-0003 ●
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 0004- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9902-0003 ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0004- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9902-0003 ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0004- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9902-0003 ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0004- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9902-0003 ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0004- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9902-0003 ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0004- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9902-9904 ●
466 PANEL; INNER,BACK CORNER
EXC. BRAZIL EQUIPMENT(TKK) 		1-61281-416-1 01 1 9905-9911 ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9902-0003 ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0004- ● ●
466 PANEL; INNER,BACK CORNER
BRAZIL EQUIPMENT(TKK) 		1-61281-613-0 01 1 9905- ●
466 PANEL; INNER,BACK CORNER
EXC. BRAZIL EQUIPMENT(TKK) 		1-61281-416-1 01 1 9912-0003 ●
466 PANEL; INNER,BACK CORNER
EXC. BRAZIL EQUIPMENT(TKK) 		1-61281-416-1 01 1 0004- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9902-0003 ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-3 01 1 0004- ● ●
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-773-1 01 1 9902-9904 ●
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),TAIWAN EQUIPMENT(WW5) 		1-61270-773-1 01 1 9905-0003 ●
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),TAIWAN EQUIPMENT(WW5) 		1-61270-773-2 01 1 0004- ●
467 PANEL; OUTER,BACK CORNER 1-61270-773-2 01 1 0004- ●
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) ,TAIWAN EQUIPMENT(WW5) 		1-61270-939-1 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-204-2 01 1 9902-9904 ●
467 PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM>,SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1),TAIWAN EQUIPMENT(WW5) 		1-61281-204-3 01 1 9905- ●
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) ,TAIWAN EQUIPMENT(WW5) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-476-2 01 1 9905- ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 9902-0003 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0004- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 9902-0003 ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0004- ● ●
469 ROOF; SIDE 1-61281-199-5 01 1 9902-0003 ●
469 ROOF; SIDE 1-61281-199-8 01 1 0004- ● ●
469 ROOF; SIDE 1-61281-198-5 01 1 9902-0003 ●
469 ROOF; SIDE 1-61281-198-8 01 1 0004- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 9902-0003 ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 0004- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9902-0003 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0004- ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 9902-0003 ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0004- ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9902-0003 ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0004- ● ●
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9902-9910 ●
472 PATCH; STAY,ROOF 1-61270-943-0 01 1 9911-0003 ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0004- ● ●
480 REINFORCEMENT ASM; STAY ROOF 1-61281-233-4 01 1 0004- ●
530 PATCH; EXTINGUISHER
BRAZIL EQUIPMENT(TKK) 		8-97865-292-0 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
