◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#77308) — 313 parça
çizim 62974
19 18 211 17 16 110 211 290 199 199 216 68 388 392 68 9 110 68 288 289 71 68 68 168 283 354 210 9 68 282 120 110
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
03.162 (D) M6X25 L=36 		8-97214-234-1 02 1 0907-1201 ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202- ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 0905- ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 0905- ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 0905- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0907-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98086-354-0 01 1 0905-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-352-0 01 1 1103-1404 ●
16 03.330 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502 ●
16 03.330 PIPE; INJ NO.1 8-98298-628-0 01 1 1503- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0907-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98086-355-0 01 1 0905-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-353-0 01 1 1103-1404 ●
17 03.330 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502 ●
17 03.330 PIPE; INJ NO.2 8-98298-629-0 01 1 1503- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0907-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98086-356-0 01 1 0905-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-354-0 01 1 1103-1404 ●
18 03.330 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502 ●
18 03.330 PIPE; INJ NO.3 8-98298-630-0 01 1 1503- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0907-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98086-357-0 01 1 0905-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-355-0 01 1 1103-1404 ●
19 03.330 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502 ●
19 03.330 PIPE; INJ NO.4 8-98298-631-0 01 1 1503- ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-481-0 04 1 0907-1201 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 0905- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 0905- ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 0905-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0905- ●
71 03.162 BOLT; BRKT
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 0905- ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0905- ●
71 03.162 BOLT; BRKT
04.686 (C) M8X60 FLANGE 		0-28050-860-0 02 1 0905- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 0905- ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 0905- ●
168 03.890 BRACKET; FUEL PIPE 8-98096-204-0 01 1 0905- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0907- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0905- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0905- ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0907- ●
210 03.330 PIPE; INJ,C/R 8-98096-496-0 01 1 0905- ●
211 03.331 RAIL ASM; COMMON 8-98011-888-1 01 1 0905-0906 ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0907- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0907- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0905- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0905- ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0905-0906 ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0907- ● ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98053-912-0 01 1 0907-1001 ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98147-694-0 01 1 1002- ●
282 03.163 BRACKET; COMMON RAIL
(C) 		8-98106-661-1 01 1 0905- ●
283 03.330 BOLT; COMMON RAIL
00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 0907- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0907- ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0905- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0905-0906 ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0907- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0905-0906 ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0907- ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0905-0906 ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0907- ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0905- ●
388 03.332 STUD; RAIL
03.278 M8X35 L=53 		0-49140-835-0 02 1 0905- ●
392 03.330 NUT; RAIL ASM
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905- ●

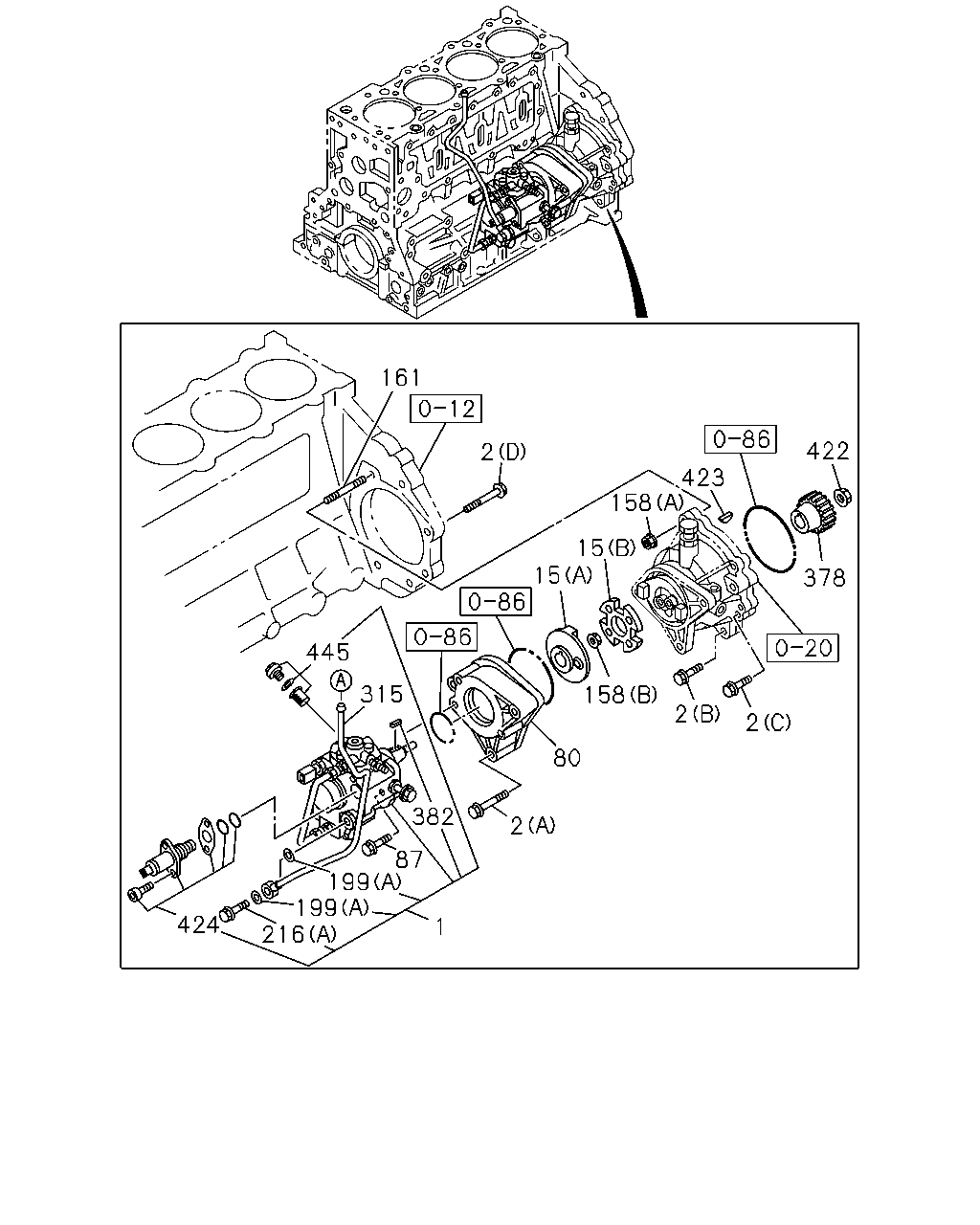

çizim 63174
378 422 423 158 15 15 158 2 2 80 2 382 87 199 199 216 424 315 445 2 161 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 0905- ●
2 03.330 BOLT; INJ PUMP
00.685 (A) M10X60 FLANGE 		0-28051-060-0 03 1 0905- ●
2 03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE 		0-28151-070-0 01 1 0905- ●
2 03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE 		0-28151-270-0 01 1 0905- ●
2 03.330 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 0905- ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0905- ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 0905- ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 0905- ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0905- ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0905- ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 0905- ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0905-0910 ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0907- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0905- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0905- ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0907- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0905- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0905- ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0905-0906 ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0907- ● ●
315 03.163 PIPE; FUEL,SUCTION 8-98126-334-0 01 1 0905- ●
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 0905- ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105-1201 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0905-0906 ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0907-1104 ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1105-1201 ●
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 0905- ●
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 0905- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0905-0905 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 0906-0906 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0907- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 0905-0906 ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 0907- ● ●

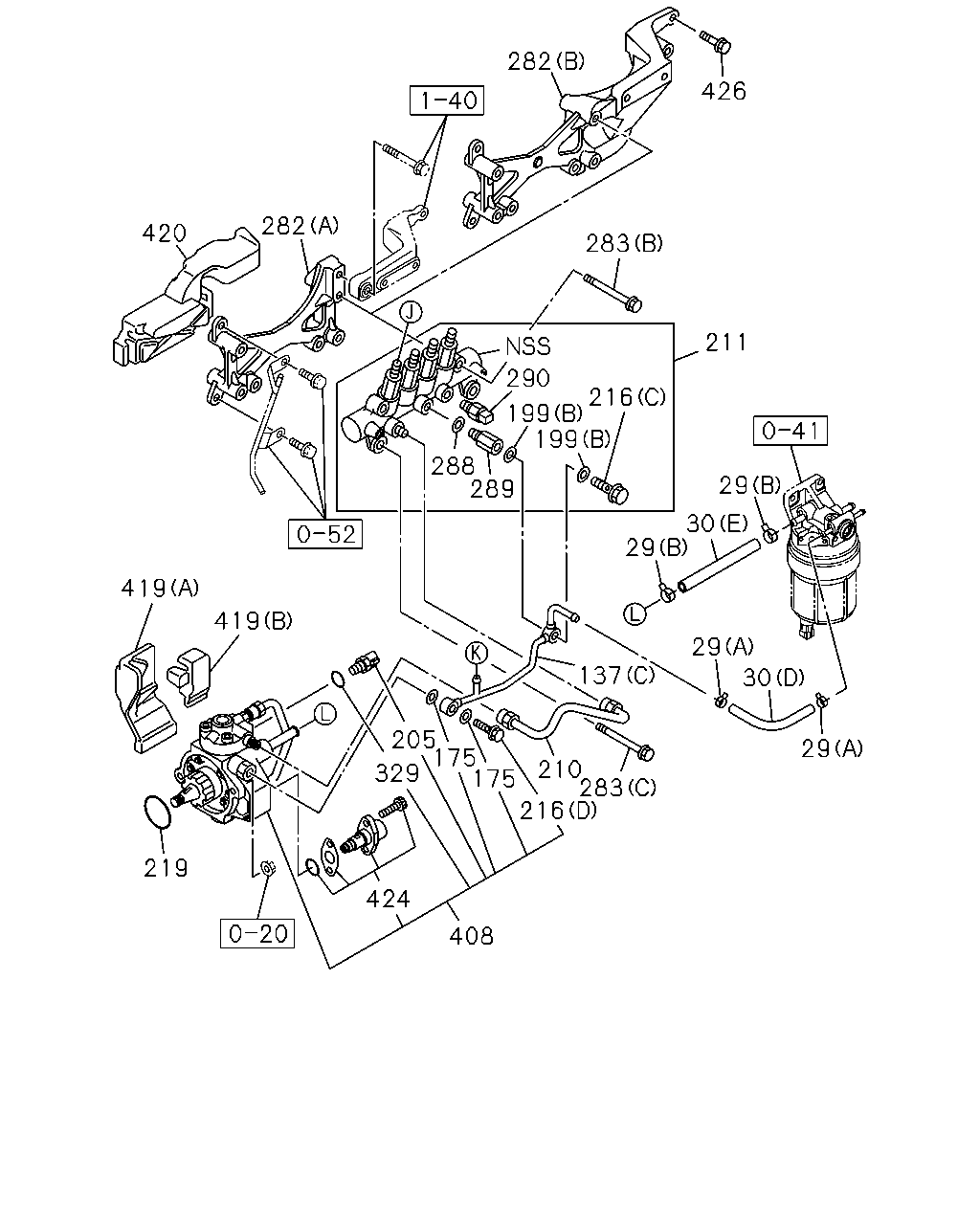

çizim 63333
282 426 282 420 283 211 290 216 199 199 288 289 29 30 29 419 419 29 137 30 205 175 175 29 210 283 216 329 219 424 408
BalonParca AdiParca NoAdetTipApplied Date A B
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0907- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0907- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=130 		0-01804-130-0 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0907-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 0905- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0907-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0907-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 0907- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 0907- ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0907- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0907- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0905- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0905- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0905-0906 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0907- ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0907- ●
210 03.330 PIPE; INJ,C/R 8-98096-496-0 01 1 0905- ●
211 03.331 RAIL ASM; COMMON 8-98011-888-1 01 1 0905-0906 ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0907- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0907- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0905- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0905- ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0905-0906 ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0907- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 0907- ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98053-912-0 01 1 0907-1001 ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98147-694-0 01 1 1002- ●
282 03.163 BRACKET; COMMON RAIL
(C) 		8-98106-661-1 01 1 0905- ●
283 03.330 BOLT; COMMON RAIL
00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 0907- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0907- ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0905- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0905-0906 ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0907- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0905-0906 ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0907- ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0905-0906 ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0907- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0905-0906 ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0907-1104 ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1105-1201 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 0907- ●
419 03.340 RUBBER; SPACE,PUMP
(A) 		8-98037-442-0 01 1 0907-1011 ●
419 03.340 RUBBER; SPACE,PUMP
(B) 		8-98037-443-0 01 1 0907-1011 ●
420 03.340 RUBBER; SPACE,COMMON RAIL 8-98037-444-1 01 1 0907- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0905-0905 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 0906-0906 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0907- ● ●
426 03.330 BOLT; BRACKET
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 1002- ●

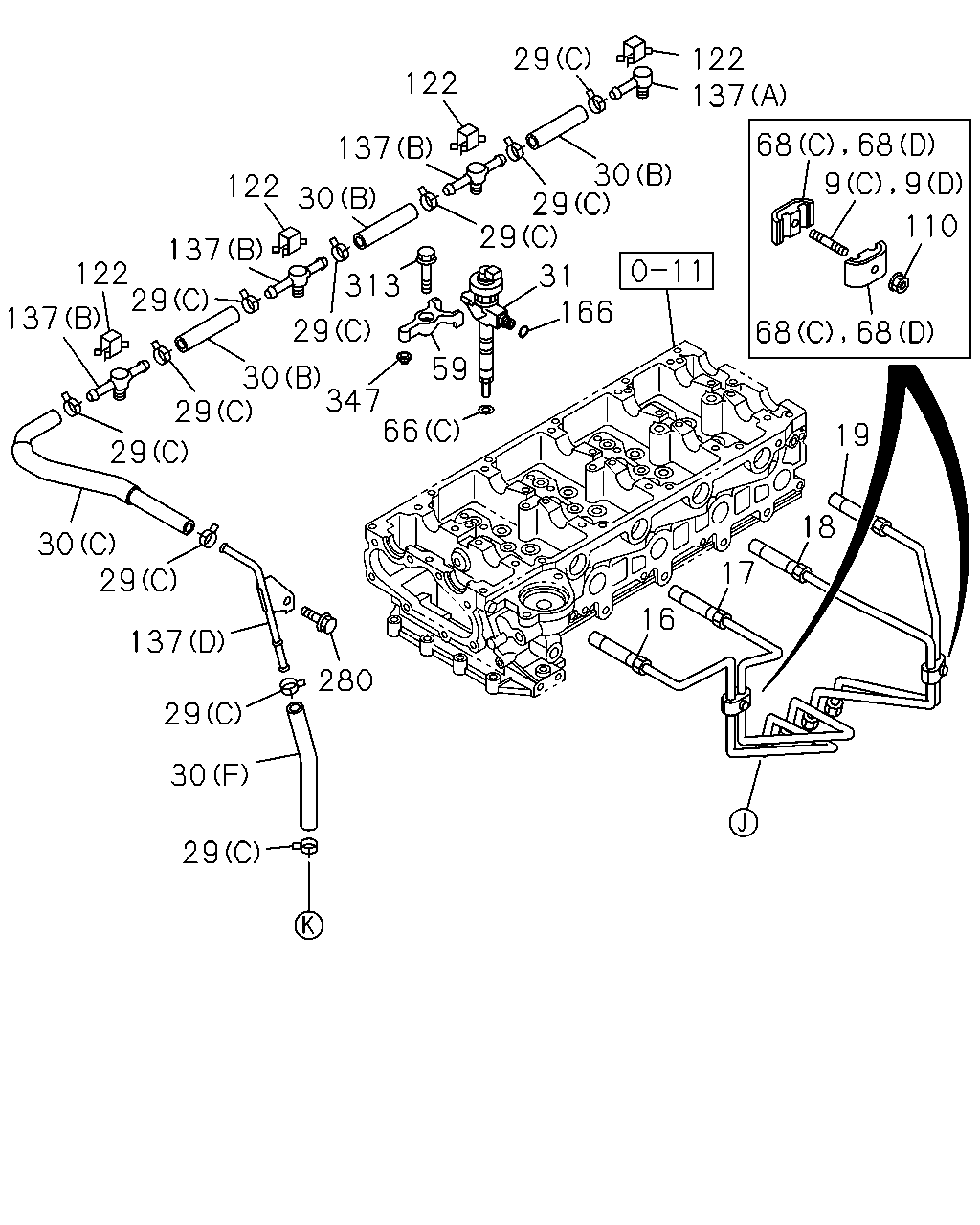

çizim 186505
29 122 137 122 137 30 29 29 122 30 110 137 122 29 31 166 313 137 29 59 30 347 29 66 19 29 18 30 29 17 16 137 280 29 30 29 68 68 9 9 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
03.162 (D) M6X25 L=36 		8-97214-234-1 02 1 0907-1201 ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202- ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 0905- ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 0905- ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 0905- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0907-1201 ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98086-354-0 01 1 0905-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-352-0 01 1 1103-1404 ●
16 03.330 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502 ●
16 03.330 PIPE; INJ NO.1 8-98298-628-0 01 1 1503- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0907-1201 ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98086-355-0 01 1 0905-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-353-0 01 1 1103-1404 ●
17 03.330 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502 ●
17 03.330 PIPE; INJ NO.2 8-98298-629-0 01 1 1503- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0907-1201 ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98086-356-0 01 1 0905-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-354-0 01 1 1103-1404 ●
18 03.330 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502 ●
18 03.330 PIPE; INJ NO.3 8-98298-630-0 01 1 1503- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0907-1201 ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98086-357-0 01 1 0905-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-355-0 01 1 1103-1404 ●
19 03.330 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502 ●
19 03.330 PIPE; INJ NO.4 8-98298-631-0 01 1 1503- ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0907- ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0907- ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=130 		0-01804-130-0 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0907-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 0905- ●
31 03.332 NOZZLE ASM; INJ 8-98074-909-2 04 1 0907- ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 0905- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0907- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-98077-165-0 04 1 0907-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-98181-540-0 04 1 1104- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-97601-447-2 04 1 0905-0909 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (A) ID=23.3 		8-94173-412-0 04 1 0905- ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-481-0 04 1 0907-1201 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 0905- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 0905- ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 0905-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 0905- ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0907- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0907-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0907-1101 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 0907- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 0907- ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0907- ●
280 03.330 BOLT; CLIP,FUEL HOSE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0907- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0907- ●
347 03.332 PIN 8-97383-286-0 04 1 0907-1011 ●
347 03.332 PIN 8-98165-035-0 04 1 1012- ●

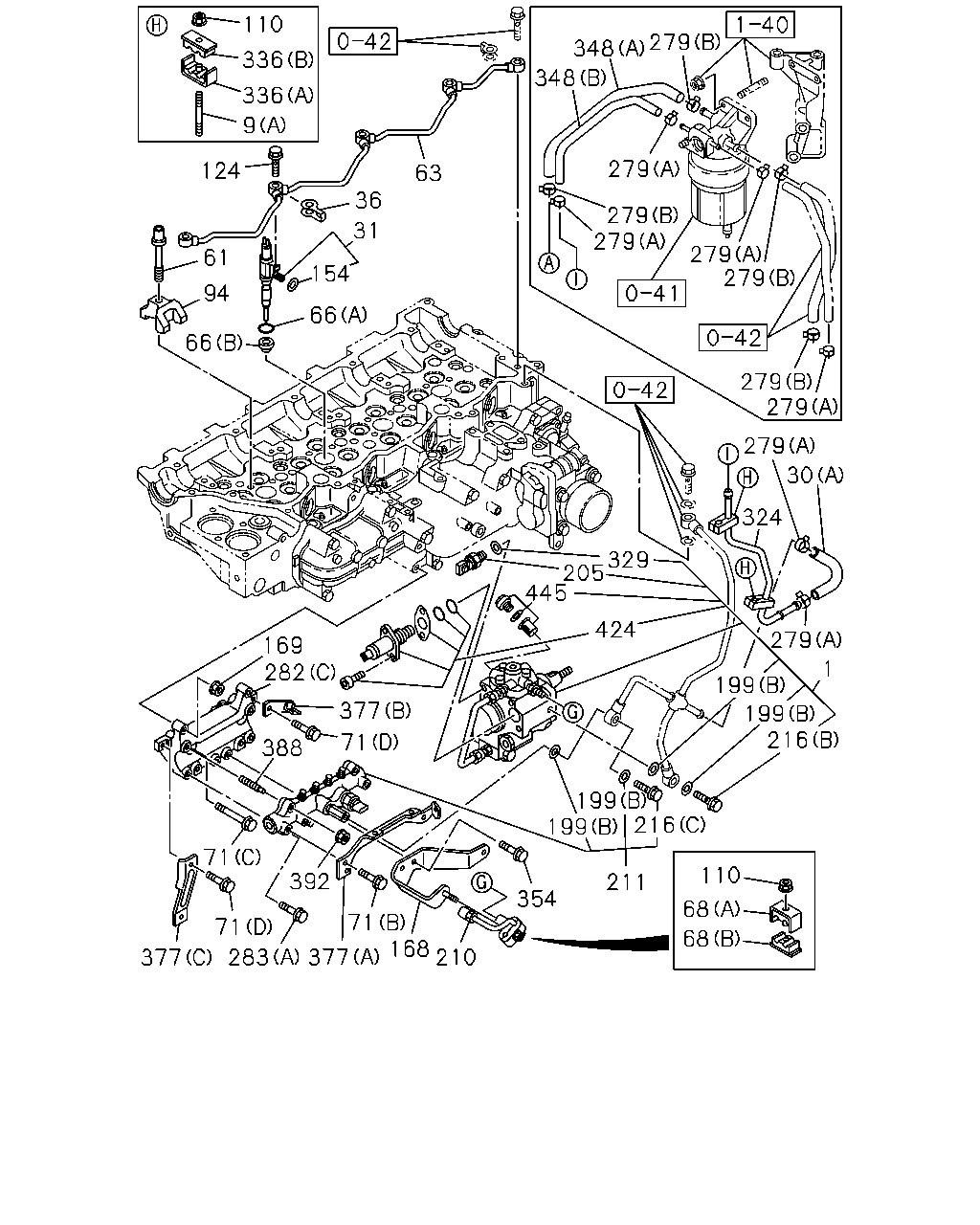

çizim 186520
110 336 336 9 348 348 279 279 279 279 279 279 36 63 124 61 31 154 94 66 66 169 282 377 71 388 71 71 392 71 354 199 199 211 216 110 68 68 216 199 199 279 1 424 445 205 329 324 30 279 279 279 377 283 377 168 210
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 0905- ●
9 03.340 STUD; CLIP
03.162 (D) M6X25 L=36 		8-97214-234-1 02 1 0907-1201 ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202- ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 0905- ●
9 03.340 STUD; CLIP
03.278 (A) M6X40 L=50 		0-41010-640-0 02 1 0905- ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 0905- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=130 		0-01804-130-0 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0907- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0907-1101 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) 		8-98025-994-2 01 1 0905- ●
31 03.332 NOZZLE ASM; INJ 8-98074-909-2 04 1 0907- ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 0905- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.162 ID=8.3 		8-97600-925-0 04 1 0905-0908 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 0909- ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0905- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0905- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-98077-165-0 04 1 0907-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-98181-540-0 04 1 1104- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-97601-447-2 04 1 0905-0909 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (A) ID=23.3 		8-94173-412-0 04 1 0905- ●
68 03.162 CLIP; INJ PIPE
(D) 		8-97213-481-0 04 1 0907-1201 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 0905- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 0905- ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 10 1 0905-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ●
71 03.162 BOLT; BRKT
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0905- ●
71 03.162 BOLT; BRKT
09.242 (D) M6X16 FLANGE 		0-28050-616-0 02 1 0905- ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0905- ●
71 03.162 BOLT; BRKT
04.686 (C) M8X60 FLANGE 		0-28050-860-0 02 1 0905- ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0905- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 08 1 0905- ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0905- ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 0905-1106 ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107- ●
168 03.890 BRACKET; FUEL PIPE 8-98096-204-0 01 1 0905- ●
169 03.890 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 0907- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 0905- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 0905- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0905-0906 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0907- ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0907- ●
210 03.330 PIPE; INJ,C/R 8-98096-496-0 01 1 0905- ●
211 03.331 RAIL ASM; COMMON 8-98011-888-1 01 1 0905-0906 ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0907- ● ●
216 03.162 BOLT; EYE
03.280 (D) 		9-88130-088-0 01 1 0907- ●
216 03.162 BOLT; EYE
(A) 		5-15759-003-0 01 1 0905- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 0905- ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0905-0906 ●
216 03.162 BOLT; EYE
(C) 		8-98043-033-0 01 1 0907- ● ●
279 03.162 CLIP; FUEL HOSE
01.097 (B) ID=16 		8-97329-628-0 04 1 0905- ●
279 03.162 CLIP; FUEL HOSE
01.153 (A) ID=11.5 		8-97375-638-0 06 1 0905- ●
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98053-912-0 01 1 0907-1001 ●
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98147-694-0 01 1 1002- ●
282 03.163 BRACKET; COMMON RAIL
(C) 		8-98106-661-1 01 1 0905- ●
283 03.330 BOLT; COMMON RAIL
00.206 (C) M8X70 FLANGE 		0-28050-870-0 02 1 0907- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0907- ●
283 03.330 BOLT; COMMON RAIL
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0905- ●
324 03.330 PIPE; FUEL RETURN 8-98025-858-0 01 1 0905- ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0905-0906 ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0907-1104 ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1105-1201 ●
336 03.163 CLIP; FUEL PIPE
01.531 (A) ID=8 & 9 L=25 		8-97603-522-0 02 1 0905- ●
336 03.163 CLIP; FUEL PIPE
01.531 (B) ID=8 & 9 L=25 		8-97603-523-0 02 1 0905- ●
348 03.163 HOSE; FUEL
(B) 		8-98087-960-0 01 1 0905- ●
348 03.163 HOSE; FUEL
(A) 		8-98126-629-0 01 1 0905- ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0905- ●
377 03.332 BRACKET; HARNESS
(A) 		8-98113-835-0 01 1 0905- ●
377 03.332 BRACKET; HARNESS
(B) 		8-98114-440-0 01 1 0905- ●
377 03.332 BRACKET; HARNESS
(C) 		8-98114-730-0 01 1 0905- ●
388 03.332 STUD; RAIL
03.278 M8X35 L=53 		0-49140-835-0 02 1 0905- ●
392 03.330 NUT; RAIL ASM
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0905-0905 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 0906-0906 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 0907- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 0905-0906 ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 0907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
