4-60 — REAR SUSPENSION (#773) — 233 parça

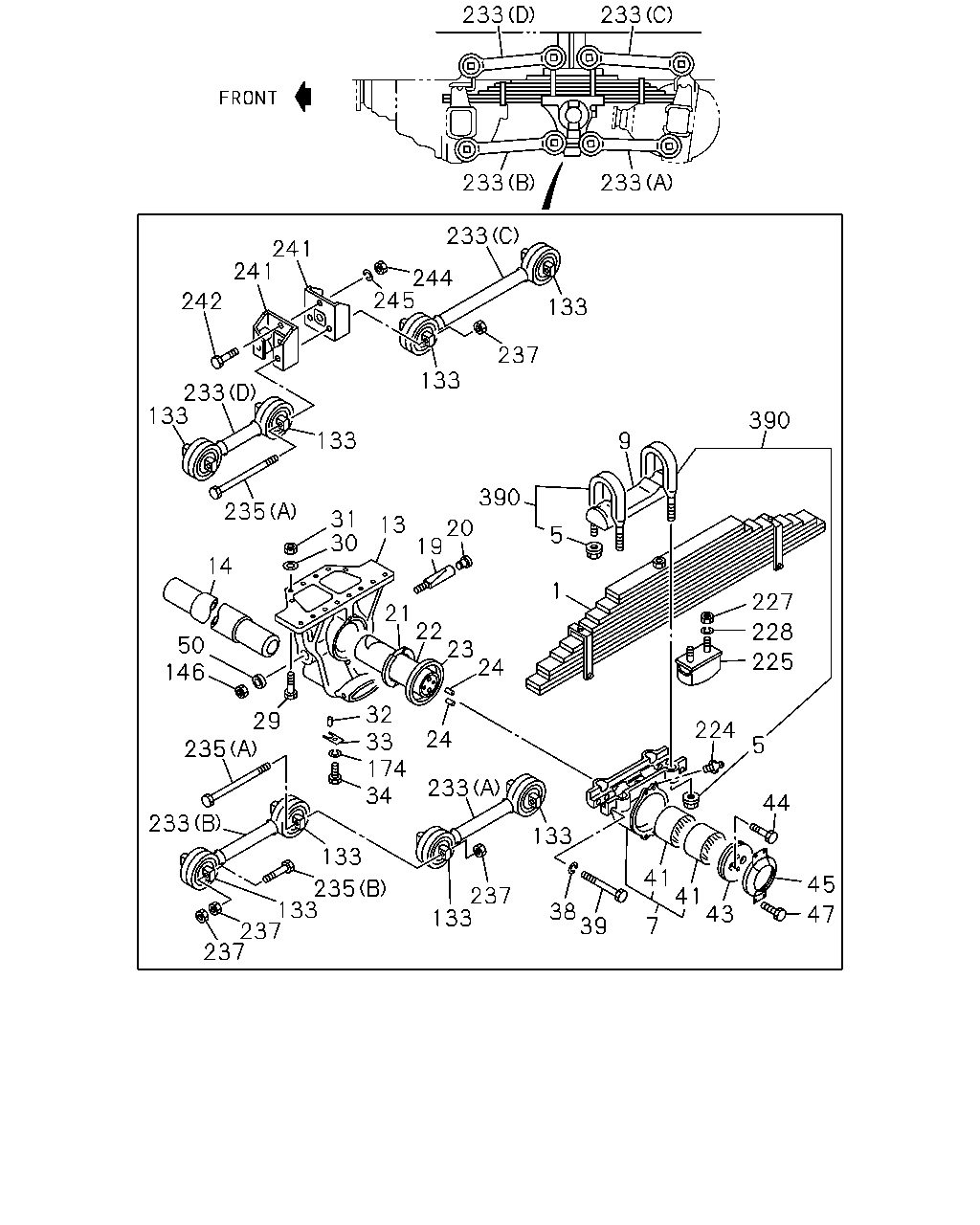

233 233 233 233 233 241 241 244 245 242 133 237 133 233 133 390 133 9 390 235 31 30 13 20 19 5 14 1 227 21 22 23 24 228 50 146 225 32 33 174 34 29 224 24 5 235 233 44 233 133 133 41 41 43 45 235 133 237 237 237 133 38 39 47 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF	1-51310-729-1	02	1	9204-9504
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. PAKISTAN EQUIPMENT(WN3) 11-LEAF	1-51310-729-1	02	1	9505-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. PAKISTAN EQUIPMENT(WN3) 10-LEAF	1-51310-952-0	02	1	9505-
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	08	1	9204-9504
5	NUT; U-BOLT,RR SPR EXC. PAKISTAN EQUIPMENT(WN3) M24 FLANGE	1-09440-001-1	08	1	9505-
5	NUT; U-BOLT,RR SPR PAKISTAN EQUIPMENT(WN3) M27 FLANGE	9-09844-662-1	08	1	9505-
7	SEAT; SPR,LWR	1-51385-071-0	02	1	9204-9504
7	SEAT; SPR,LWR EXC. PAKISTAN EQUIPMENT(WN3)	1-51385-071-0	02	1	9505-
7	SEAT; SPR,LWR PAKISTAN EQUIPMENT(WN3)	1-51385-091-0	02	1	9505-
9	PAD; U BOLT,RR SPR	1-51372-028-0	02	1	9204-9504
9	PAD; U BOLT,RR SPR EXC. PAKISTAN EQUIPMENT(WN3)	1-51372-028-0	02	1	9505-
9	PAD; U BOLT,RR SPR PAKISTAN EQUIPMENT(WN3)	1-51372-019-1	02	1	9505-
13	BRACKET; TRUNNION SHAFT	1-53361-031-9	02	1	9204-9207
13	BRACKET; TRUNNION SHAFT	1-53361-053-0	02	1	9208-9502
13	BRACKET; TRUNNION SHAFT	1-53361-066-0	02	1	9503-9504
13	BRACKET; TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-53361-066-0	02	1	9505-
13	BRACKET; TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-53361-065-0	02	1	9505-
14	PIPE; TRUNNION BRKT	1-51541-014-0	01	1	9204-9504
14	PIPE; TRUNNION BRKT EXC. PAKISTAN EQUIPMENT(WN3)	1-51541-014-0	01	1	9505-
14	PIPE; TRUNNION BRKT PAKISTAN EQUIPMENT(WN3)	1-51389-032-0	01	1	9505-
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9204-
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9204-
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-030-0	02	1	9204-9504
21	WASHER; THRUST,TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-51389-030-0	02	1	9505-
21	WASHER; THRUST,TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-51389-058-0	02	1	9505-
22	SHAFT; TRUNNION,RR SUSP	1-51381-015-0	02	1	9204-9504
22	SHAFT; TRUNNION,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3)	1-51381-015-0	02	1	9505-
22	SHAFT; TRUNNION,RR SUSP PAKISTAN EQUIPMENT(WN3)	1-51381-022-2	02	1	9505-
23	SEAL; OIL,TRUNNION SHAFT	1-09625-146-0	02	1	9204-9504
23	SEAL; OIL,TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-09625-146-0	02	1	9505-
23	SEAL; OIL,TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-51389-005-0	02	1	9505-
24	PIN; SIDE PLATE TO SHAFT	1-09740-022-0	04	1	9204-9504
24	PIN; SIDE PLATE TO SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-09740-022-0	04	1	9505-
24	PIN; SIDE PLATE TO SHAFT PAKISTAN EQUIPMENT(WN3)	1-09740-009-0	04	1	9505-
29	BOLT; BRKT TO FRAME M18X80	1-09000-428-1	24	1	9204-
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9204-
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	32	1	9204-9504
30	WASHER; PL,TRUNNION BRKT PAKISTAN EQUIPMENT(WN3) ID=19	1-09503-162-0	28	1	9505-
30	WASHER; PL,TRUNNION BRKT EXC. PAKISTAN EQUIPMENT(WN3) ID=19	1-09503-162-0	32	1	9505-
31	NUT; TRUNNION BRKT M18	9-99110-518-0	24	1	9204-9504
31	NUT; TRUNNION BRKT PAKISTAN EQUIPMENT(WN3) M18	9-99110-518-0	28	1	9505-
31	NUT; TRUNNION BRKT EXC. PAKISTAN EQUIPMENT(WN3) M18	9-99110-518-0	24	1	9505-
32	PIN; STRAIGHT	1-09740-027-0	02	1	9204-9504
32	PIN; STRAIGHT PAKISTAN EQUIPMENT(WN3)	1-09740-027-0	04	1	9505-
32	PIN; STRAIGHT EXC. PAKISTAN EQUIPMENT(WN3)	1-09740-027-0	02	1	9505-
33	PLATE; LK KNOCK PIN	1-53369-012-0	02	1	9204-9504
33	PLATE; LK KNOCK PIN EXC. PAKISTAN EQUIPMENT(WN3)	1-53369-012-0	02	1	9505-
33	PLATE; LK KNOCK PIN PAKISTAN EQUIPMENT(WN3)	1-53369-032-1	02	1	9505-
34	BOLT; LOCK PLATE M10X14	9-02041-014-0	02	1	9204-9204
34	BOLT; LOCK PLATE M10X14	0-20801-014-0	02	1	9205-9504
34	BOLT; LOCK PLATE EXC. PAKISTAN EQUIPMENT(WN3)	0-20801-014-0	02	1	9505-
34	BOLT; LOCK PLATE PAKISTAN EQUIPMENT(WN3) M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9505-
38	WASHER; LK,SPR SETTING ID=18.2	9-09150-618-0	04	1	9204-9504
38	WASHER; LK,SPR SETTING EXC. PAKISTAN EQUIPMENT(WN3) ID=18.2	9-09150-618-0	04	1	9505-
38	WASHER; LK,SPR SETTING PAKISTAN EQUIPMENT(WN3) ID=22.5	9-09150-622-0	04	1	9505-
39	BOLT; SPR SETTING	1-09000-022-2	04	1	9204-9504
39	BOLT; SPR SETTING EXC. PAKISTAN EQUIPMENT(WN3)	1-09000-022-2	04	1	9505-
39	BOLT; SPR SETTING PAKISTAN EQUIPMENT(WN3) M22X155	9-09801-290-1	04	1	9505-
41	BUSHING; TRUNNION SHAFT	1-51386-003-0	04	1	9204-9504
41	BUSHING; TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-51386-003-0	04	1	9505-
41	BUSHING; TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-51386-004-0	04	1	9505-
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-004-1	02	1	9204-9504
43	PLATE; SIDE,TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-51382-004-1	02	1	9505-
43	PLATE; SIDE,TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-51382-010-4	02	1	9505-
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	9204-
45	COVER; SPR SEAT	1-51387-012-0	02	1	9204-9504
45	COVER; SPR SEAT EXC. PAKISTAN EQUIPMENT(WN3)	1-51387-012-0	02	1	9505-
45	COVER; SPR SEAT PAKISTAN EQUIPMENT(WN3)	1-51387-013-2	02	1	9505-
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	9-01900-812-0	08	1	9204-9204
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	0-50040-812-0	08	1	9205-
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	9204-
133	BUSHING; RUBBER,TORQUE ROD L=147	1-51519-066-2	12	1	9204-9210
133	BUSHING; RUBBER,TORQUE ROD L=148	1-51519-113-0	12	1	9204-
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9204-
174	WASHER; LK,LOCK PLATE ID=10.2	9-09150-510-0	02	1	9204-9504
174	WASHER; LK,LOCK PLATE EXC. PAKISTAN EQUIPMENT(WN3) ID=10.2	9-09150-510-0	02	1	9505-
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9204-
225	RUBBER; CUSHION,RR SPR	1-53366-093-2	04	1	9204-9504
225	RUBBER; CUSHION,RR SPR EXC. PAKISTAN EQUIPMENT(WN3)	1-53366-093-2	04	1	9505-
225	RUBBER; CUSHION,RR SPR PAKISTAN EQUIPMENT(WN3)	1-53366-072-1	02	1	9505-
225	RUBBER; CUSHION,RR SPR PAKISTAN EQUIPMENT(WN3)	1-53366-073-1	02	1	9505-
227	NUT; CUSHION RUBBER M12	9-99110-412-0	08	1	9204-
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	08	1	9204-
233	ROD ASM; TORQUE,RR SUSP (A) L=518	1-51511-404-0	02	1	9204-9205
233	ROD ASM; TORQUE,RR SUSP (A) L=518	1-51511-595-0	02	1	9206-9504
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (A) L=518	1-51511-595-0	02	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (B) L=525	1-51511-656-0	02	1	9509-
233	ROD ASM; TORQUE,RR SUSP (B) L=526	1-51511-405-0	02	1	9204-9205
233	ROD ASM; TORQUE,RR SUSP (B) L=526	1-51511-599-0	02	1	9206-9504
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (B) L=526	1-51511-599-0	02	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (A) L=520	1-51511-605-0	02	1	9509-
233	ROD ASM; TORQUE,RR SUSP (C) L=505	1-51511-424-0	01	1	9204-9205
233	ROD ASM; TORQUE,RR SUSP (D) L=497	1-51511-489-0	01	1	9204-9205
233	ROD ASM; TORQUE,RR SUSP (D) L=497	1-51511-594-0	01	1	9206-9504
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (D) L=497	1-51511-594-0	01	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (D) L=495	1-51511-654-0	01	1	9509-
233	ROD ASM; TORQUE,RR SUSP (C) L=505	1-51511-596-0	01	1	9206-9504
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (C) L=505	1-51511-596-0	01	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (C) L=505	1-51511-670-0	01	1	9509-
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (E) L=481	1-51511-577-0	02	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (E) L=480	1-51511-677-0	02	1	9509-
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (F) L=593	1-51511-579-1	03	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (G) L=545	1-51511-658-0	01	1	9509-
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (G) L=545	1-51511-609-0	01	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (F) L=590	1-51511-673-0	03	1	9509-
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9204-
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9204-
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	9204-
241	BRACKET; TORQUE ROD	1-53363-053-1	02	1	9204-9504
241	BRACKET; TORQUE ROD EXC. PAKISTAN EQUIPMENT(WN3)	1-53363-053-1	02	1	9505-
242	BOLT; BRKT TO FRAME M14X50	0-10806-450-0	02	1	9204-9504
242	BOLT; BRKT TO FRAME EXC. PAKISTAN EQUIPMENT(WN3) M14X50	0-10806-450-0	02	1	9505-
244	NUT; BRKT M14	9-99110-414-0	02	1	9204-9504
244	NUT; BRKT EXC. PAKISTAN EQUIPMENT(WN3) M14	9-99110-414-0	02	1	9505-
245	WASHER; LK,BRKT ID=14.2	9-09150-614-0	02	1	9204-9504
245	WASHER; LK,BRKT EXC. PAKISTAN EQUIPMENT(WN3) ID=14.2	9-09150-614-0	02	1	9505-
390	U-BOLT SET; RR SPRING L=350	1-87870-316-0	04	1	9204-9504
390	U-BOLT SET; RR SPRING EXC. PAKISTAN EQUIPMENT(WN3) L=350	1-87870-316-0	04	1	9505-
390	U-BOLT SET; RR SPRING PAKISTAN EQUIPMENT(WN3) L=340	1-87870-146-0	04	1	9505-

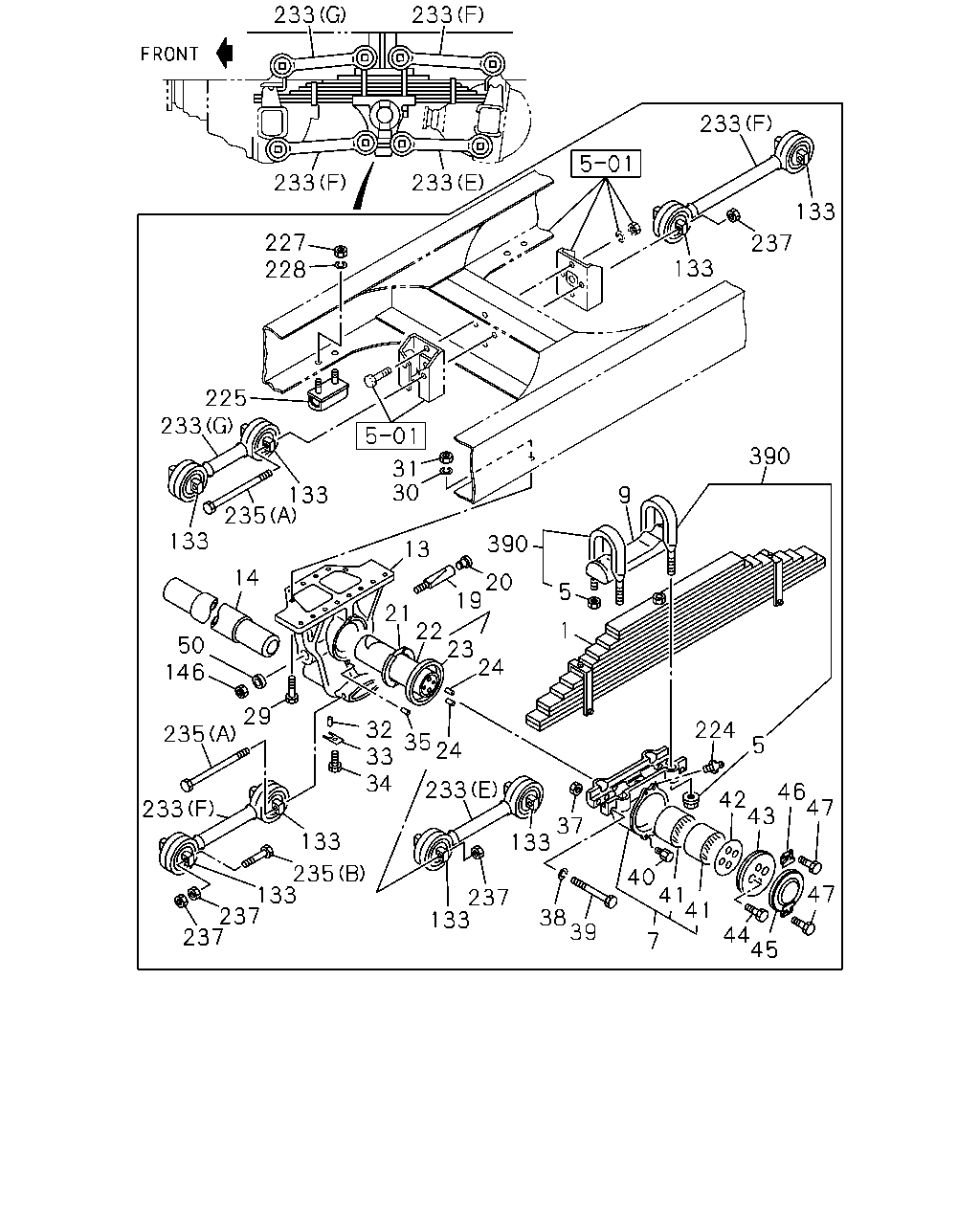

233 233 233 233 233 133 227 228 237 133 225 233 390 31 30 133 9 235 133 390 13 14 20 19 5 21 22 23 24 1 50 146 29 32 33 34 224 235 35 24 5 233 46 42 47 43 233 37 133 133 235 133 237 237 40 41 41 47 237 133 38 39 44 45 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF	1-51310-729-1	02	1	9204-9504
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. PAKISTAN EQUIPMENT(WN3) 11-LEAF	1-51310-729-1	02	1	9505-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. PAKISTAN EQUIPMENT(WN3) 10-LEAF	1-51310-952-0	02	1	9505-
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	08	1	9204-9504
5	NUT; U-BOLT,RR SPR EXC. PAKISTAN EQUIPMENT(WN3) M24 FLANGE	1-09440-001-1	08	1	9505-
5	NUT; U-BOLT,RR SPR PAKISTAN EQUIPMENT(WN3) M27 FLANGE	9-09844-662-1	08	1	9505-
7	SEAT; SPR,LWR	1-51385-071-0	02	1	9204-9504
7	SEAT; SPR,LWR EXC. PAKISTAN EQUIPMENT(WN3)	1-51385-071-0	02	1	9505-
7	SEAT; SPR,LWR PAKISTAN EQUIPMENT(WN3)	1-51385-091-0	02	1	9505-
9	PAD; U BOLT,RR SPR	1-51372-028-0	02	1	9204-9504
9	PAD; U BOLT,RR SPR EXC. PAKISTAN EQUIPMENT(WN3)	1-51372-028-0	02	1	9505-
9	PAD; U BOLT,RR SPR PAKISTAN EQUIPMENT(WN3)	1-51372-019-1	02	1	9505-
13	BRACKET; TRUNNION SHAFT	1-53361-031-9	02	1	9204-9207
13	BRACKET; TRUNNION SHAFT	1-53361-053-0	02	1	9208-9502
13	BRACKET; TRUNNION SHAFT	1-53361-066-0	02	1	9503-9504
13	BRACKET; TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-53361-066-0	02	1	9505-
13	BRACKET; TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-53361-065-0	02	1	9505-
14	PIPE; TRUNNION BRKT	1-51541-014-0	01	1	9204-9504
14	PIPE; TRUNNION BRKT EXC. PAKISTAN EQUIPMENT(WN3)	1-51541-014-0	01	1	9505-
14	PIPE; TRUNNION BRKT PAKISTAN EQUIPMENT(WN3)	1-51389-032-0	01	1	9505-
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9204-
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9204-
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-030-0	02	1	9204-9504
21	WASHER; THRUST,TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-51389-030-0	02	1	9505-
21	WASHER; THRUST,TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-51389-058-0	02	1	9505-
22	SHAFT; TRUNNION,RR SUSP	1-51381-015-0	02	1	9204-9504
22	SHAFT; TRUNNION,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3)	1-51381-015-0	02	1	9505-
22	SHAFT; TRUNNION,RR SUSP PAKISTAN EQUIPMENT(WN3)	1-51381-022-2	02	1	9505-
23	SEAL; OIL,TRUNNION SHAFT	1-09625-146-0	02	1	9204-9504
23	SEAL; OIL,TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-09625-146-0	02	1	9505-
23	SEAL; OIL,TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-51389-005-0	02	1	9505-
24	PIN; SIDE PLATE TO SHAFT	1-09740-022-0	04	1	9204-9504
24	PIN; SIDE PLATE TO SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-09740-022-0	04	1	9505-
24	PIN; SIDE PLATE TO SHAFT PAKISTAN EQUIPMENT(WN3)	1-09740-009-0	04	1	9505-
29	BOLT; BRKT TO FRAME M18X80	1-09000-428-1	24	1	9204-
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9204-
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	32	1	9204-9504
30	WASHER; PL,TRUNNION BRKT PAKISTAN EQUIPMENT(WN3) ID=19	1-09503-162-0	28	1	9505-
30	WASHER; PL,TRUNNION BRKT EXC. PAKISTAN EQUIPMENT(WN3) ID=19	1-09503-162-0	32	1	9505-
31	NUT; TRUNNION BRKT M18	9-99110-518-0	24	1	9204-9504
31	NUT; TRUNNION BRKT PAKISTAN EQUIPMENT(WN3) M18	9-99110-518-0	28	1	9505-
31	NUT; TRUNNION BRKT EXC. PAKISTAN EQUIPMENT(WN3) M18	9-99110-518-0	24	1	9505-
32	PIN; STRAIGHT	1-09740-027-0	02	1	9204-9504
32	PIN; STRAIGHT PAKISTAN EQUIPMENT(WN3)	1-09740-027-0	04	1	9505-
32	PIN; STRAIGHT EXC. PAKISTAN EQUIPMENT(WN3)	1-09740-027-0	02	1	9505-
33	PLATE; LK KNOCK PIN	1-53369-012-0	02	1	9204-9504
33	PLATE; LK KNOCK PIN EXC. PAKISTAN EQUIPMENT(WN3)	1-53369-012-0	02	1	9505-
33	PLATE; LK KNOCK PIN PAKISTAN EQUIPMENT(WN3)	1-53369-032-1	02	1	9505-
34	BOLT; LOCK PLATE M10X14	9-02041-014-0	02	1	9204-9204
34	BOLT; LOCK PLATE M10X14	0-20801-014-0	02	1	9205-9504
34	BOLT; LOCK PLATE EXC. PAKISTAN EQUIPMENT(WN3)	0-20801-014-0	02	1	9505-
34	BOLT; LOCK PLATE PAKISTAN EQUIPMENT(WN3) M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9505-
35	PIN; TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-09749-030-1	04	1	9505-
37	NUT; SPR SETTING PAKISTAN EQUIPMENT(WN3) M22	9-09110-522-0	04	1	9505-
38	WASHER; LK,SPR SETTING ID=18.2	9-09150-618-0	04	1	9204-9504
38	WASHER; LK,SPR SETTING EXC. PAKISTAN EQUIPMENT(WN3) ID=18.2	9-09150-618-0	04	1	9505-
38	WASHER; LK,SPR SETTING PAKISTAN EQUIPMENT(WN3) ID=22.5	9-09150-622-0	04	1	9505-
39	BOLT; SPR SETTING	1-09000-022-2	04	1	9204-9504
39	BOLT; SPR SETTING EXC. PAKISTAN EQUIPMENT(WN3)	1-09000-022-2	04	1	9505-
39	BOLT; SPR SETTING PAKISTAN EQUIPMENT(WN3) M22X155	9-09801-290-1	04	1	9505-
40	VALVE; GREASE ESCAPE PAKISTAN EQUIPMENT(WN3)	9-51389-010-0	02	1	9505-
41	BUSHING; TRUNNION SHAFT	1-51386-003-0	04	1	9204-9504
41	BUSHING; TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-51386-003-0	04	1	9505-
41	BUSHING; TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-51386-004-0	04	1	9505-
42	SHIM; SIDE PLATE TO SHAFT PAKISTAN EQUIPMENT(WN3)	1-51389-033-1	12	1	9505-
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-004-1	02	1	9204-9504
43	PLATE; SIDE,TRUNNION SHAFT EXC. PAKISTAN EQUIPMENT(WN3)	1-51382-004-1	02	1	9505-
43	PLATE; SIDE,TRUNNION SHAFT PAKISTAN EQUIPMENT(WN3)	1-51382-010-4	02	1	9505-
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	9204-
45	COVER; SPR SEAT	1-51387-012-0	02	1	9204-9504
45	COVER; SPR SEAT EXC. PAKISTAN EQUIPMENT(WN3)	1-51387-012-0	02	1	9505-
45	COVER; SPR SEAT PAKISTAN EQUIPMENT(WN3)	1-51387-013-2	02	1	9505-
46	BRACKET; COVER PAKISTAN EQUIPMENT(WN3)	1-51387-015-2	02	1	9505-
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	9-01900-812-0	08	1	9204-9204
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	0-50040-812-0	08	1	9205-
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	9204-
133	BUSHING; RUBBER,TORQUE ROD L=147	1-51519-066-2	12	1	9204-9210
133	BUSHING; RUBBER,TORQUE ROD L=148	1-51519-113-0	12	1	9204-
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9204-
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9204-
225	RUBBER; CUSHION,RR SPR	1-53366-093-2	04	1	9204-9504
225	RUBBER; CUSHION,RR SPR EXC. PAKISTAN EQUIPMENT(WN3)	1-53366-093-2	04	1	9505-
225	RUBBER; CUSHION,RR SPR PAKISTAN EQUIPMENT(WN3)	1-53366-072-1	02	1	9505-
225	RUBBER; CUSHION,RR SPR PAKISTAN EQUIPMENT(WN3)	1-53366-073-1	02	1	9505-
227	NUT; CUSHION RUBBER M12	9-99110-412-0	08	1	9204-
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	08	1	9204-
233	ROD ASM; TORQUE,RR SUSP (A) L=518	1-51511-404-0	02	1	9204-9205
233	ROD ASM; TORQUE,RR SUSP (A) L=518	1-51511-595-0	02	1	9206-9504
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (A) L=518	1-51511-595-0	02	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (B) L=525	1-51511-656-0	02	1	9509-
233	ROD ASM; TORQUE,RR SUSP (B) L=526	1-51511-405-0	02	1	9204-9205
233	ROD ASM; TORQUE,RR SUSP (B) L=526	1-51511-599-0	02	1	9206-9504
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (B) L=526	1-51511-599-0	02	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (A) L=520	1-51511-605-0	02	1	9509-
233	ROD ASM; TORQUE,RR SUSP (C) L=505	1-51511-424-0	01	1	9204-9205
233	ROD ASM; TORQUE,RR SUSP (D) L=497	1-51511-489-0	01	1	9204-9205
233	ROD ASM; TORQUE,RR SUSP (D) L=497	1-51511-594-0	01	1	9206-9504
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (D) L=497	1-51511-594-0	01	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (D) L=495	1-51511-654-0	01	1	9509-
233	ROD ASM; TORQUE,RR SUSP (C) L=505	1-51511-596-0	01	1	9206-9504
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (C) L=505	1-51511-596-0	01	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP EXC. PAKISTAN EQUIPMENT(WN3) (C) L=505	1-51511-670-0	01	1	9509-
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (E) L=481	1-51511-577-0	02	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (E) L=480	1-51511-677-0	02	1	9509-
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (F) L=593	1-51511-579-1	03	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (G) L=545	1-51511-658-0	01	1	9509-
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (G) L=545	1-51511-609-0	01	1	9505-9508
233	ROD ASM; TORQUE,RR SUSP PAKISTAN EQUIPMENT(WN3) (F) L=590	1-51511-673-0	03	1	9509-
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9204-
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9204-
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	9204-
390	U-BOLT SET; RR SPRING L=350	1-87870-316-0	04	1	9204-9504
390	U-BOLT SET; RR SPRING EXC. PAKISTAN EQUIPMENT(WN3) L=350	1-87870-316-0	04	1	9505-
390	U-BOLT SET; RR SPRING PAKISTAN EQUIPMENT(WN3) L=340	1-87870-146-0	04	1	9505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
