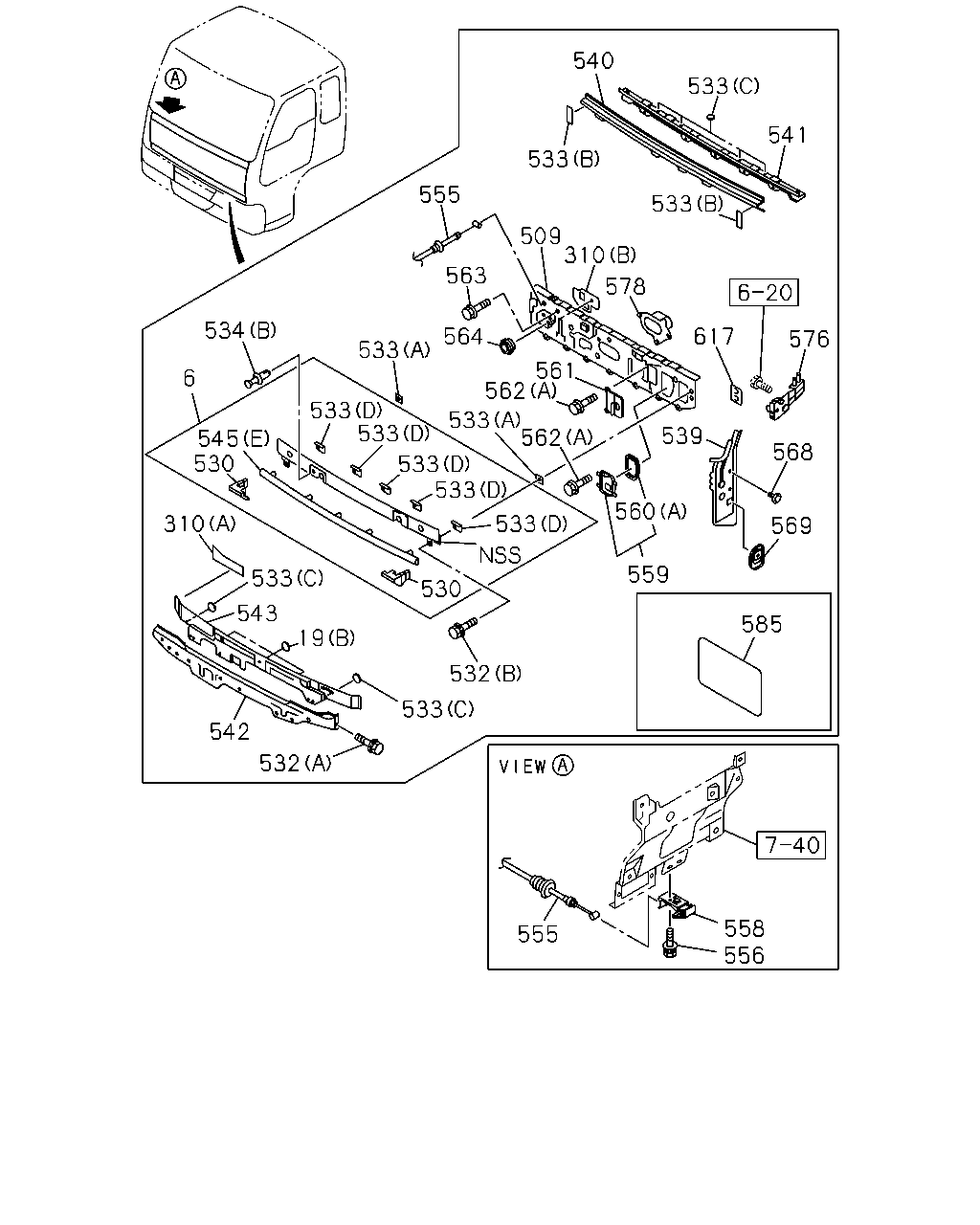

6-05 — FRONT PANEL (#7729) — 463 parça

540 533 541 533 555 533 509 310 563 578 534 564 617 576 533 561 562 6 533 533 533 562 539 545 530 568 533 533 560 310 533 569 559 533 530 543 585 19 532 533 542 532 558 556 555

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PANEL; FRONT	1-65472-551-2	01	1	9902-	●
6	PANEL; FRONT	1-65472-549-3	01	1	0004-		●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9902-0003	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0004-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9902-0003	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-411-0	01	1	9902-0003	●
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9902-0003	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-410-0	01	1	9902-0003	●
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-4	01	1	9905-	●
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-4	01	1	9905-	●
310	SILENCER; FRT PANEL (A)	1-72377-007-1	01	1	0004-		●
310	SILENCER; FRT PANEL (B)	1-72377-008-1	01	1	0004-		●
509	PANEL; DASH EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS(Q3P),HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-482-3	01	1	9902-9909	●
509	PANEL; DASH ENG CONTROL TICS(Q3P) HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-497-2	01	1	9902-9909	●
509	PANEL; DASH HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-497-2	01	1	9910-	●
509	PANEL; DASH ENG CONTROL TICS(Q3P) EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-496-2	01	1	9902-9909	●
509	PANEL; DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-496-2	01	1	9910-	●
509	PANEL; DASH HEATER VENTILATION AIR CONDITIONING DELETE(TFA) EXC. ELECTRONIC GOV RED3(KG5),ENG CONTROL TICS(Q3P)	1-62270-493-2	01	1	9902-9909	●
509	PANEL; DASH	1-62270-478-6	01	1	0004-		●
530	STOPPER; FRT PANEL,SIDE	1-71907-487-0	01	1	9902-0003	●
530	STOPPER; FRT PANEL,SIDE	1-71907-487-0	01	1	0004-	●	●
530	STOPPER; FRT PANEL,SIDE	1-71907-482-1	01	1	9902-0003	●
530	STOPPER; FRT PANEL,SIDE	1-71907-482-1	01	1	0004-	●	●
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	9902-0003	●
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0004-	●	●
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9902-0003	●
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0004-	●	●
532	BOLT; FRT PANEL CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9902-9904	●
532	BOLT; FRT PANEL CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9905-	●
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	07	1	9902-0003	●
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	07	1	0004-	●	●
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-2	02	1	9902-0003	●
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-2	02	1	0004-	●	●
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	16	1	9902-9908	●
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	12	1	9909-0003	●
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	12	1	0004-	●	●
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	9902-0003	●
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	0004-	●	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-020-1	08	1	9902-0001	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-0003	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0004-	●	●
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	9902-0003	●
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0004-	●	●
539	CLOSING; PILLAR	1-61480-763-1	01	1	9902-	●
539	CLOSING; PILLAR	1-61480-762-1	01	1	9902-	●
539	CLOSING; PILLAR	1-61480-674-6	01	1	0004-		●
539	CLOSING; PILLAR	1-61480-673-6	01	1	0004-		●
540	PANEL; FRONT,OUTER	1-61470-699-2	01	1	9902-	●
540	PANEL; FRONT,OUTER	1-61470-688-2	01	1	0004-		●
541	PANEL; FRONT,INNER	1-61470-700-1	01	1	9902-	●
541	PANEL; FRONT,INNER	1-61470-690-0	01	1	0004-		●
542	RAIL; FRT MOUNTING	1-61470-701-4	01	1	9902-	●
542	RAIL; FRT MOUNTING	1-61470-705-4	01	1	0004-		●
543	CLOSING; FRT MTG RAIL	1-61470-703-3	01	1	9902-	●
543	CLOSING; FRT MTG RAIL	1-61470-680-4	01	1	0004-		●
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	9902-0003	●
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	0004-	●	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9905-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9905-0003	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	0004-	●
545	SEAL; FRT LID (D) L=63	1-71998-963-2	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9905-0003	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	0004-	●
545	SEAL; FRT LID (A) OD=25 BLACK	1-76798-019-0	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-71907-572-0	01	1	9902-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9902-0003	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	0004-	●
545	SEAL; FRT LID (B) L=502	1-71907-470-0	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	02	1	9905-	●
545	SEAL; FRT LID (B) L=502	1-71907-471-0	01	1	0004-		●
555	CABLE; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9902-9904	●
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9905-	●
555	CABLE; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9902-9904	●
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9905-	●
555	CABLE; FRT LID L=2682	1-79347-005-2	01	1	0004-		●
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9902-0003	●
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0004-	●	●
558	LEVER; FRT LID	8-97865-110-0	01	1	9902-	●
558	LEVER; FRT LID	1-79338-003-1	01	1	0004-		●
559	COVER; EVAPOLATOR	1-71996-193-0	01	1	9902-	●
559	COVER; EVAPOLATOR	1-71996-194-0	01	1	0004-		●
560	SEAL; COVER (A)	1-71998-827-1	01	1	9902-0003	●
560	SEAL; COVER (A)	1-71998-827-1	01	1	0004-	●	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9902-0003	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0004-	●	●
560	SEAL; COVER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9902-9904	●
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9905-0003	●
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0004-	●
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0004-		●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9902-0003	●
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9902-0003	●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0004-	●	●
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0004-	●	●
561	COVER; HEATER CORE	1-71998-993-2	01	1	9902-	●
561	COVER; HEATER CORE	1-71998-829-1	01	1	0004-		●
562	BOLT; COVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9902-0003	●
562	BOLT; COVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0004-	●	●
562	BOLT; COVER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR EISHOU GREEN(894) CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9902-9904	●
562	BOLT; COVER CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-	●
563	BOLT; DASH PANEL M8X20	1-79198-002-0	18	1	9902-0003	●
563	BOLT; DASH PANEL M8X20	1-79198-002-0	18	1	0004-	●	●
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	9902-0003	●
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	0004-	●	●
568	PATCH; INST REINF	1-61480-675-2	02	1	9902-0003	●
568	PATCH; INST REINF	1-61480-675-2	02	1	0004-	●	●
569	PATCH; LWR GRIP	1-61480-736-2	01	1	9902-0003	●
569	PATCH; LWR GRIP	1-61480-736-2	01	1	0004-	●	●
569	PATCH; LWR GRIP	1-61480-772-0	01	1	9902-	●
569	PATCH; LWR GRIP	1-61480-689-2	01	1	0004-		●
576	FRAME; INST SIDE	1-62280-200-2	01	1	9902-0003	●
576	FRAME; INST SIDE	1-62280-200-2	01	1	0004-	●
576	FRAME; INST SIDE	1-62280-201-2	01	1	9902-0003	●
576	FRAME; INST SIDE	1-62280-201-2	01	1	0004-	●
576	FRAME; INST SIDE	1-62280-177-7	01	1	0004-		●
576	FRAME; INST SIDE	1-62280-176-6	01	1	0004-		●
578	COVER; WIPER MOTOR	1-62280-185-3	01	1	9902-0003	●
578	COVER; WIPER MOTOR	1-62280-185-3	01	1	0004-	●	●
585	PLATE; EVAPOLATOR HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-71996-084-1	01	1	9902-	●
617	SEAL; DASH	1-61281-497-0	02	1	9902-0003	●
617	SEAL; DASH	1-61281-497-0	02	1	0004-	●	●

544 562 544 560 548 545 545 548 532 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	9902-0003	●
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0004-	●	●
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9902-0003	●
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0004-	●	●
532	BOLT; FRT PANEL CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9902-9904	●
532	BOLT; FRT PANEL CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9905-	●
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH> CHEV BRAND PACKAGE<PS2>	1-71107-108-6	01	1	9905-	●
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-345-0	01	1	9911-	●
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHEV BRAND PACKAGE<PS2>	1-71107-370-0	01	1	9902-	●
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-281-0	01	1	9902-	●
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> CHEV BRAND PACKAGE<PS2>	1-71107-107-6	01	1	9905-	●
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-346-0	01	1	9911-	●
544	LID; FRT DELUXE CAB(W14)	1-71107-218-3	01	1	0004-		●
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> CHEV BRAND PACKAGE<PS2>	1-71107-373-0	01	1	0004-	●
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-293-0	01	1	0004-	●
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	9902-0003	●
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	0004-	●	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9905-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9905-0003	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	0004-	●
545	SEAL; FRT LID (D) L=63	1-71998-963-2	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9905-0003	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	0004-	●
545	SEAL; FRT LID (A) OD=25 BLACK	1-76798-019-0	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-71907-572-0	01	1	9902-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9902-0003	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	0004-	●
545	SEAL; FRT LID (B) L=502	1-71907-470-0	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	02	1	9905-	●
545	SEAL; FRT LID (B) L=502	1-71907-471-0	01	1	0004-		●
548	STRIKER; FRT LID PANEL (A)	1-79317-003-0	01	1	9902-0003	●
548	STRIKER; FRT LID PANEL (A)	1-79317-003-0	01	1	0004-	●	●
548	STRIKER; FRT LID PANEL (B)	1-79318-008-0	02	1	9902-0003	●
548	STRIKER; FRT LID PANEL (B)	1-79318-008-0	02	1	0004-	●	●
560	SEAL; COVER (A)	1-71998-827-1	01	1	9902-0003	●
560	SEAL; COVER (A)	1-71998-827-1	01	1	0004-	●	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9902-0003	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0004-	●	●
560	SEAL; COVER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9902-9904	●
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9905-0003	●
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0004-	●
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0004-		●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9902-0003	●
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9902-0003	●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0004-	●	●
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0004-	●	●
562	BOLT; COVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9902-0003	●
562	BOLT; COVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0004-	●	●
562	BOLT; COVER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR EISHOU GREEN(894) CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9902-9904	●
562	BOLT; COVER CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-	●

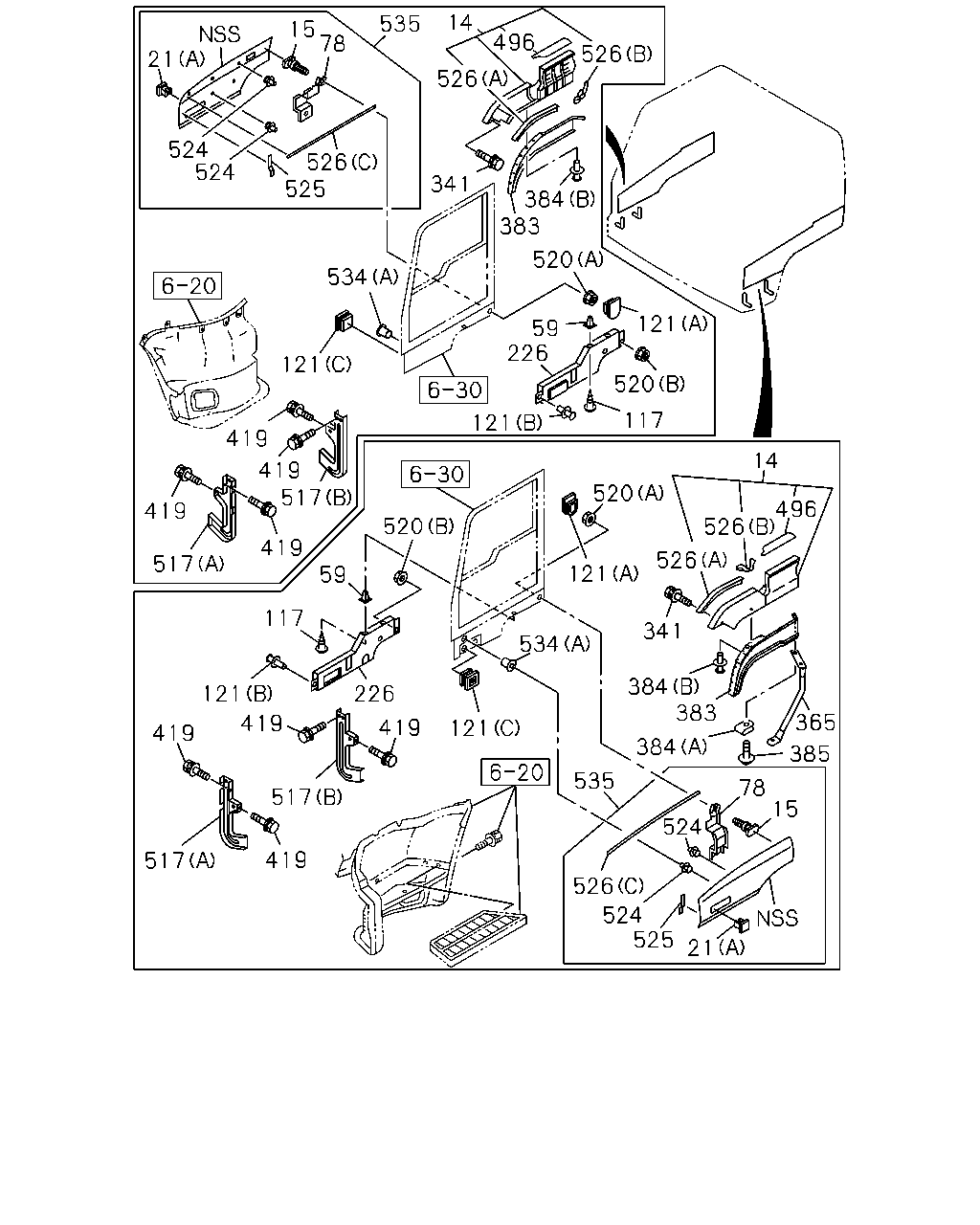

14 535 15 78 496 526 21 526 524 524 526 525 341 384 383 520 534 121 59 226 121 520 117 121 419 14 419 517 520 496 526 419 520 419 526 517 121 59 117 341 534 384 383 226 121 365 419 419 121 419 384 385 535 78 15 517 524 419 517 526 524 525 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	FENDER; FRT WHITE	1-65472-453-0	01	1	9902-0003	●
14	FENDER; FRT WHITE	1-65472-453-2	01	1	0004-	●	●
14	FENDER; FRT WHITE	1-65472-452-0	01	1	9902-0003	●
14	FENDER; FRT WHITE	1-65472-452-2	01	1	0004-	●	●
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	9902-0003	●
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	0004-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9902-0003	●
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	0004-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9902-0003	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0004-	●	●
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	9902-0003	●
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	0004-	●	●
78	BRACKET; FENDER	1-71267-215-0	01	1	9902-0003	●
78	BRACKET; FENDER	1-71267-215-0	01	1	0004-	●	●
78	BRACKET; FENDER	1-71267-214-0	01	1	9902-0003	●
78	BRACKET; FENDER	1-71267-214-0	01	1	0004-	●	●
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	9902-0003	●
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	0004-	●	●
121	GROMMET; FENDER (A)	1-09983-162-0	02	1	9902-0003	●
121	GROMMET; FENDER (A)	1-09983-162-0	02	1	0004-	●	●
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	9902-0003	●
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	0004-	●	●
121	GROMMET; FENDER (C) 14.5X14.5 BLACK	8-94279-714-0	02	1	9902-0003	●
121	GROMMET; FENDER (C) 14.5X14.5 BLACK	8-94279-714-0	02	1	0004-	●	●
226	PROTECTOR; FRT	1-71267-153-7	01	1	9902-9902	●
226	PROTECTOR; FRT	1-71267-269-0	01	1	9903-0003	●
226	PROTECTOR; FRT	1-71267-269-1	01	1	0004-	●	●
226	PROTECTOR; FRT	1-71267-152-7	01	1	9902-9902	●
226	PROTECTOR; FRT	1-71267-268-0	01	1	9903-0003	●
226	PROTECTOR; FRT	1-71267-268-1	01	1	0004-	●	●
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	18	1	9902-0003	●
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	18	1	0004-	●	●
365	SUPPORT; FENDER CAB UP +110MM<TGG>	1-71907-418-0	01	1	9902-0003	●
365	SUPPORT; FENDER CAB UP +110MM<TGG>	1-71907-418-1	01	1	0004-	●
365	SUPPORT; FENDER	1-71907-418-1	01	1	0004-		●
365	SUPPORT; FENDER CAB UP +110MM<TGG>	1-71907-417-0	01	1	9902-0003	●
365	SUPPORT; FENDER CAB UP +110MM<TGG>	1-71907-417-1	01	1	0004-	●
365	SUPPORT; FENDER	1-71907-417-1	01	1	0004-		●
383	GUARD; MUD,FENDER LWR CAB UP +110MM<TGG>	1-71907-457-2	01	1	9902-0003	●
383	GUARD; MUD,FENDER LWR CAB UP +110MM<TGG>	1-71907-457-2	01	1	0004-	●
383	GUARD; MUD,FENDER LWR	1-71907-457-2	01	1	0004-		●
383	GUARD; MUD,FENDER LWR CAB UP +110MM<TGG>	1-71907-456-2	01	1	9902-0003	●
383	GUARD; MUD,FENDER LWR CAB UP +110MM<TGG>	1-71907-456-2	01	1	0004-	●
383	GUARD; MUD,FENDER LWR	1-71907-456-2	01	1	0004-		●
383	GUARD; MUD,FENDER LWR EXC. CAB UP +110MM<TGG>	1-71907-443-2	01	1	9902-	●
383	GUARD; MUD,FENDER LWR EXC. CAB UP +110MM<TGG>	1-71907-442-2	01	1	9902-	●
384	CLIP; FENDER LWR CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	09	1	9902-0003	●
384	CLIP; FENDER LWR CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	09	1	0004-	●
384	CLIP; FENDER LWR (B) D8X13.5	1-09987-248-1	09	1	0004-		●
384	CLIP; FENDER LWR CAB UP +110MM<TGG> (A) ID=6	1-09987-266-0	04	1	9902-0003	●
384	CLIP; FENDER LWR CAB UP +110MM<TGG> (A) ID=6	1-09987-266-0	04	1	0004-	●
384	CLIP; FENDER LWR (A) ID=6	1-09987-266-0	04	1	0004-		●
384	CLIP; FENDER LWR EXC. CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	11	1	9902-	●
385	SCREW; FENDER LWR CAB UP +110MM<TGG> M6X25	1-65481-736-0	04	1	9902-0003	●
385	SCREW; FENDER LWR CAB UP +110MM<TGG> M6X25	1-65481-736-0	04	1	0004-	●
385	SCREW; FENDER LWR M6X25	1-65481-736-0	04	1	0004-		●
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9902-0003	●
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	0004-	●	●
496	RUBBER; STEP	1-71998-862-0	01	1	9902-0003	●
496	RUBBER; STEP	1-71998-862-0	01	1	0004-	●	●
496	RUBBER; STEP	1-71998-861-0	01	1	9902-0003	●
496	RUBBER; STEP	1-71998-861-0	01	1	0004-	●	●
517	SUPPORT; STEP PANEL (B)	1-65671-531-1	01	1	9902-0003	●
517	SUPPORT; STEP PANEL (B)	1-65671-531-1	01	1	0004-	●	●
517	SUPPORT; STEP PANEL (A)	1-65671-747-4	01	1	9902-9904	●
517	SUPPORT; STEP PANEL DUAL AIR GAUGE<UG2> (A)	1-65671-747-4	01	1	9905-	●
517	SUPPORT; STEP PANEL (A)	1-65671-528-3	01	1	9902-9904	●
517	SUPPORT; STEP PANEL (A)	1-65671-766-1	01	1	9905-0003	●
517	SUPPORT; STEP PANEL (A)	1-65671-766-1	01	1	0004-	●	●
517	SUPPORT; STEP PANEL (B)	1-65671-530-1	01	1	9902-0003	●
517	SUPPORT; STEP PANEL (B)	1-65671-530-1	01	1	0004-	●	●
517	SUPPORT; STEP PANEL EXC. DUAL AIR GAUGE<UG2> (A)	1-65671-767-1	01	1	9905-0003	●
517	SUPPORT; STEP PANEL EXC. DUAL AIR GAUGE<UG2> (A)	1-65671-767-1	01	1	0004-	●
517	SUPPORT; STEP PANEL (A)	1-65671-767-1	01	1	0004-		●
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9902-0003	●
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0004-	●	●
520	NUT; FENDER (B) M6	8-94343-366-1	02	1	9902-0003	●
520	NUT; FENDER (B) M6	8-94343-366-1	02	1	0004-	●	●
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	9902-0003	●
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	0004-	●	●
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	9902-0003	●
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	0004-	●	●
526	FINISHER; FENDER (B)	1-71998-900-3	02	1	9902-0003	●
526	FINISHER; FENDER (B)	1-71998-900-3	02	1	0004-	●	●
526	FINISHER; FENDER (C)	1-71268-276-1	01	1	9902-0003	●
526	FINISHER; FENDER (C)	1-71268-276-1	01	1	0004-	●	●
526	FINISHER; FENDER (A)	1-71907-181-4	01	1	9902-0003	●
526	FINISHER; FENDER (A)	1-71907-181-4	01	1	0004-	●	●
526	FINISHER; FENDER (C)	1-71268-275-1	01	1	9902-0003	●
526	FINISHER; FENDER (C)	1-71268-275-1	01	1	0004-	●	●
526	FINISHER; FENDER (A)	1-71907-180-4	01	1	9902-0003	●
526	FINISHER; FENDER (A)	1-71907-180-4	01	1	0004-	●	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-020-1	08	1	9902-0001	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-0003	●
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0004-	●	●
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	9902-0003	●
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0004-	●	●
535	FENDER; BLISTER	1-71267-186-2	01	1	9902-0003	●
535	FENDER; BLISTER	1-71267-186-2	01	1	0004-	●	●
535	FENDER; BLISTER	1-71267-185-2	01	1	9902-0003	●
535	FENDER; BLISTER	1-71267-185-2	01	1	0004-	●	●

544 544 560 548 545 545 601 545 198 548 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
198	NUT; PANEL CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE	8-94197-199-0	02	1	9902-9904	●
198	NUT; PANEL CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE	8-94197-199-0	02	1	9905-0003	●
198	NUT; PANEL CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE	8-94197-199-0	02	1	0004-	●
198	NUT; PANEL M6 FLANGE	8-94197-199-0	02	1	0004-		●
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH> CHEV BRAND PACKAGE<PS2>	1-71107-108-6	01	1	9905-	●
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-345-0	01	1	9911-	●
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHEV BRAND PACKAGE<PS2>	1-71107-370-0	01	1	9902-	●
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-281-0	01	1	9902-	●
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> CHEV BRAND PACKAGE<PS2>	1-71107-107-6	01	1	9905-	●
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-346-0	01	1	9911-	●
544	LID; FRT DELUXE CAB(W14)	1-71107-218-3	01	1	0004-		●
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> CHEV BRAND PACKAGE<PS2>	1-71107-373-0	01	1	0004-	●
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> EXC. CHEV BRAND PACKAGE<PS2>	1-71107-293-0	01	1	0004-	●
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	9902-0003	●
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	0004-	●	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9905-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9905-0003	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	0004-	●
545	SEAL; FRT LID (D) L=63	1-71998-963-2	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9905-0003	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	0004-	●
545	SEAL; FRT LID (A) OD=25 BLACK	1-76798-019-0	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-71907-572-0	01	1	9902-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9902-0003	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	0004-	●
545	SEAL; FRT LID (B) L=502	1-71907-470-0	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	02	1	9905-	●
545	SEAL; FRT LID (B) L=502	1-71907-471-0	01	1	0004-		●
548	STRIKER; FRT LID PANEL (A)	1-79317-003-0	01	1	9902-0003	●
548	STRIKER; FRT LID PANEL (A)	1-79317-003-0	01	1	0004-	●	●
548	STRIKER; FRT LID PANEL (B)	1-79318-008-0	02	1	9902-0003	●
548	STRIKER; FRT LID PANEL (B)	1-79318-008-0	02	1	0004-	●	●
560	SEAL; COVER (A)	1-71998-827-1	01	1	9902-0003	●
560	SEAL; COVER (A)	1-71998-827-1	01	1	0004-	●	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9902-0003	●
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0004-	●	●
560	SEAL; COVER CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9902-9904	●
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9905-0003	●
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0004-	●
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0004-		●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9902-0003	●
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9902-0003	●
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0004-	●	●
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0004-	●	●
601	FINISHER; LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190	1-71998-300-0	01	1	9902-0003	●
601	FINISHER; LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190	1-71998-300-0	01	1	0004-	●
601	FINISHER; LID L=120 SERVICED BY L=190	1-71998-300-0	01	1	0004-		●

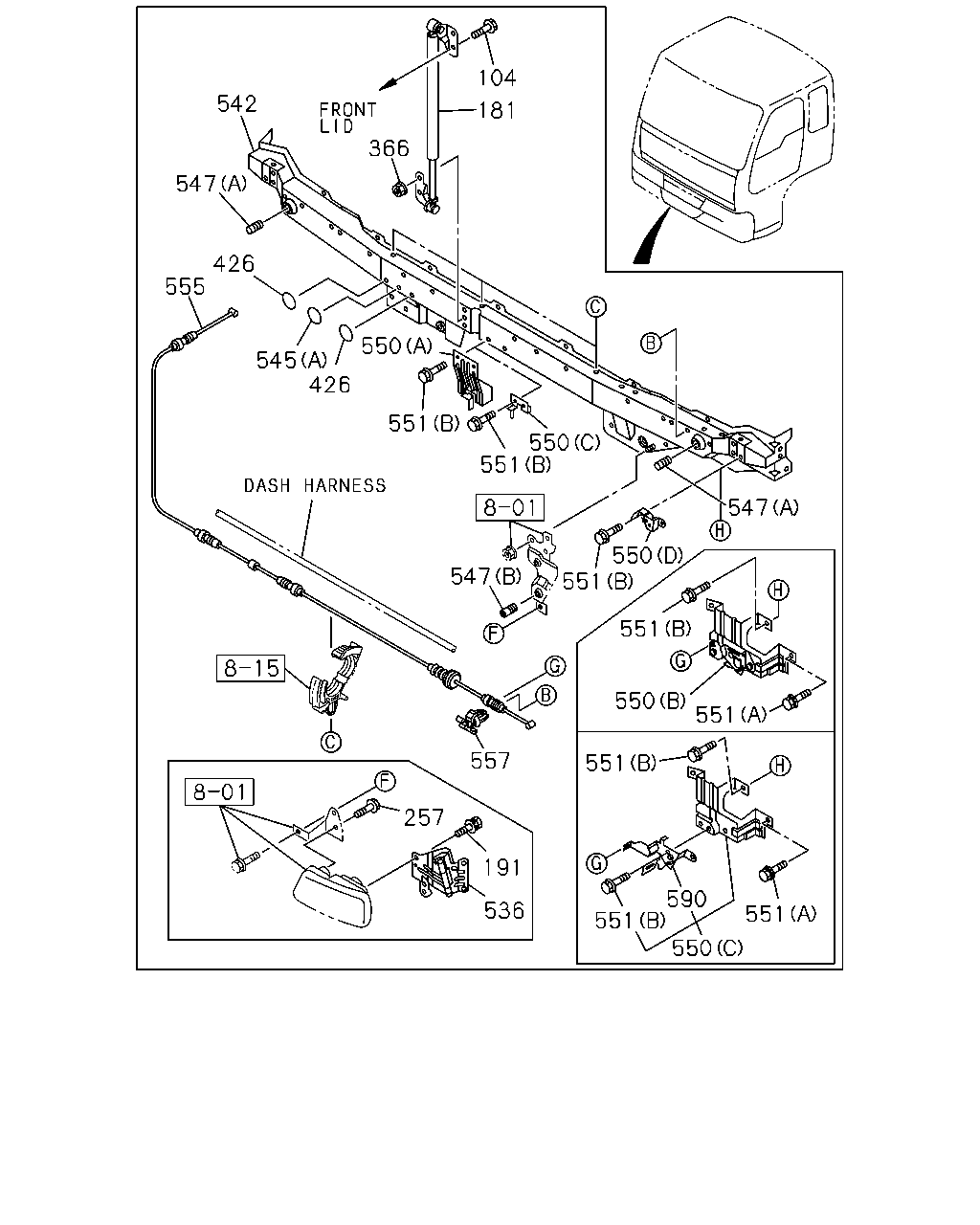

104 542 181 366 547 426 555 550 545 426 551 550 551 547 550 551 547 551 550 551 557 551 257 191 590 551 550 536 551

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	BOLT; SUPPORT BAR M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9902-0003	●
104	BOLT; SUPPORT BAR M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0004-	●	●
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-261-0	01	1	9902-0003	●
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-261-0	01	1	0004-	●	●
191	BOLT; HINGE EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9905-	●
257	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9905-	●
366	NUT; SUPPORT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9902-0003	●
366	NUT; SUPPORT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0004-	●	●
426	GASKET OD=25 BLACK	1-76798-019-0	11	1	9902-	●
426	GASKET OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9902-	●
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	02	1	9902-	●
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0004-		●
426	GASKET OD=25 BLACK	1-76798-019-0	01	1	0004-		●
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-032-5	01	1	9905-	●
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-031-5	01	1	9905-	●
542	RAIL; FRT MOUNTING	1-61470-701-4	01	1	9902-	●
542	RAIL; FRT MOUNTING	1-61470-705-4	01	1	0004-		●
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	9902-0003	●
545	SEAL; FRT LID (E) L=2038	1-71907-481-0	01	1	0004-	●	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-71907-372-1	01	1	9905-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9905-0003	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	0004-	●
545	SEAL; FRT LID (D) L=63	1-71998-963-2	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9902-9904	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	9905-0003	●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=25 BLACK	1-76798-019-0	01	1	0004-	●
545	SEAL; FRT LID (A) OD=25 BLACK	1-76798-019-0	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-71907-572-0	01	1	9902-	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9902-0003	●
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	0004-	●
545	SEAL; FRT LID (B) L=502	1-71907-470-0	01	1	0004-		●
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	02	1	9905-	●
545	SEAL; FRT LID (B) L=502	1-71907-471-0	01	1	0004-		●
547	RUBBER; CUSHION (B) OD=22 L=39	1-71907-419-0	02	1	9902-0003	●
547	RUBBER; CUSHION (B) OD=22 L=39	1-71907-419-0	02	1	0004-	●	●
547	RUBBER; CUSHION (A) OD=22 L=29	8-94324-556-2	02	1	9902-0003	●
547	RUBBER; CUSHION (A) OD=22 L=29	8-94324-556-2	02	1	0004-	●	●
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-79317-002-2	01	1	9902-9904	●
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (C)	1-79317-002-2	01	1	9905-	●
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (D)	1-79318-007-4	01	1	9902-9904	●
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (D)	1-79318-007-4	01	1	9905-	●
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> (D)	1-79318-006-2	01	1	9902-9904	●
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (D)	1-79318-006-2	01	1	9905-	●
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)	1-79317-006-1	01	1	9902-9904	●
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)	1-79317-006-1	01	1	9905-0003	●
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)	1-79317-006-1	01	1	0004-	●
550	LOCK ASM; FRT LID (A)	1-79317-006-1	01	1	0004-		●
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-015-0	01	1	9902-9904	●
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-015-0	01	1	9905-	●
550	LOCK ASM; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-014-0	01	1	9902-9904	●
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-014-0	01	1	9905-	●
550	LOCK ASM; FRT LID (C)	1-79317-008-0	01	1	0004-		●
550	LOCK ASM; FRT LID (C)	1-79317-007-1	01	1	0004-		●
551	BOLT; LOCK (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	06	1	9902-	●
551	BOLT; LOCK CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9902-9904	●
551	BOLT; LOCK CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-0003	●
551	BOLT; LOCK CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-	●
551	BOLT; LOCK (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0004-		●
551	BOLT; LOCK (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	10	1	0004-		●
555	CABLE; FRT LID CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9902-9904	●
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9905-	●
555	CABLE; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9902-9904	●
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9905-	●
555	CABLE; FRT LID L=2682	1-79347-005-2	01	1	0004-		●
557	CLIP; CABLE CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8	8-94128-483-0	05	1	9902-9904	●
557	CLIP; CABLE CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8	8-94128-483-0	05	1	9905-	●
557	CLIP; CABLE CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8	8-94128-483-0	04	1	9902-9904	●
557	CLIP; CABLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8	8-94128-483-0	04	1	9905-	●
557	CLIP; CABLE ID=4.8	8-94128-483-0	01	1	0004-		●
590	LOCK; FRT LID	1-79318-010-1	01	1	0004-		●
590	LOCK; FRT LID	1-79318-009-3	01	1	0004-		●

299 18 19 22 19 16 21 16 19 19 164 571 18 571 299 43 22 22 22 24 546 546

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-899-0	01	1	9902-0003	●
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-899-0	01	1	0004-	●	●
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-898-0	01	1	9902-0003	●
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-898-0	01	1	0004-	●	●
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-897-0	01	1	9902-	●
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-896-0	01	1	9902-	●
18	SEAL; A-POST UPR,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB>	1-71998-899-2	01	1	9902-0003	●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	0004-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB>	1-71998-898-2	01	1	9902-0003	●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9902-0003	●
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0004-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9902-0003	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-411-0	01	1	9902-0003	●
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9902-0003	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (C)	1-71907-410-0	01	1	9902-0003	●
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	0004-	●	●
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-4	01	1	9905-	●
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-4	01	1	9905-	●
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9902-0003	●
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	0004-	●	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9902-0003	●
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0004-	●	●
22	SCREW; FRT PANEL SIDE M5X16 W/PL WASHER TAPPING	8-94279-123-0	12	1	9902-0003	●
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0004-	●	●
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	04	1	9902-9903	●
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	06	1	9904-0003	●
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	06	1	0004-	●
24	SEAL; FRT PANEL LWR OD=25 BLACK	1-76798-019-0	06	1	0004-		●
24	SEAL; FRT PANEL LWR EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	10	1	9902-	●
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9902-0003	●
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	0004-	●	●
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	9902-0003	●
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	0004-	●	●
299	COVER; FRT PANEL SIDE	1-71998-996-1	01	1	9902-	●
299	COVER; FRT PANEL SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71998-995-1	01	1	9902-0003	●
299	COVER; FRT PANEL SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71998-995-1	01	1	0004-	●
299	COVER; FRT PANEL SIDE	1-71998-995-1	01	1	0004-		●
546	PLUG; DUMMY HOLE (A) OD=16 L=11	1-76378-155-0	02	1	9902-0003	●
546	PLUG; DUMMY HOLE (A) OD=16 L=11	1-76378-155-0	02	1	0004-	●	●
546	PLUG; DUMMY HOLE (B) OD=25 BLACK	1-76798-019-0	04	1	9902-	●
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (B)	1-09987-228-0	16	1	9902-0003	●
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (B)	1-09987-228-0	16	1	0004-	●	●
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (A) PINK	1-09987-256-0	08	1	9902-0003	●
571	CLIP; SEAL (A) PINK	1-09987-256-0	08	1	0004-	●	●
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (A) NATURAL	1-09987-257-0	08	1	9902-0003	●
571	CLIP; SEAL (A) NATURAL	1-09987-257-0	08	1	0004-	●	●
571	CLIP; SEAL EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-09987-228-0	14	1	9905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
