◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#77284) — 40 parça

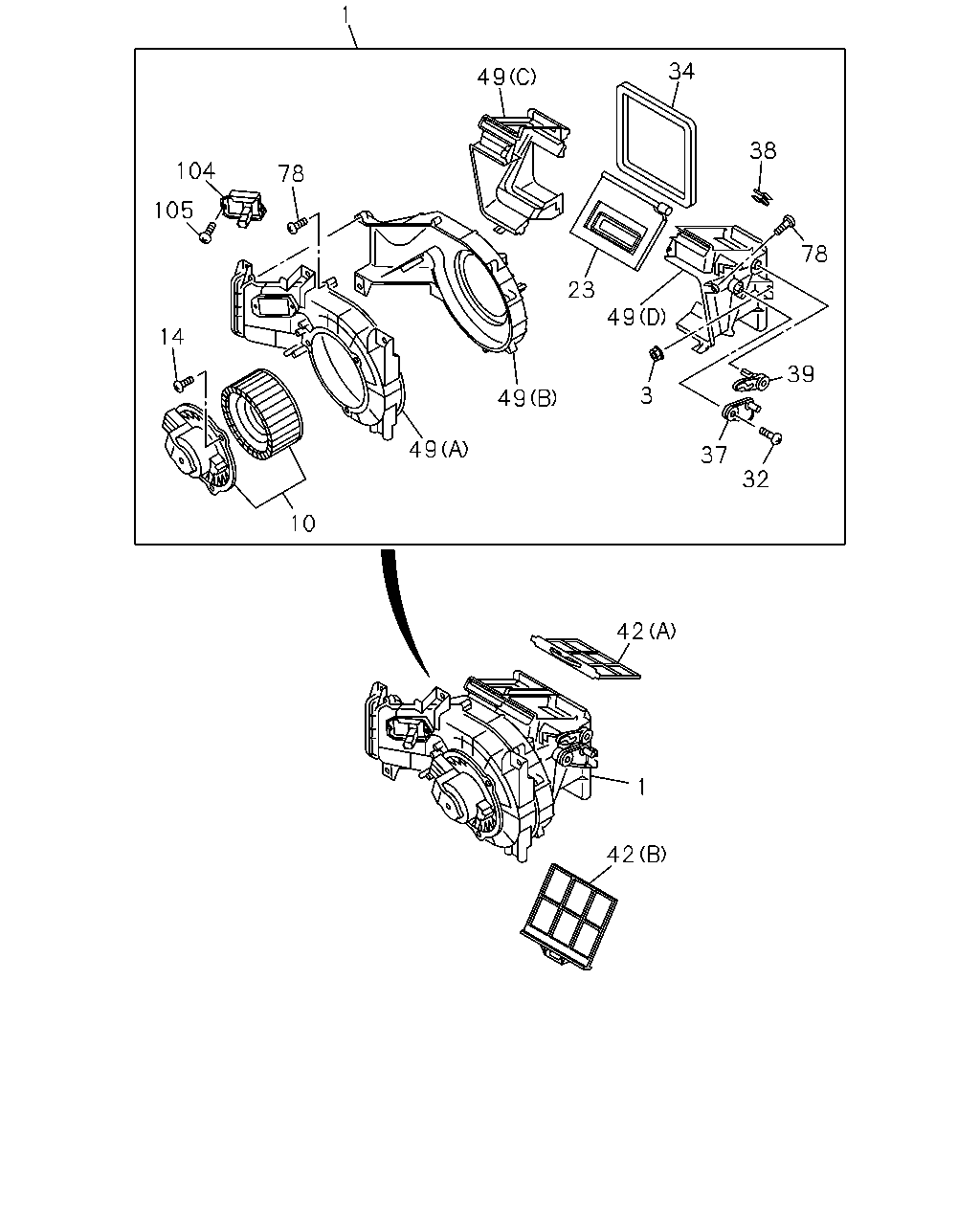

çizim 158230
1 34 49 38 104 78 105 78 23 49 14 39 3 49 49 37 32 10 42 1 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98034-146-3 01 1 0905-0906 ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98034-146-3 01 1 0907-1012 ● ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98183-594-0 01 1 1101- ● ● ● ●
3 08.855 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.190 M6 		1-83539-354-0 02 1 0905-0906 ● ●
3 08.855 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.190 M6 		1-83539-354-0 02 1 0907- ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-451-0 01 1 0905-0906 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-451-0 01 1 0907-1012 ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98183-926-0 01 1 1101- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 0905-0906 ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 0907- ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-761-0 01 1 0905-0906 ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-761-0 01 1 0907- ● ● ● ●
32 08.856 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 0905-0906 ● ●
32 08.856 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 0907- ● ● ● ●
34 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-430-0 01 1 0905-0906 ● ●
34 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-430-0 01 1 0907- ● ● ● ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-453-0 01 1 0905-0906 ● ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-453-0 01 1 0907- ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 0905-0906 ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 0907- ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-454-0 01 1 0905-0906 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-454-0 01 1 0907- ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97387-096-1 01 1 0905-0906 ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-97387-096-1 01 1 0907- ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98025-006-1 01 1 0905-0906 ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98025-006-1 01 1 0907- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-444-0 01 1 0905-0906 ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-444-0 01 1 0907- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-445-0 01 1 0905-0906 ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-445-0 01 1 0907- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-98047-446-0 01 1 0905-0906 ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-98047-446-0 01 1 0907- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D) 		8-98047-447-0 01 1 0905-0906 ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D) 		8-98047-447-0 01 1 0907- ● ● ● ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 15 1 0905-0906 ● ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 15 1 0907- ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98077-418-0 01 1 0905-0906 ● ●
104 08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98077-418-0 01 1 0907- ● ● ● ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 0905-0906 ● ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 0907- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
