◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#77283) — 11 parça

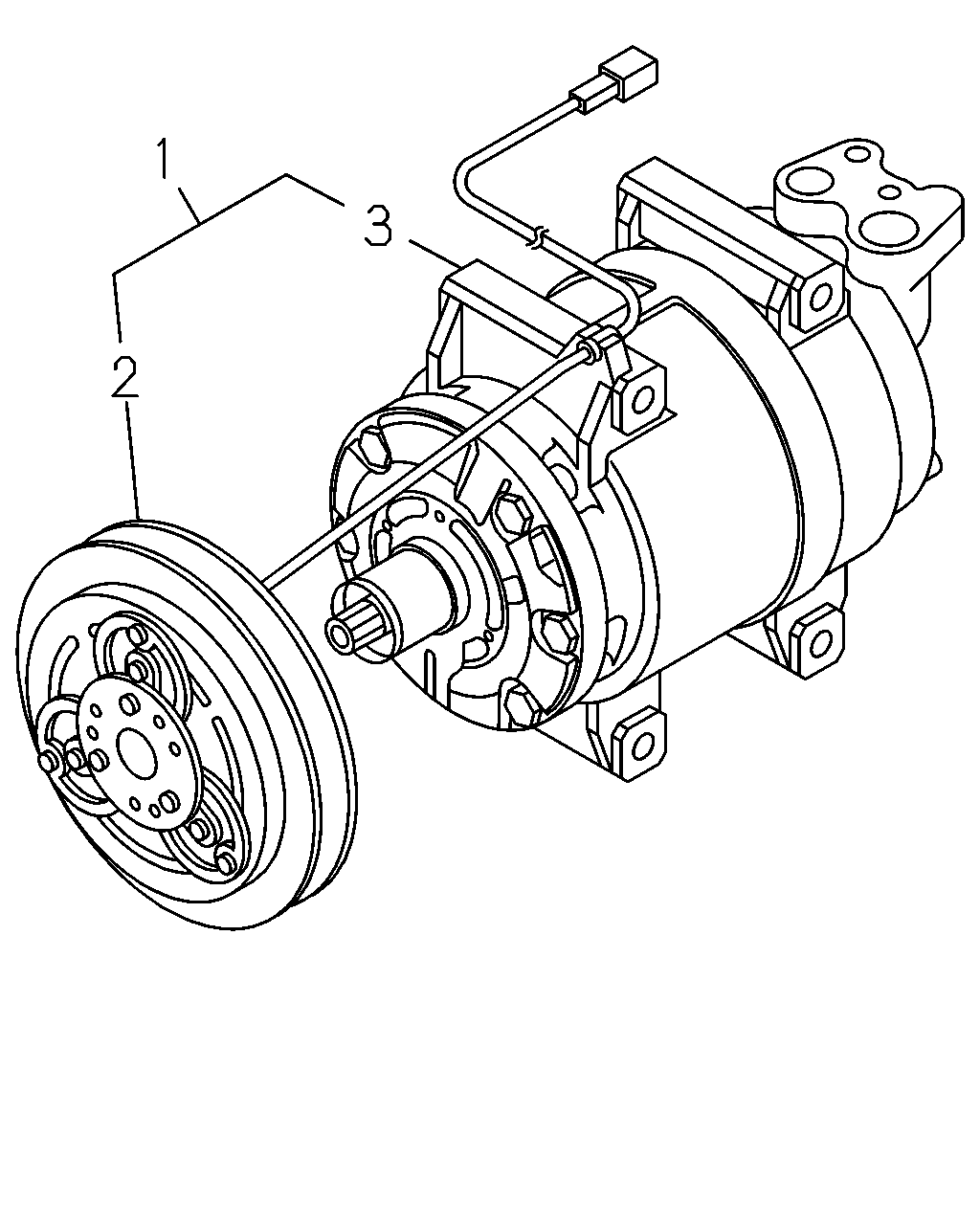

çizim 186325
1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98000-988-2 01 1 0907-1211 ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-324-0 01 1 1212-1410 ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98286-199-0 01 1 1411- ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98037-146-2 01 1 0905-1211 ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-321-0 01 1 1212-1410 ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98286-197-0 01 1 1411- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98208-773-1 01 1 0905- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 		8-98208-772-1 01 1 0907- ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 0905-0906 ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 0907- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 0907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
