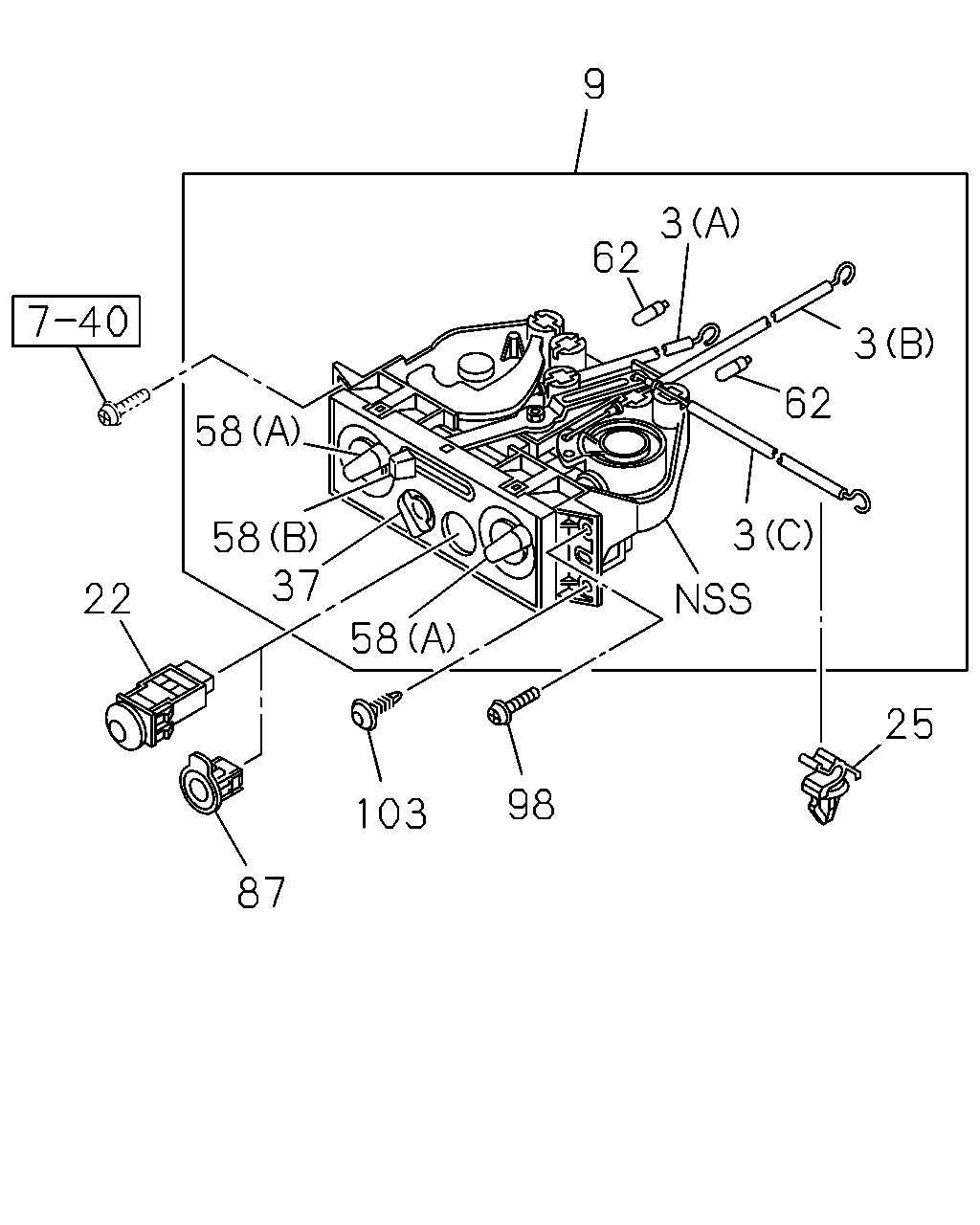

8-65 — CONTROL LEVER; HEATER AND AIR CON (#77282) — 28 parça

9 3 62 3 62 58 3 58 37 58 22 25 98 103 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) MODE	8-98039-254-1	01	1	0905-0906	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) MODE	8-98039-254-1	01	1	0907-	●	●	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) MIX	8-98039-255-1	01	1	0905-0906	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) MIX	8-98039-255-1	01	1	0907-	●	●	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) FRESH	8-98039-256-1	01	1	0905-0906	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) FRESH	8-98039-256-1	01	1	0907-	●	●	●	●
9	08.852 LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98067-881-1	01	1	0905-0906	●	●
9	08.852 LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98067-881-1	01	1	0907-	●	●	●	●
22	08.852 SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60)	8-98021-982-0	01	1	0905-0906	●	●
22	08.852 SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60)	8-98021-982-0	01	1	0907-	●	●	●	●
25	08.854 CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 ID=4.8	8-94128-483-0	01	1	0905-0906	●	●
25	08.854 CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 ID=4.8	8-94128-483-0	01	1	0907-	●	●	●	●
37	08.852 KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98037-368-0	01	1	0905-0906	●	●
37	08.852 KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98037-368-0	01	1	0907-	●	●	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98037-369-0	02	1	0905-0906	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98037-369-0	02	1	0907-	●	●	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98037-370-0	01	1	0905-0906	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98037-370-0	01	1	0907-	●	●	●	●
62	08.991 BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 1.1W	8-98037-371-0	02	1	0905-0906	●	●
62	08.991 BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 1.1W	8-98037-371-0	02	1	0907-	●	●	●	●
87	08.849 CAP; A/C SWITCH HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	0905-0906	●	●
87	08.849 CAP; A/C SWITCH HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	0907-	●	●	●	●
98	08.852 SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0905-0906	●	●
98	08.852 SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0907-1101	●	●	●	●
98	08.852 SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET	8-98177-743-0	01	1	1102-1212	●	●	●	●
98	08.852 SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	1301-	●	●	●	●
103	08.854 CLIP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.742 DARK GRAY	8-97098-326-0	01	1	0905-0906	●	●
103	08.854 CLIP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.742 DARK GRAY	8-97098-326-0	01	1	0907-	●	●	●	●
