6-03 — RADIATOR GRILLE (#7728) — 47 parça
çizim 10713
90 50 90 1 90
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
CAB FRT PANEL CARGO FACE VAR 1<NBH> 		1-71117-244-0 01 1 9902- ●
1 GRILLE; RAD
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> 		1-71117-182-2 01 1 9905- ●
50 BOLT; GRILLE
CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9902-9904 ●
50 BOLT; GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ●
90 NUT; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 1<NBH> M6 CAP NUT FLANGE 		1-65471-734-0 13 1 9902- ●
90 NUT; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 1<NBF> M6 CAP NUT FLANGE 		1-65471-734-0 09 1 9905- ●

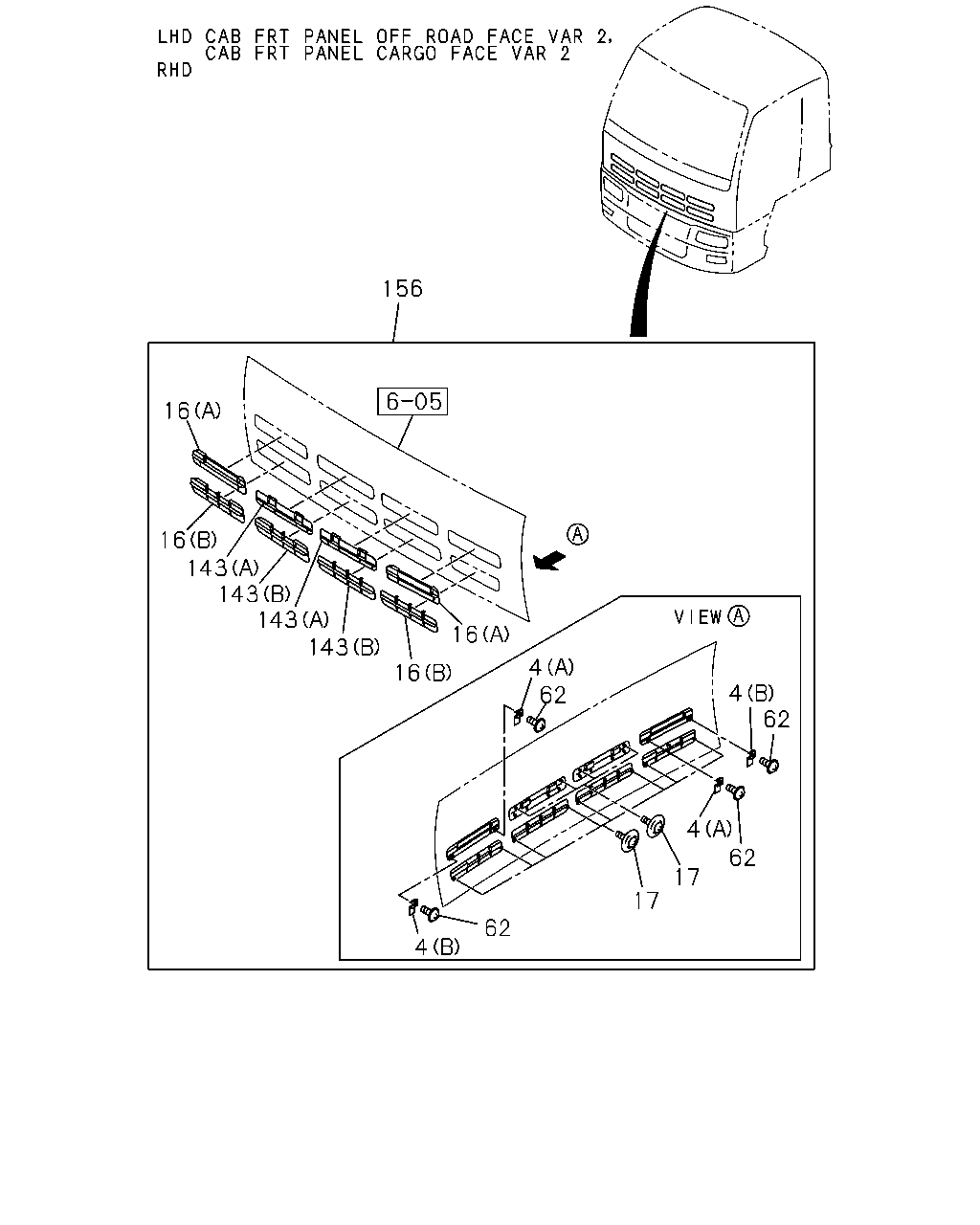

çizim 45154
156 16 16 143 143 143 143 16 4 62 16 4 62 4 62 17 17 62 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BRACKET; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-71117-239-1 04 1 9902-0003 ●
4 BRACKET; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-71117-239-1 04 1 0004- ●
4 BRACKET; RAD GRILLE
(A) 		1-71117-239-1 04 1 0004- ●
4 BRACKET; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) 		1-71117-240-1 04 1 9905- ●
4 BRACKET; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71117-241-1 05 1 9905- ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-71117-232-5 01 1 9902-0003 ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-71117-232-5 01 1 0004- ●
16 GRILLE; RAD,SIDE
(A) 		1-71117-232-5 01 1 0004- ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71117-234-4 01 1 9902-0003 ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71117-234-4 01 1 0004- ●
16 GRILLE; RAD,SIDE
(B) 		1-71117-234-4 01 1 0004- ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-71117-231-5 01 1 9902-0003 ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-71117-231-5 01 1 0004- ●
16 GRILLE; RAD,SIDE
(A) 		1-71117-231-5 01 1 0004- ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71117-233-4 01 1 9902-0003 ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71117-233-4 01 1 0004- ●
16 GRILLE; RAD,SIDE
(B) 		1-71117-233-4 01 1 0004- ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) 		1-71117-226-3 01 1 9905- ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71117-228-3 01 1 9905- ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) 		1-71117-225-3 01 1 9905- ●
16 GRILLE; RAD,SIDE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71117-227-3 01 1 9905- ●
17 SCREW; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5 		1-71117-238-1 12 1 9902-0003 ●
17 SCREW; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5 		1-71117-238-1 12 1 0004- ●
17 SCREW; RAD GRILLE
M5 		1-71117-238-1 12 1 0004- ●
17 SCREW; RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5 		1-71117-238-1 03 1 9905- ●
62 SCREW; BRKT,RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5X12 		1-09981-539-0 04 1 9902-0003 ●
62 SCREW; BRKT,RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5X12 		1-09981-539-0 04 1 0004- ●
62 SCREW; BRKT,RAD GRILLE
M5X12 		1-09981-539-0 04 1 0004- ●
62 SCREW; BRKT,RAD GRILLE
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> M5X12 		1-09981-539-0 09 1 9905- ●
143 GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-71117-229-3 02 1 9902-0003 ●
143 GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-71117-229-3 02 1 0004- ●
143 GRILLE; RAD,CENTER
(A) 		1-71117-229-3 02 1 0004- ●
143 GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71117-230-4 02 1 9902-0003 ●
143 GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71117-230-4 02 1 0004- ●
143 GRILLE; RAD,CENTER
(B) 		1-71117-230-4 02 1 0004- ●
143 GRILLE; RAD,CENTER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (A) 		1-71117-223-3 01 1 9905- ●
143 GRILLE; RAD,CENTER
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B) 		1-71117-224-3 01 1 9905- ●
156 GRILLE KIT; RAD
CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-71117-246-2 01 1 9902-0003 ●
156 GRILLE KIT; RAD
CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-71117-246-2 01 1 0004- ●
156 GRILLE KIT; RAD 1-71117-246-2 01 1 0004- ●
156 GRILLE KIT; RAD
CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> 		1-71117-245-0 01 1 9905- ●
