Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#77277) — 121 parça

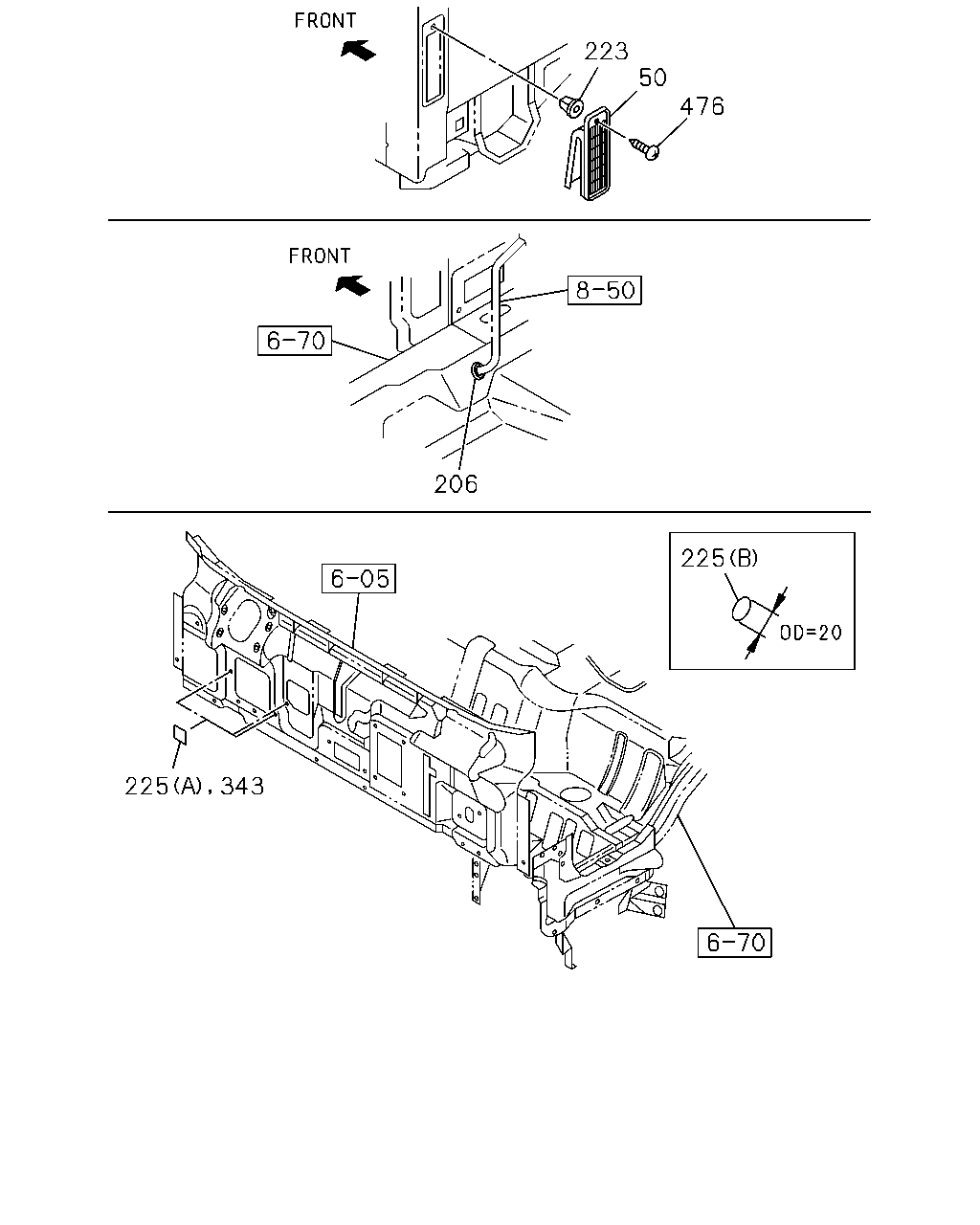

223 50 476 206 225 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	0905-0906	●
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	0907-	●	●
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	0905-0906			●
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	0907-			●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0905-0906	●		●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0907-	●	●	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0905-0906	●		●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0907-	●	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	02	1	1303-	●	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	03	1	0905-0906	●		●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	03	1	0907-1302	●	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-97856-616-0	01	1	1303-	●	●	●	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0905-0906	●		●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0907-	●	●	●	●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97856-616-0	02	1	0905-0906	●		●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97856-616-0	02	1	0907-	●	●	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0905-0906	●		●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0907-	●	●	●	●

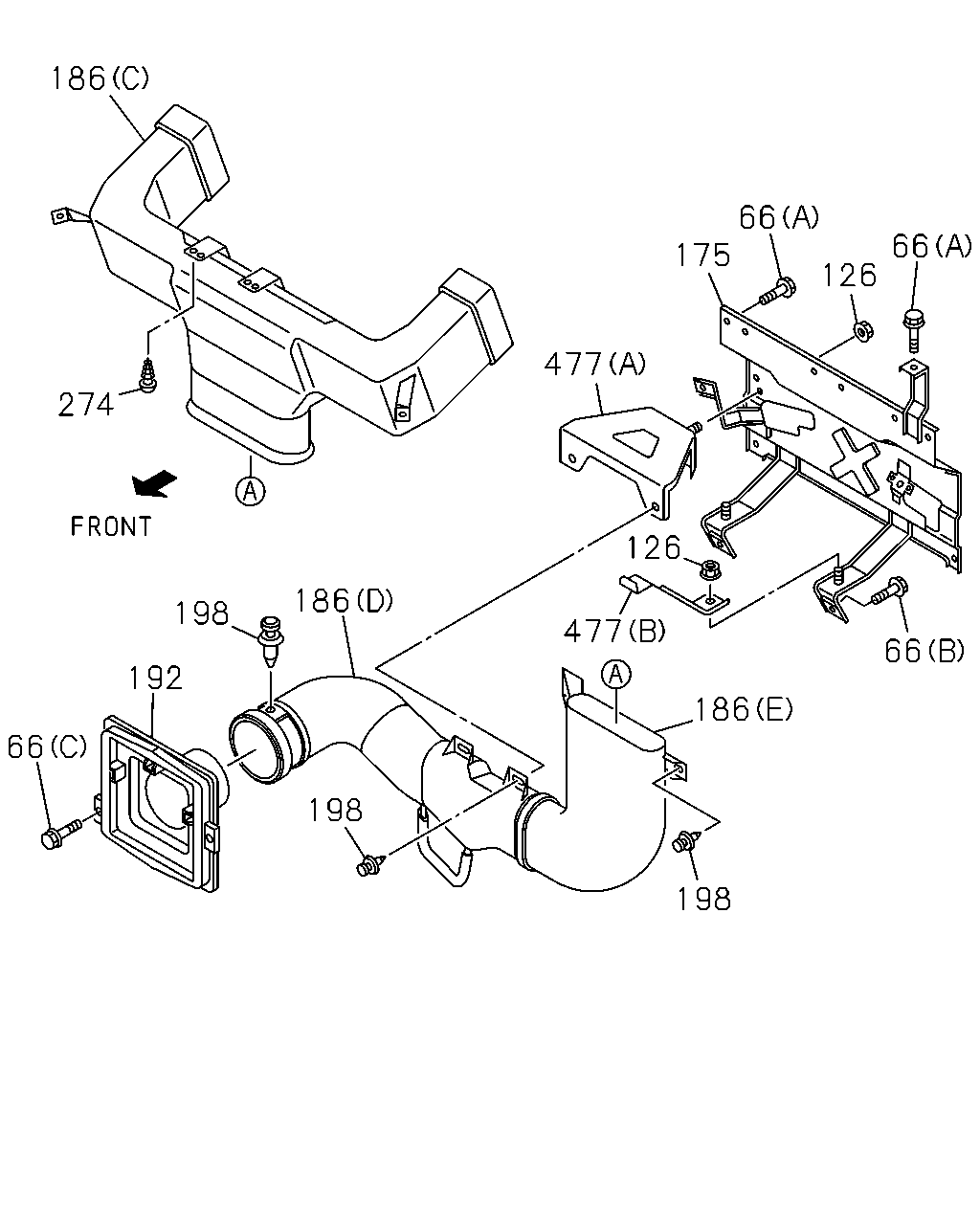

186 66 175 66 126 477 274 126 186 198 477 66 192 186 66 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0905-0906	●		●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0907-	●	●	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0905-0906	●		●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0907-	●	●	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0905-0906	●		●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0907-	●	●	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0905-0906	●		●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-1001	●	●	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98091-543-5	01	1	0905-0906	●		●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98091-543-5	01	1	0907-	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98042-899-6	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98042-899-6	01	1	0907-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98042-900-4	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98042-900-5	01	1	0907-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98285-586-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-362-0	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-362-0	01	1	0907-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	0907-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	0907-	●	●	●	●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-385-3	01	1	0905-0906	●		●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-385-4	01	1	0907-	●	●	●	●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	05	1	0905-0906	●		●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	05	1	0907-	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0905-0906	●		●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0907-1101	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	0905-0906	●		●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	0907-	●	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98132-458-1	01	1	0905-0906	●		●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98132-458-1	01	1	0907-1001	●	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98132-458-1	01	1	1002-1005	●	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-456-0	01	1	1006-	●	●	●	●

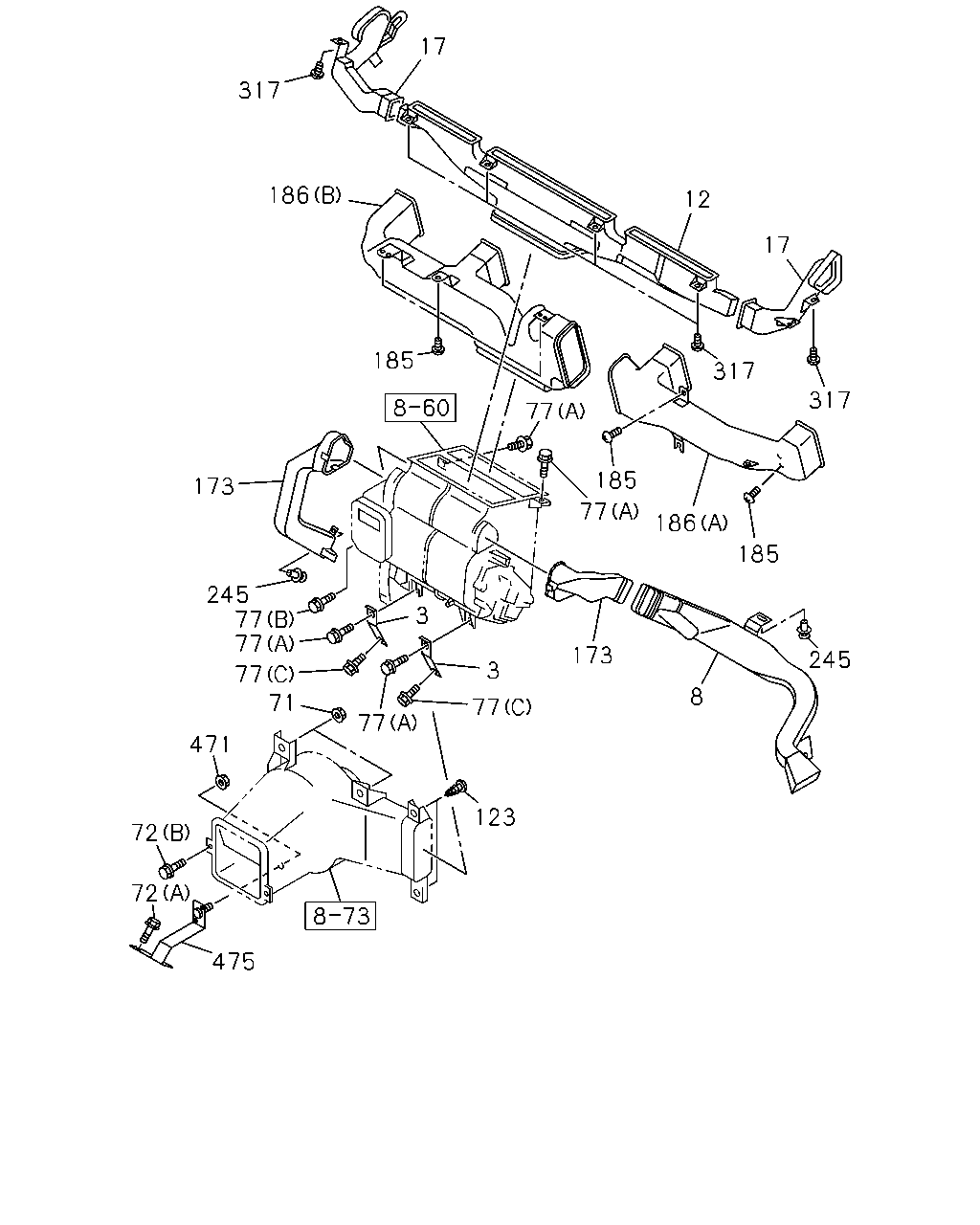

17 317 186 12 17 185 317 317 77 185 173 77 186 185 245 77 77 3 173 245 3 77 71 8 77 77 471 123 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98082-473-1	02	1	0905-0906	●		●
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98082-473-1	02	1	0907-	●	●	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-498-4	01	1	0905-0906	●		●
8	09.786 DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-498-4	01	1	0907-1101	●	●	●	●
12	09.779 NOZZLE; DEFROSTER	8-98040-490-3	01	1	0905-0906	●		●
12	09.779 NOZZLE; DEFROSTER	8-98040-490-3	01	1	0907-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98040-497-1	01	1	0905-0906	●		●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98040-497-1	01	1	0907-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98040-498-4	01	1	0905-0906	●		●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98040-498-4	01	1	0907-	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0905-0906	●		●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0905-0906	●		●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0907-	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0905-0906	●		●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0907-	●	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0905-0906	●		●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0907-	●	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	0905-0906	●		●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	0907-	●	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0905-0906	●		●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0907-	●	●	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0905-0906	●		●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0907-1101	●	●	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-494-3	01	1	0905-0906	●		●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-494-3	01	1	0907-1101	●	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98163-183-0	01	1	1102-	●	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-505-3	01	1	0905-0906	●		●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-97585-505-3	01	1	0907-1101	●	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98163-188-0	01	1	1102-	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0905-0906	●		●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0907-1003	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-1101	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98042-899-6	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98042-899-6	01	1	0907-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98042-900-4	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98042-900-5	01	1	0907-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98285-586-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-362-0	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-362-0	01	1	0907-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	0907-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	0905-0906	●		●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	0907-	●	●	●	●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.264	1-09987-144-0	03	1	0905-0906	●		●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.264	1-09987-144-0	03	1	0907-1101	●	●	●	●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1102-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0905-0906	●		●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0907-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0905-0906	●		●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0907-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0905-0906	●		●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-	●	●	●	●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3>	8-98165-782-0	01	1	1009-	●	●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98005-980-2	01	1	0905-0906	●		●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98005-980-2	01	1	0907-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
