◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#77274) — 191 parça

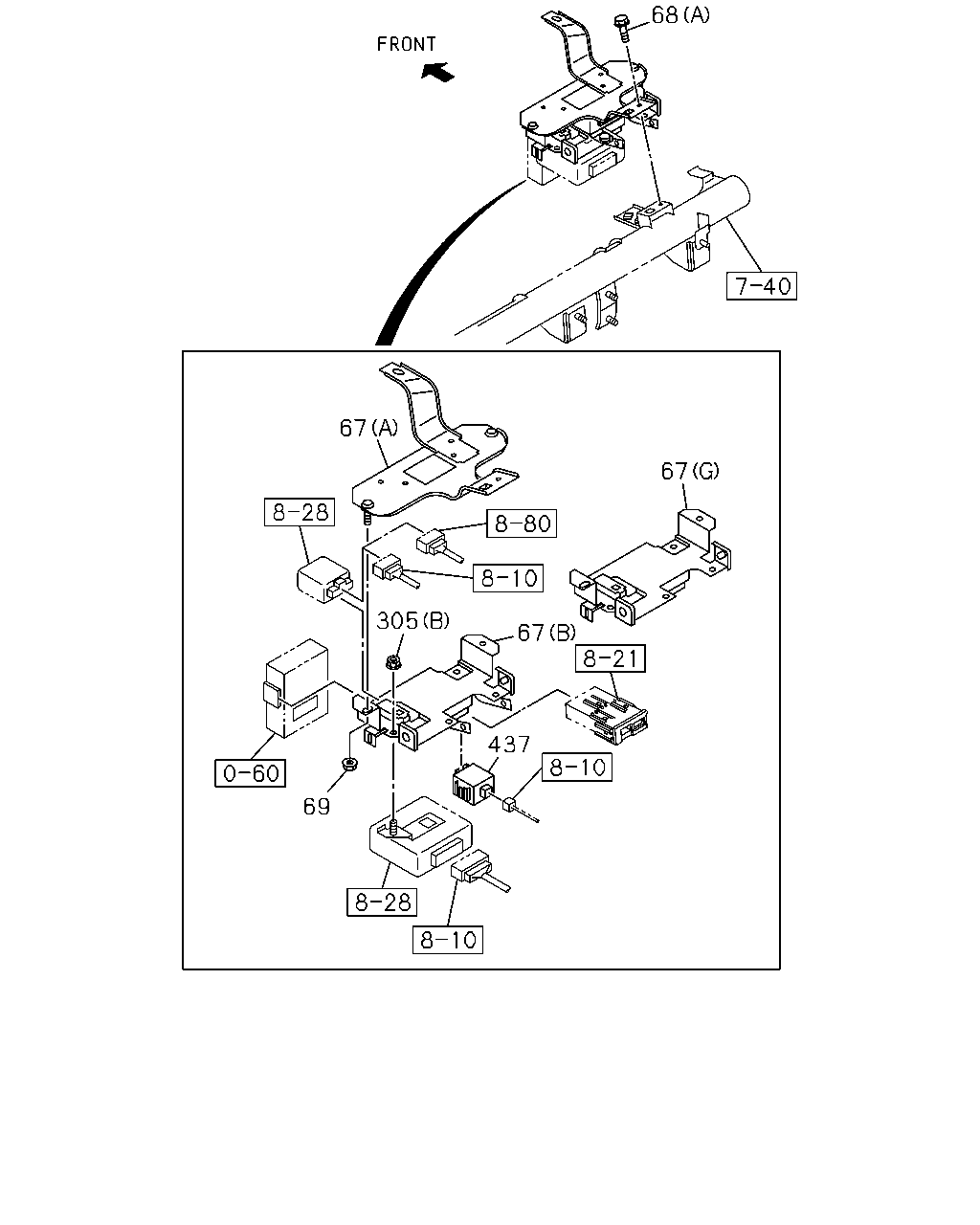

çizim 138414
67 67 67 69 305 437 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (F) 		8-98203-991-0 01 1 1112-1208 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (H) 		8-98222-208-0 01 1 1209- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (E) 		8-98111-836-1 01 1 1101- ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0905- ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0905-1212 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98237-556-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0905-0906 ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0907- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0905-0906 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98022-206-2 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98237-554-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98237-554-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 0905- ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 0905-0906 ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 0907- ● ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0905-0906 ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0907- ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0905-0906 ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0905-0906 ● ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0907- ● ● ● ●

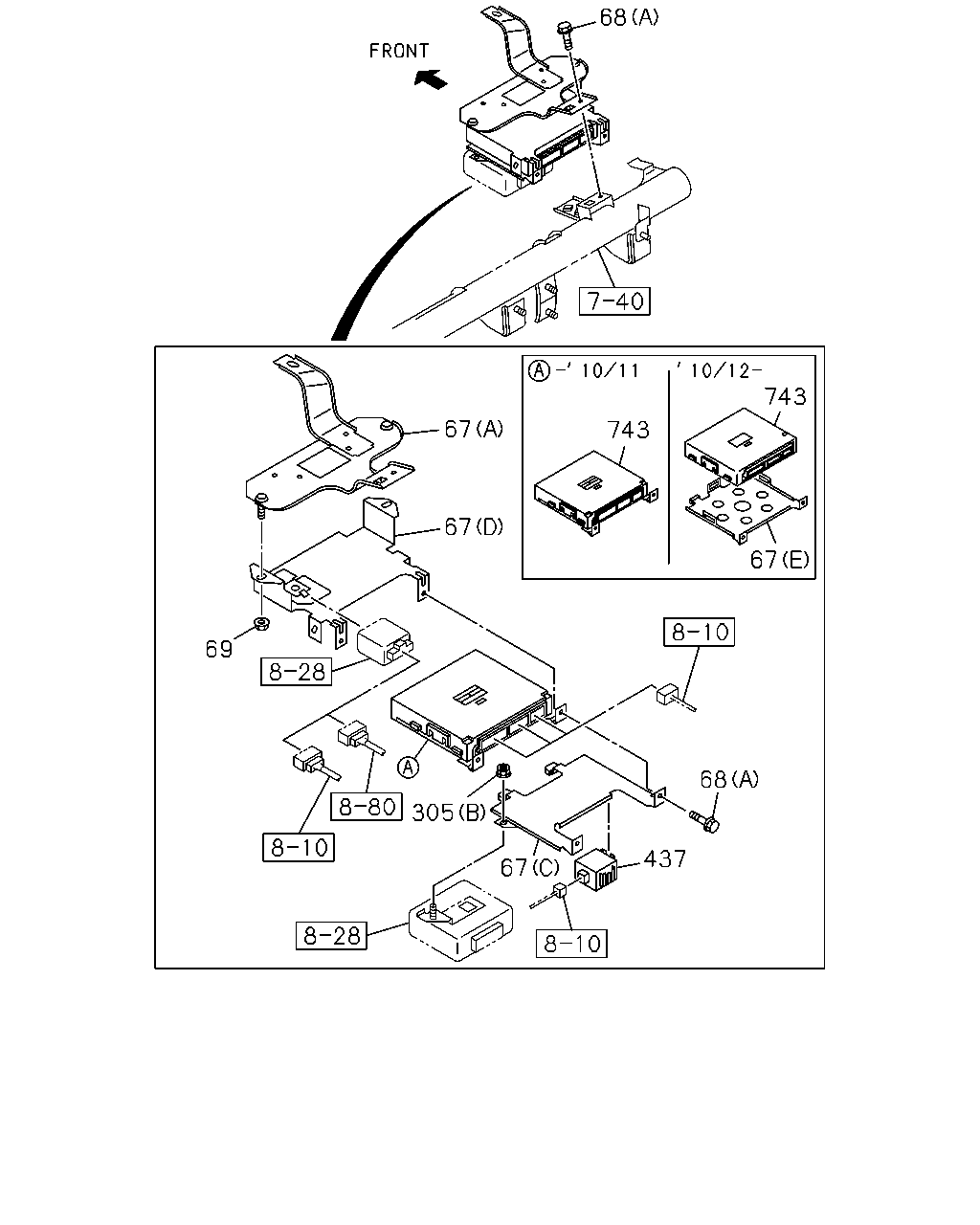

çizim 138426
68 67 67 69 305 67 437 68 67 743 743
BalonParca AdiParca NoAdetTipApplied Date A B C D
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (F) 		8-98203-991-0 01 1 1112-1208 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (H) 		8-98222-208-0 01 1 1209- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (E) 		8-98111-836-1 01 1 1101- ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0905- ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0905-1212 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98237-556-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0905-0906 ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0907- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0905-0906 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98022-206-2 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98237-554-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98237-554-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 0905- ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 0905-0906 ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 0907- ● ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0905-0906 ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0907- ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0905-0906 ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0905-0906 ● ●
437 10.485 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0907- ● ● ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0905-1006 ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1007-1007 ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ● ●
743 02.510 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●

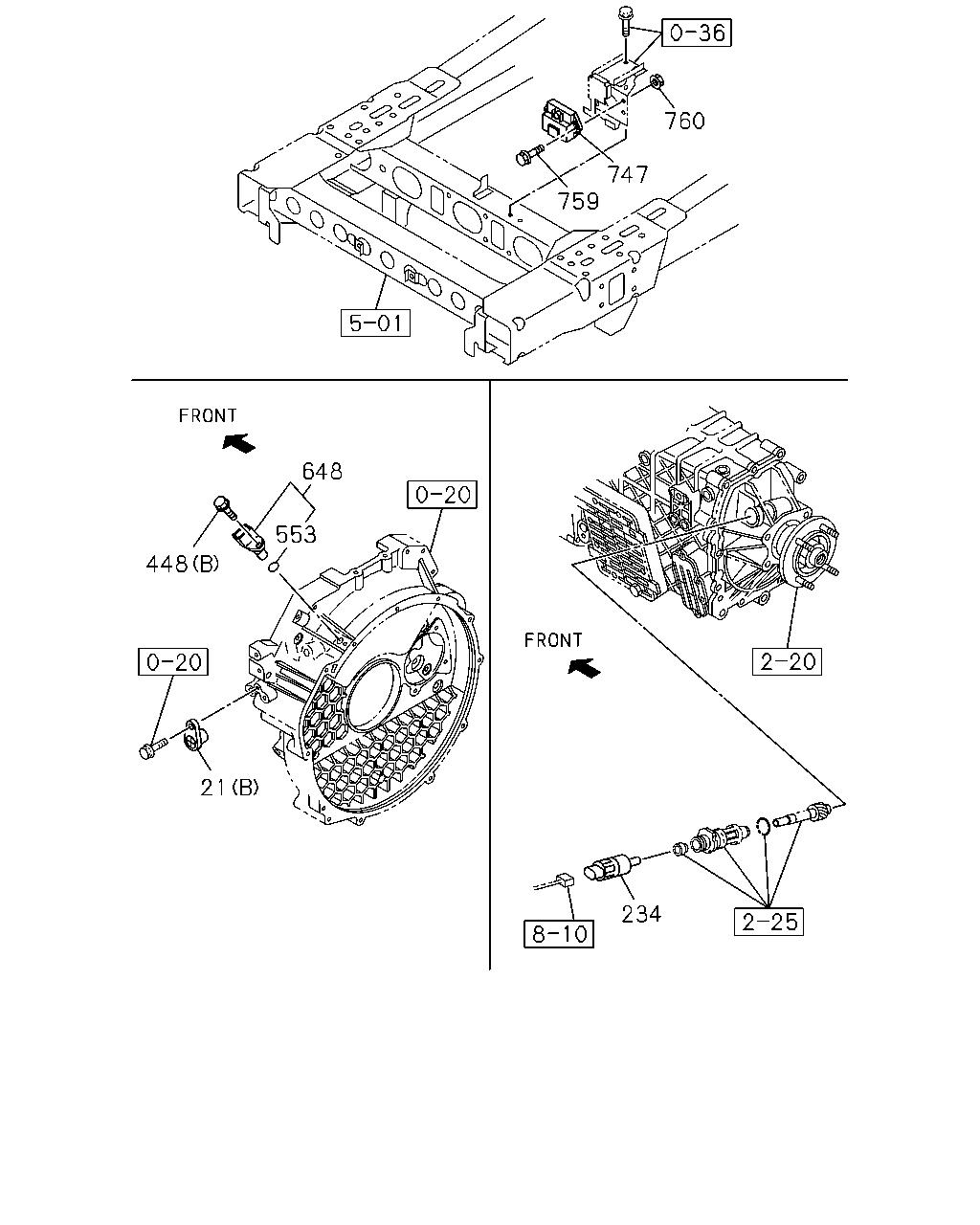

çizim 138435
760 747 759 648 553 448 21 234
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 09.744 COVER; HOLE
4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 0905- ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 0905-0906 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0905-0906 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0907- ● ● ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 0907- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0907- ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0907-1111 ● ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1112- ● ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0905-0906 ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0907- ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0905- ● ●
553 02.500 GASKET
4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0905- ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 0905- ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98077-118-2 01 1 0905-1012 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1101- ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
4HK1-TCS ENG(RJS) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0905- ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0905- ● ●
çizim 143842
700 21 68 67 68 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 09.744 COVER; HOLE
4HK1-TCS ENG(RJS) 09.748 (B) 		8-97101-974-0 01 1 0905- ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 0905-0906 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0905-0906 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0907- ● ● ● ●
21 09.744 COVER; HOLE
EXC. MULTI INFORMATION DISPLAY<7NY> 16.081 (A) 		8-98025-954-1 01 1 0907- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0907- ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5>,MULTI INFORMATION DISPLAY<7NY> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (F) 		8-98203-991-0 01 1 1112-1208 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
CAN INTERFACE FMS STD(8PG) (H) 		8-98222-208-0 01 1 1209- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (E) 		8-98111-836-1 01 1 1101- ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (C) 		8-98083-834-0 01 1 0905- ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 0905-1212 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98237-556-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
MULTI INFORMATION DISPLAY<7NY> (D) 		8-98091-662-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0905-0906 ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0907- ● ● ● ●
67 03.887 BRACKET; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0905-0906 ● ●
67 03.887 BRACKET; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0907-1111 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98022-206-2 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98022-206-2 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98237-554-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98237-554-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, MULTIINFORMATION DISPLAY<7NY> (B) 		8-98217-376-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-376-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 16.100 (B) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ● ●
68 02.500 BOLT; BRKT
CAN INTERFACE FMS STD(8PG) 09.647 (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ● ●
68 02.500 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> 00.206 (A) M6X12 FLANGE 		0-28450-612-0 02 1 0905- ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 0905-0906 ● ●
68 02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE 		0-28450-612-0 01 1 0907- ● ● ● ●
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD(8PG) 		8-98188-383-0 01 1 1112-1204 ● ● ● ●
700 02.510 CONTROL UNIT; CAN CONVERTER
CAN INTERFACE FMS STD(8PG) 		8-98219-812-1 01 1 1205- ● ● ● ●

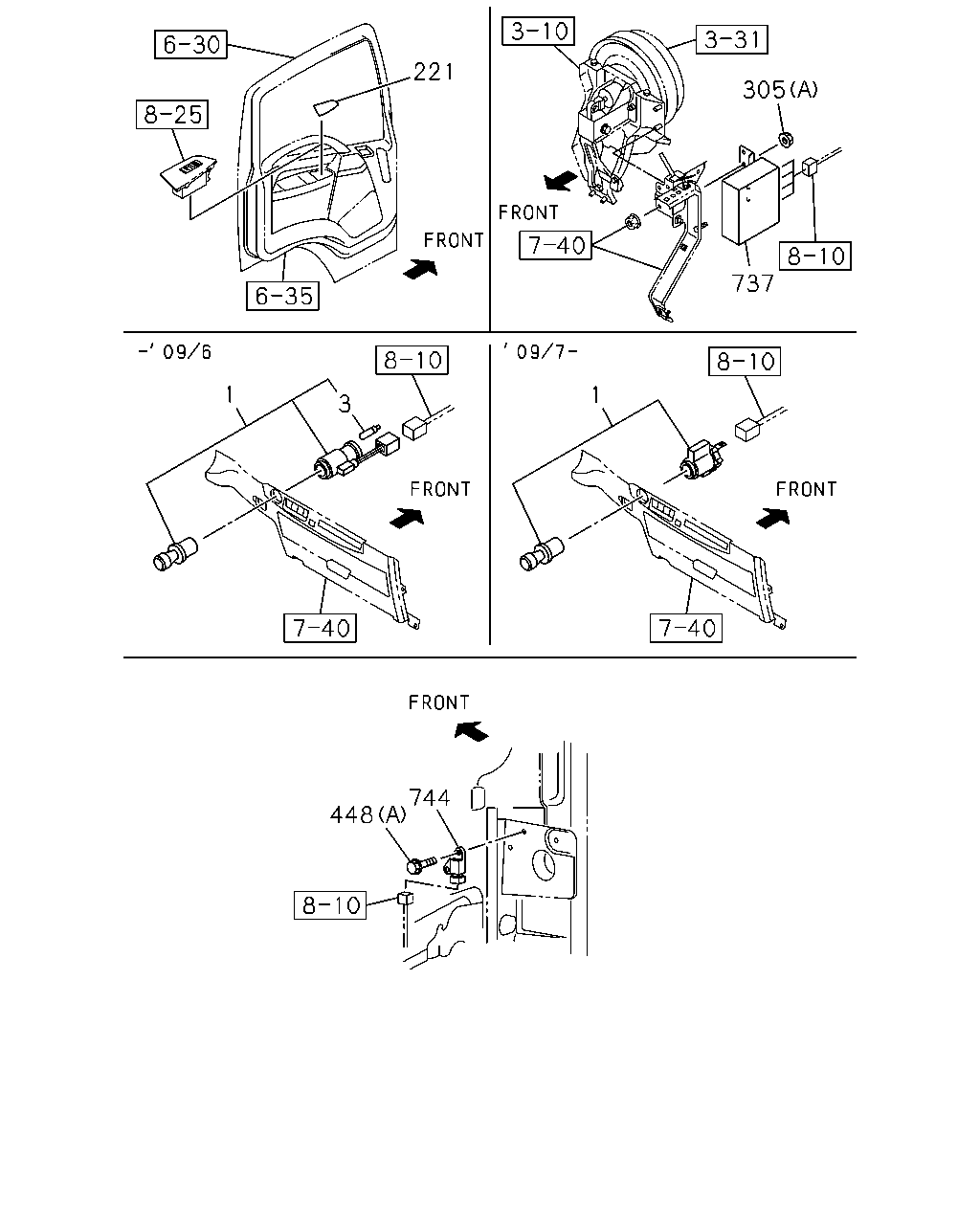

çizim 186319
221 305 737 1 1 3 744 448
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0905-0906 ● ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0905-0906 ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0907- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 0907- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0907- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 0907- ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0905-0906 ● ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0907- ● ● ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0905-0906 ● ●
305 08.915 NUT; CONT UNIT
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0905-0906 ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0907- ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0905- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98106-133-9 01 1 0907-1211 ● ● ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-000-2 01 1 1212- ● ● ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98106-135-9 01 1 0905-1211 ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-001-2 01 1 1212- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0905-0906 ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0907- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
