◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#77273) — 263 parça

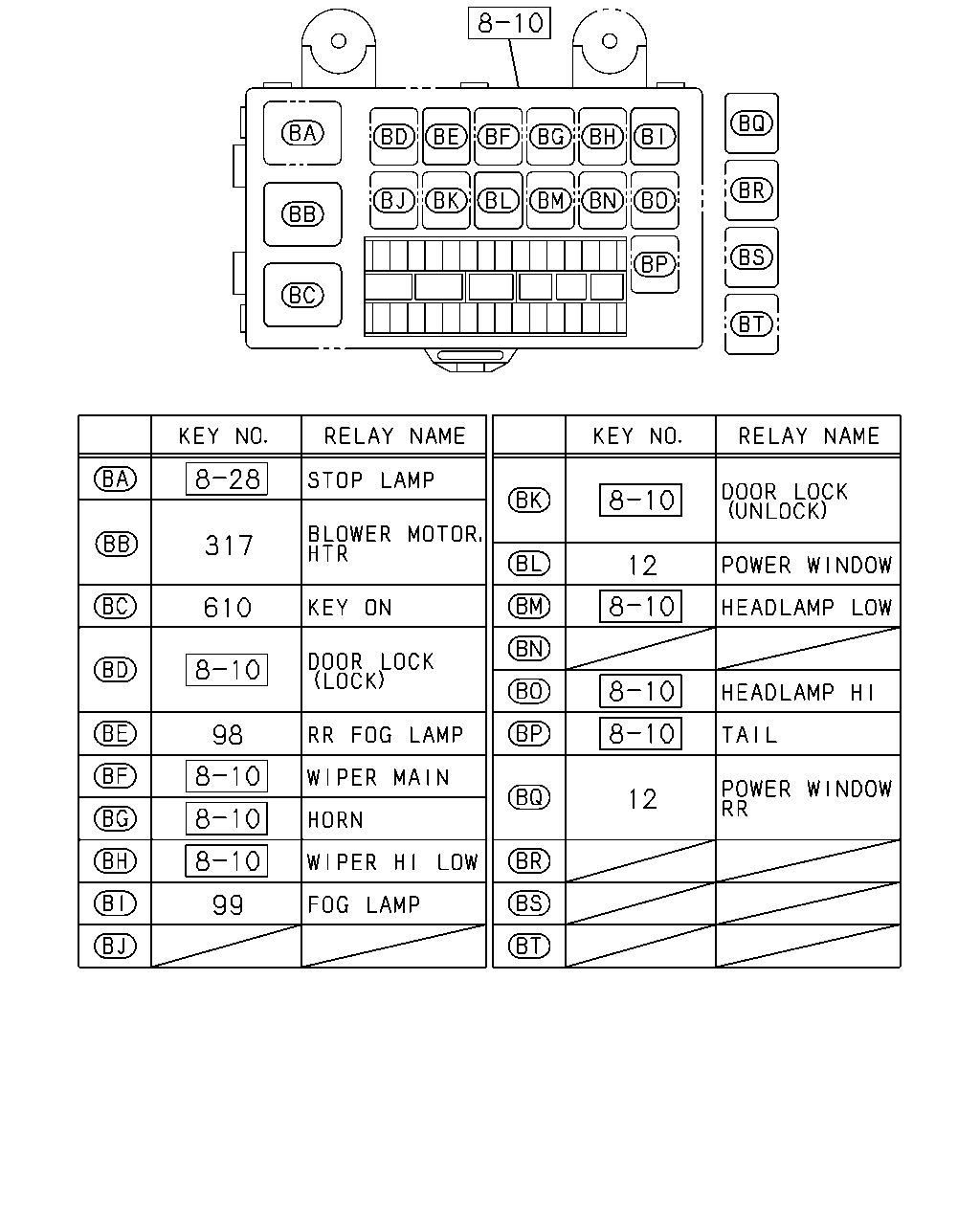

çizim 137293
317 12 610 98 12 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
12 08.852 RELAY; POWER WINDOW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ● ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907- ● ● ● ●

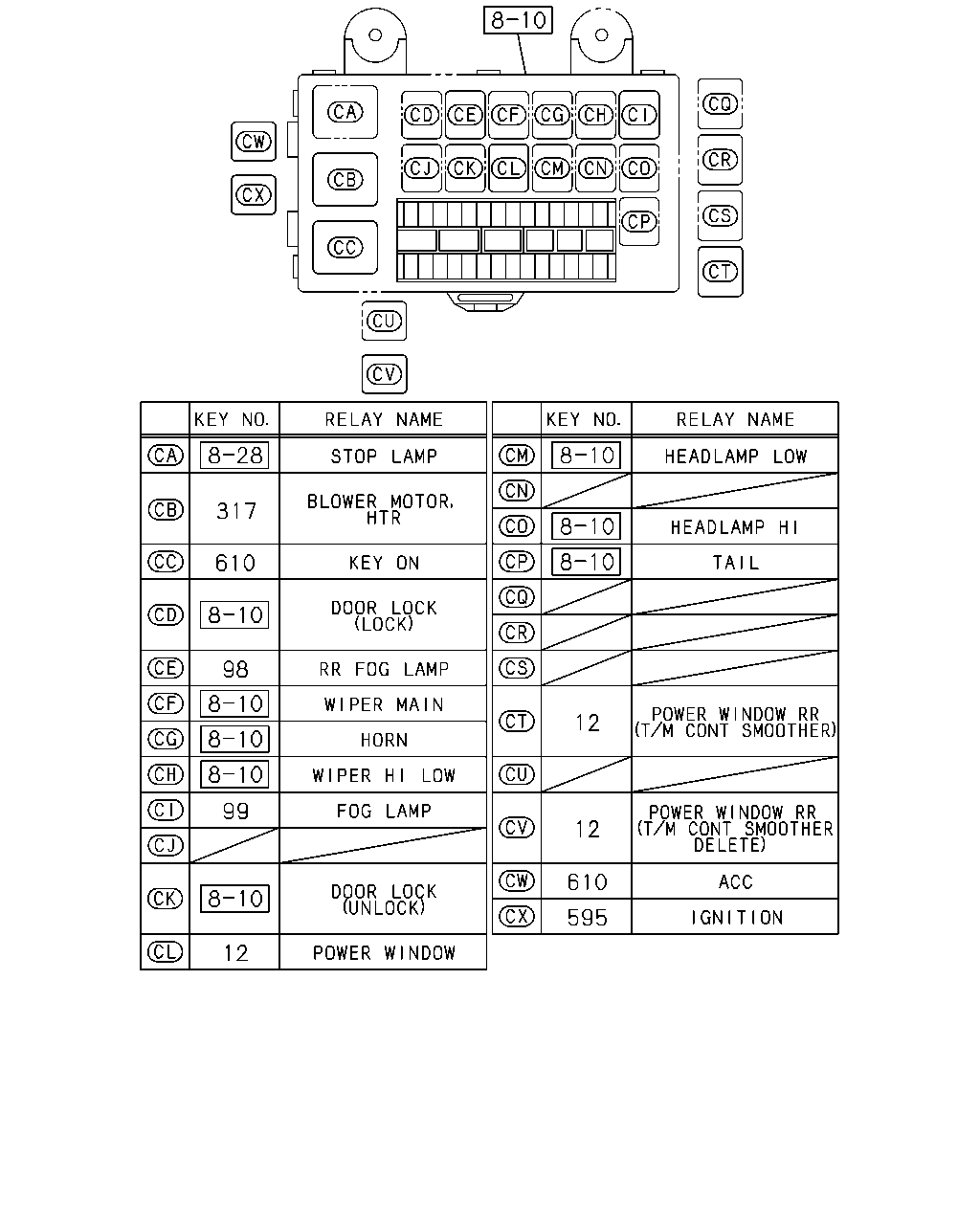

çizim 138137
317 610 98 12 99 12 610 595 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
12 08.852 RELAY; POWER WINDOW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ● ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907- ● ● ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907- ● ● ● ●

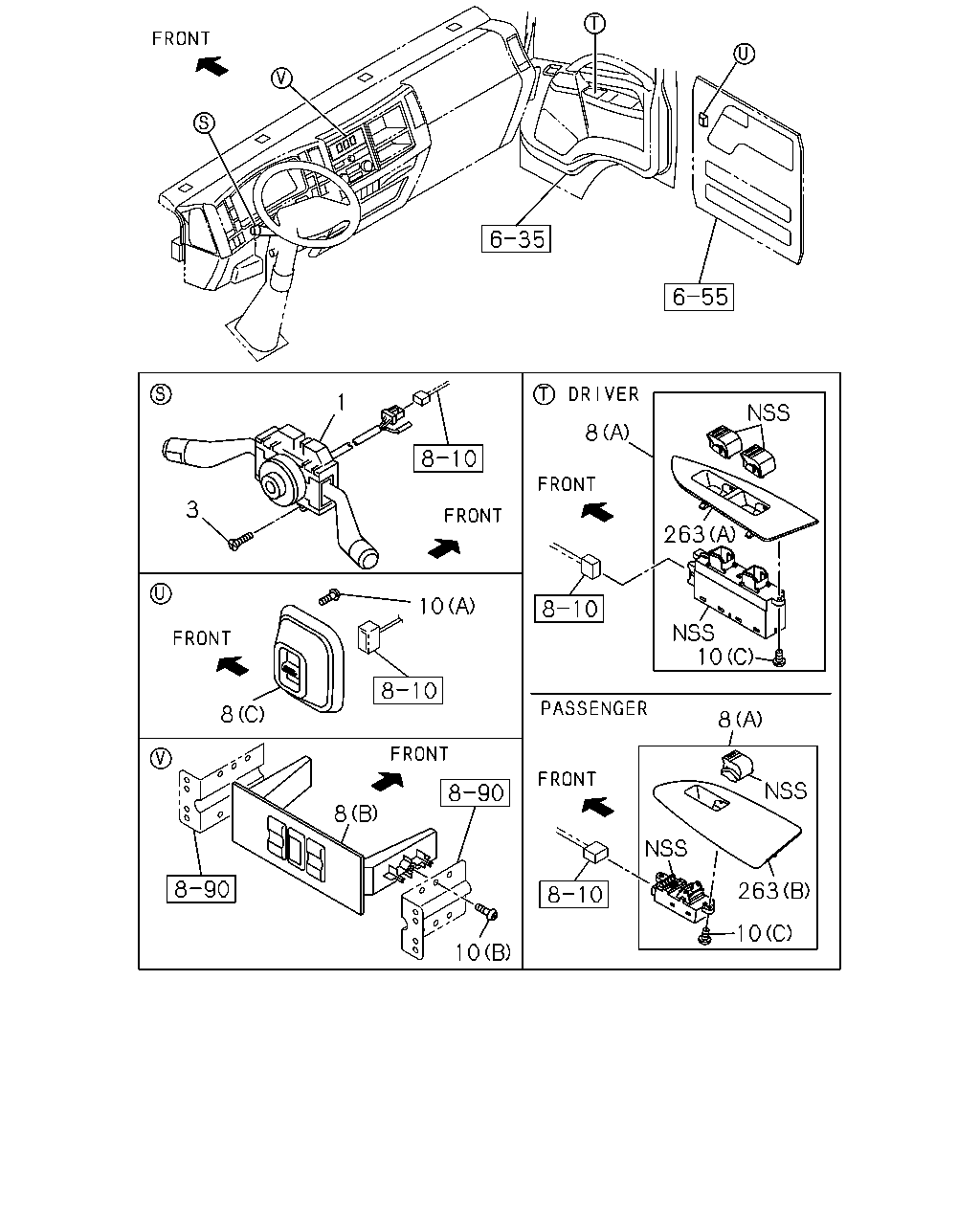

çizim 138150
1 8 3 263 10 10 8 8 8 263 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98070-017-1 01 1 0905-0905 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98146-641-0 01 1 0906-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98217-814-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98243-741-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98070-015-1 01 1 0905-0905 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98146-639-0 01 1 0906-0906 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98146-639-0 01 1 0907-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98146-639-0 01 1 0907-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98217-812-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98217-812-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98243-740-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98243-740-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98097-621-1 01 1 0905-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-758-0 01 1 1311-1510 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY> 		8-98073-850-1 01 1 0905-0906 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY> 		8-98073-850-1 01 1 0907-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98073-850-1 01 1 0907-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY> 		8-98243-757-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-757-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98070-007-2 01 1 0905-0906 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98070-007-2 01 1 0907-1310 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 0907-1310 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-750-0 01 1 1311-1510 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1311-1510 ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0905-0906 ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0907- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98001-737-2 01 1 0905-0906 ● ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98001-737-2 01 1 0907-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 0907-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98001-737-2 01 1 0907-1509 ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98129-845-0 01 1 0905-0906 ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98129-845-0 01 1 0907-1001 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98129-845-0 01 1 0907-1001 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98129-845-0 01 1 0907-1001 ●
8 16.263 SWITCH; POWER WINDOW
06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1002-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1002-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1002-1509 ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 0905-0906 ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 0907- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 0907- ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR SIDE 		8-97387-035-0 02 1 0905-0906 ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR SIDE 		8-97387-035-0 02 1 0907- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 0907- ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 02 1 1511- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 02 1 1511- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 02 1 1511- ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 0905-0906 ● ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 0907-1510 ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 0907-1510 ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 03 1 0907-1510 ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 01 1 1511- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 01 1 1511- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 01 1 1511- ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0905-0906 ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0907- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0907- ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0905-0906 ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907- ●
263 16.081 COVER; SW
(A) 		8-98153-838-0 01 1 0905-0906 ● ●
263 16.081 COVER; SW
(A) 		8-98153-838-0 01 1 0907- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 0907- ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98153-838-0 01 1 0907- ●
263 16.081 COVER; SW
(B) 		8-98153-843-0 01 1 0905-0906 ● ●
263 16.081 COVER; SW
(B) 		8-98153-843-0 01 1 0907- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 0907- ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98153-843-0 01 1 0907- ●

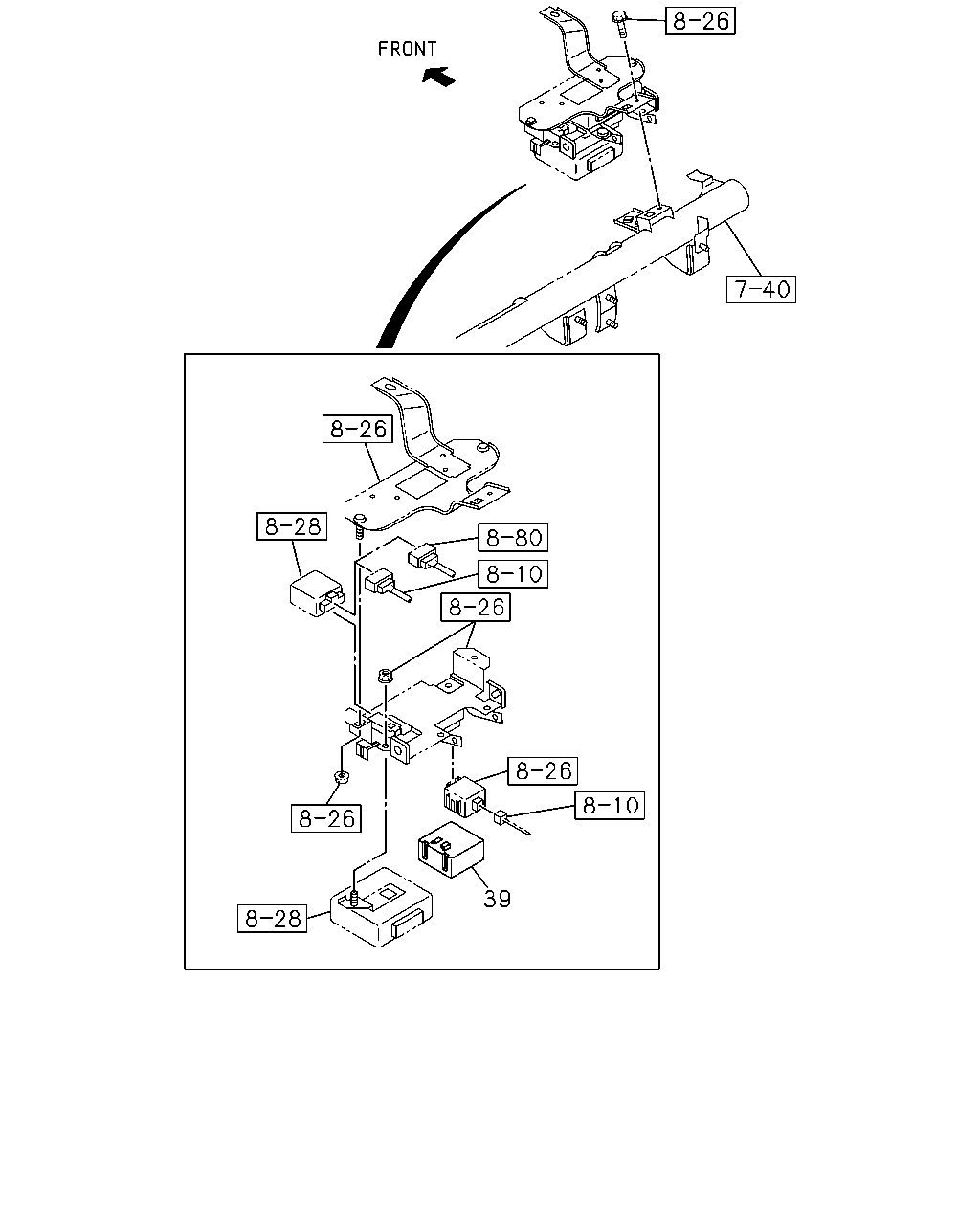

çizim 138277
39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0907- ● ●

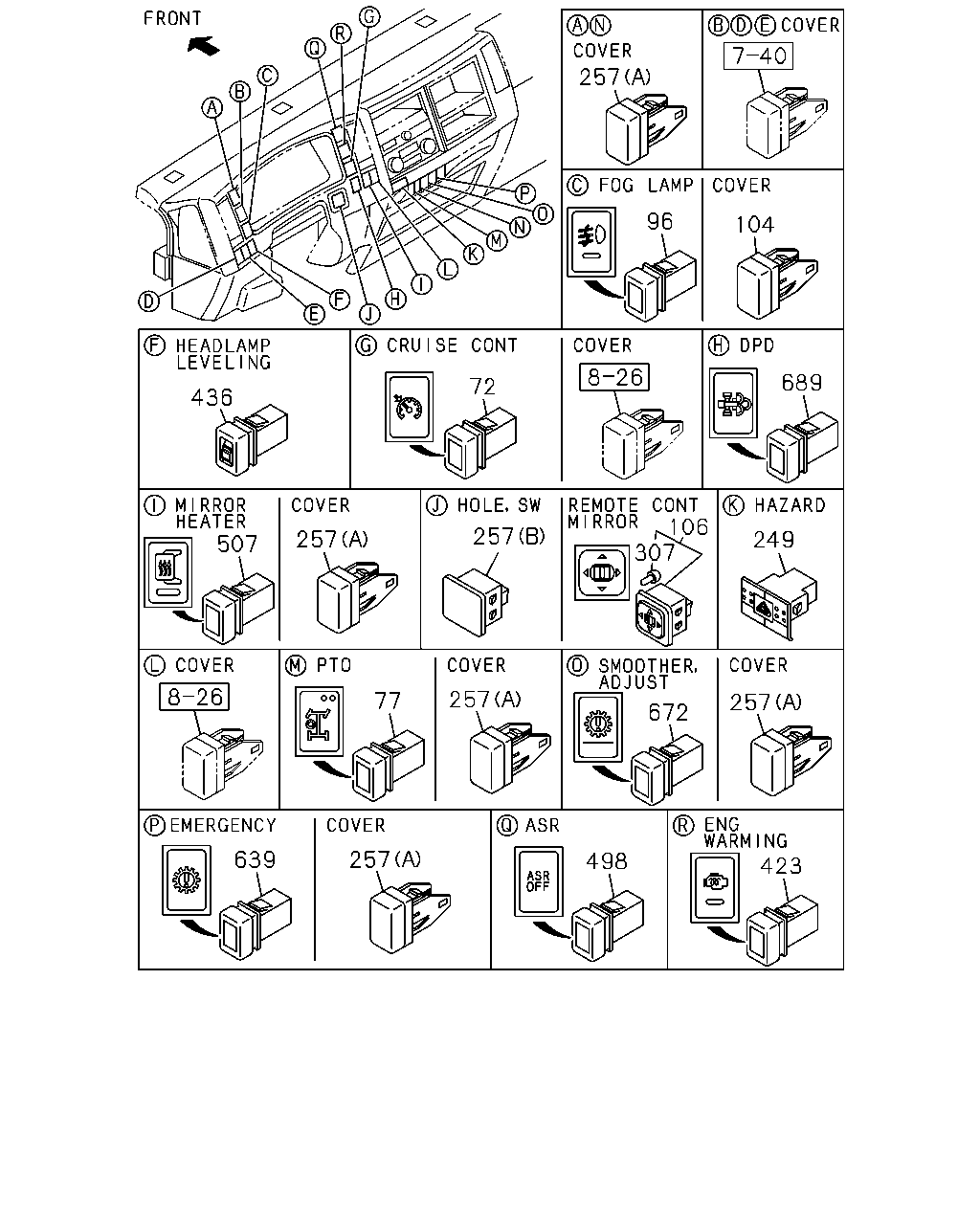

çizim 138510
257 96 104 689 72 436 507 106 307 257 257 249 257 77 257 672 423 257 639 498
BalonParca AdiParca NoAdetTipApplied Date A B C D
72 02.485 SWITCH; CRUISE CONT
MULTI INFORMATION DISPLAY<7NY> 		8-98011-344-1 01 1 0905- ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 0905-0906 ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 0907- ● ● ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 0905-0906 ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 0907-1111 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1112-1112 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1112- ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1112-1112 ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1112- ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0905-0906 ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0907- ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0905-0906 ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 0907- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0907-0912 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1001-1111 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0907- ● ● ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0905-0906 ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0907- ● ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97387-010-1 01 1 0905-0906 ● ●
423 03.883 SWITCH; ENG WARMING 8-97387-010-2 01 1 0907- ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 0905-0906 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 0907- ● ● ● ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 0905-0906 ● ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 0907-1111 ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 0907-1111 ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 1112- ● ● ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> HEATER 		8-97386-924-3 01 1 0905-0906 ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> HEATER 		8-97386-924-3 01 1 0907- ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0905-0906 ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0907- ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0905-0906 ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0907- ● ● ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 0905-0906 ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 0907- ● ● ● ●
çizim 186309
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907- ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0905-0906 ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0907-1402 ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ● ●

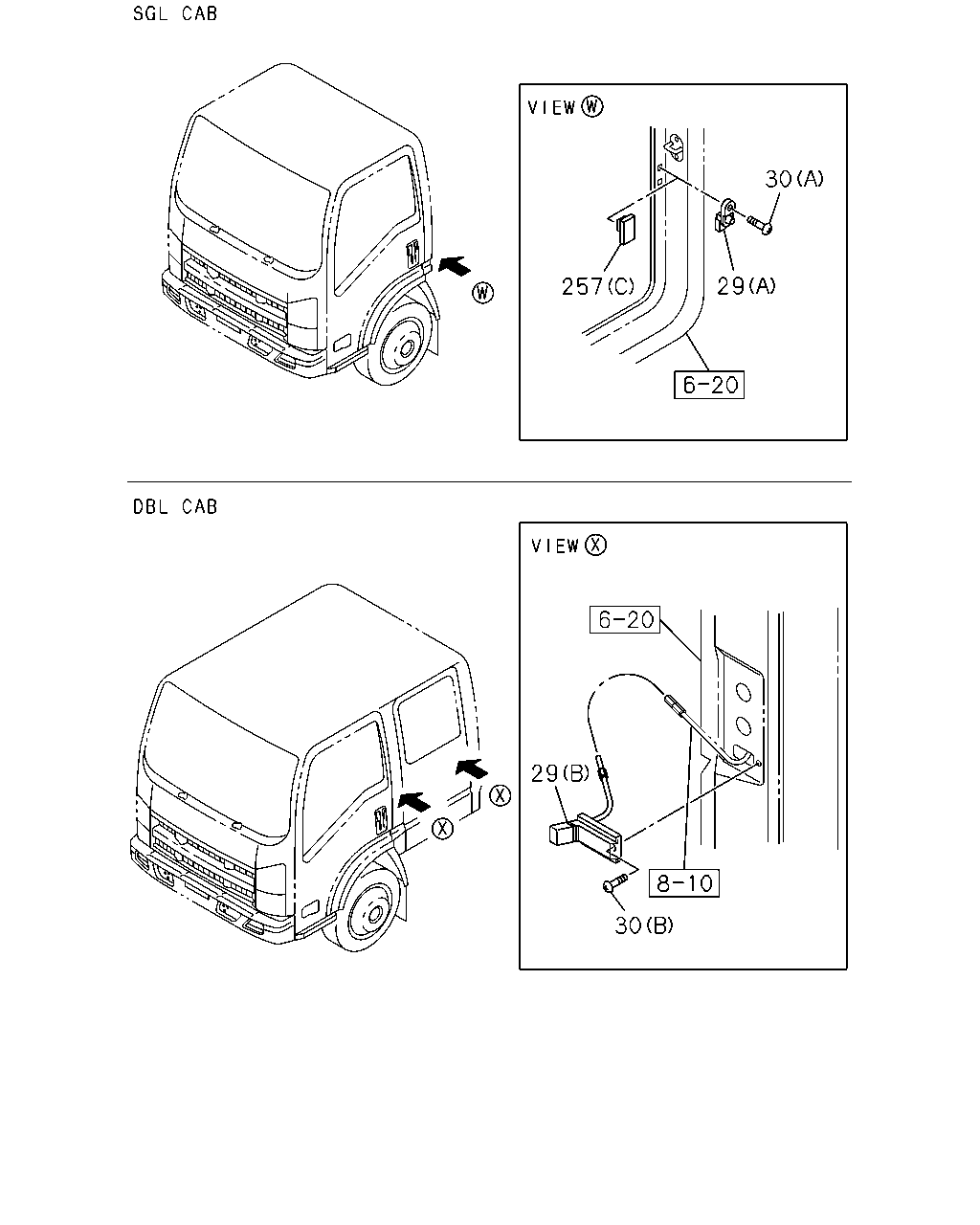

çizim 186313
30 29 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 0905-0906 ●
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 0907-1510 ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0907-1510 ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0907-1510 ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 0907-1510 ●
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1511- ● ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 1511- ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 1511- ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 1511- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 0905-0906 ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 0905-0906 ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 0907- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 0907- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 0905-0906 ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 0905-0906 ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 0907- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 0907- ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 01 1 0907- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 0905-0906 ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 0905-0906 ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 0907- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0907-0912 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1001-1111 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1001-1111 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1112-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1212- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0907- ● ● ● ●

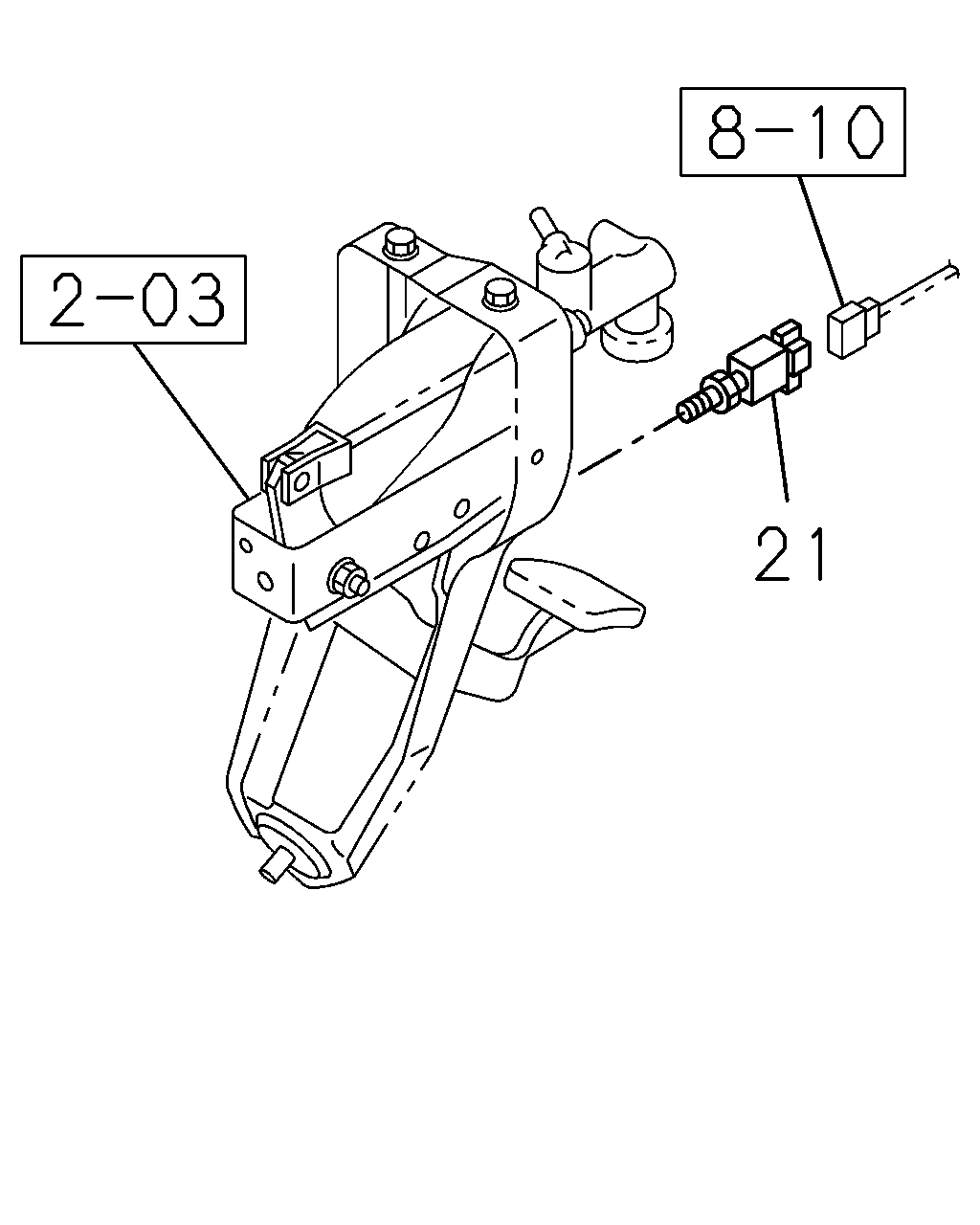

çizim 186433
21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0905-0906 ● ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0907- ● ● ● ●

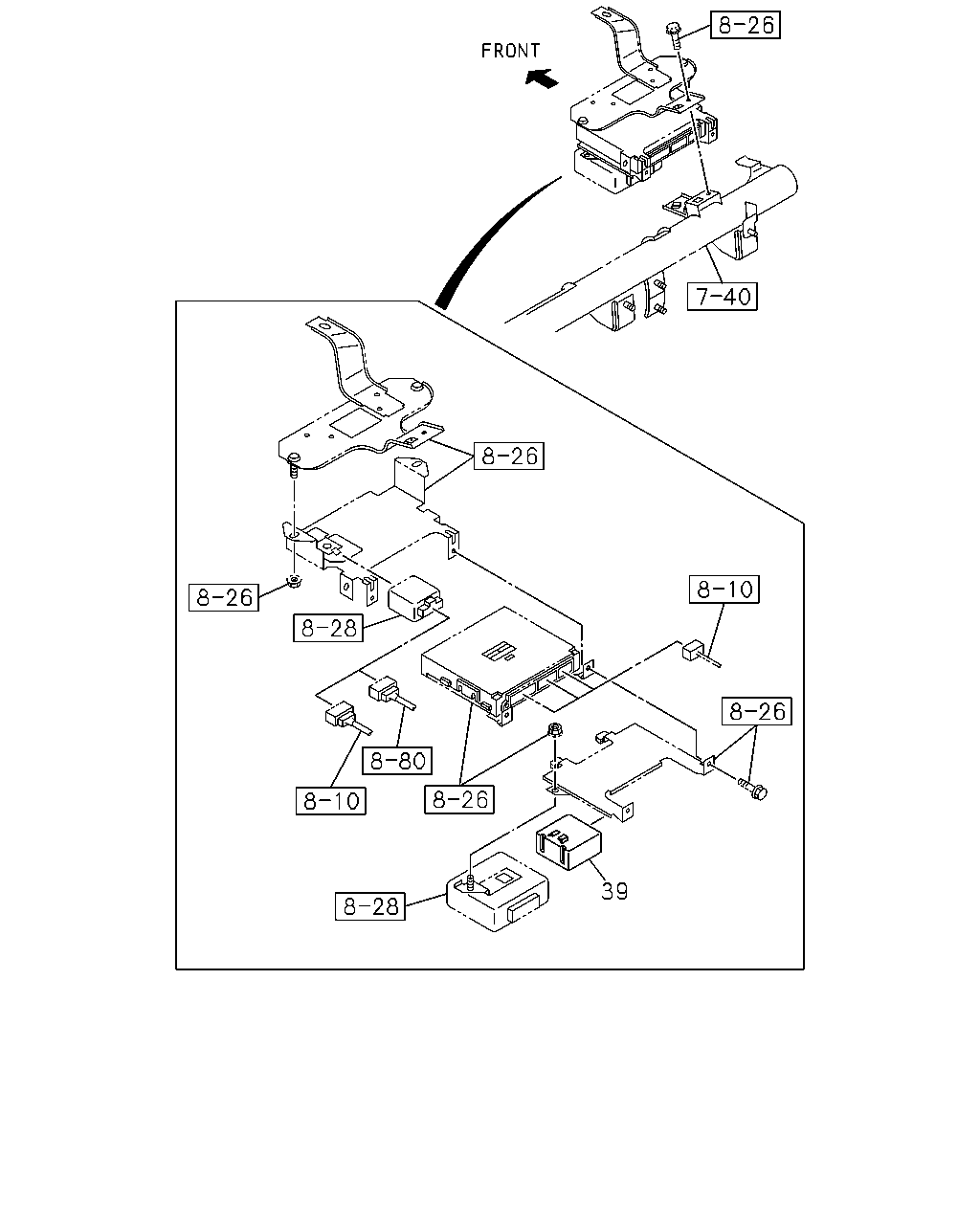

çizim 186439
39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
