1 |

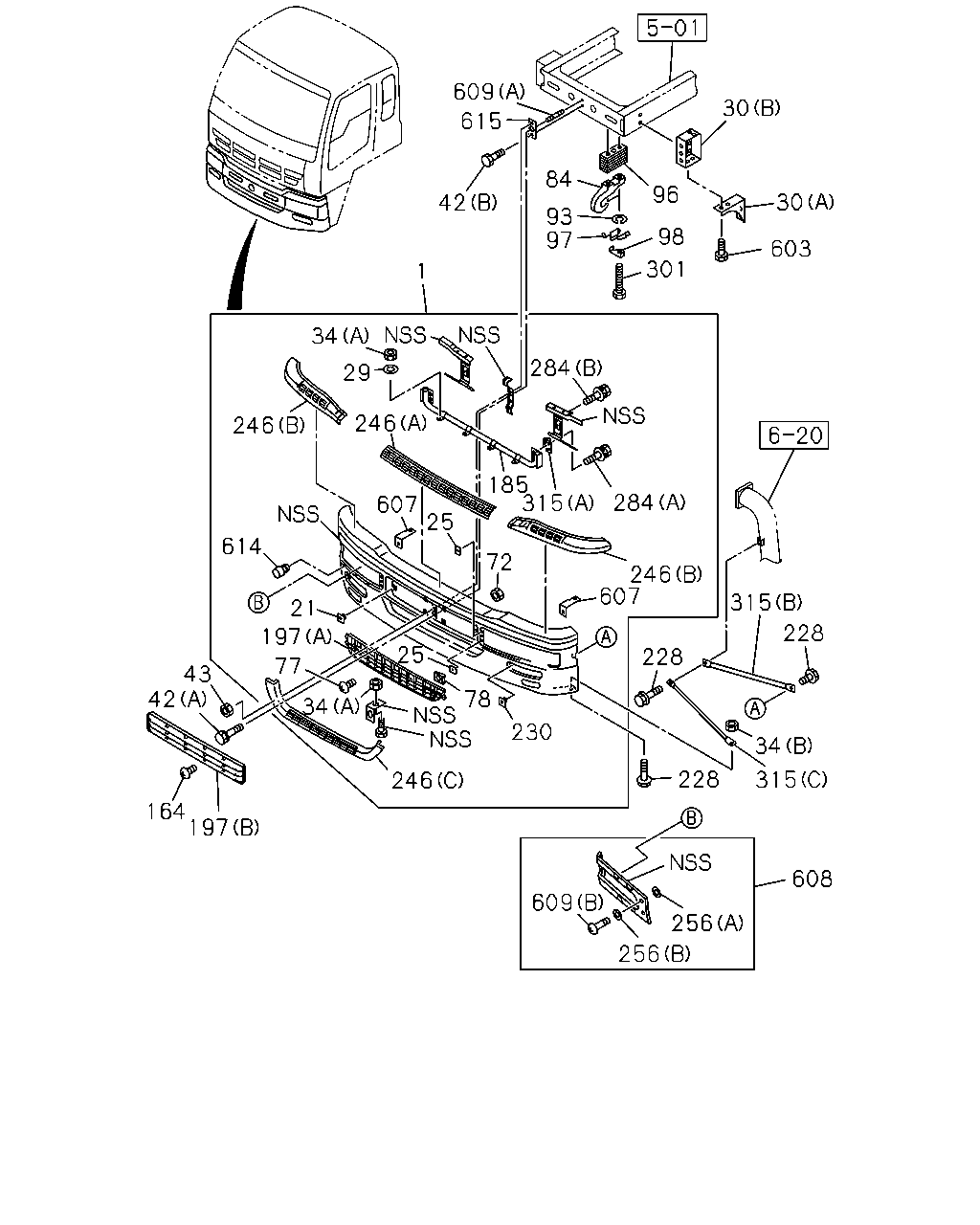

BUMPER ASM; FRT
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
FOG LAMP<T96>
|
1-71210-870-5 |
01 |
1 |
9902- |
● |
|
| |
1 |
BUMPER ASM; FRT
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
EXC. FOG LAMP<T96>
WHITE
|
1-71210-746-3 |
01 |
1 |
9902-9904 |
● |
|
| |
1 |
BUMPER ASM; FRT
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
EXC. FOG LAMP<T96>
WHITE
|
1-71210-746-3 |
01 |
1 |
9905-9910 |
● |
|
| |
1 |
BUMPER ASM; FRT
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
WHITE
|
1-71210-746-3 |
01 |
1 |
9905-9910 |
● |
|
| |
1 |
BUMPER ASM; FRT
CAB UP +110MM<TGG>
EXC. FOG LAMP<T96>
WHITE
|
1-71210-746-5 |
01 |
1 |
0004- |
● |
|
| |
1 |
BUMPER ASM; FRT
WHITE
|
1-71210-746-5 |
01 |
1 |
0004- |
|
● |
| |
1 |
BUMPER ASM; FRT
CAB UP +110MM<TGG>
EXC. FOG LAMP<T96>
WHITE
|
1-71210-746-3 |
01 |
1 |
9911-0003 |
● |
|
| |
21 |
GROMMET; SCREW,BUMPER PROTECTOR
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
D=9.7X9.7 L=8
|
8-94222-314-0 |
24 |
1 |
9902-9904 |
● |
|
| |
21 |
GROMMET; SCREW,BUMPER PROTECTOR
CAB UP +110MM<TGG>
D=9.7X9.7 L=8
|
8-94222-314-0 |
24 |
1 |
9905-0003 |
● |
|
| |
21 |
GROMMET; SCREW,BUMPER PROTECTOR
CAB UP +110MM<TGG>
D=9.7X9.7 L=8
|
8-94222-314-0 |
24 |
1 |
0004- |
● |
|
| |
21 |
GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8
|
8-94222-314-0 |
24 |
1 |
0004- |
|
● |
| |
25 |
SPACER; PLATFORM
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
|
1-71260-162-0 |
06 |
1 |
9902-9904 |
● |
|
| |
25 |
SPACER; PLATFORM
CAB UP +110MM<TGG>
|
1-71260-162-0 |
06 |
1 |
9905-0003 |
● |
|
| |
25 |
SPACER; PLATFORM
CAB UP +110MM<TGG>
|
1-71260-162-0 |
06 |
1 |
0004- |
● |
|
| |
25 |
SPACER; PLATFORM
|
1-71260-162-0 |
06 |
1 |
0004- |
|
● |
| |
29 |
WASHER; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
ID=8.4
|
9-09160-508-0 |
21 |
1 |
9902-9904 |
● |
|
| |
29 |
WASHER; FRT BUMPER
CAB UP +110MM<TGG>
ID=8.4
|
9-09160-508-0 |
21 |
1 |
9905-0003 |
● |
|
| |
29 |
WASHER; FRT BUMPER
CAB UP +110MM<TGG>
ID=8.4
|
9-09160-508-0 |
21 |
1 |
0004- |
● |
|
| |
29 |
WASHER; FRT BUMPER
ID=8.4
|
9-09160-508-0 |
21 |
1 |
0004- |
|
● |
| |
30 |
BRACKET; FRT BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71230-430-0 |
01 |
1 |
9902-0003 |
● |
|
| |
30 |
BRACKET; FRT BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71230-430-0 |
01 |
1 |
0004- |
● |
|
| |
30 |
BRACKET; FRT BUMPER
(A)
|
1-71230-430-0 |
01 |
1 |
0004- |
|
● |
| |
30 |
BRACKET; FRT BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71230-431-0 |
01 |
1 |
9902-0003 |
● |
|
| |
30 |
BRACKET; FRT BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71230-431-0 |
01 |
1 |
0004- |
● |
|
| |
30 |
BRACKET; FRT BUMPER
(A)
|
1-71230-431-0 |
01 |
1 |
0004- |
|
● |
| |
30 |
BRACKET; FRT BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71230-455-1 |
01 |
1 |
9905- |
● |
|
| |
30 |
BRACKET; FRT BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71230-456-1 |
01 |
1 |
9905- |
● |
|
| |
34 |
NUT; BRKT,BUMPER
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902-0003 |
● |
|
| |
34 |
NUT; BRKT,BUMPER
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0004- |
● |
● |
| |
34 |
NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(A)
M8 FLANGE
|
0-91150-108-0 |
17 |
1 |
9902-9904 |
● |
|
| |
34 |
NUT; BRKT,BUMPER
CAB UP +110MM<TGG>
(A)
M8 FLANGE
|
0-91150-108-0 |
17 |
1 |
9905-0003 |
● |
|
| |
34 |
NUT; BRKT,BUMPER
CAB UP +110MM<TGG>
(A)
M8 FLANGE
|
0-91150-108-0 |
17 |
1 |
0004- |
● |
|
| |
34 |
NUT; BRKT,BUMPER
(A)
M8 FLANGE
|
0-91150-108-0 |
17 |
1 |
0004- |
|
● |
| |
42 |
BOLT; BUMPER
(A)
M10X25 FLANGE
|
0-28681-025-0 |
07 |
1 |
9902-0003 |
● |
|
| |
42 |
BOLT; BUMPER
(A)
M10X25 FLANGE
|
0-28681-025-0 |
07 |
1 |
0004- |
● |
● |
| |
42 |
BOLT; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
M10X35 FLANGE
|
0-28081-035-0 |
08 |
1 |
9905- |
● |
|
| |
43 |
NUT; BRKT TO BUMPER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9902-0003 |
● |
|
| |
43 |
NUT; BRKT TO BUMPER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0004- |
● |
● |
| |
72 |
NUT; BRKT
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
M8
|
9-09110-508-0 |
04 |
1 |
9902-9904 |
● |
|
| |
72 |
NUT; BRKT
CAB UP +110MM<TGG>
M8
|
9-09110-508-0 |
04 |
1 |
9905-0003 |
● |
|
| |
72 |
NUT; BRKT
CAB UP +110MM<TGG>
M8
|
9-09110-508-0 |
04 |
1 |
0004- |
● |
|
| |
72 |
NUT; BRKT
M8
|
9-09110-508-0 |
04 |
1 |
0004- |
|
● |
| |
77 |
SCREW; BRKT
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
M5X12
|
9-93490-512-0 |
16 |
1 |
9902-9904 |
● |
|
| |
77 |
SCREW; BRKT
CAB UP +110MM<TGG>
M5X12
|
9-93490-512-0 |
16 |
1 |
9905-0003 |
● |
|
| |
77 |
SCREW; BRKT
CAB UP +110MM<TGG>
M5X12
|
9-93490-512-0 |
16 |
1 |
0004- |
● |
|
| |
77 |
SCREW; BRKT
M5X12
|
9-93490-512-0 |
16 |
1 |
0004- |
|
● |
| |
78 |
NUT; SPIRE
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
|
1-71260-152-0 |
04 |
1 |
9902-9904 |
● |
|
| |
78 |
NUT; SPIRE
CAB UP +110MM<TGG>
|
1-71260-152-0 |
04 |
1 |
9905-0003 |
● |
|
| |
78 |
NUT; SPIRE
CAB UP +110MM<TGG>
|
1-71260-152-0 |
04 |
1 |
0004- |
● |
|
| |
78 |
NUT; SPIRE
|
1-71260-152-0 |
04 |
1 |
0004- |
|
● |
| |
84 |
HOOK
|
1-57181-027-1 |
01 |
1 |
9902-0003 |
● |
|
| |
84 |
HOOK
|
1-57181-027-1 |
01 |
1 |
0004- |
● |
● |
| |
93 |
WASHER; LK,HOOK
ID=16.2
|
9-09150-516-0 |
02 |
1 |
9902-0003 |
● |
|
| |
93 |
WASHER; LK,HOOK
ID=16.2
|
9-09150-516-0 |
02 |
1 |
0004- |
● |
● |
| |
96 |
PLATE; DIST,HOOK
|
1-53497-560-0 |
01 |
1 |
9902-0003 |
● |
|
| |
96 |
PLATE; DIST,HOOK
|
1-53497-560-0 |
01 |
1 |
0004- |
● |
● |
| |
97 |
SPRING; FRT HOOK
|
9-53519-003-0 |
01 |
1 |
9902-0003 |
● |
|
| |
97 |
SPRING; FRT HOOK
|
9-53519-003-0 |
01 |
1 |
0004- |
● |
● |
| |
98 |
STOPPER; SPR,FRT HOOK
|
9-53519-006-0 |
01 |
1 |
9902-0003 |
● |
|
| |
98 |
STOPPER; SPR,FRT HOOK
|
9-53519-006-0 |
01 |
1 |
0004- |
● |
● |
| |
164 |
SCREW; AIR INT GRILLE
M6X20
|
1-71260-141-0 |
06 |
1 |
9902-0003 |
● |
|
| |
164 |
SCREW; AIR INT GRILLE
M6X20
|
1-71260-141-0 |
06 |
1 |
0004- |
● |
● |
| |
185 |
BRACKET; BUMPER,INNER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
|
1-71230-406-0 |
01 |
1 |
9902-9904 |
● |
|
| |
185 |
BRACKET; BUMPER,INNER
CAB UP +110MM<TGG>
|
1-71230-406-0 |
01 |
1 |
9905-0003 |
● |
|
| |
185 |
BRACKET; BUMPER,INNER
CAB UP +110MM<TGG>
|
1-71230-406-0 |
01 |
1 |
0004- |
● |
|
| |
185 |
BRACKET; BUMPER,INNER
|
1-71230-406-0 |
01 |
1 |
0004- |
|
● |
| |
197 |
GRILLE; BUMPER
(B)
|
1-71260-157-2 |
01 |
1 |
9902-0003 |
● |
|
| |
197 |
GRILLE; BUMPER
(B)
|
1-71260-157-2 |
01 |
1 |
0004- |
● |
● |
| |
197 |
GRILLE; BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(A)
|
1-71260-117-0 |
01 |
1 |
9902-9904 |
● |
|
| |
197 |
GRILLE; BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71260-117-0 |
01 |
1 |
9905-0003 |
● |
|
| |
197 |
GRILLE; BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71260-117-0 |
01 |
1 |
0004- |
● |
|
| |
197 |
GRILLE; BUMPER
(A)
|
1-71260-117-0 |
01 |
1 |
0004- |
|
● |
| |
228 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
06 |
1 |
9902-0003 |
● |
|
| |
228 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
06 |
1 |
0004- |
● |
● |
| |
230 |
NUT; BRK,HD LAMP,LWR
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
D=9.7X9.7 L=8
|
8-94222-314-0 |
04 |
1 |
9902-9904 |
● |
|
| |
230 |
NUT; BRK,HD LAMP,LWR
CAB UP +110MM<TGG>
D=9.7X9.7 L=8
|
8-94222-314-0 |
04 |
1 |
9905-0003 |
● |
|
| |
230 |
NUT; BRK,HD LAMP,LWR
CAB UP +110MM<TGG>
D=9.7X9.7 L=8
|
8-94222-314-0 |
04 |
1 |
0004- |
● |
|
| |
230 |
NUT; BRK,HD LAMP,LWR
D=9.7X9.7 L=8
|
8-94222-314-0 |
04 |
1 |
0004- |
|
● |
| |
246 |
PROTECTOR; BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(A)
|
1-71260-155-0 |
01 |
1 |
9902-9904 |
● |
|
| |
246 |
PROTECTOR; BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71260-155-0 |
01 |
1 |
9905-0003 |
● |
|
| |
246 |
PROTECTOR; BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71260-155-0 |
01 |
1 |
0004- |
● |
|
| |
246 |
PROTECTOR; BUMPER
(A)
|
1-71260-155-0 |
01 |
1 |
0004- |
|
● |
| |
246 |
PROTECTOR; BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(C)
|
1-71260-156-1 |
01 |
1 |
9902-9904 |
● |
|
| |
246 |
PROTECTOR; BUMPER
CAB UP +110MM<TGG>
(C)
|
1-71260-156-1 |
01 |
1 |
9905-0003 |
● |
|
| |
246 |
PROTECTOR; BUMPER
CAB UP +110MM<TGG>
(C)
|
1-71260-156-1 |
01 |
1 |
0004- |
● |
|
| |
246 |
PROTECTOR; BUMPER
(C)
|
1-71260-156-1 |
01 |
1 |
0004- |
|
● |
| |
246 |
PROTECTOR; BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(B)
|
1-71260-095-1 |
01 |
1 |
9902-9904 |
● |
|
| |
246 |
PROTECTOR; BUMPER
CAB UP +110MM<TGG>
(B)
|
1-71260-095-1 |
01 |
1 |
9905-0003 |
● |
|
| |
246 |
PROTECTOR; BUMPER
CAB UP +110MM<TGG>
(B)
|
1-71260-095-1 |
01 |
1 |
0004- |
● |
|
| |
246 |
PROTECTOR; BUMPER
(B)
|
1-71260-095-1 |
01 |
1 |
0004- |
|
● |
| |
246 |
PROTECTOR; BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(B)
|
1-71260-094-1 |
01 |
1 |
9902-9904 |
● |
|
| |
246 |
PROTECTOR; BUMPER
CAB UP +110MM<TGG>
(B)
|
1-71260-094-1 |
01 |
1 |
9905-0003 |
● |
|
| |
246 |
PROTECTOR; BUMPER
CAB UP +110MM<TGG>
(B)
|
1-71260-094-1 |
01 |
1 |
0004- |
● |
|
| |
246 |
PROTECTOR; BUMPER
(B)
|
1-71260-094-1 |
01 |
1 |
0004- |
|
● |
| |
256 |
WASHER; PL
BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
06 |
1 |
9902-9904 |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
03 |
1 |
9905-9910 |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
06 |
1 |
9911-0003 |
● |
|
| |
256 |
WASHER; PL
BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
06 |
1 |
9911-0003 |
● |
|
| |
256 |
WASHER; PL
BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
06 |
1 |
0004- |
● |
● |
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
06 |
1 |
0004- |
● |
|
| |
256 |
WASHER; PL
BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
06 |
1 |
9902-9904 |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
03 |
1 |
9905-9910 |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
06 |
1 |
9911-0003 |
● |
|
| |
256 |
WASHER; PL
BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
06 |
1 |
9911-0003 |
● |
|
| |
256 |
WASHER; PL
BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
06 |
1 |
0004- |
● |
● |
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
06 |
1 |
0004- |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
06 |
1 |
9905-9910 |
● |
|
| |
256 |
WASHER; PL
BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
06 |
1 |
9905-9910 |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
03 |
1 |
9911-0003 |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-173-0 |
03 |
1 |
0004- |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
06 |
1 |
9905-9910 |
● |
|
| |
256 |
WASHER; PL
BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
06 |
1 |
9905-9910 |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
03 |
1 |
9911-0003 |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
ID=6.5 OD=14 T=1.2 NYLON
|
5-09985-028-0 |
03 |
1 |
0004- |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
1-71260-153-0 |
03 |
1 |
9905- |
● |
|
| |
256 |
WASHER; PL
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-165-0 |
03 |
1 |
9905- |
● |
|
| |
284 |
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(B)
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
04 |
1 |
9902-9904 |
● |
|
| |
284 |
BOLT; BRKT
CAB UP +110MM<TGG>
(B)
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
04 |
1 |
9905-0003 |
● |
|
| |
284 |
BOLT; BRKT
CAB UP +110MM<TGG>
(B)
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
04 |
1 |
0004- |
● |
|
| |
284 |
BOLT; BRKT
(B)
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
04 |
1 |
0004- |
|
● |
| |
284 |
BOLT; BRKT
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(A)
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
04 |
1 |
9902-9904 |
● |
|
| |
284 |
BOLT; BRKT
CAB UP +110MM<TGG>
(A)
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
04 |
1 |
9905-0003 |
● |
|
| |
284 |
BOLT; BRKT
CAB UP +110MM<TGG>
(A)
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
04 |
1 |
0004- |
● |
|
| |
284 |
BOLT; BRKT
(A)
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
04 |
1 |
0004- |
|
● |
| |
301 |
BOLT; HOOK TO FRAME
M16X70
|
0-10811-670-0 |
01 |
1 |
9902-0003 |
● |
|
| |
301 |
BOLT; HOOK TO FRAME
M16X70
|
0-10811-670-0 |
01 |
1 |
0004- |
● |
● |
| |
301 |
BOLT; HOOK TO FRAME
M16X80
|
0-10811-680-0 |
01 |
1 |
9902-0003 |
● |
|
| |
301 |
BOLT; HOOK TO FRAME
M16X80
|
0-10811-680-0 |
01 |
1 |
0004- |
● |
● |
| |
315 |
STAY; BUMPER
(C)
|
1-71230-382-0 |
02 |
1 |
9902-0003 |
● |
|
| |
315 |
STAY; BUMPER
(C)
|
1-71230-382-0 |
02 |
1 |
0004-0004 |
● |
● |
| |
315 |
STAY; BUMPER
(C)
|
1-71230-501-0 |
02 |
1 |
0005- |
● |
● |
| |
315 |
STAY; BUMPER
(B)
|
1-71230-408-0 |
02 |
1 |
9902-0003 |
● |
|
| |
315 |
STAY; BUMPER
(B)
|
1-71230-408-0 |
02 |
1 |
0004- |
● |
● |
| |
315 |
STAY; BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(A)
|
1-71230-346-1 |
01 |
1 |
9902-9904 |
● |
|
| |
315 |
STAY; BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71230-346-1 |
01 |
1 |
9905-0003 |
● |
|
| |
315 |
STAY; BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71230-346-2 |
01 |
1 |
0004- |
● |
|
| |
315 |
STAY; BUMPER
(A)
|
1-71230-346-2 |
01 |
1 |
0004- |
|
● |
| |
315 |
STAY; BUMPER
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
(A)
|
1-71230-347-1 |
01 |
1 |
9902-9904 |
● |
|
| |
315 |
STAY; BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71230-347-1 |
01 |
1 |
9905-0003 |
● |
|
| |
315 |
STAY; BUMPER
CAB UP +110MM<TGG>
(A)
|
1-71230-347-2 |
01 |
1 |
0004- |
● |
|
| |
315 |
STAY; BUMPER
(A)
|
1-71230-347-2 |
01 |
1 |
0004- |
|
● |
| |
603 |
BOLT; BRKT
CAB UP +110MM<TGG>
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
9902-0003 |
● |
|
| |
603 |
BOLT; BRKT
CAB UP +110MM<TGG>
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
0004- |
● |
|
| |
603 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
0004- |
|
● |
| |
607 |
BRACKET
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
|
1-71230-454-0 |
02 |
1 |
9902-9904 |
● |
|
| |
607 |
BRACKET
CAB UP +110MM<TGG>
|
1-71230-454-0 |
02 |
1 |
9905-0003 |
● |
|
| |
607 |
BRACKET
CAB UP +110MM<TGG>
|
1-71230-454-0 |
02 |
1 |
0004- |
● |
|
| |
607 |
BRACKET
|
1-71230-454-0 |
02 |
1 |
0004- |
|
● |
| |
608 |
LID; BUMPER
BUMPER W/HEADLAMPS<SLB>
|
1-71210-753-4 |
01 |
1 |
9902-0003 |
● |
|
| |
608 |
LID; BUMPER
BUMPER W/HEADLAMPS<SLB>
|
1-71210-753-4 |
01 |
1 |
0004- |
● |
● |
| |
608 |
LID; BUMPER
BUMPER W/HEADLAMPS<SLB>
|
1-71210-752-4 |
01 |
1 |
9902-0003 |
● |
|
| |
608 |
LID; BUMPER
BUMPER W/HEADLAMPS<SLB>
|
1-71210-752-4 |
01 |
1 |
0004- |
● |
● |
| |
608 |
LID; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
|
1-71210-897-0 |
01 |
1 |
9905-0003 |
● |
|
| |
608 |
LID; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
|
1-71210-896-0 |
01 |
1 |
9905-0003 |
● |
|
| |
608 |
LID; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
|
1-71210-897-0 |
01 |
1 |
0004- |
● |
|
| |
608 |
LID; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
|
1-71210-896-0 |
01 |
1 |
0004- |
● |
|
| |
609 |
STUD; BUMPER
(A)
M10X28,M10X15 L=50
|
5-09300-050-0 |
01 |
1 |
9902-0003 |
● |
|
| |
609 |
STUD; BUMPER
(A)
M10X28,M10X15 L=50
|
5-09300-050-0 |
01 |
1 |
0004- |
● |
● |
| |
609 |
STUD; BUMPER
BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
06 |
1 |
9902-9904 |
● |
|
| |
609 |
STUD; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
03 |
1 |
9905-9910 |
● |
|
| |
609 |
STUD; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
06 |
1 |
9911-0003 |
● |
|
| |
609 |
STUD; BUMPER
BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
06 |
1 |
9911-0003 |
● |
|
| |
609 |
STUD; BUMPER
BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
06 |
1 |
0004- |
● |
● |
| |
609 |
STUD; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
06 |
1 |
0004- |
● |
|
| |
609 |
STUD; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
06 |
1 |
9905-9910 |
● |
|
| |
609 |
STUD; BUMPER
BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
06 |
1 |
9905-9910 |
● |
|
| |
609 |
STUD; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-175-0 |
03 |
1 |
9911- |
● |
|
| |
609 |
STUD; BUMPER
CAB UP +110MM<TGG>
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
1-71260-164-0 |
03 |
1 |
9905- |
● |
|
| |
614 |
STOPPER; LID
BUMPER W/HEADLAMPS<SLB>
CAB UP +110MM<TGG>
|
1-71260-163-0 |
12 |
1 |
9902-9904 |
● |
|
| |
614 |
STOPPER; LID
CAB UP +110MM<TGG>
|
1-71260-163-0 |
12 |
1 |
9905-0003 |
● |
|
| |
614 |
STOPPER; LID
CAB UP +110MM<TGG>
|
1-71260-163-0 |
12 |
1 |
0004- |
● |
|
| |
614 |
STOPPER; LID
|
1-71260-163-0 |
12 |
1 |
0004- |
|
● |
| |
615 |
BRACKET; BUMPER CENTER
CAB UP +110MM<TGG>
|
1-71230-407-0 |
01 |
1 |
9902-0003 |
● |
|
| |
615 |
BRACKET; BUMPER CENTER
CAB UP +110MM<TGG>
|
1-71230-407-0 |
01 |
1 |
0004- |
● |
|
| |
615 |
BRACKET; BUMPER CENTER
|
1-71230-407-0 |
01 |
1 |
0004- |
|
● |
