8-01 — LAMP; FRONT AND FRONT SIDE (#77267) — 191 parça

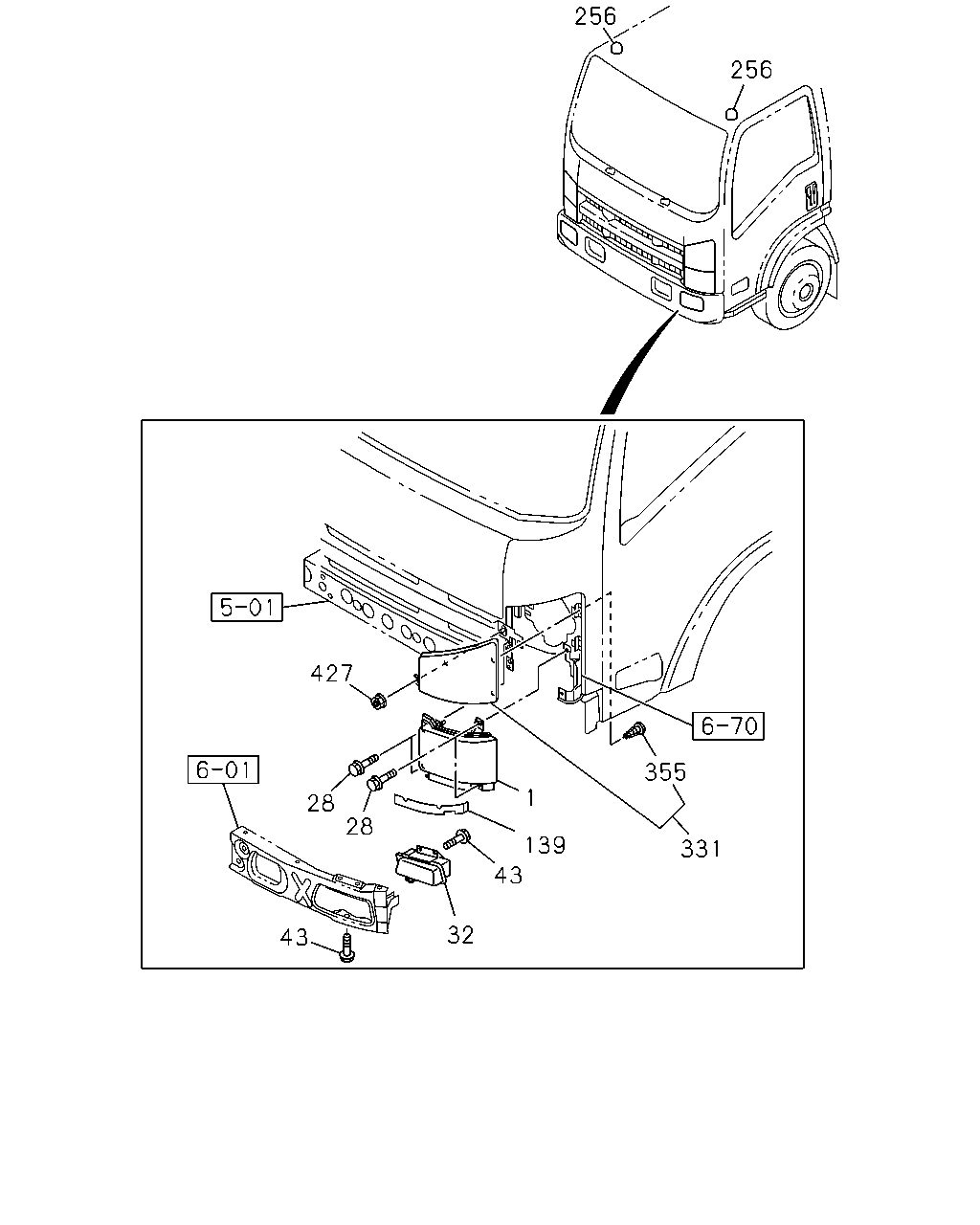

çizim 135689
256 256 427 28 28 43 32 43 355 331 1 139
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD 8-98098-481-2 01 1 0905-0906 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-481-2 01 1 0907-1208 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-597-0 01 1 1209-1301 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-638-0 01 1 1302-1305 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-323-0 01 1 1306- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98098-482-2 01 1 0905-0906 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-482-2 01 1 0907-1208 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-598-0 01 1 1209-1301 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-639-0 01 1 1302-1305 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-324-0 01 1 1306- ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0905-0906 ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0907-1005 ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1202-1301 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1302- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1202-1301 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1302- ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97378-908-1 01 1 0905-0906 ● ●
32 02.725 LAMP ASM; FOG 8-97378-908-1 01 1 0907-0909 ● ● ● ●
32 02.725 LAMP ASM; FOG 8-98149-143-0 01 1 0910-1111 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 1112-1301 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302- ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97378-909-1 01 1 0905-0906 ● ●
32 02.725 LAMP ASM; FOG 8-97378-909-1 01 1 0907-0909 ● ● ● ●
32 02.725 LAMP ASM; FOG 8-98149-144-0 01 1 0910-1111 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 1112-1301 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302- ● ● ● ●
43 02.736 BOLT; FOG LAMP
01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0905-0906 ● ●
43 02.736 BOLT; FOG LAMP
01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0907-1111 ● ● ● ●
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1112-1201 ● ● ● ●
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1202- ● ● ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 0905-0906 ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 0907- ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-596-4 01 1 0905-0906 ● ●
256 02.589 LAMP; MARKER 8-97587-596-4 01 1 0907- ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-597-4 01 1 0905-0906 ● ●
256 02.589 LAMP; MARKER 8-97587-597-4 01 1 0907- ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0905-0906 ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0907-0911 ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0905-0906 ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0907-0911 ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ● ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0905-0906 ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0907- ● ● ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ● ●
çizim 136028
331 431 357 399 355 432 1 4 339 338 408 420 20 23 5 5 382 457
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD 8-98098-481-2 01 1 0905-0906 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-481-2 01 1 0907-1208 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-597-0 01 1 1209-1301 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-638-0 01 1 1302-1305 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-323-0 01 1 1306- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98098-482-2 01 1 0905-0906 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-482-2 01 1 0907-1208 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-598-0 01 1 1209-1301 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-639-0 01 1 1302-1305 ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-324-0 01 1 1306- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98051-404-0 01 1 0905-0906 ● ●
4 02.727 HEADLAMP UNIT 8-98051-404-0 01 1 0907-1301 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-184-0 01 1 1302- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98051-405-0 01 1 0905-0906 ● ●
4 02.727 HEADLAMP UNIT 8-98051-405-0 01 1 0907-1301 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-185-0 01 1 1302- ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0905-0906 ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0907- ● ● ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0905-0906 ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0907- ● ● ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 0905-0906 ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 0907- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0905-0906 ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0907- ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0905-0906 ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0907-0911 ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0905-0906 ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0907-0911 ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ● ● ●
338 02.727 LEVELING; HEADLAMP 8-98010-256-0 02 1 1209- ● ● ● ●
339 02.587 GASKET; LEVELING 1-86830-158-0 02 1 1209- ● ● ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0905-0906 ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0907- ● ● ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0905-0906 ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0907- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0905-0906 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0907-1208 ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ● ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0905-0906 ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0907- ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0905-0906 ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0907- ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0905-0906 ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0907-1301 ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302- ● ● ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0905-0906 ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0907- ● ● ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0905-0906 ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0907- ● ● ● ●
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ● ● ●
çizim 136038
327 437 7 434 350 428 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ● ●
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0905-0906 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0907- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0905-0906 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0907- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0905-0906 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0907- ● ● ● ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 0905-0906 ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 0907- ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0905-0906 ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0907- ● ● ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 0905-0906 ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 0907- ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 0905-0906 ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 0907- ● ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0905-0906 ● ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0907- ● ● ● ●
çizim 186305
256 82 292 83 80 86 32 36 47 44 15 448 421 448 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 08.991 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0905-0906 ● ●
15 08.991 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0907-1111 ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1112-1201 ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 70W 		1-82194-106-0 02 1 1202- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1202-1301 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1302- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1202-1301 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1302- ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97378-908-1 01 1 0905-0906 ● ●
32 02.725 LAMP ASM; FOG 8-97378-908-1 01 1 0907-0909 ● ● ● ●
32 02.725 LAMP ASM; FOG 8-98149-143-0 01 1 0910-1111 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 1112-1301 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302- ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97378-909-1 01 1 0905-0906 ● ●
32 02.725 LAMP ASM; FOG 8-97378-909-1 01 1 0907-0909 ● ● ● ●
32 02.725 LAMP ASM; FOG 8-98149-144-0 01 1 0910-1111 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 1112-1301 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302- ● ● ● ●
36 02.727 CORD; FOG LAMP 1-82118-015-0 01 1 0905-0906 ● ●
36 02.727 CORD; FOG LAMP 1-82118-015-0 01 1 0907-1111 ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1112-1201 ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-015-0 01 1 1202- ● ● ● ●
36 02.727 CORD; FOG LAMP 1-82118-016-0 01 1 0905-0906 ● ●
36 02.727 CORD; FOG LAMP 1-82118-016-0 01 1 0907-1111 ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1112-1201 ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-016-0 01 1 1202- ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP FRONT VAR2<X99> 		8-98203-259-0 02 1 1112-1204 ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6 		8-98217-430-0 02 1 1205- ● ● ● ●
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP FRONT VAR2<X99> 		8-98203-258-0 02 1 1112-1204 ● ● ● ●
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98217-429-0 02 1 1205- ● ● ● ●
49 02.726 BRACKET; LAMP 8-98051-435-0 01 1 0905-0906 ● ●
49 02.726 BRACKET; LAMP 8-98051-435-0 01 1 0907-1111 ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 1112-1201 ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-435-0 01 1 1202- ● ● ● ●
49 02.726 BRACKET; LAMP 8-98051-436-0 01 1 0905-0906 ● ●
49 02.726 BRACKET; LAMP 8-98051-436-0 01 1 0907-1111 ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 1112-1201 ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-436-0 01 1 1202- ● ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0905-0906 ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0907- ● ● ● ●
82 02.587 SCREW; MARKER LAMP 1-82219-011-0 04 1 0905-0906 ● ●
82 02.587 SCREW; MARKER LAMP 1-82219-011-0 04 1 0907- ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-98057-958-0 02 1 0905-0906 ● ●
83 02.589 LENS; MARKER LAMP 8-98057-958-0 02 1 0907- ● ● ● ●
86 02.587 NUT; MARKER LAMP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0905-0906 ● ●
86 02.587 NUT; MARKER LAMP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0907- ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-596-4 01 1 0905-0906 ● ●
256 02.589 LAMP; MARKER 8-97587-596-4 01 1 0907- ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-597-4 01 1 0905-0906 ● ●
256 02.589 LAMP; MARKER 8-97587-597-4 01 1 0907- ● ● ● ●
292 02.587 WASHER; MARKER LAMP 1-82219-012-0 04 1 0905-0906 ● ●
292 02.587 WASHER; MARKER LAMP 1-82219-012-0 04 1 0907- ● ● ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
02.596 		8-97025-128-0 02 1 0905-0906 ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
02.596 		8-97025-128-0 02 1 0907-0909 ● ● ● ●
448 02.727 CAP ASM; LAMP 8-97378-874-0 02 1 0910-1111 ● ● ● ●
448 02.727 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1112-1201 ● ● ● ●
448 02.727 CAP ASM; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97378-874-0 02 1 1202- ● ● ● ●

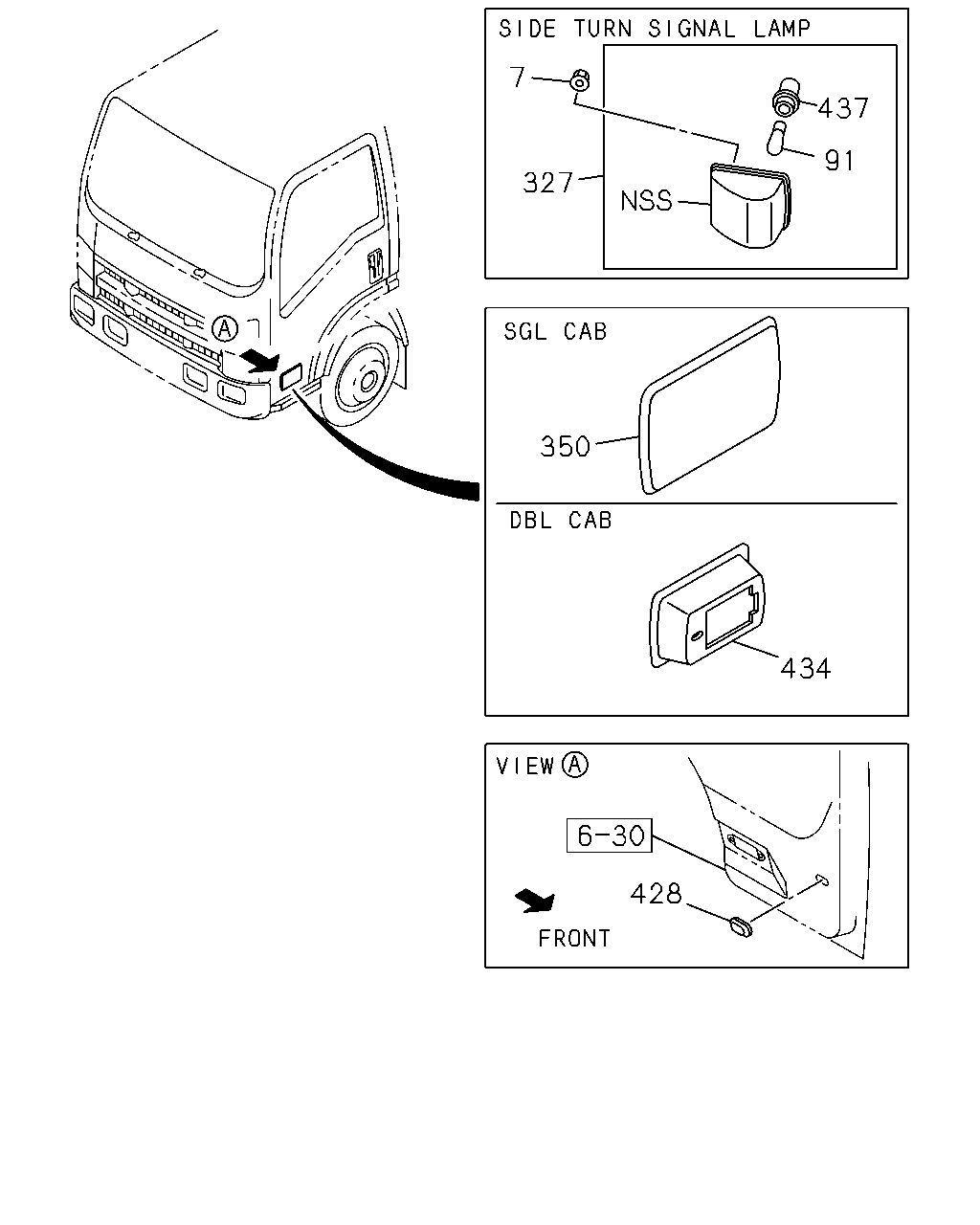

çizim 186437
7 437 91 327 350 434 428
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ● ●
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0905-0906 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0907- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0905-0906 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0907- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0905-0906 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0907- ● ● ● ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 0905-0906 ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 0907- ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0905-0906 ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0907- ● ● ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 0905-0906 ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 0907- ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 0905-0906 ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 0907- ● ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0905-0906 ● ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0907- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
