7-60 — SEAT BELT (#77266) — 80 parça

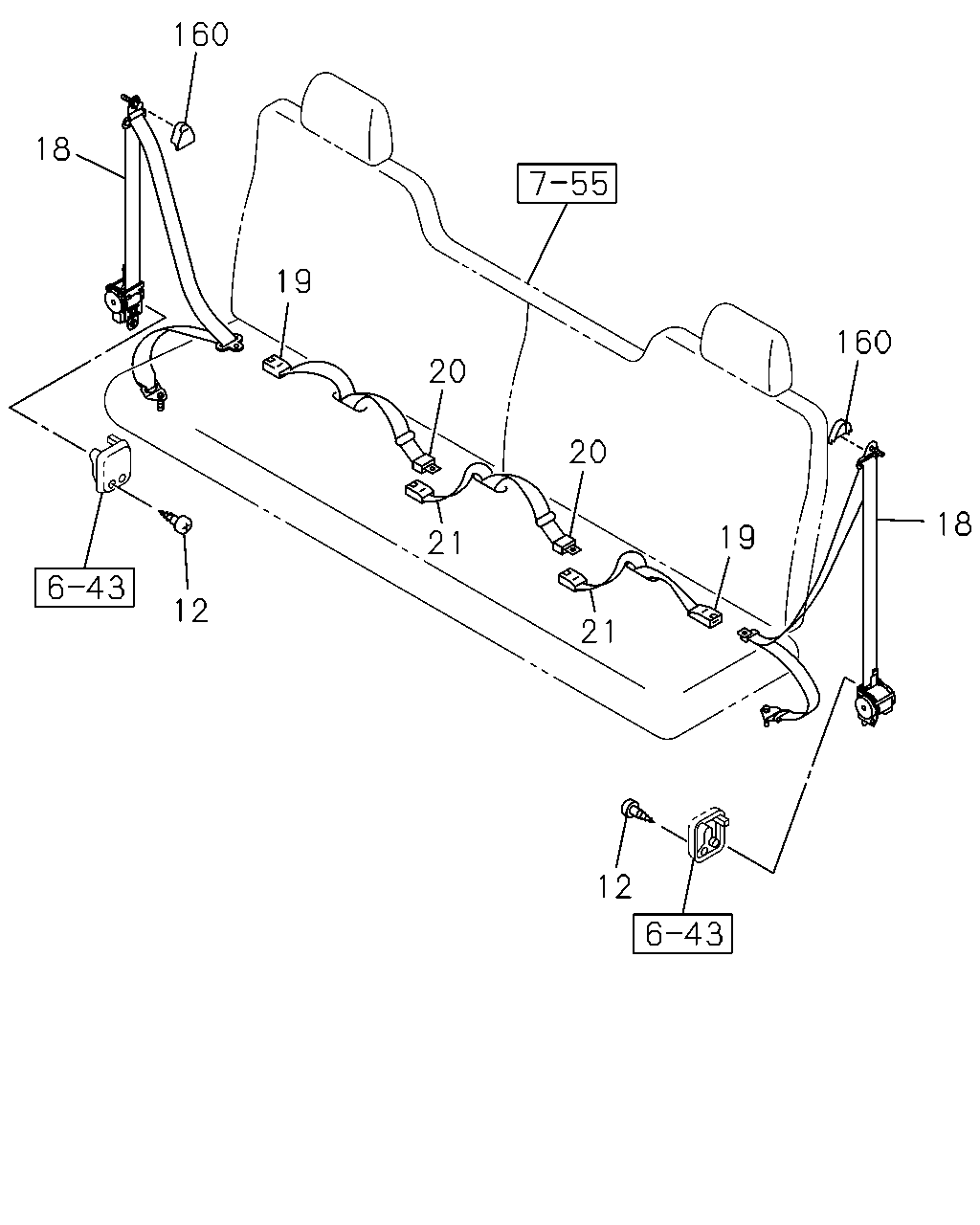

160 18 19 160 20 20 18 19 21 12 21 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	16.714 SCREW; RETRACTOR COVER,SEAT BELT M4X14 TAPPING	0-74360-414-0	04	1	0905-0906	●
12	16.714 SCREW; RETRACTOR COVER,SEAT BELT M4X14 TAPPING	0-74360-414-0	04	1	0907-	●	●
18	16.714 BELT; SEAT,RR GRAY	8-97405-185-8	02	1	0905-0906	●
18	16.714 BELT; SEAT,RR GRAY	8-97405-185-8	02	1	0907-	●	●
19	16.714 BELT; RR SEAT,BUCKLE SIDE GRAY	8-97405-992-3	02	1	0905-0906	●
19	16.714 BELT; RR SEAT,BUCKLE SIDE GRAY	8-97405-992-3	02	1	0907-	●	●
20	16.714 BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97411-511-3	01	1	0905-0906	●
20	16.714 BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97411-511-3	01	1	0907-	●	●
20	16.714 BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97411-512-3	01	1	0905-0906	●
20	16.714 BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97411-512-3	01	1	0907-	●	●
21	16.714 BELT; RR SEAT CTR,BUCKLE SIDE GRAY	8-97405-993-0	01	1	0905-0906	●
21	16.714 BELT; RR SEAT CTR,BUCKLE SIDE GRAY	8-97405-993-0	01	1	0907-	●	●
21	16.714 BELT; RR SEAT CTR,BUCKLE SIDE GRAY	8-97407-144-0	01	1	0905-0906	●
21	16.714 BELT; RR SEAT CTR,BUCKLE SIDE GRAY	8-97407-144-0	01	1	0907-	●	●
160	16.714 COVER; THROUGH ANCHOR FRONT GRAY	8-97405-991-0	01	1	0905-0906	●		●
160	16.714 COVER; THROUGH ANCHOR FRONT GRAY	8-97405-991-0	01	1	0907-	●	●	●	●
160	16.714 COVER; THROUGH ANCHOR REAR GRAY	8-97405-991-0	02	1	0905-0906	●
160	16.714 COVER; THROUGH ANCHOR REAR GRAY	8-97405-991-0	02	1	0907-	●	●

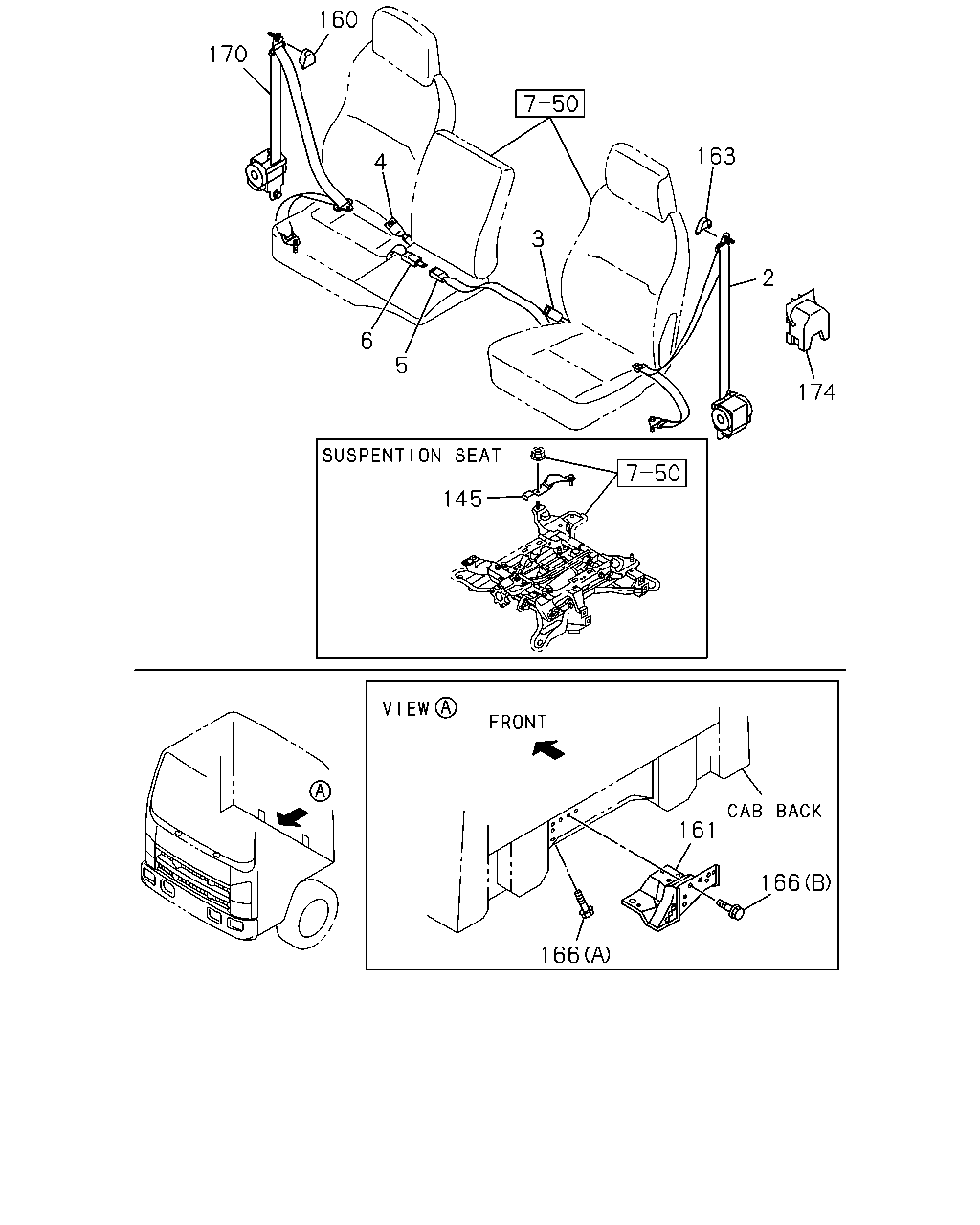

160 170 163 4 3 2 6 5 174 145 161 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	0905-0906	●		●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	0907-1406	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-456-0	01	1	1407-	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> GRAY	8-97405-180-7	01	1	0905-0906	●		●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> GRAY	8-97405-180-7	01	1	0907-1406	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> GRAY	8-97428-457-1	01	1	1407-	●	●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97405-175-2	01	1	0905-0906	●		●
3	16.714 BELT; SEAT,BUCKLE SIDE GRAY	8-97405-175-2	01	1	0907-	●	●	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97405-178-0	01	1	0905-0906	●		●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97405-178-0	01	1	0907-	●	●	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97405-182-1	01	1	0905-0906	●		●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97405-182-1	01	1	0907-	●	●	●	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97411-507-2	01	1	0905-0906	●		●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97411-507-2	01	1	0907-	●	●	●	●
145	16.714 BELT; TETHER,DRIVER SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97415-842-0	01	1	0905-0906			●
145	16.714 BELT; TETHER,DRIVER SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97415-842-0	01	1	0907-			●	●
160	16.714 COVER; THROUGH ANCHOR FRONT GRAY	8-97405-991-0	01	1	0905-0906	●		●
160	16.714 COVER; THROUGH ANCHOR FRONT GRAY	8-97405-991-0	01	1	0907-	●	●	●	●
160	16.714 COVER; THROUGH ANCHOR REAR GRAY	8-97405-991-0	02	1	0905-0906	●
160	16.714 COVER; THROUGH ANCHOR REAR GRAY	8-97405-991-0	02	1	0907-	●	●
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 16.545	8-98017-005-2	01	1	0905-0906			●
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 16.545	8-98017-005-2	01	1	0907-			●	●
163	16.714 COVER; ADJUSTER GRAY	8-97405-991-0	01	1	0905-0906	●		●
163	16.714 COVER; ADJUSTER GRAY	8-97405-991-0	01	1	0907-	●	●	●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	0905-0906			●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	0907-			●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0905-0906			●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0905-0906	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0907-			●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0907-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0905-0906			●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0907-			●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	0905-0906	●		●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-179-9	01	1	0907-1406	●	●	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-456-0	01	1	1407-	●	●	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-180-7	01	1	0905-0906	●		●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-180-7	01	1	0907-1406	●	●	●	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97428-457-1	01	1	1407-	●	●	●	●
174	16.714 COVER; RETRACTOR,SEAT BELT	8-98039-376-1	01	1	0905-0906			●
174	16.714 COVER; RETRACTOR,SEAT BELT	8-98039-376-1	01	1	0907-			●	●

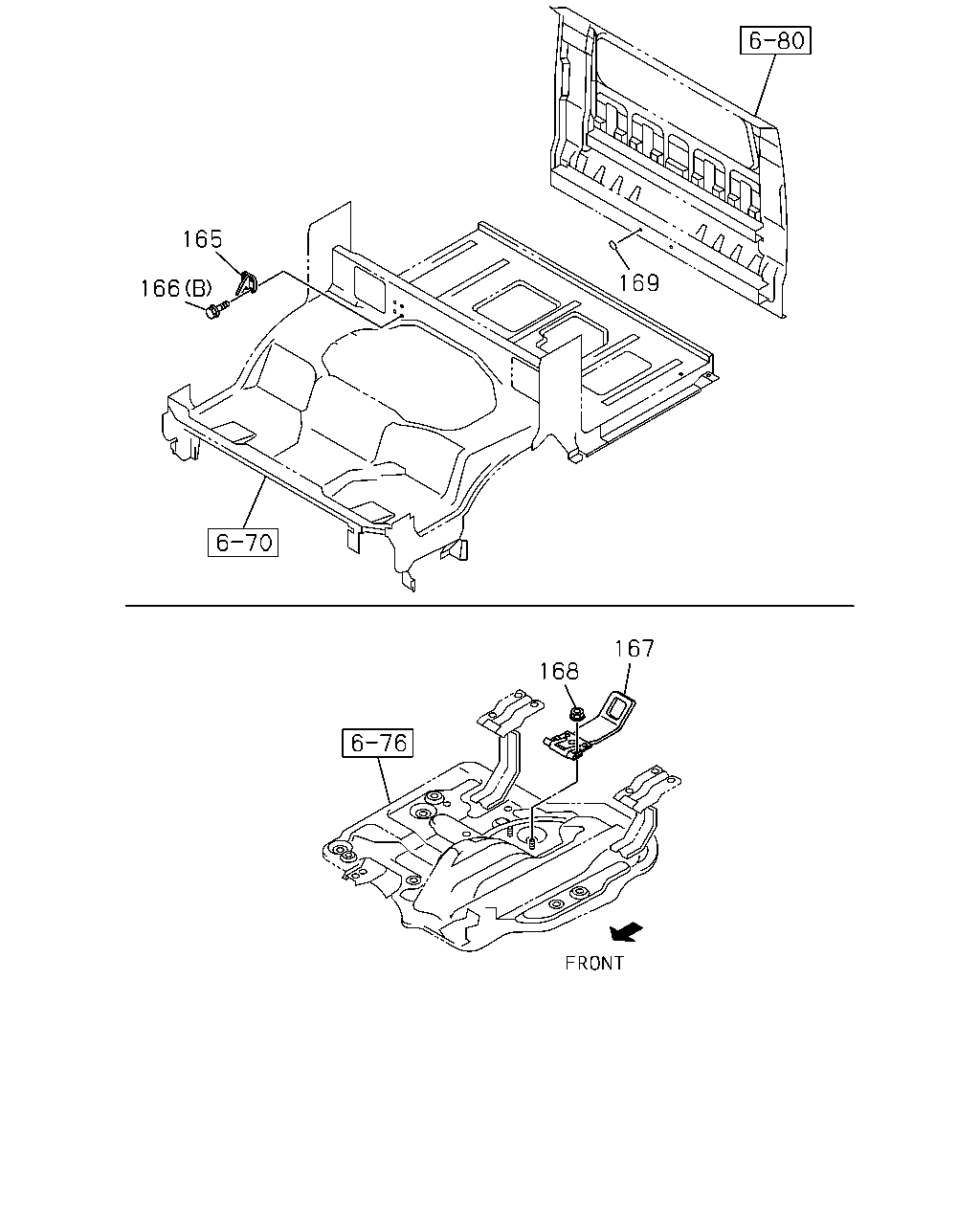

165 169 166 167 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	0905-0906			●
165	16.714 HOOK; SEAT BELT ANCHOR	8-98040-143-0	01	1	0905-0906	●
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	0907-			●	●
165	16.714 HOOK; SEAT BELT ANCHOR	8-98040-143-0	01	1	0907-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	0905-0906			●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	0907-			●	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0905-0906			●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0905-0906	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0907-			●	●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0907-	●	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0905-0906			●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0907-			●	●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	0905-0906			●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	0905-0906	●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	0907-			●	●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	0907-	●	●
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906			●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-			●	●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
169	16.650 SEAL 02.580 OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0905-0906	●
169	16.650 SEAL 02.580 OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0907-	●	●
