Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#77264) — 274 parça

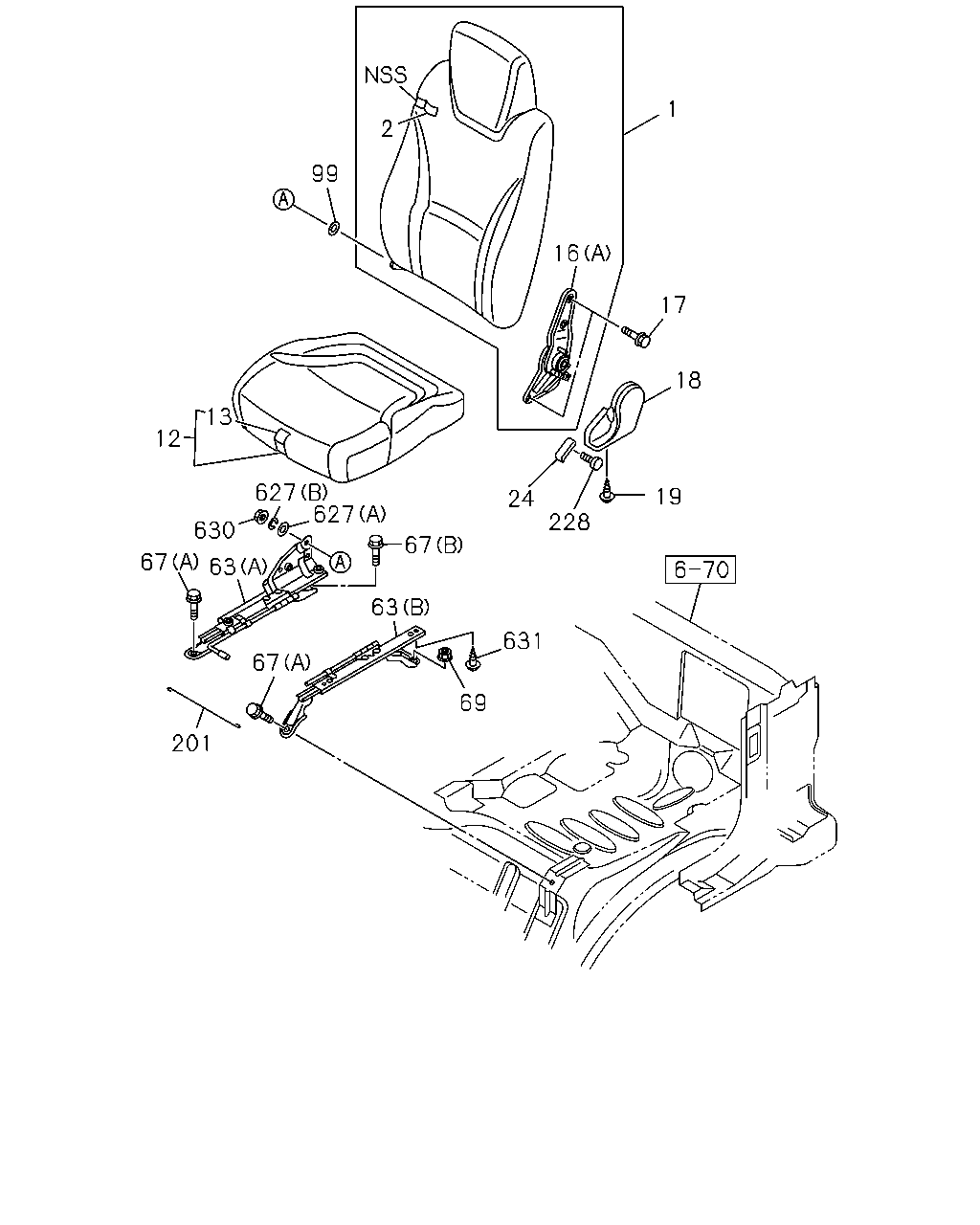

1 2 99 16 17 18 19 228 24 631 69 63 67 627 627 13 12 630 67 63 67 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-4	01	1	0905-0906	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-4	01	1	0907-1009	●	●	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97421-237-1	01	1	1010-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-2	01	1	0905-0906	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-2	01	1	0907-1009	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-256-0	01	1	1010-	●	●	●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-257-0	01	1	0905-0906	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-257-0	01	1	0907-1009	●		●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-246-2	01	1	1010-	●		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-394-2	01	1	0905-0906	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0905-0906		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-394-2	01	1	0907-1009	●		●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0907-1009		●		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97421-250-2	01	1	1010-	●		●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-250-2	01	1	1010-		●		●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-254-1	01	1	0905-0906	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-254-1	01	1	0907-1009	●		●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-2	01	1	1010-	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-265-2	01	1	1010-	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-395-2	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0905-0906		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-395-2	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0907-1009		●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97421-270-2	01	1	1010-	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-270-2	01	1	1010-		●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-2	01	1	1010-	●		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0907-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	0907-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	0907-	●	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0905-0906	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0907-	●	●	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0905-0906	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0907-	●	●	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0905-0906	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0907-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0905-0906	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0907-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) OUTER	8-98114-418-0	01	1	0905-0906	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) OUTER	8-98114-418-1	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) INNER	8-98114-420-0	01	1	0905-0906	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) INNER	8-98114-420-1	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (A) INNER	8-98002-907-2	01	1	0905-0906	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0905-0906		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (A) INNER	8-98002-907-2	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0907-		●		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (B) OUTER	8-98002-908-1	01	1	0905-0906	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0905-0906		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (B) OUTER	8-98002-908-1	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0907-		●		●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0905-0906	●	●
67	16.682 BOLT; FRT SEAT TO BODY SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (A) M10X20 FLANGE	8-98055-941-0	02	1	0905-0906	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0907-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (A) M10X20 FLANGE	8-98055-941-0	02	1	0907-	●		●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0905-0906	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0907-	●	●	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> M10 FLANGE	8-98055-961-0	02	1	0905-0906	●
69	16.682 NUT; FRT SEAT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> M10 FLANGE	8-98055-961-0	02	1	0907-	●		●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0905-0906	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0907-	●	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0905-0906	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0907-	●	●	●	●
201	16.682 CABLE; ADJ SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98114-421-0	01	1	0905-0906	●
201	16.682 CABLE; ADJ SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98114-421-0	01	1	0907-	●		●
201	16.682 CABLE; ADJ EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>	8-98003-086-1	01	1	0905-0906	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0905-0906		●
201	16.682 CABLE; ADJ EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>	8-98003-086-1	01	1	0907-	●		●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0907-		●		●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0905-0906	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0907-	●	●	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0905-0906	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0907-	●	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0905-0906	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0907-	●	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0905-0906	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0907-	●	●	●	●
631	16.682 BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	0905-0906	●	●
631	16.682 BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	0907-	●	●	●	●
631	16.682 BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	0905-0906	●	●
631	16.682 BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	0907-	●	●	●	●

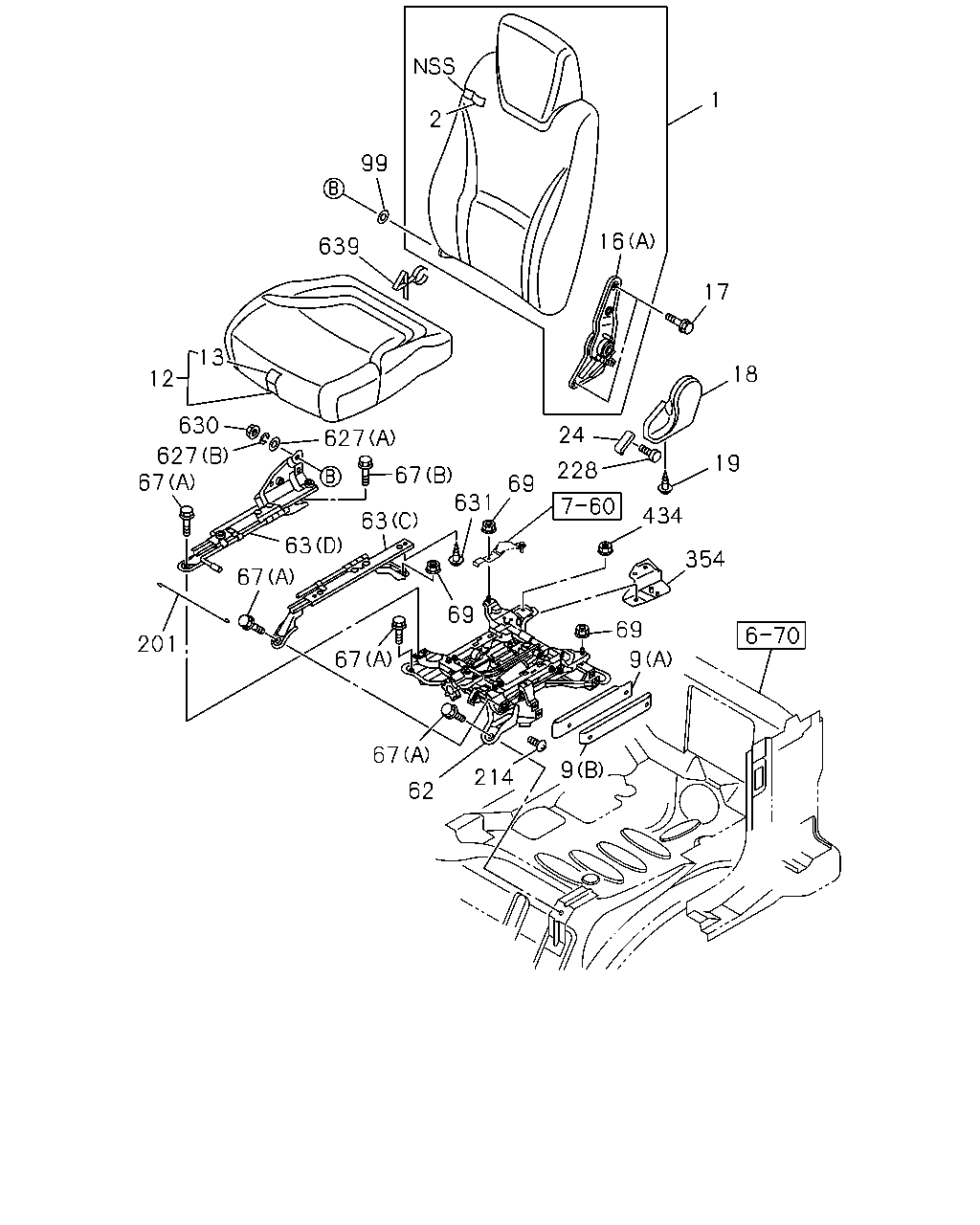

1 2 99 16 17 18 19 434 24 228 354 69 9 9 214 62 67 69 631 69 67 63 63 67 627 630 627 67 201 12 13 639 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-4	01	1	0905-0906	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-4	01	1	0907-1009	●	●	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97421-237-1	01	1	1010-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-2	01	1	0905-0906	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-2	01	1	0907-1009	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-256-0	01	1	1010-	●	●	●	●
9	16.682 COVER; SIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) UPPER GRAY	8-97415-722-0	01	1	0905-0906	●
9	16.682 COVER; SIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) UPPER GRAY	8-97415-722-0	01	1	0907-	●		●
9	16.682 COVER; SIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) LOWER GRAY	8-97415-723-0	01	1	0905-0906	●
9	16.682 COVER; SIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) LOWER GRAY	8-97415-723-0	01	1	0907-	●		●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-257-0	01	1	0905-0906	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-257-0	01	1	0907-1009	●		●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-246-2	01	1	1010-	●		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-394-2	01	1	0905-0906	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0905-0906		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-394-2	01	1	0907-1009	●		●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0907-1009		●		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97421-250-2	01	1	1010-	●		●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-250-2	01	1	1010-		●		●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-254-1	01	1	0905-0906	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-254-1	01	1	0907-1009	●		●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-2	01	1	1010-	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-265-2	01	1	1010-	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-395-2	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0905-0906		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-395-2	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0907-1009		●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97421-270-2	01	1	1010-	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-270-2	01	1	1010-		●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-2	01	1	1010-	●		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0907-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	0907-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	0907-	●	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0905-0906	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0907-	●	●	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0905-0906	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0907-	●	●	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0905-0906	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0907-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0905-0906	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0907-	●	●	●	●
62	16.686 DAMPER ASM; SEAT SUSP SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97415-703-3	01	1	0905-0906	●
62	16.686 DAMPER ASM; SEAT SUSP SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97415-703-3	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) OUTER	8-98114-418-0	01	1	0905-0906	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) OUTER	8-98114-418-1	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) INNER	8-98114-420-0	01	1	0905-0906	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) INNER	8-98114-420-1	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (A) INNER	8-98002-907-2	01	1	0905-0906	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0905-0906		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (A) INNER	8-98002-907-2	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0907-		●		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (B) OUTER	8-98002-908-1	01	1	0905-0906	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0905-0906		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (B) OUTER	8-98002-908-1	01	1	0907-	●		●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0907-		●		●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0905-0906	●	●
67	16.682 BOLT; FRT SEAT TO BODY SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (A) M10X20 FLANGE	8-98055-941-0	02	1	0905-0906	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0907-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> (A) M10X20 FLANGE	8-98055-941-0	02	1	0907-	●		●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0905-0906	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0907-	●	●	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> M10 FLANGE	8-98055-961-0	02	1	0905-0906	●
69	16.682 NUT; FRT SEAT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> M10 FLANGE	8-98055-961-0	02	1	0907-	●		●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0905-0906	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0907-	●	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0905-0906	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0907-	●	●	●	●
201	16.682 CABLE; ADJ SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98114-421-0	01	1	0905-0906	●
201	16.682 CABLE; ADJ SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98114-421-0	01	1	0907-	●		●
201	16.682 CABLE; ADJ EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>	8-98003-086-1	01	1	0905-0906	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0905-0906		●
201	16.682 CABLE; ADJ EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>	8-98003-086-1	01	1	0907-	●		●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0907-		●		●
214	16.682 SCREW; SIDE COVER SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98130-276-0	04	1	0905-0906	●
214	16.682 SCREW; SIDE COVER SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98130-276-0	04	1	0907-	●		●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0905-0906	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0907-	●	●	●	●
354	16.686 BRACKET; SUSPENSION DEVICE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.714	8-98090-868-1	01	1	0905-0906	●
354	16.686 BRACKET; SUSPENSION DEVICE SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.714	8-98090-868-1	01	1	0907-	●		●
434	16.716 NUT; BRKT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.682 M10 FLANGE	8-98055-961-0	01	1	0905-0906	●
434	16.716 NUT; BRKT SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.682 M10 FLANGE	8-98055-961-0	01	1	0907-	●		●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0905-0906	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0907-	●	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0905-0906	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0907-	●	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0905-0906	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0907-	●	●	●	●
631	16.682 BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	0905-0906	●	●
631	16.682 BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	0907-	●	●	●	●
631	16.682 BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	0905-0906	●	●
631	16.682 BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	0907-	●	●	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>	8-98097-693-0	01	1	0905-0906	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0905-0906		●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>	8-98097-693-0	01	1	0907-	●		●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0907-		●		●

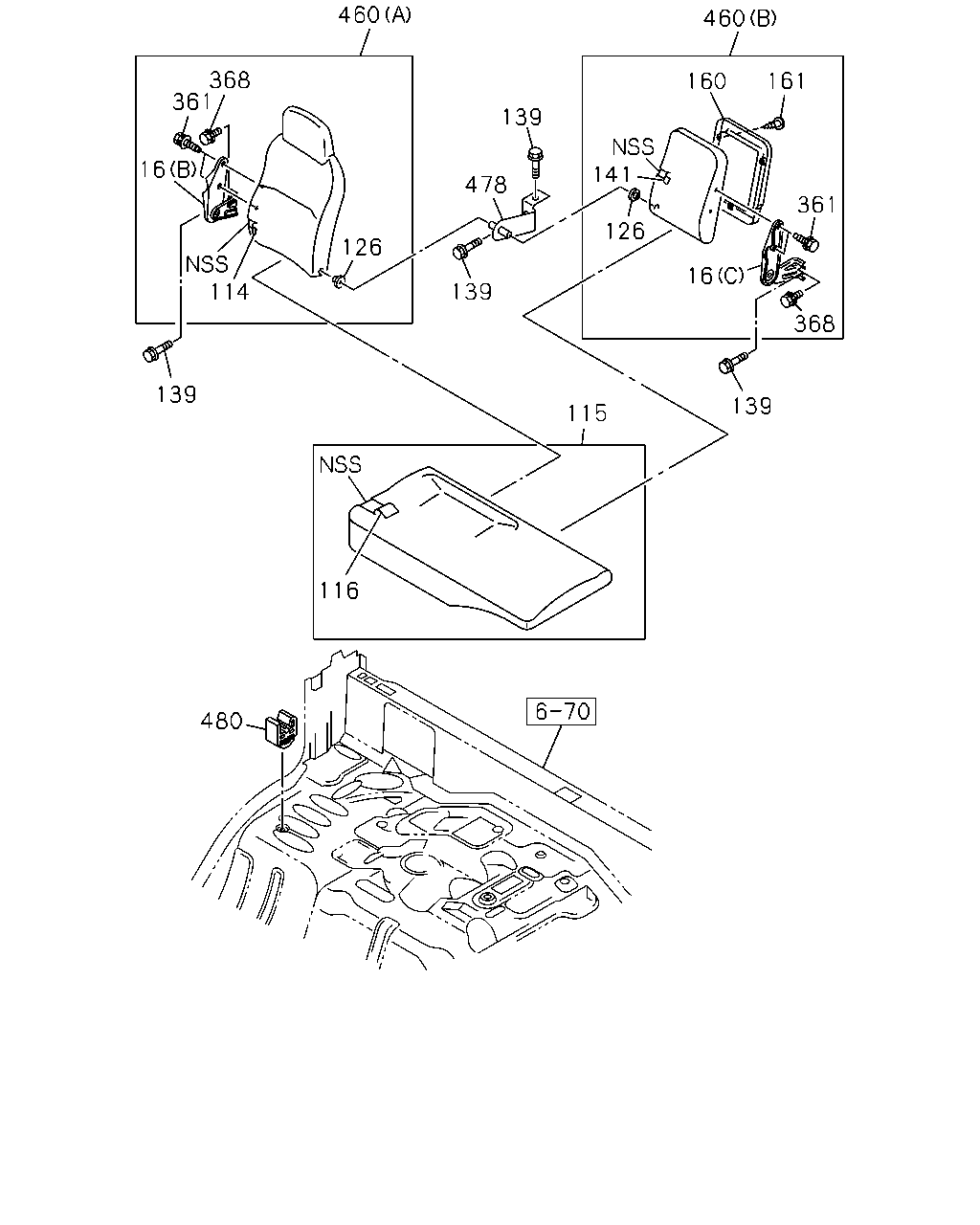

460 460 368 361 161 160 139 141 16 478 361 126 126 114 16 13 368 139 139 115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-265-2	01	1	1010-	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-395-2	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0905-0906		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97409-395-2	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0907-1009		●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> DARK GRAY	8-97421-270-2	01	1	1010-	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-270-2	01	1	1010-		●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0905-0906	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0907-1009	●		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-2	01	1	1010-	●		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0907-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK W/KNOB	8-97859-273-3	01	1	0907-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	0905-0906	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-274-3	01	1	0907-	●	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-725-0	01	1	1001-1009	●		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-296-0	01	1	1010-	●		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-364-1	01	1	0905-0906	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-364-1	01	1	0907-0912	●	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-364-1	01	1	1001-1009	●		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-364-1	01	1	1001-1009		●		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-295-0	01	1	1010-	●		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-295-0	01	1	1010-		●		●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-278-0	01	1	0905-0906	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-278-0	01	1	0905-0906		●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-278-0	01	1	0907-1009	●		●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-278-0	01	1	0907-1009		●		●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-327-3	01	1	1010-	●		●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-327-3	01	1	1010-		●		●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-277-0	01	1	0905-0906	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-277-0	01	1	0907-0912	●		●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-710-0	01	1	1001-1009	●		●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-326-3	01	1	1010-	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-293-0	01	1	0905-0906	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97416-293-0	01	1	0905-0906		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-293-0	01	1	0907-1009	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97416-293-0	01	1	0907-1009		●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-347-2	01	1	1010-	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97421-347-2	01	1	1010-		●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-292-0	01	1	0905-0906	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-292-0	01	1	0907-0912	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-739-0	01	1	1001-1009	●		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-346-2	01	1	1010-	●		●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	0905-0906	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	0907-	●	●	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	0905-0906	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	0907-	●	●	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-729-0	01	1	1001-1009	●		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-308-0	01	1	1010-	●		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97409-368-1	01	1	0905-0906	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97409-368-1	01	1	0907-0912	●	●	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-368-1	01	1	1001-1009	●		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97409-368-1	01	1	1001-1009		●		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-307-1	01	1	1010-	●		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97421-307-1	01	1	1010-		●		●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	0905-0906	●	●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	0907-	●	●	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	0905-0906	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	0907-	●	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	0905-0906	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	0907-	●	●	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0905-0906	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0907-	●	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-696-0	01	1	1001-1009	●		●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-283-0	01	1	1010-	●		●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97406-045-4	01	1	0905-0906	●	●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97406-045-4	01	1	0907-0912	●	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97406-045-4	01	1	1001-1009	●		●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97406-045-4	01	1	1001-1009		●		●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-282-0	01	1	1010-	●		●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97421-282-0	01	1	1010-		●		●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-700-1	01	1	1001-1009	●		●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-302-1	01	1	1010-	●		●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97406-046-2	01	1	0905-0906	●	●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97406-046-2	01	1	0907-0912	●	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97406-046-3	01	1	1001-1009	●		●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97406-046-3	01	1	1001-1009		●		●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-301-1	01	1	1010-	●		●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97421-301-1	01	1	1010-		●		●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	0905-0906	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	0907-	●	●	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0905-0906	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0907-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
