5-30 — SPARE TIRE CARRIER AND COVER (#7726) — 62 parça

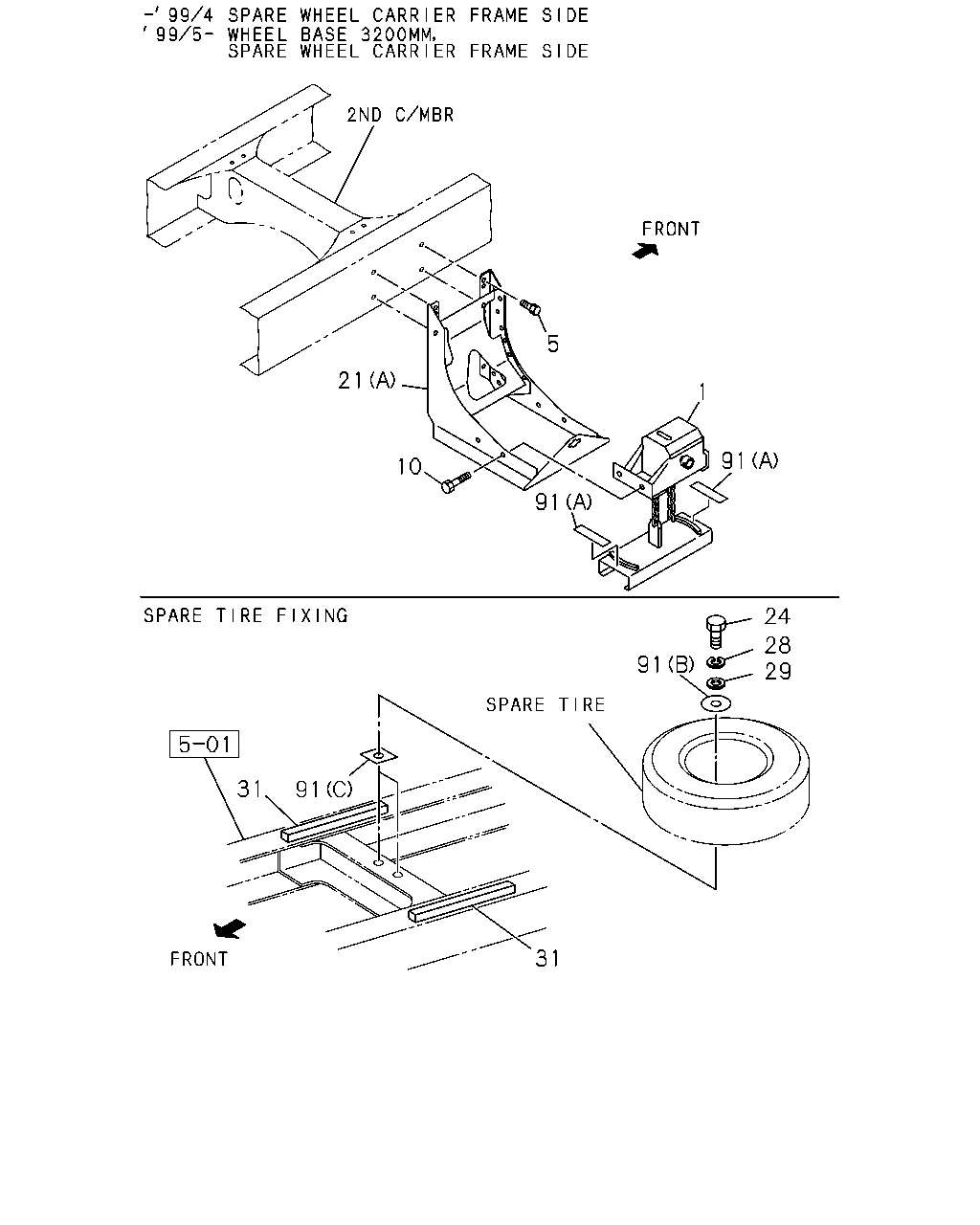

5 21 1 91 10 91 24 28 29 91 31 91 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-53630-210-1	02	1	9902-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-53630-210-1	01	1	9902-0003	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG>	1-53630-210-1	01	1	0004-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53630-210-1	01	1	0004-		●
1	HANGER ASM; TIRE FT WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	1-53630-208-1	01	1	9905-0003	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG>	1-53630-208-1	01	1	9905-0003	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG>	1-53630-208-1	01	1	0004-	●
1	HANGER ASM; TIRE FT WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>	1-53630-208-1	02	1	9905-	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	04	1	9902-9904	●
5	BOLT; BRKT TO FRAME WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	04	1	9905-0003	●
5	BOLT; BRKT TO FRAME WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	04	1	0004-	●	●
5	BOLT; BRKT TO FRAME WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	06	1	9905-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	9902-0003	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0004-	●	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-396-1	01	1	9902-9903	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	1-53631-396-1	01	1	9904-9904	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	1-53631-396-1	01	1	9905-0003	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	1-53631-396-1	01	1	0004-	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-396-1	01	1	0004-		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	1-53631-397-1	01	1	9904-9904	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	1-53631-397-1	01	1	9905-	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-128-1	01	1	9905-	●
24	BOLT; SPARE TIRE SPARE TIRE FIXING<RE3> M14X100	0-20801-400-0	02	1	9902-	●
24	BOLT; SPARE TIRE WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28681-225-0	02	1	9905-	●
28	WASHER; LK,SPARE TIRE SPARE TIRE FIXING<RE3> ID=14.2	9-09150-614-0	02	1	9902-	●
29	WASHER; PL,BRKT,HANGER SPARE TIRE FIXING<RE3> ID=15 OD=52	9-09164-814-0	02	1	9902-	●
31	SPACER; HANGER BRKT SPARE TIRE FIXING<RE3>	1-53637-007-0	02	1	9902-	●
91	PAD; TIRE CARRIER SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B)	1-53639-039-0	02	1	9904-	●
91	PAD; TIRE CARRIER SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (C)	1-53639-040-0	02	1	9904-	●
91	PAD; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	1-53639-042-0	02	1	9904-	●

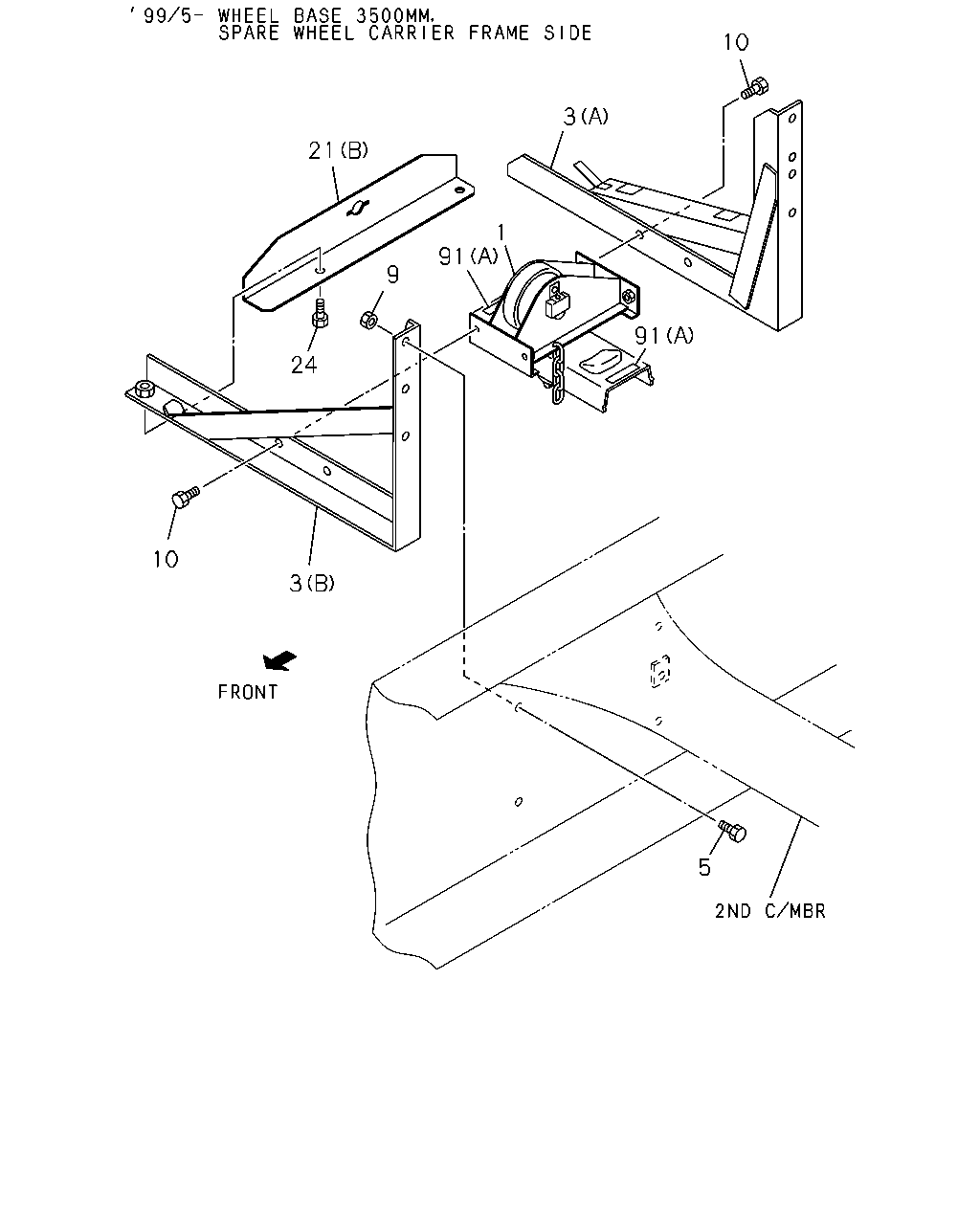

10 3 21 1 91 9 91 24 10 3 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-53630-210-1	02	1	9902-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>	1-53630-210-1	01	1	9902-0003	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG>	1-53630-210-1	01	1	0004-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53630-210-1	01	1	0004-		●
1	HANGER ASM; TIRE FT WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	1-53630-208-1	01	1	9905-0003	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG>	1-53630-208-1	01	1	9905-0003	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG>	1-53630-208-1	01	1	0004-	●
1	HANGER ASM; TIRE FT WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>	1-53630-208-1	02	1	9905-	●
3	BRACKET; TIRE CARRIER,FRT WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	1-53631-388-0	01	1	9905-	●
3	BRACKET; TIRE CARRIER,FRT WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B)	1-53631-434-0	01	1	9905-	●
3	BRACKET; TIRE CARRIER,FRT WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	1-53631-389-0	01	1	9905-	●
3	BRACKET; TIRE CARRIER,FRT WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B)	1-53631-393-0	01	1	9905-	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	04	1	9902-9904	●
5	BOLT; BRKT TO FRAME WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	04	1	9905-0003	●
5	BOLT; BRKT TO FRAME WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE	0-28681-235-0	04	1	0004-	●	●
5	BOLT; BRKT TO FRAME WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	06	1	9905-	●
9	NUT; BRKT TO FRAME WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 FLANGE	0-91150-212-0	03	1	9905-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	9902-0003	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0004-	●	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-396-1	01	1	9902-9903	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	1-53631-396-1	01	1	9904-9904	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	1-53631-396-1	01	1	9905-0003	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	1-53631-396-1	01	1	0004-	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-396-1	01	1	0004-		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	1-53631-397-1	01	1	9904-9904	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3200MM(32W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	1-53631-397-1	01	1	9905-	●
21	BRACKET; SPARE TIRE HANGER WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-128-1	01	1	9905-	●
24	BOLT; SPARE TIRE SPARE TIRE FIXING<RE3> M14X100	0-20801-400-0	02	1	9902-	●
24	BOLT; SPARE TIRE WHEEL BASE 3500MM(35W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28681-225-0	02	1	9905-	●
91	PAD; TIRE CARRIER SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B)	1-53639-039-0	02	1	9904-	●
91	PAD; TIRE CARRIER SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (C)	1-53639-040-0	02	1	9904-	●
91	PAD; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A)	1-53639-042-0	02	1	9904-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
