◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#77257) — 83 parça

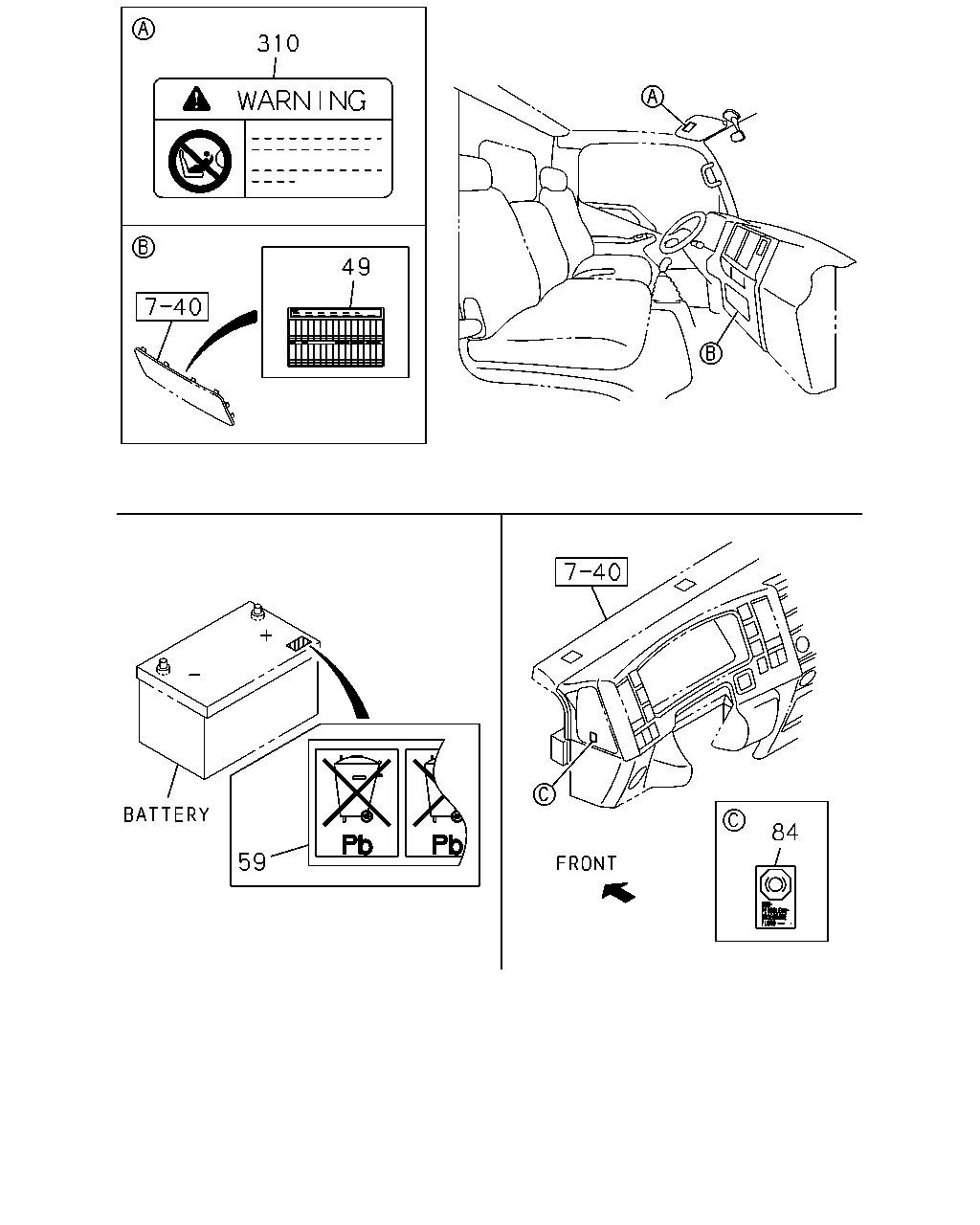

çizim 132724
310 49 84 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 0905-0906 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 0907- ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 0905-0906 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. LEYLAND EQUIPMENT<S9Z> 10 PER 1 SHEET 		8-97116-760-0 02 1 0907- ● ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 0905-0906 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 0907- ● ● ● ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 0905-0906 ● ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 0907- ● ● ● ●
çizim 132818
96 2 96 38 1 48 9 279
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.017 PLATE; CAUTION,SHIFT PATTERN
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-983-0 01 1 0907- ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 0907- ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 0907- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPEED LIMITER 90KM(NMJ) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98176-311-0 01 1 1009- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 E EC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPEED LIMITER 90KM(NMJ) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 		8-98176-303-0 01 1 1009- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98136-156-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 		8-98136-155-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) SPEED LIMITER 90KM(NMJ) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98136-154-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) SPEED LIMITER 90KM(NMJ) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 		8-98136-153-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98136-158-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4) 		8-98136-157-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98136-161-2 01 1 0905-0906 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98136-161-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4),MULTI INFORMATION DISPLAY<7NY> 		8-98136-160-2 01 1 0905-0906 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4),MULTI INFORMATION DISPLAY<7NY> 		8-98136-160-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4),MULTI INFORMATION DISPLAY<7NY> 		8-98136-159-2 01 1 0905- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98136-164-2 01 1 0905-0906 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4) 		8-98136-164-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4),MULTI INFORMATION DISPLAY<7NY> 		8-98136-163-2 01 1 0905-0906 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY(CV4),MULTI INFORMATION DISPLAY<7NY> 		8-98136-163-2 01 1 0907- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4),MULTI INFORMATION DISPLAY<7NY> 		8-98136-162-2 01 1 0905-0906 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY(CV4),MULTI INFORMATION DISPLAY<7NY> 		8-98136-162-2 01 1 0907- ●
38 08.808 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<6PH> 		8-98024-250-1 01 1 0907- ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 0905-0906 ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 0907- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0905-0906 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 0907- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 0905-0906 ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 0907- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 0905-0906 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 0907- ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 0907- ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 0907- ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 0907- ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 0907- ● ● ● ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-156-2 01 1 1301- ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-155-2 01 1 1301- ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-158-2 01 1 1301- ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-157-2 01 1 1301- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-161-1 01 1 0905-0906 ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-161-2 01 1 0907- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-160-1 01 1 0905-0906 ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-160-2 01 1 0907- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-159-1 01 1 0905-0906 ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-159-2 01 1 0907- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-164-1 01 1 0905-0906 ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-164-2 01 1 0907- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-163-1 01 1 0905-0906 ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-163-2 01 1 0907- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-162-1 01 1 0905-0906 ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY(CV4) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98136-162-2 01 1 0907- ●

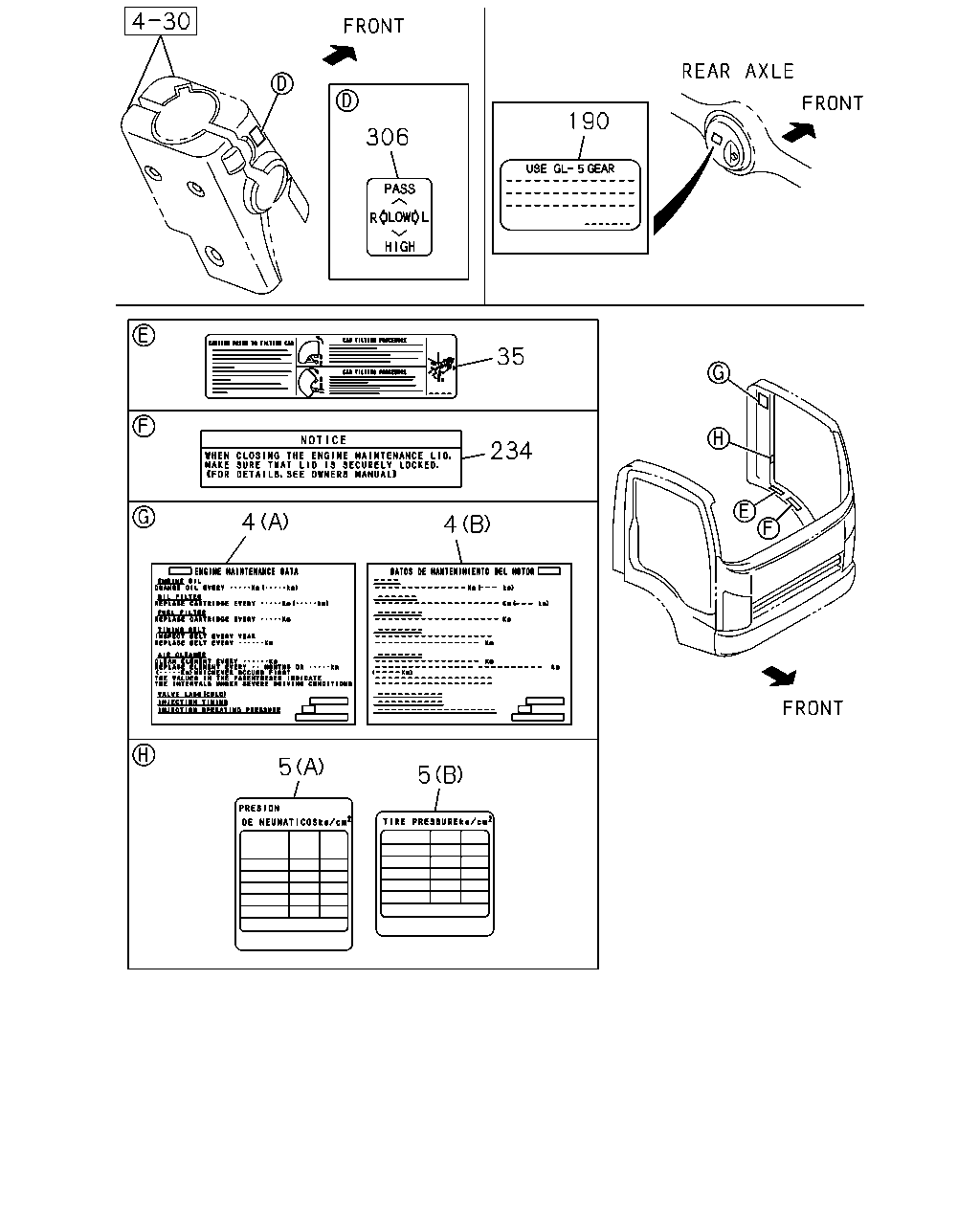

çizim 133173
190 306 35 234 4 4 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 0907- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 0907- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 0905- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 0905- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0905-0906 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0907- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0905-0906 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17 .5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT &RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0907- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0905-0906 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0907- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 0905-0906 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 0907- ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) LIMITED SLIP DIFF<6LV> EXC. DEALER INSTALLED OPTION<6JJ> 		8-97200-740-0 01 1 0906-0906 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0907- ● ● ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 0905-0906 ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 0905-0906 ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 0907- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 0907- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0905-0906 ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0905-0906 ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0907- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0907- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 0905-0906 ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 0907- ● ● ● ●
