◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#77255) — 88 parça

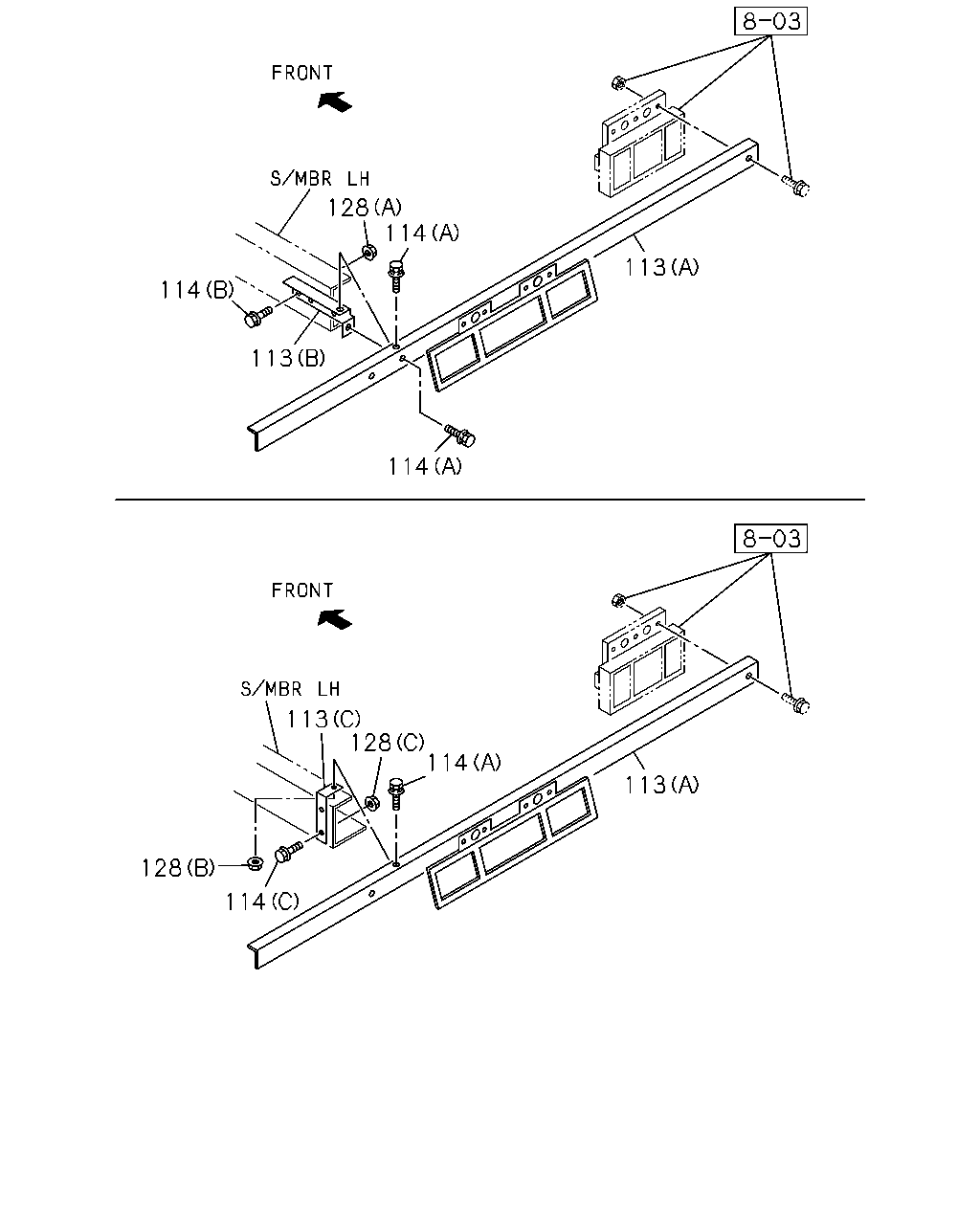

çizim 131875
128 114 113 114 113 114 113 128 114 113 128 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
113 07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98079-146-0 01 1 0907- ● ●
113 07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> (A) 		8-98079-146-0 01 1 0907- ● ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98079-147-0 01 1 0907- ● ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98079-147-0 01 1 0907- ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DOOR MIRROR<6VE>,FRAME STRAIGHT TYPE<7KJ>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98079-732-0 01 1 0907-1402 ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98079-732-0 01 1 0907-1402 ● ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98079-732-0 01 1 1403- ● ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98079-732-0 01 1 1403- ● ●
113 07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> (A) 		8-98079-733-0 01 1 0905-0906 ● ●
113 07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98079-733-0 01 1 0907- ● ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98079-734-0 01 1 0905-0906 ● ●
113 07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98079-734-0 01 1 0907- ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98070-523-0 01 1 0905-0906 ● ●
113 07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98070-523-0 01 1 0907-1402 ● ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98070-523-0 01 1 1403- ● ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4400MM(44W) (C) 		8-98091-681-0 02 1 0905-0908 ● ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) 		8-98091-681-0 02 1 0909- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4400MM(44W) (C) 		8-98091-681-0 02 1 0909- ●
113 07.800 BRACKET; LICENSE PLATE
(B) 		8-98100-014-0 01 1 0905-0906 ● ●
113 07.800 BRACKET; LICENSE PLATE
(B) 		8-98100-014-0 01 1 0907- ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
(B) 		8-98100-015-0 01 1 0905-0906 ● ●
113 07.800 BRACKET; LICENSE PLATE
(B) 		8-98100-015-0 01 1 0907- ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 0905-0908 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 0909- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 0909- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4400MM(44W) 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 0905-0908 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 0909- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4400MM(44W) 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 0909- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
07.874 (B) M14X30 		0-20851-430-0 04 1 0905-0906 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
07.874 (B) M14X30 		0-20851-430-0 04 1 0907- ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0905-0906 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 0907-1402 ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1403- ● ● ● ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4400MM(44W) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0905-0908 ● ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0909- ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4400MM(44W) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0909- ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0905-0908 ● ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0909- ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0909- ●
128 02.662 NUT; CROSS PLATE
00.429 (A) M14 FLANGE 		0-91180-214-0 04 1 0905-0906 ● ●
128 02.662 NUT; CROSS PLATE
00.429 (A) M14 FLANGE 		0-91180-214-0 04 1 0907- ● ● ● ●
çizim 132107
2 306 315 11 306 2 12 1 315 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.070 BUMPER; RR
EXC. FRAME STRAIGHT TYPE<7KJ> STAMP D8P 		8-98088-674-0 01 1 0907- ● ● ● ●
1 07.070 BUMPER; RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STAMP D8Q 		8-98088-675-0 01 1 0905-0906 ● ●
1 07.070 BUMPER; RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> STAMP D8Q 		8-98088-675-0 01 1 0907-0908 ● ●
1 07.070 BUMPER; RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> STAMP D8Q 		8-98088-675-0 01 1 0909- ● ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) M14X30 		0-20851-430-0 08 1 0905-0906 ● ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A) M14X30 		0-20851-430-0 08 1 0907-0908 ● ● ● ●
2 07.874 BOLT; BACK BAR
(A) M14X30 		0-20851-430-0 08 1 0909-1505 ● ● ● ●
2 07.874 BOLT; BACK BAR
(A) M14X30 		0-20851-430-0 04 1 1506- ● ● ● ●
2 07.874 BOLT; BACK BAR
(A) M14X30 		0-20851-430-0 04 1 1506- ● ● ● ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0905-0906 ● ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0907-0908 ● ● ● ●
2 07.874 BOLT; BACK BAR
07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0909-1503 ● ● ● ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 1504- ● ● ● ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 1504- ● ●
11 07.829 CAP; RR BUMPER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 		8-98070-331-0 02 1 0905-0906 ● ●
11 07.829 CAP; RR BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98070-331-0 02 1 0907-0908 ● ●
11 07.829 CAP; RR BUMPER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98070-331-0 02 1 0907-0908 ●
11 07.829 CAP; RR BUMPER
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98070-331-0 02 1 0907-0908 ●
11 07.829 CAP; RR BUMPER 8-98070-331-0 02 1 0907-0908 ● ●
11 07.829 CAP; RR BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98070-331-0 02 1 0909-1503 ● ●
11 07.829 CAP; RR BUMPER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98070-331-0 02 1 0909-1503 ●
11 07.829 CAP; RR BUMPER
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98070-331-0 02 1 0909-1503 ●
11 07.829 CAP; RR BUMPER 8-98070-331-0 02 1 0909-1503 ● ●
11 07.829 CAP; RR BUMPER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98070-331-0 02 1 1504- ● ● ● ●
11 07.829 CAP; RR BUMPER
FRAME STRAIGHT TYPE<7KJ> 		8-98070-331-0 02 1 1504- ● ●
12 07.833 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 00.429 M14 FLANGE 		0-91180-214-0 08 1 0905-0906 ● ●
12 07.833 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 00.429 M14 FLANGE 		0-91180-214-0 08 1 0907-0908 ● ● ● ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 08 1 0909-1002 ● ● ● ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 04 1 1003- ● ● ● ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 04 1 1003- ● ● ● ●
306 07.836 BAR; BACK,RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STAMP IA3 		8-98039-408-0 01 1 0905-0906 ● ●
306 07.836 BAR; BACK,RR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STAMP IA3 		8-98039-408-0 01 1 0907-0908 ● ● ● ●
306 07.836 BAR; BACK,RR
STAMP IA3 		8-98039-408-0 01 1 0909- ● ● ● ●
306 07.836 BAR; BACK,RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STAMP IA3 		8-98039-409-0 01 1 0905-0906 ● ●
306 07.836 BAR; BACK,RR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STAMP IA3 		8-98039-409-0 01 1 0907-0908 ● ● ● ●
306 07.836 BAR; BACK,RR
STAMP IA3 		8-98039-409-0 01 1 0909- ● ● ● ●
315 07.829 RIVET; CAP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 		1-71290-062-0 04 1 0905-0906 ● ●
315 07.829 RIVET; CAP
EXC. FRAME STRAIGHT TYPE<7KJ> 		1-71290-062-0 04 1 0907-0908 ● ●
315 07.829 RIVET; CAP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		1-71290-062-0 04 1 0907-0908 ●
315 07.829 RIVET; CAP
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		1-71290-062-0 04 1 0907-0908 ●
315 07.829 RIVET; CAP 1-71290-062-0 04 1 0907-0908 ● ●
315 07.829 RIVET; CAP
EXC. FRAME STRAIGHT TYPE<7KJ> 		1-71290-062-0 04 1 0909-1503 ● ●
315 07.829 RIVET; CAP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		1-71290-062-0 04 1 0909-1503 ●
315 07.829 RIVET; CAP
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		1-71290-062-0 04 1 0909-1503 ●
315 07.829 RIVET; CAP 1-71290-062-0 04 1 0909-1503 ● ●
315 07.829 RIVET; CAP
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		1-71290-062-0 04 1 1504- ● ● ● ●
315 07.829 RIVET; CAP
FRAME STRAIGHT TYPE<7KJ> 		1-71290-062-0 04 1 1504- ● ●
