Sayfa 6-76 - Isuzu EPC

6-76 — FLOOR EQUIPMENT AND SEALING (#77250) — 207 parça

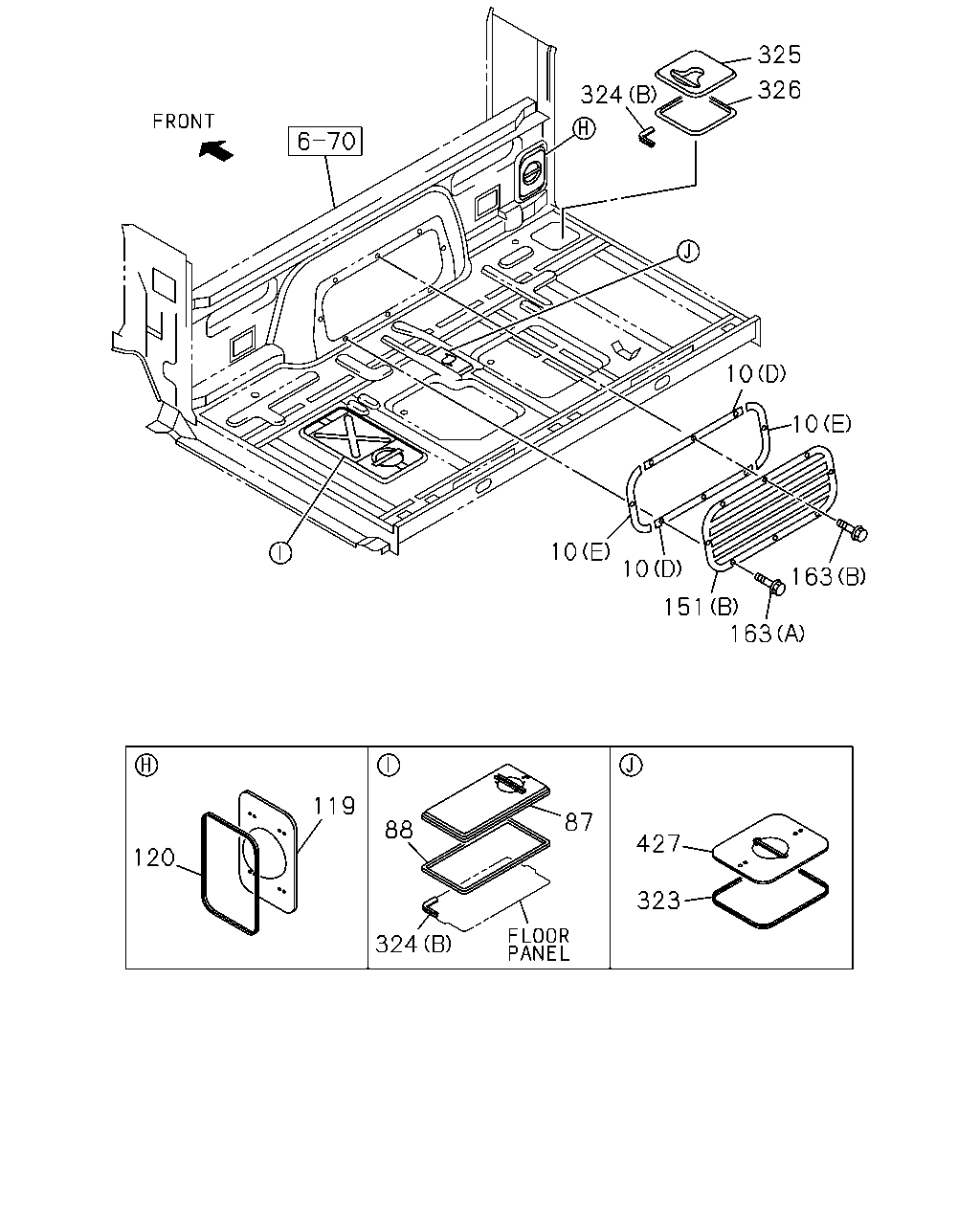

325 326 324 10 10 10 10 163 151 163 119 87 88 427 120 323 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (D)	8-97853-660-0	02	1	0907-	●	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (E)	8-97853-661-0	02	1	0907-	●	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0905-0906			●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0905-0906		●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0907-			●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0907-	●	●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (B)	8-98006-847-0	01	1	0905-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (C)	8-98006-852-0	01	1	0905-		●
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-4	01	1	0905-0906		●
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-4	01	1	0907-	●	●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	0905-0906		●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	0907-	●	●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	01	1	0905-0906		●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	01	1	0907-	●	●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	0905-0906		●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	0907-	●	●
151	16.549 COVER ASM; ENG 4HK1-TCS ENG(RJS) (A)	8-98043-008-4	01	1	0905-		●
151	16.549 COVER ASM; ENG 4JJ1-TCS ENG(LFB) (B)	8-97850-241-3	01	1	0907-	●	●
163	16.549 BOLT; RR,ENG COVER,FRT 4JJ1-TCS ENG(LFB) 02.343 (A) M6X16 FLANGE	0-28650-616-0	08	1	0907-	●	●
163	16.549 BOLT; RR,ENG COVER,FRT 4HK1-TCS ENG(RJS) 02.343 (A) M6X16 FLANGE	0-28650-616-0	11	1	0905-		●
163	16.549 BOLT; RR,ENG COVER,FRT 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0905-0906		●
163	16.549 BOLT; RR,ENG COVER,FRT 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0907-	●	●
323	16.549 SEAL; COVER,A/T OIL 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97853-443-2	01	1	0907-	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	02	1	0905-0906			●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	02	1	0905-0906		●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	02	1	0907-			●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	02	1	0907-	●	●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0905-0906		●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0907-	●	●
325	16.549 COVER; LLC	8-97856-974-0	01	1	0905-0906		●
325	16.549 COVER; LLC	8-97856-974-0	01	1	0907-	●	●
326	16.549 SEAL; COVER	8-97856-975-1	01	1	0905-0906		●
326	16.549 SEAL; COVER	8-97856-975-1	01	1	0907-	●	●
427	16.549 COVER; SMOOTHER OIL 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97853-442-2	01	1	0907-	●	●

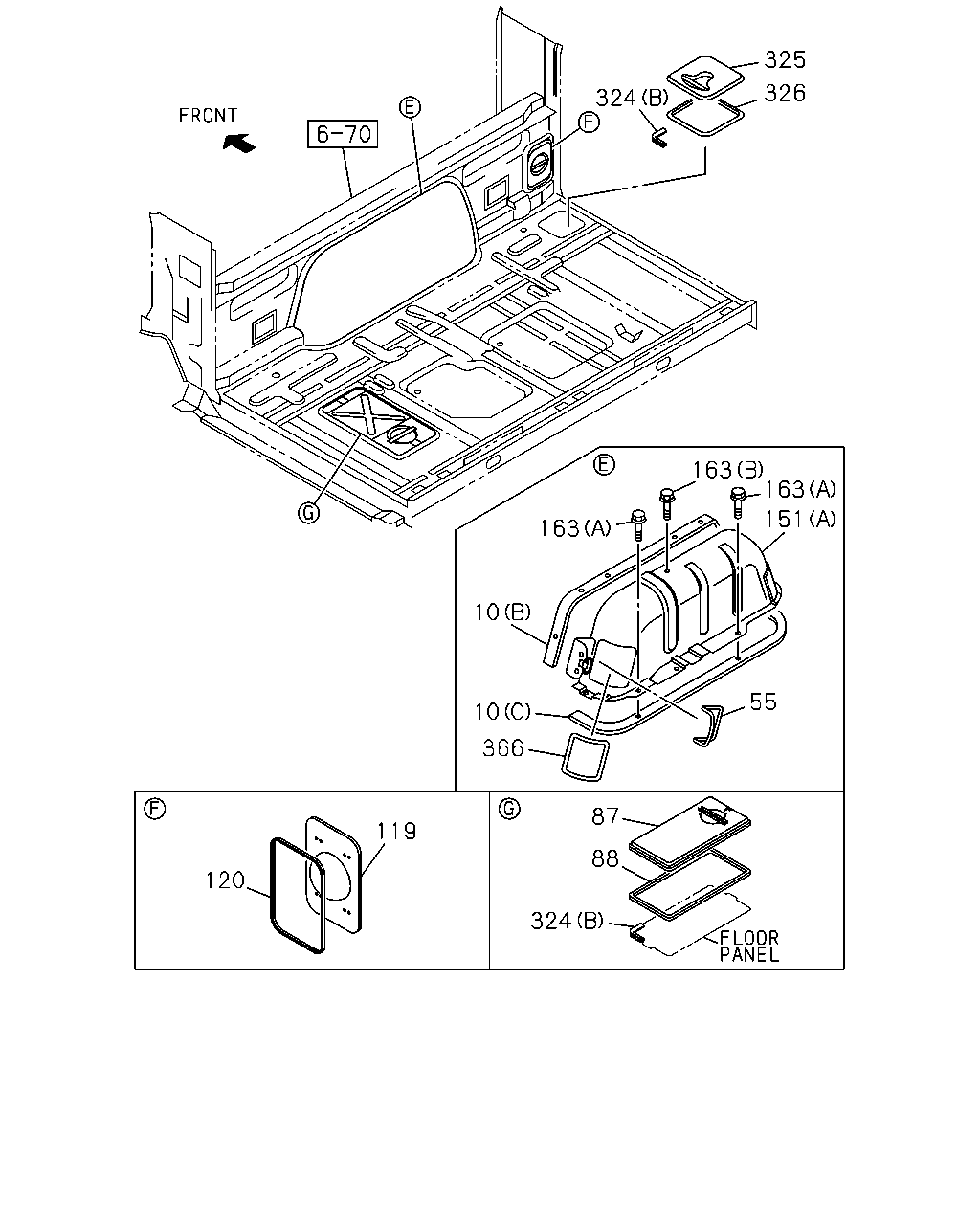

325 326 324 163 163 151 163 10 55 10 366 87 119 88 120 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (D)	8-97853-660-0	02	1	0907-	●	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (E)	8-97853-661-0	02	1	0907-	●	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0905-0906			●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0905-0906		●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0907-			●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0907-	●	●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (B)	8-98006-847-0	01	1	0905-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (C)	8-98006-852-0	01	1	0905-		●
55	16.549 SEAL; SUPPORT COVER 4HK1-TCS ENG(RJS)	8-97583-500-1	01	1	0905-		●
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-4	01	1	0905-0906		●
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-4	01	1	0907-	●	●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	0905-0906		●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	0907-	●	●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	01	1	0905-0906		●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	01	1	0907-	●	●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	0905-0906		●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	0907-	●	●
151	16.549 COVER ASM; ENG 4HK1-TCS ENG(RJS) (A)	8-98043-008-4	01	1	0905-		●
151	16.549 COVER ASM; ENG 4JJ1-TCS ENG(LFB) (B)	8-97850-241-3	01	1	0907-	●	●
163	16.549 BOLT; RR,ENG COVER,FRT 4JJ1-TCS ENG(LFB) 02.343 (A) M6X16 FLANGE	0-28650-616-0	08	1	0907-	●	●
163	16.549 BOLT; RR,ENG COVER,FRT 4HK1-TCS ENG(RJS) 02.343 (A) M6X16 FLANGE	0-28650-616-0	11	1	0905-		●
163	16.549 BOLT; RR,ENG COVER,FRT 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0905-0906		●
163	16.549 BOLT; RR,ENG COVER,FRT 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0907-	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	02	1	0905-0906			●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	02	1	0905-0906		●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	02	1	0907-			●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	02	1	0907-	●	●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0905-0906		●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0907-	●	●
325	16.549 COVER; LLC	8-97856-974-0	01	1	0905-0906		●
325	16.549 COVER; LLC	8-97856-974-0	01	1	0907-	●	●
326	16.549 SEAL; COVER	8-97856-975-1	01	1	0905-0906		●
326	16.549 SEAL; COVER	8-97856-975-1	01	1	0907-	●	●
366	16.545 FINISHER; COVER 4HK1-TCS ENG(RJS)	8-97583-501-0	01	1	0905-		●

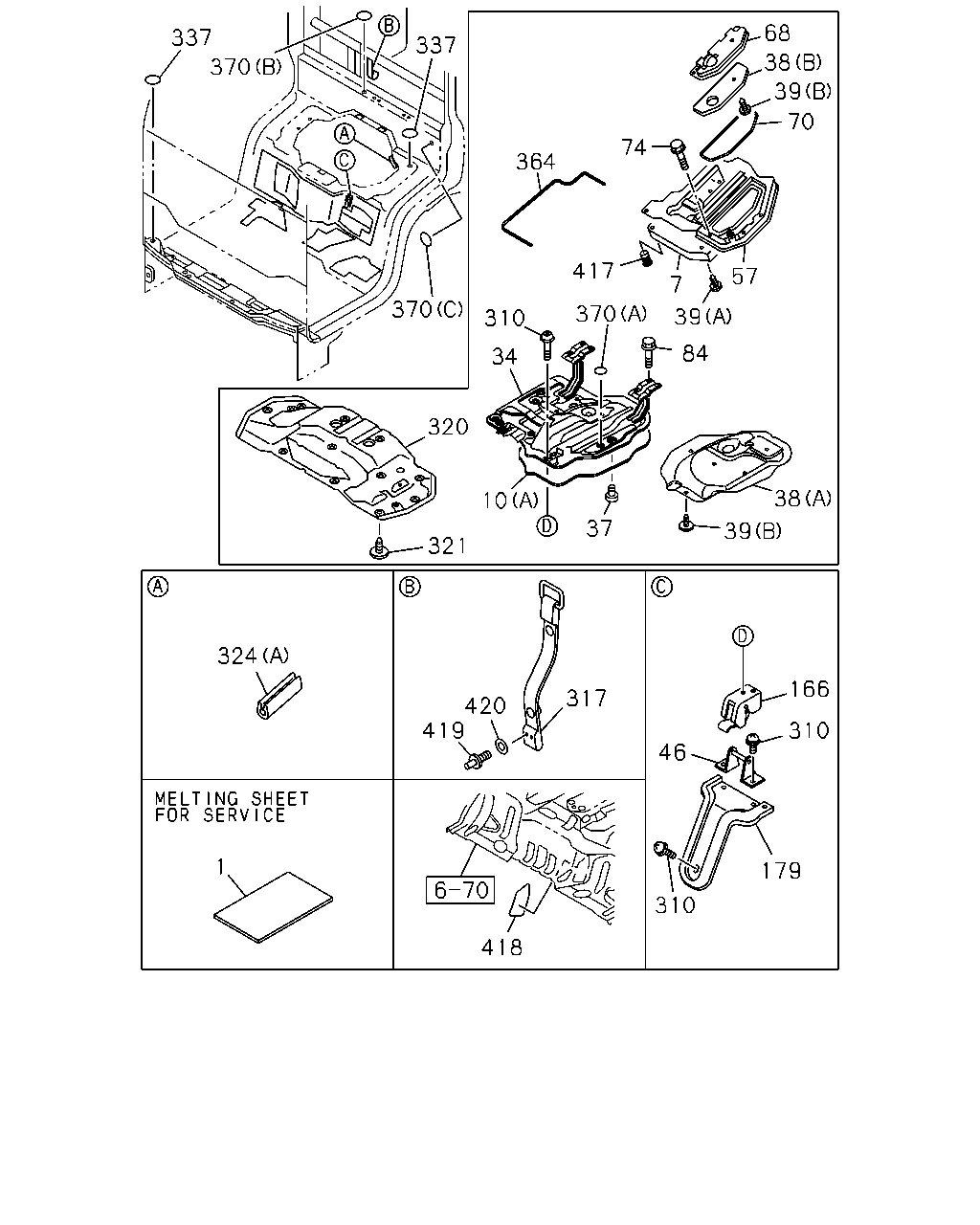

68 337 337 38 370 39 70 74 364 417 57 7 370 370 39 310 84 34 320 38 10 37 39 321 324 166 317 420 419 310 46 1 179 310 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0905-0906		●	●
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0907-	●	●	●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-179-3	01	1	0905-0906			●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-179-3	01	1	0905-0906		●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-179-3	01	1	0907-1408			●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-179-3	01	1	0907-1408	●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-98250-676-0	01	1	1409-			●	●
7	16.545 INSULATOR; SUPPORT COVER	8-98250-676-0	01	1	1409-	●	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (D)	8-97853-660-0	02	1	0907-	●	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (E)	8-97853-661-0	02	1	0907-	●	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0905-0906			●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0905-0906		●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0907-			●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0907-	●	●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (B)	8-98006-847-0	01	1	0905-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (C)	8-98006-852-0	01	1	0905-		●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97589-391-2	01	1	0905-0906			●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97589-391-2	01	1	0905-0906		●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97589-391-2	01	1	0907-			●	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97589-391-2	01	1	0907-	●	●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0905-0906			●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0905-0906		●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0907-			●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0907-	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0905-0906			●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0905-0906		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0907-1408			●	●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0907-1408	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1409-			●	●
38	16.549 INSULATOR; ENG COVER (B)	8-98242-234-0	01	1	1409-	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-187-3	01	1	0905-0906			●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-187-3	01	1	0905-0906		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-187-3	01	1	0907-1408			●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-187-3	01	1	0907-1408	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98250-672-0	01	1	1409-			●	●
38	16.549 INSULATOR; ENG COVER (A)	8-98250-672-0	01	1	1409-	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0905-0906			●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0905-0906		●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0907-			●	●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0907-	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0905-0906			●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0905-0906		●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0907-			●	●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0907-	●	●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0905-0906			●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0905-0906		●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0907-			●	●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0907-	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97589-396-4	01	1	0905-0906			●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97589-396-4	01	1	0905-0906		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97589-396-4	01	1	0907-			●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97589-396-4	01	1	0907-	●	●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0905-0906			●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0905-0906		●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0907-			●	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0907-	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0905-0906			●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0905-0906		●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0907-			●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0907-	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0905-0906			●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0905-0906		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0907-			●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0907-	●	●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0905-0906			●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0905-0906		●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0907-			●	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0907-	●	●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0905-0906			●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0905-0906		●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0907-			●	●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0907-	●	●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0905-0906			●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0905-0906		●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0907-			●	●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0907-	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0905-0906			●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0905-0906		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0907-			●	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0907-	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	05	1	0905-0906			●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	05	1	0905-0906		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	05	1	0907-			●	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	05	1	0907-	●	●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0905-0906			●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0905-0906		●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0907-			●	●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0907-	●	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97586-164-7	01	1	0905-0906			●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97586-164-7	01	1	0907-1408			●	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-98242-225-0	01	1	1409-			●	●
321	16.549 CLIP; INSULATOR,FLOOR EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4	8-97808-623-0	15	1	0905-0906			●
321	16.549 CLIP; INSULATOR,FLOOR EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4	8-97808-623-0	15	1	0907-			●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	02	1	0905-0906			●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	02	1	0905-0906		●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	02	1	0907-			●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	02	1	0907-	●	●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0905-0906		●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0907-	●	●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0905-0906			●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0905-0906			●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0907-			●	●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0907-			●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	08	1	0905-0906		●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	08	1	0907-	●	●	●	●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	23	1	0905-0906		●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	23	1	0907-	●	●
337	16.545 SEAL; CLIP HOLE 02.580 OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0905-0906		●
337	16.545 SEAL; CLIP HOLE 02.580 OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0907-	●	●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0905-0906			●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0905-0906		●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0907-			●	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0907-	●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0905-0906			●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0907-			●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0905-0906			●
370	16.549 SEAL; LOCATION HOLE 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0905-0906		●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0907-			●	●
370	16.549 SEAL; LOCATION HOLE 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0907-	●	●
370	16.549 SEAL; LOCATION HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0905-0906		●
370	16.549 SEAL; LOCATION HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0907-	●	●
370	16.549 SEAL; LOCATION HOLE 16.545 (C) OD=32 BLACK	8-98031-126-0	01	1	0905-0906		●
370	16.549 SEAL; LOCATION HOLE 16.545 (C) OD=32 BLACK	8-98031-126-0	01	1	0907-	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0905-0906			●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0905-0906		●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0907-			●	●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0907-	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-0	01	1	0905-0906		●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-1	01	1	0907-	●	●	●	●
418	16.549 SEAL; PROTECTOR	8-98090-192-0	01	1	0905-0906		●	●
418	16.549 SEAL; PROTECTOR	8-98090-192-1	01	1	0907-	●	●	●	●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0905-0906			●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0905-0906		●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0907-			●	●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0907-	●	●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0905-0906			●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0905-0906		●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0907-			●	●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
