◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#7725) — 39 parça

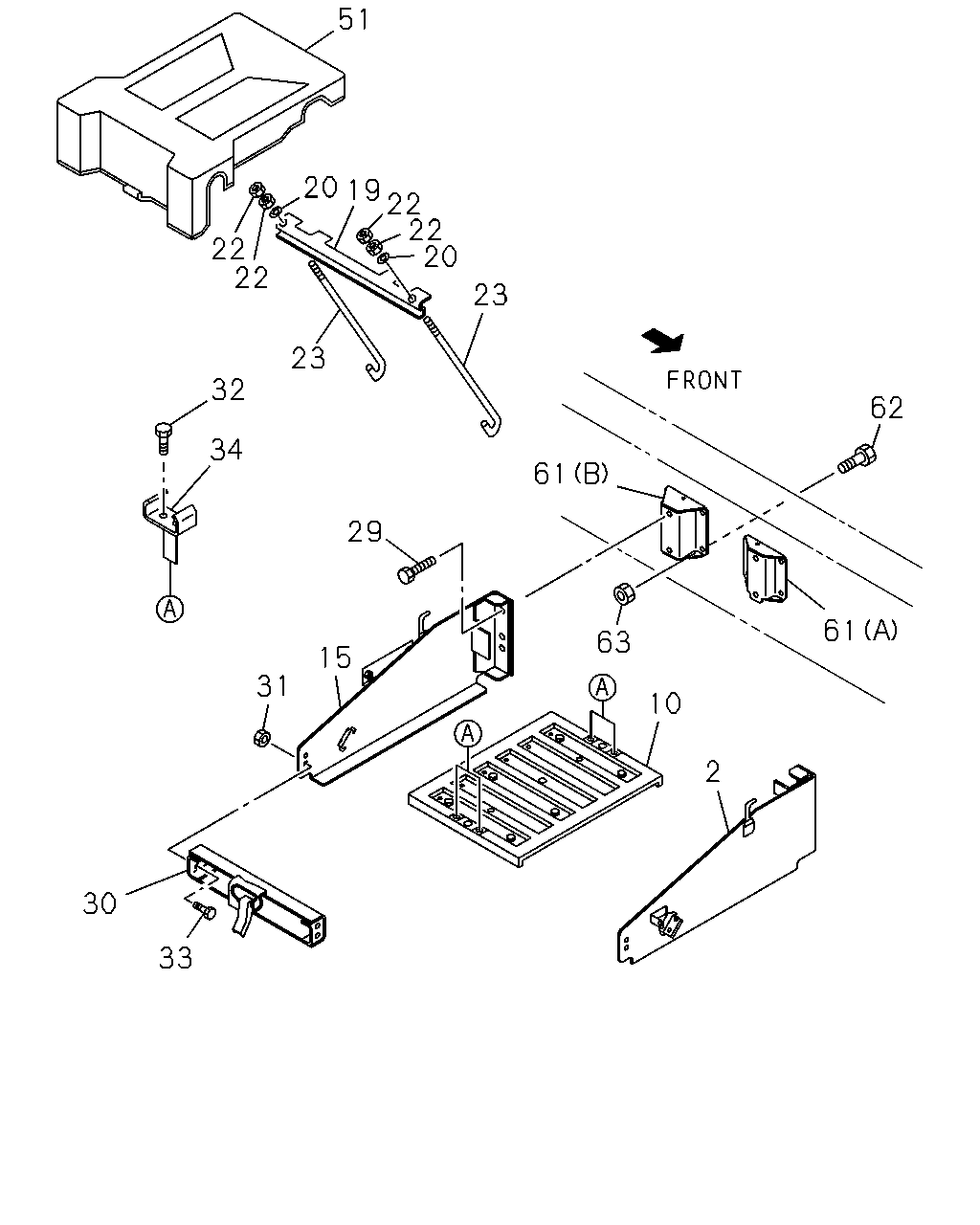

çizim 43461
51 20 19 22 22 20 22 22 23 23 32 62 34 61 29 61 63 15 31 10 2 30 33
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; BATTERY
WHEEL BASE 3200MM(32W) 		1-53613-411-2 01 1 9905-0003 ●
2 BRACKET; BATTERY
WHEEL BASE 3200MM(32W) 		1-53613-411-2 01 1 0004- ● ●
2 BRACKET; BATTERY
WHEEL BASE 3500MM(35W) 		1-53613-379-2 01 1 9902- ●
10 COVER; BATTERY 1-53612-042-0 01 1 9902-0003 ●
10 COVER; BATTERY 1-53612-042-0 01 1 0004- ● ●
15 BRACKET; BATTERY
WHEEL BASE 3200MM(32W) 		1-53613-437-0 01 1 9905-0003 ●
15 BRACKET; BATTERY
WHEEL BASE 3200MM(32W) 		1-53613-437-1 01 1 0004- ● ●
15 BRACKET; BATTERY
WHEEL BASE 3500MM(35W) 		1-53613-347-1 01 1 9902- ●
19 STAY; BATTERY 1-53618-039-1 01 1 9902-0003 ●
19 STAY; BATTERY 1-53618-039-2 01 1 0004- ● ●
20 WASHER; PL,STAY
ID=8.4 OD=22 		9-09164-708-0 02 1 9902-0003 ●
20 WASHER; PL,STAY
ID=8.4 OD=22 		9-09164-708-0 02 1 0004- ● ●
22 NUT; STAY
M8 		9-09110-408-0 04 1 9902-0003 ●
22 NUT; STAY
M8 		9-09110-408-0 04 1 0004- ● ●
23 BOLT; STAY
L=250 		1-53616-108-0 02 1 9902-0003 ●
23 BOLT; STAY
L=250 		1-53616-108-0 02 1 0004- ● ●
29 BOLT; BRKT TO FRAME
M14X35 		0-20801-435-0 04 1 9902-0003 ●
29 BOLT; BRKT TO FRAME
M14X35 		0-20801-435-0 04 1 0004- ● ●
30 PLATE; BATTERY 1-53619-086-0 01 1 9902-0003 ●
30 PLATE; BATTERY 1-53619-086-0 01 1 0004- ● ●
31 NUT; PLATE
M8 FLANGE 		0-91150-108-0 04 1 9902-0003 ●
31 NUT; PLATE
M8 FLANGE 		0-91150-108-0 04 1 0004- ● ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE 		0-28080-816-0 04 1 0001-0003 ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE 		0-28080-816-0 04 1 0004- ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 9902-0003 ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0004- ● ●
34 SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> 		1-53619-084-0 02 1 0001-0003 ●
34 SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> 		1-53619-084-0 02 1 0004- ● ●
51 COVER; BATTERY 1-53612-040-1 01 1 9902-0003 ●
51 COVER; BATTERY 1-53612-040-1 01 1 0004- ● ●
61 DISTANCE; BRKT,BATTERY
(A) 		1-53613-427-1 01 1 9902-0003 ●
61 DISTANCE; BRKT,BATTERY
(A) 		1-53613-427-1 01 1 0004- ● ●
61 DISTANCE; BRKT,BATTERY
(B) 		1-53613-428-1 01 1 9902-9904 ●
61 DISTANCE; BRKT,BATTERY
(B) 		1-53613-439-0 01 1 9905-0003 ●
61 DISTANCE; BRKT,BATTERY
(B) 		1-53613-439-0 01 1 0004- ● ●
62 BOLT; DIST TO FRAME,BATTERY
M12X35 FLANGE 		0-28681-235-0 08 1 9902-0003 ●
62 BOLT; DIST TO FRAME,BATTERY
M12X35 FLANGE 		0-28681-235-0 08 1 0004- ● ●
63 NUT; DIST TO FRAME
M12 FLANGE 		0-91150-212-0 04 1 9902-0003 ●
63 NUT; DIST TO FRAME
M12 FLANGE 		0-91150-212-0 04 1 0004- ● ●
