6-75 — MAT AND CARPET (#77249) — 58 parça

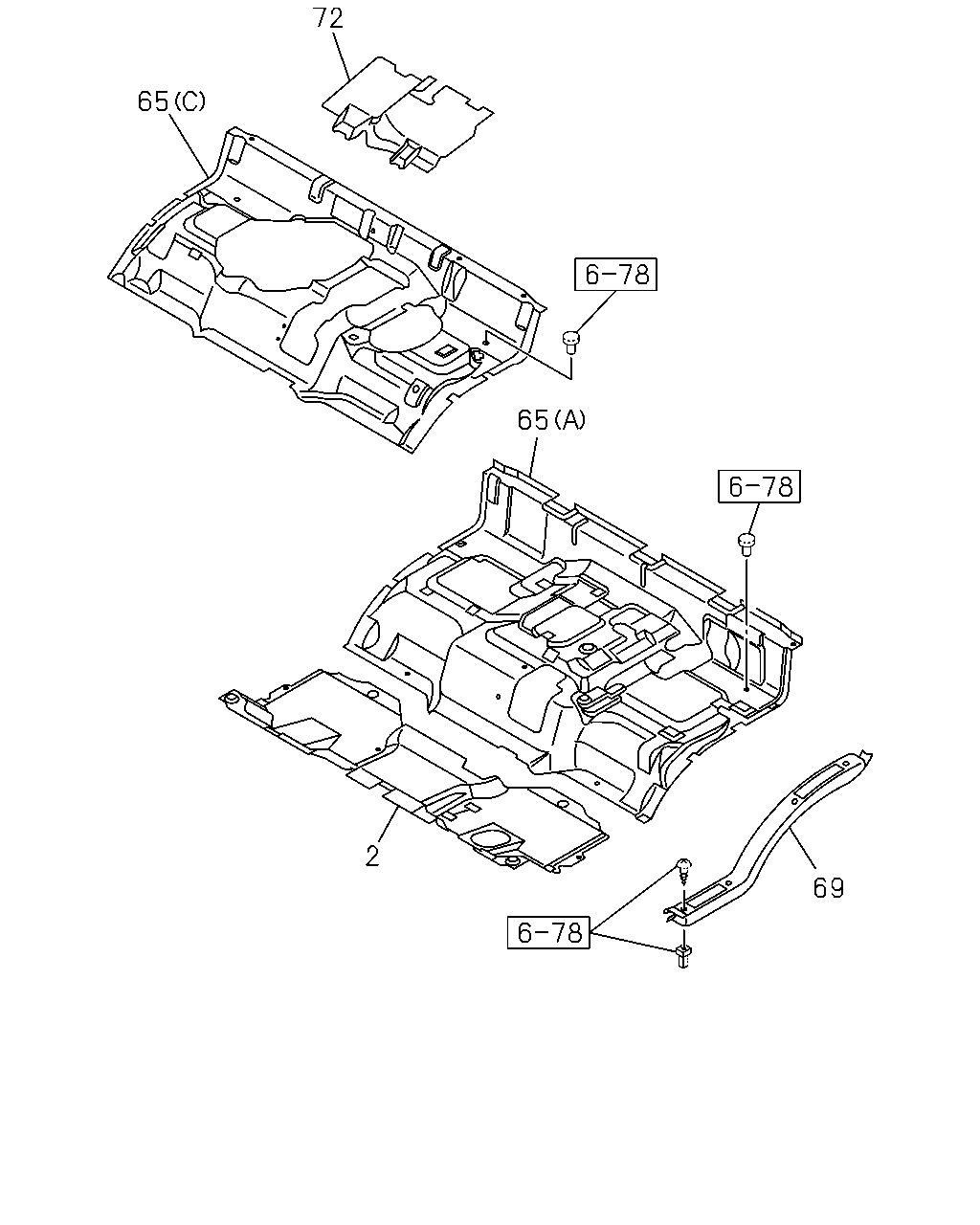

72 65 65 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0905-0906	●	●
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0907-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97415-682-1	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97415-682-1	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-128-0	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (C) GRAY	8-98112-607-4	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (C) GRAY	8-98112-607-4	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (C) GRAY	8-97425-115-0	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-127-0	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-98112-608-4	01	1	0905-0906		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-98112-608-4	01	1	0907-1303		●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-97425-116-0	01	1	1304-		●		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0905-0906	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0907-	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0905-0906	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0907-	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97405-998-3	01	1	0905-0906	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0905-0906		●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97405-998-3	01	1	0907-0911	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0907-0911		●		●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	0912-	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	0912-		●		●

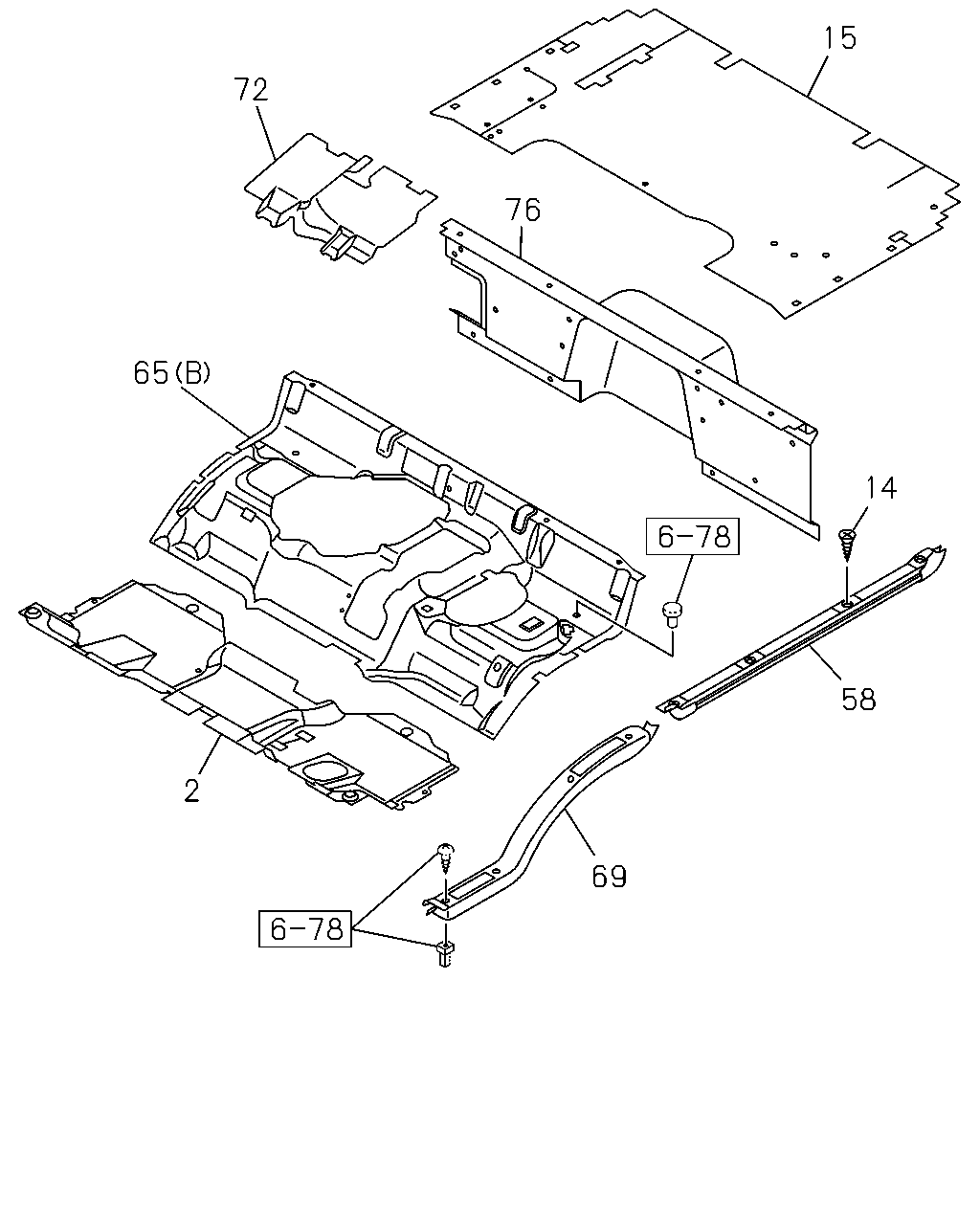

15 72 76 65 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0905-0906	●	●
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0907-	●	●	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1004-		●		●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0905-0906		●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0907-0910		●		●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97412-603-2	01	1	0907-		●		●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97412-601-2	01	1	0907-		●		●
15	16.800 MAT; FLOOR REAR 4HK1-TCS ENG(RJS) GRAY	8-97412-602-1	01	1	0905-		●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0905-0906		●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0907-		●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97415-682-1	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97415-682-1	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-128-0	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (C) GRAY	8-98112-607-4	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (C) GRAY	8-98112-607-4	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3> (C) GRAY	8-97425-115-0	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0905-0906	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0907-1303	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHOR AGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-127-0	01	1	1304-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-98112-608-4	01	1	0905-0906		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-98112-608-4	01	1	0907-1303		●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-97425-116-0	01	1	1304-		●		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0905-0906	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0907-	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0905-0906	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0907-	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97405-998-3	01	1	0905-0906	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0905-0906		●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97405-998-3	01	1	0907-0911	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0907-0911		●		●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	0912-	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	0912-		●		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4JJ1-TCS ENG(LFB) GRAY	8-97412-599-1	01	1	0907-		●		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HK1-TCS ENG(RJS) GRAY	8-97412-604-1	01	1	0905-		●
