◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#77243) — 55 parça

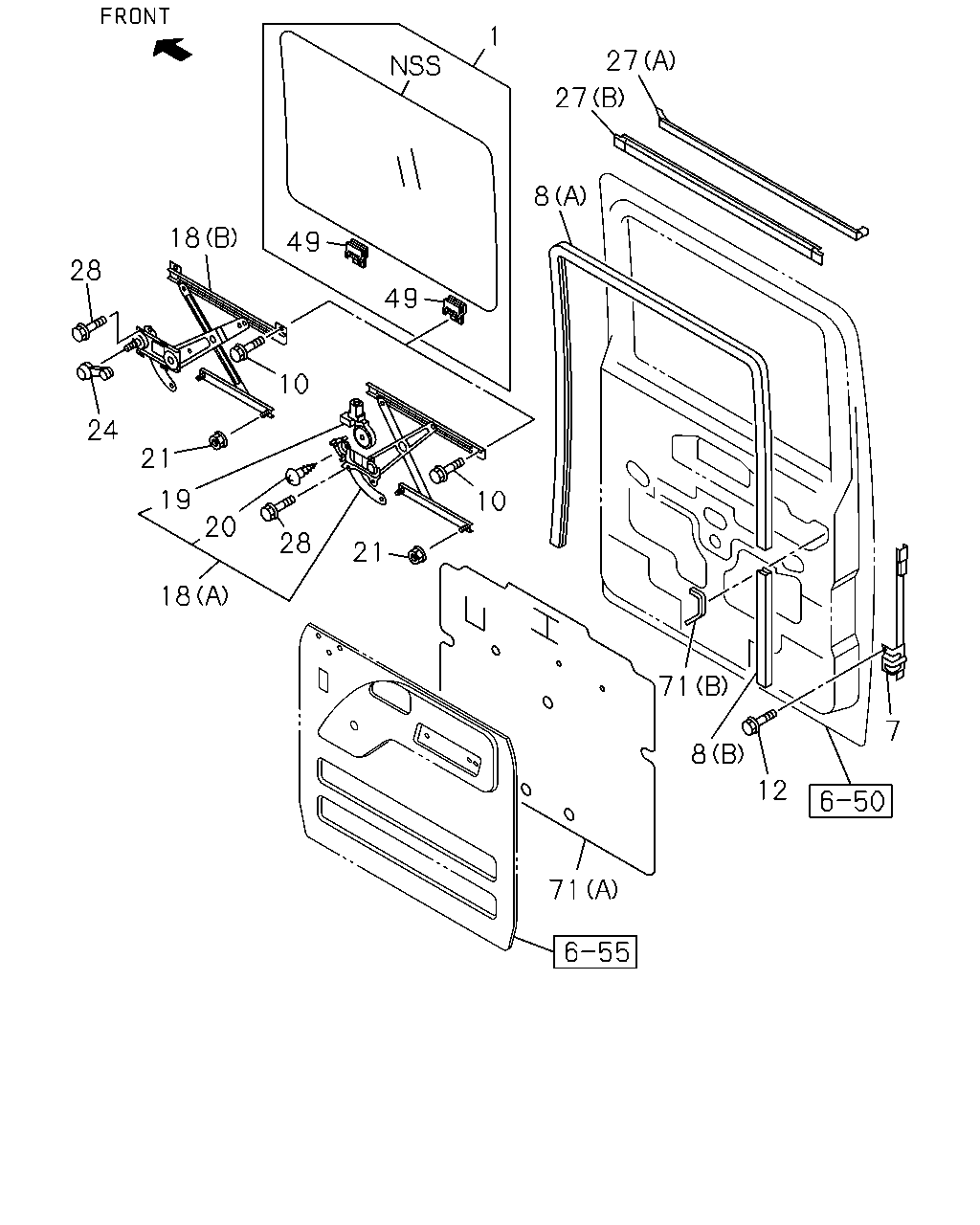

çizim 131413
1 27 27 8 18 49 28 49 10 24 21 19 10 20 28 21 18 71 7 8 12 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; RR DOOR 8-97587-680-2 01 1 0905-0906 ●
1 16.180 GLASS; RR DOOR 8-97587-680-2 01 1 0907-1204 ● ●
1 16.180 GLASS; RR DOOR 8-98211-769-0 01 1 1205- ● ●
1 16.180 GLASS; RR DOOR 8-97587-681-2 01 1 0905-0906 ●
1 16.180 GLASS; RR DOOR 8-97587-681-2 01 1 0907-1204 ● ●
1 16.180 GLASS; RR DOOR 8-98211-770-0 01 1 1205- ● ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-98032-137-2 01 1 0905-0906 ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-98032-137-2 01 1 0907- ● ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-98032-138-2 01 1 0905-0906 ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-98032-138-2 01 1 0907- ● ●
8 16.190 RUN; GLASS,RR DOOR
(A) 		8-97587-685-1 01 1 0905-0906 ●
8 16.190 RUN; GLASS,RR DOOR
(A) 		8-97587-685-1 01 1 0907- ● ●
8 16.190 RUN; GLASS,RR DOOR
(A) 		8-98002-256-1 01 1 0905-0906 ●
8 16.190 RUN; GLASS,RR DOOR
(A) 		8-98002-256-1 01 1 0907- ● ●
8 16.190 RUN; GLASS,RR DOOR
(B) 		8-98070-147-0 02 1 0905-0906 ●
8 16.190 RUN; GLASS,RR DOOR
(B) 		8-98070-147-0 02 1 0907- ● ●
10 16.183 SCREW; GLASS
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0905-0906 ●
10 16.183 SCREW; GLASS
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0907- ● ●
12 16.181 SCREW; CHANNEL,GLASS RUN
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0905-0906 ●
12 16.181 SCREW; CHANNEL,GLASS RUN
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0907- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97587-697-2 01 1 0907-1007 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98155-996-0 01 1 1008- ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97587-698-2 01 1 0907-1007 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98155-997-0 01 1 1008- ●
18 16.260 REGULATOR; WINDOW,RR DOOR
(A) 		8-97587-695-3 01 1 0905-0906 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
(A) 		8-97587-695-3 01 1 0907- ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-97587-695-3 01 1 0907- ●
18 16.260 REGULATOR; WINDOW,RR DOOR
(A) 		8-97587-696-3 01 1 0905-0906 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
(A) 		8-97587-696-3 01 1 0907- ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-97587-696-3 01 1 0907- ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98072-300-0 01 1 0905-0906 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98072-300-0 01 1 0907- ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-300-0 01 1 0907- ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98072-301-0 01 1 0905-0906 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98072-301-0 01 1 0907- ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98072-301-0 01 1 0907- ●
20 16.270 SCREW
16.230 		8-98058-431-0 06 1 0905-0906 ●
20 16.270 SCREW
16.230 		8-98058-431-0 06 1 0907- ●
20 16.270 SCREW
POWER WINDOW FRT&REAR DOOR<A31> 16.230 		8-98058-431-0 06 1 0907- ●
21 16.270 NUT; FLANGE,WINDOW REG
01.062 M6 FLANGE 		0-91180-106-0 04 1 0905-0906 ●
21 16.270 NUT; FLANGE,WINDOW REG
01.062 M6 FLANGE 		0-91180-106-0 04 1 0907- ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-313-3 02 1 0907- ●
27 16.183 SEAL; WAIST,RR DOOR
(A) 		8-97587-691-1 02 1 0905-0906 ●
27 16.183 SEAL; WAIST,RR DOOR
(A) 		8-97587-691-1 02 1 0907- ● ●
27 16.183 SEAL; WAIST,RR DOOR
(B) 		8-97587-692-1 02 1 0905-0906 ●
27 16.183 SEAL; WAIST,RR DOOR
(B) 		8-97587-692-1 02 1 0907- ● ●
28 16.181 BOLT; WINDOW REG
03.671 M6X10 FLANGE 		0-28050-610-0 08 1 0905-0906 ●
28 16.181 BOLT; WINDOW REG
03.671 M6X10 FLANGE 		0-28050-610-0 08 1 0907- ● ●
49 16.180 HOLDER; DOOR GLASS
16.183 		8-98041-907-0 04 1 0905-0906 ●
49 16.180 HOLDER; DOOR GLASS
16.183 		8-98041-907-0 04 1 0907-1204 ● ●
49 16.180 HOLDER; DOOR GLASS
16.183 		8-98211-762-0 04 1 1205- ● ●
71 16.183 SEAL; WATER,RR DOOR
(A) 		8-97587-700-1 02 1 0905-0906 ●
71 16.183 SEAL; WATER,RR DOOR
(A) 		8-97587-700-1 02 1 0907- ● ●
71 16.183 SEAL; WATER,RR DOOR
(B) 		8-98061-351-0 02 1 0905-0906 ●
71 16.183 SEAL; WATER,RR DOOR
(B) 		8-98061-351-0 02 1 0907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
