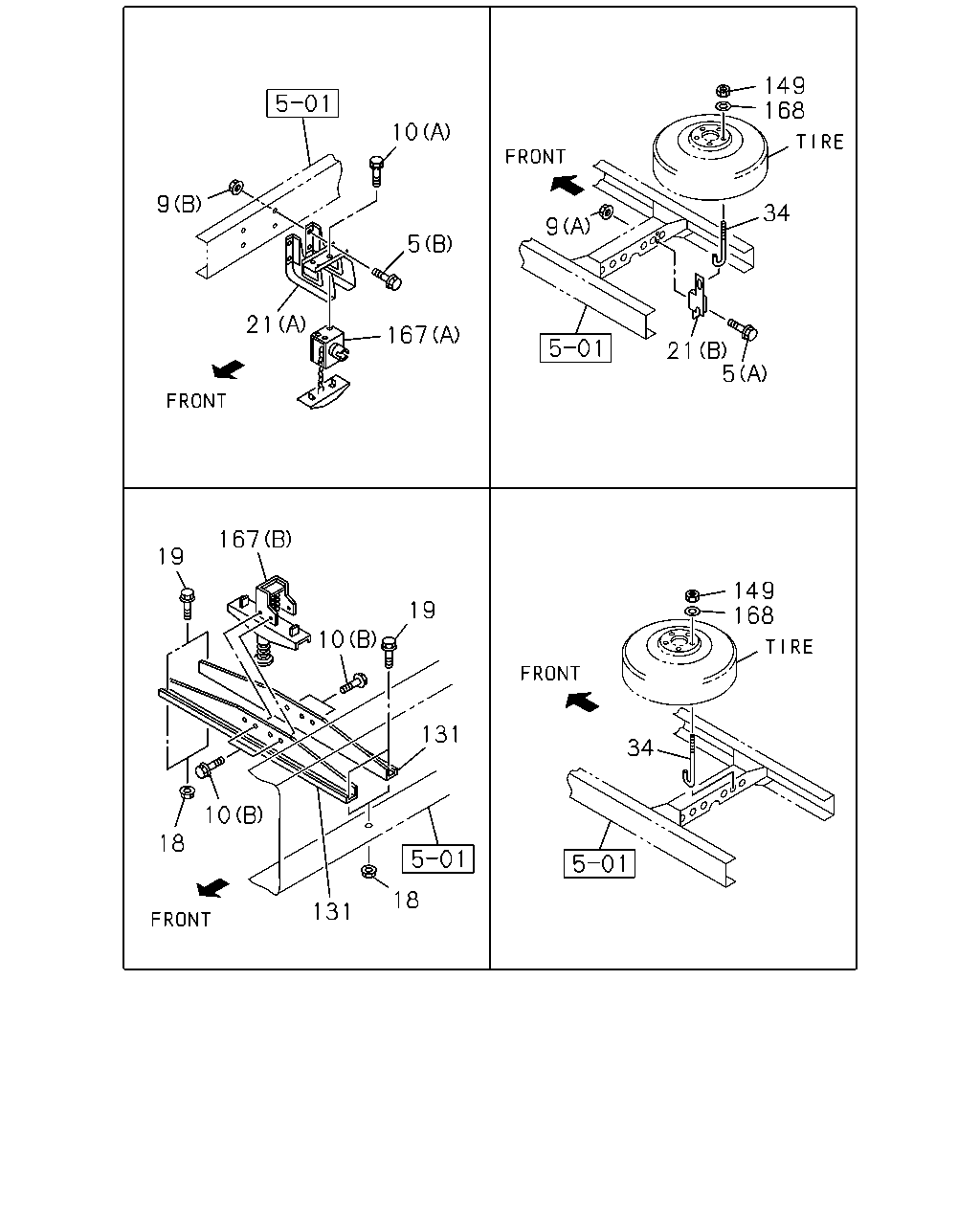

5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
09.171
(B)
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
0907-0910 |
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
09.171
(B)
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
0911- |
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0905-0906 |
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907- |
|
● |
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4400MM(44W)
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0905-0906 |
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0905-0906 |
|
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0908 |
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0908 |
|
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0909- |
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0909- |
|
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
09.171
(B)
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
0905-0906 |
|
● |
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
09.171
(B)
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
0907-0908 |
|
● |
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
09.171
(B)
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
0909- |
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
09.171
(B)
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
0909- |
|
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-0910 |
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0911- |
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0905-0906 |
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
|
● |
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4400MM(44W)
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0905-0906 |
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0905-0906 |
|
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907-0908 |
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907-0908 |
|
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0909- |
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0909- |
|
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-0906 |
|
● |
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907-0908 |
|
● |
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0909- |
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0909- |
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0905-0906 |
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
SPARE WHEEL CARRIER<P10>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1510 |
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1510 |
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1510 |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1510 |
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL
BASE 4400MM(44W)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0905-0906 |
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0907-0908 |
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0907-0908 |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0909-0910 |
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0909-0910 |
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0909-0910 |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0911-1510 |
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0911-1510 |
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0911-1510 |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-0906 |
|
● |
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907- |
|
● |
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907- |
|
|
● |
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907- |
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W)
SPARE TIRE & DISC WHEEL LESS<7NC>
EXC. SPARE WHEEL CARRIER<P10>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907- |
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907- |
|
|
|
● |
| |
18 |
07.633 NUT; MEMBER
SPARE TIRE & DISC WHEEL LESS<7NC>
EXC. SPARE WHEEL CARRIER<P10>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907- |
|
|
|
● |
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0905-0906 |
|
● |
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907- |
|
● |
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907- |
|
|
● |
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907- |
● |
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W)
SPARE TIRE & DISC WHEEL LESS<7NC>
EXC. SPARE WHEEL CARRIER<P10>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907- |
● |
|
|
|
| |
19 |
07.632 BOLT; C/MBR
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907- |
|
|
|
● |
| |
19 |
07.632 BOLT; C/MBR
SPARE TIRE & DISC WHEEL LESS<7NC>
EXC. SPARE WHEEL CARRIER<P10>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907- |
|
|
|
● |
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
(A)
|
8-98072-378-1 |
01 |
1 |
0907-0908 |
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-1 |
01 |
1 |
0909-0910 |
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
(A)
|
8-98072-378-1 |
01 |
1 |
0909-0910 |
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0911- |
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
(A)
|
8-98072-378-2 |
01 |
1 |
0911- |
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 3300MM(33W)
(B)
|
8-98019-889-0 |
01 |
1 |
0905-0906 |
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98019-889-0 |
01 |
1 |
0907- |
|
● |
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 3800MM(38W),WHEEL BASE
4400MM(44W)
(B)
|
8-98019-889-0 |
02 |
1 |
0905-0906 |
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
(B)
|
8-98019-889-0 |
02 |
1 |
0905-0906 |
|
|
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 3800MM(38W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98019-889-0 |
02 |
1 |
0907-0908 |
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98019-889-0 |
02 |
1 |
0907-0908 |
|
|
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98019-889-0 |
02 |
1 |
0909- |
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98019-889-0 |
02 |
1 |
0909- |
|
|
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
(A)
|
8-98036-085-1 |
01 |
1 |
0905-0906 |
|
● |
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98036-085-2 |
01 |
1 |
0907- |
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X305
|
8-94441-189-0 |
02 |
1 |
0905-0906 |
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
0907-1209 |
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X330
|
8-98226-501-0 |
02 |
1 |
1210- |
|
● |
● |
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98024-842-2 |
02 |
1 |
0907- |
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98024-842-2 |
02 |
1 |
0907- |
|
|
● |
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
|
8-98024-842-2 |
02 |
1 |
0907- |
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE TIRE & DISC WHEEL LESS<7NC>
EXC. SPARE WHEEL CARRIER<P10>
|
8-98024-842-2 |
02 |
1 |
0907- |
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
|
8-98024-842-2 |
02 |
1 |
0907- |
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
SPARE TIRE & DISC WHEEL LESS<7NC>
EXC. SPARE WHEEL CARRIER<P10>
|
8-98024-842-2 |
02 |
1 |
0907- |
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98035-827-1 |
02 |
1 |
0905-0906 |
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
|
8-98035-827-1 |
02 |
1 |
0907- |
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
|
8-98035-827-1 |
02 |
1 |
0907- |
|
|
● |
|
| |
149 |
07.629 NUT; CARRIER
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0905-0906 |
|
● |
● |
|
| |
149 |
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ>
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0907- |
|
● |
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV)
SPARE WHEEL CARRIER<P10>
(A)
|
8-94382-875-1 |
01 |
1 |
0907-0910 |
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
(A)
|
8-94382-875-1 |
01 |
1 |
0911-1008 |
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI
SC 16X5.5J-116.5 EEC(CVZ),FRT&RR
205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
(A)
|
8-94382-875-1 |
01 |
1 |
1009- |
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV)
(B)
|
8-98036-384-0 |
01 |
1 |
0907-0910 |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV)
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-384-0 |
01 |
1 |
0907-0910 |
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV)
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-384-0 |
01 |
1 |
0907-0910 |
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV)
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1008 |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1008 |
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1008 |
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI
SC 16X5.5J-116.5 EEC(CVZ),FRT&RR
205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)
(B)
|
8-98036-384-0 |
01 |
1 |
1009- |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI
SC 16X5.5J-116.5 EEC(CVZ),FRT&RR
205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-384-0 |
01 |
1 |
1009- |
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E
EC(BQU),FRT&RR 195-16C-75R DISC
16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DI
SC 16X5.5J-116.5 EEC(CVZ),FRT&RR
205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)
SPARE TIRE & DISC WHEEL REAR TIRE<R46>
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-384-0 |
01 |
1 |
1009- |
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR 215/75R17.5
17.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/75R17.5 17.5X6.00-127 WHITE(CRW)
(B)
|
8-98036-383-0 |
01 |
1 |
0905-0906 |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR TIRE 215-75R16C
DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16
C DISC 16-5.5J-127SILVER(CQT),FRT&RR
215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SIL
VER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
(B)
|
8-98036-383-0 |
01 |
1 |
0907-0907 |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR TIRE 215-75R16C
DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16
C DISC 16-5.5J-127SILVER(CQT),FRT&RR
215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SIL
VER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
(B)
|
8-98036-383-0 |
01 |
1 |
0907-0907 |
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR TIRE 215-75R16C
DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16
C DISC 16-5.5J-127SILVER(CQT),FRT&RR
215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT
&RR 215/75R17.5 17.5X6.00-127
E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
(B)
|
8-98036-383-0 |
01 |
1 |
0907-1212 |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR TIRE 215-75R16C
DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16
C DISC 16-5.5J-127SILVER(CQT),FRT&RR
215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT
&RR 215/75R17.5 17.5X6.00-127
E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
(B)
|
8-98036-383-0 |
01 |
1 |
0907-1212 |
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17
.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT
&RR 215/75R17.5 17.5X6.00-127
WHITE(CRW)
(B)
|
8-98036-383-0 |
01 |
1 |
1301- |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17
.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT
&RR 215/75R17.5 17.5X6.00-127
WHITE(CRW)
(B)
|
8-98036-383-0 |
01 |
1 |
1301- |
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR 215/75R17.5
17.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/75R17.5 17.5X6.00-127 WHITE(CRW)
(A)
|
8-97010-955-1 |
01 |
1 |
0905-0906 |
|
● |
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR TIRE 215-75R16C
DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16
C DISC 16-5.5J-127SILVER(CQT),FRT&RR
215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SIL
VER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0907-0907 |
|
● |
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR TIRE 215-75R16C
DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16
C DISC 16-5.5J-127SILVER(CQT),FRT&RR
215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT
&RR 215/75R17.5 17.5X6.00-127
E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0907-0908 |
|
● |
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR TIRE 215-75R16C
DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16
C DISC 16-5.5J-127SILVER(CQT),FRT&RR
215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT
&RR 215/75R17.5 17.5X6.00-127
E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0909-1212 |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR TIRE 215-75R16C
DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16
C DISC 16-5.5J-127SILVER(CQT),FRT&RR
215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT
&RR 215/75R17.5 17.5X6.00-127
E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5
17.5X6.00-127 WHITE(CRW)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0909-1212 |
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17
.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT
&RR 215/75R17.5 17.5X6.00-127
WHITE(CRW)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1301- |
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12
7WHITE(AUJ),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17
.5X6.00-127 E-MARK(CRU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT
&RR 215/75R17.5 17.5X6.00-127
WHITE(CRW)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1301- |
|
|
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0905-0906 |
|
● |
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0907- |
|
● |
● |
|
