◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#77225) — 638 parça

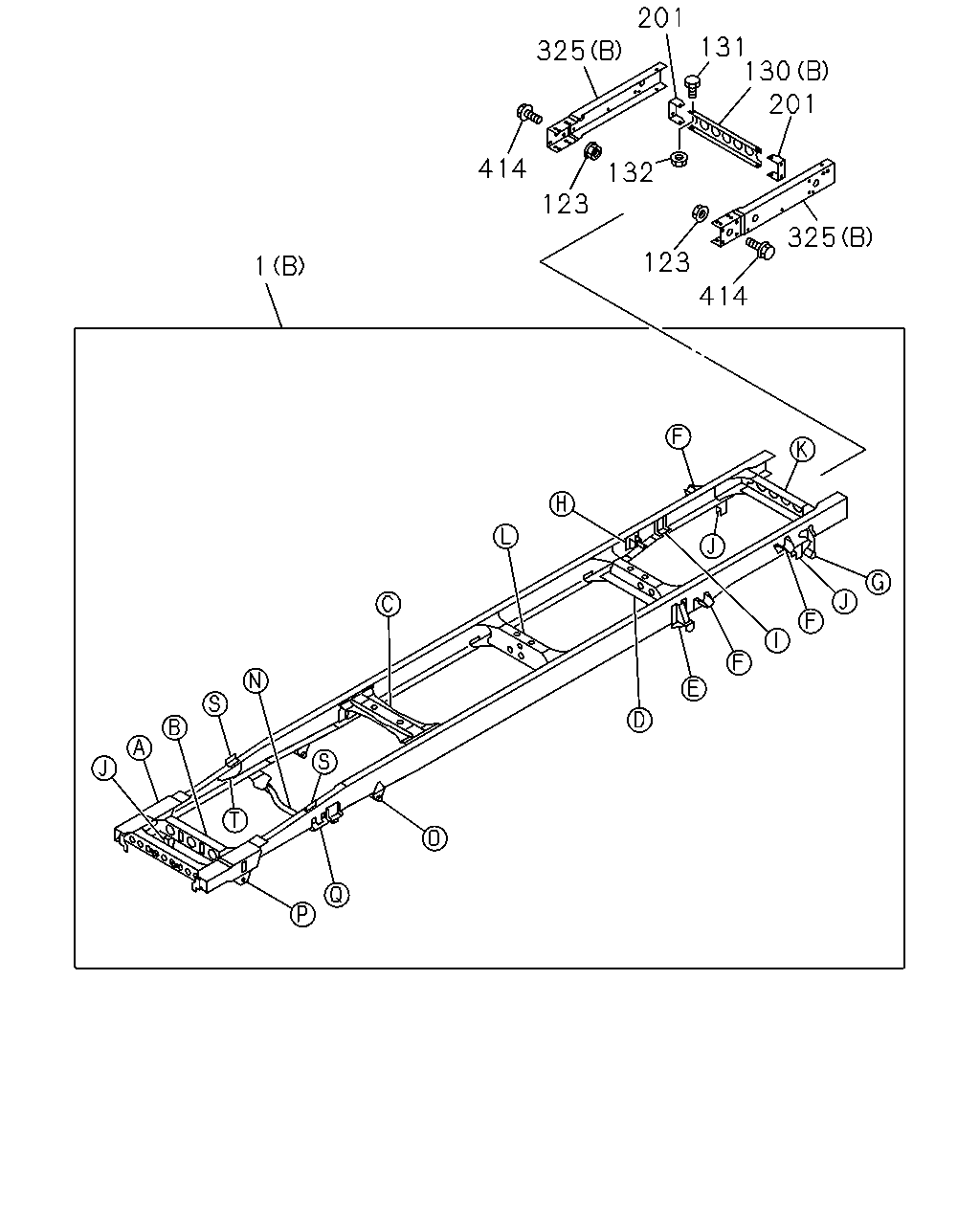

çizim 125169
1 414 325 201 131 130 132 123 123 414 325 201
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (C) 		8-98157-956-1 01 1 1109- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-621-4 01 1 1106- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-155-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-157-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98148-160-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98148-163-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-252-0 01 1 0909-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98071-658-5 01 1 0912- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-251-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-250-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-257-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-256-0 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98151-250-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98134-378-1 01 1 0911- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-253-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98071-514-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98071-513-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-521-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-520-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-527-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-526-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-619-3 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-620-7 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-639-4 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0907-0907 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POOR QUALITY DIESEL F UEL(KF0) (A) 		8-98071-638-4 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0911- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98088-880-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98088-879-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-533-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-532-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-628-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-649-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98071-670-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98071-674-2 01 1 0912- ●
123 07.039 NUT
WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 0905-0908 ● ●
123 07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 0909- ●
123 07.039 NUT
WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 0909- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98000-492-0 01 1 0907- ● ●
130 07.014 MEMBER; CROSS,END
(A) 		8-98000-492-0 01 1 0907- ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 0905-0906 ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97080-872-0 01 1 0907- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0905-0908 ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0909- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0909- ●
131 07.014 BOLT; END C/MBR
WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 0905-0908 ● ●
131 07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 0909- ●
131 07.014 BOLT; END C/MBR
WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 0909- ●
132 07.014 NUT; END C/MBR
WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 0905-0908 ● ●
132 07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 0909- ●
132 07.014 NUT; END C/MBR
WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 0909- ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 0905-0910 ● ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 0911- ● ● ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 0909- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 0909- ●
325 07.039 EXTENSION; FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-342-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-342-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-343-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-343-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-346-0 01 1 0907-0911 ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-346-0 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98073-346-0 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-347-1 01 1 0907-0911 ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-347-1 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98073-347-1 01 1 0912- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-350-0 01 1 0905-0906 ● ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 1106- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 1106- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-351-1 01 1 0905-0906 ● ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 1106- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 1106- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 0905- ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 0905- ● ●
414 07.011 BOLT
WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 0905-0908 ● ●
414 07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 0909- ●
414 07.011 BOLT
WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 0909- ●

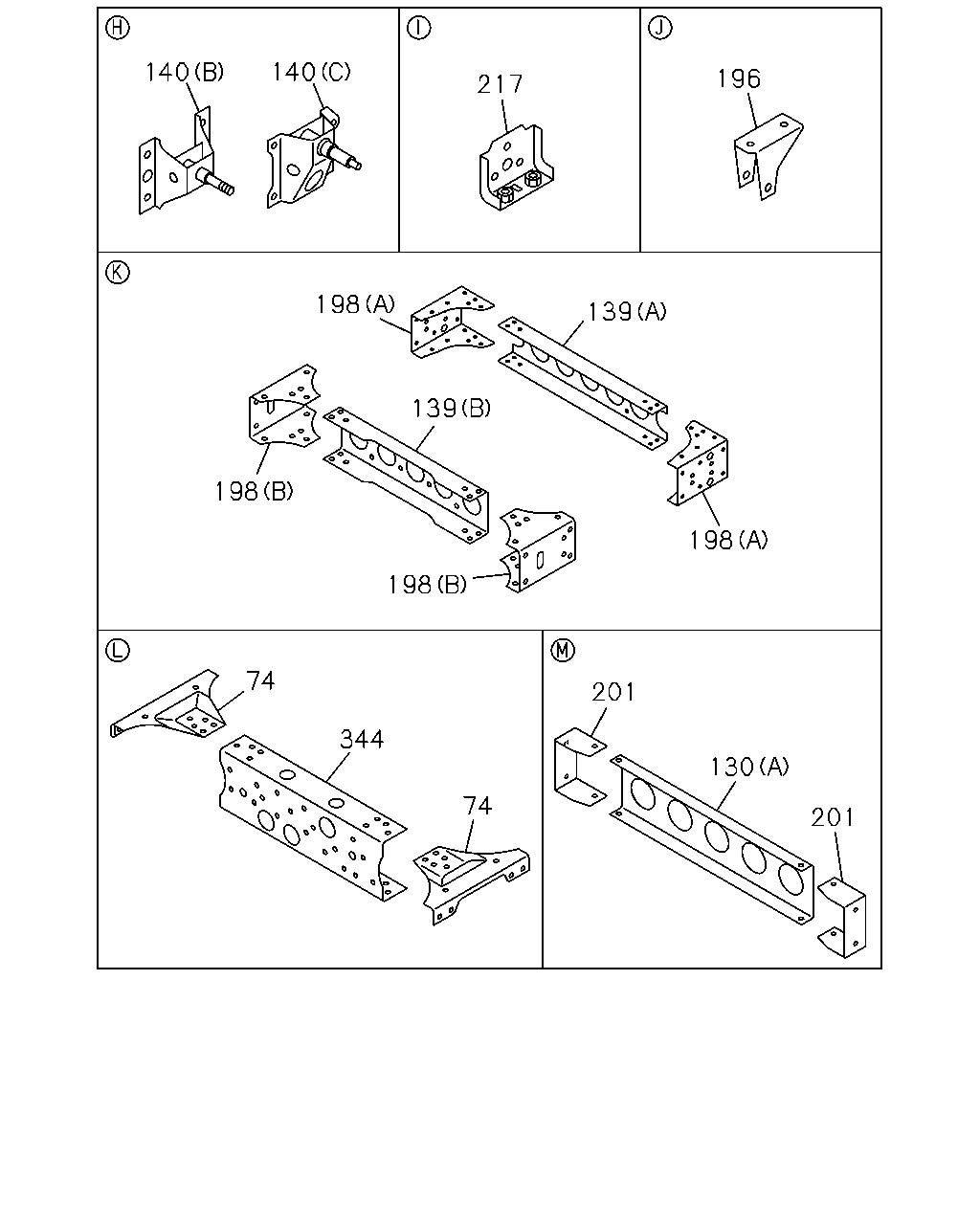

çizim 125263
140 140 196 217 198 139 139 198 198 198 74 201 344 130 74 201
BalonParca AdiParca NoAdetTipApplied Date A B C D
74 07.039 GUSSET; 4TH C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER 		8-98000-585-1 02 1 0907- ● ●
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-585-1 02 1 0907- ● ●
74 07.039 GUSSET; 4TH C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER 		8-98000-586-1 02 1 0907- ● ●
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-586-1 02 1 0907- ● ●
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 0905-0906 ● ●
74 07.039 GUSSET; 4TH C/MBR
FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 0907- ● ●
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 0905-0906 ● ●
74 07.039 GUSSET; 4TH C/MBR
FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 0907- ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98000-492-0 01 1 0907- ● ●
130 07.014 MEMBER; CROSS,END
(A) 		8-98000-492-0 01 1 0907- ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 0905-0906 ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97080-872-0 01 1 0907- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0905-0908 ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0909- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0909- ●
139 07.012 MEMBER; CROSS,6TH
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-97326-394-0 01 1 0911-0911 ●
139 07.012 MEMBER; CROSS,6TH
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97326-394-0 01 1 0912- ● ●
139 07.012 MEMBER; CROSS,6TH
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98000-491-0 01 1 0907- ● ●
139 07.012 MEMBER; CROSS,6TH
(B) 		8-98000-491-0 01 1 0907- ● ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97107-384-0 01 1 0905-0906 ● ●
139 07.012 MEMBER; CROSS,6TH
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97107-384-0 01 1 0907-0911 ● ●
139 07.012 MEMBER; CROSS,6TH
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-97107-384-0 01 1 0912- ● ●
139 07.012 MEMBER; CROSS,6TH
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97107-384-0 01 1 0912- ● ●
140 07.112 BRACKET; S/ABS,RR
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98000-587-1 02 1 0907- ● ●
140 07.112 BRACKET; S/ABS,RR
(C) 		8-98000-587-1 02 1 0907- ● ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97080-884-0 02 1 0905-0906 ● ●
140 07.112 BRACKET; S/ABS,RR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97080-884-1 02 1 0907- ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (A) 		8-97302-511-0 02 1 0905-0906 ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (A) 		8-97302-511-0 02 1 0907- ● ● ● ●
196 07.242 BRACKET; STAB TO FRAME
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98033-523-0 02 1 0907-0910 ●
196 07.242 BRACKET; STAB TO FRAME
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98033-523-0 02 1 0911-0911 ●
196 07.242 BRACKET; STAB TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98033-523-0 02 1 0912-1105 ●
196 07.242 BRACKET; STAB TO FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98033-523-0 02 1 1106- ●
196 07.242 BRACKET; STAB TO FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98033-523-0 02 1 1106- ●
196 07.242 BRACKET; STAB TO FRAME 8-98033-523-0 04 1 0905-0906 ● ●
196 07.242 BRACKET; STAB TO FRAME 8-98033-523-0 04 1 0907-0911 ● ● ● ●
196 07.242 BRACKET; STAB TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98033-523-0 04 1 0912- ● ●
196 07.242 BRACKET; STAB TO FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> 		8-98033-523-0 04 1 0912- ● ●
196 07.242 BRACKET; STAB TO FRAME 8-98033-523-0 04 1 0912- ● ●
198 07.039 GUSSET; 6TH C/MBR
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98009-044-1 02 1 0907- ● ●
198 07.039 GUSSET; 6TH C/MBR
(B) 		8-98009-044-1 02 1 0907- ● ●
198 07.039 GUSSET; 6TH C/MBR
(A) 		8-98014-079-1 02 1 0905-0906 ● ●
198 07.039 GUSSET; 6TH C/MBR
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98014-079-1 02 1 0907- ● ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 0905-0910 ● ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 0911- ● ● ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 0905-0906 ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 0907- ● ● ● ●
344 07.012 MEMBER; CROSS,4TH
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98000-490-2 01 1 0907- ● ●
344 07.012 MEMBER; CROSS,4TH 8-98000-490-2 01 1 0907- ● ●
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 0905-0906 ● ●
344 07.012 MEMBER; CROSS,4TH
FRAME STRAIGHT TYPE<7KJ> 		8-97175-993-3 01 1 0907- ● ●

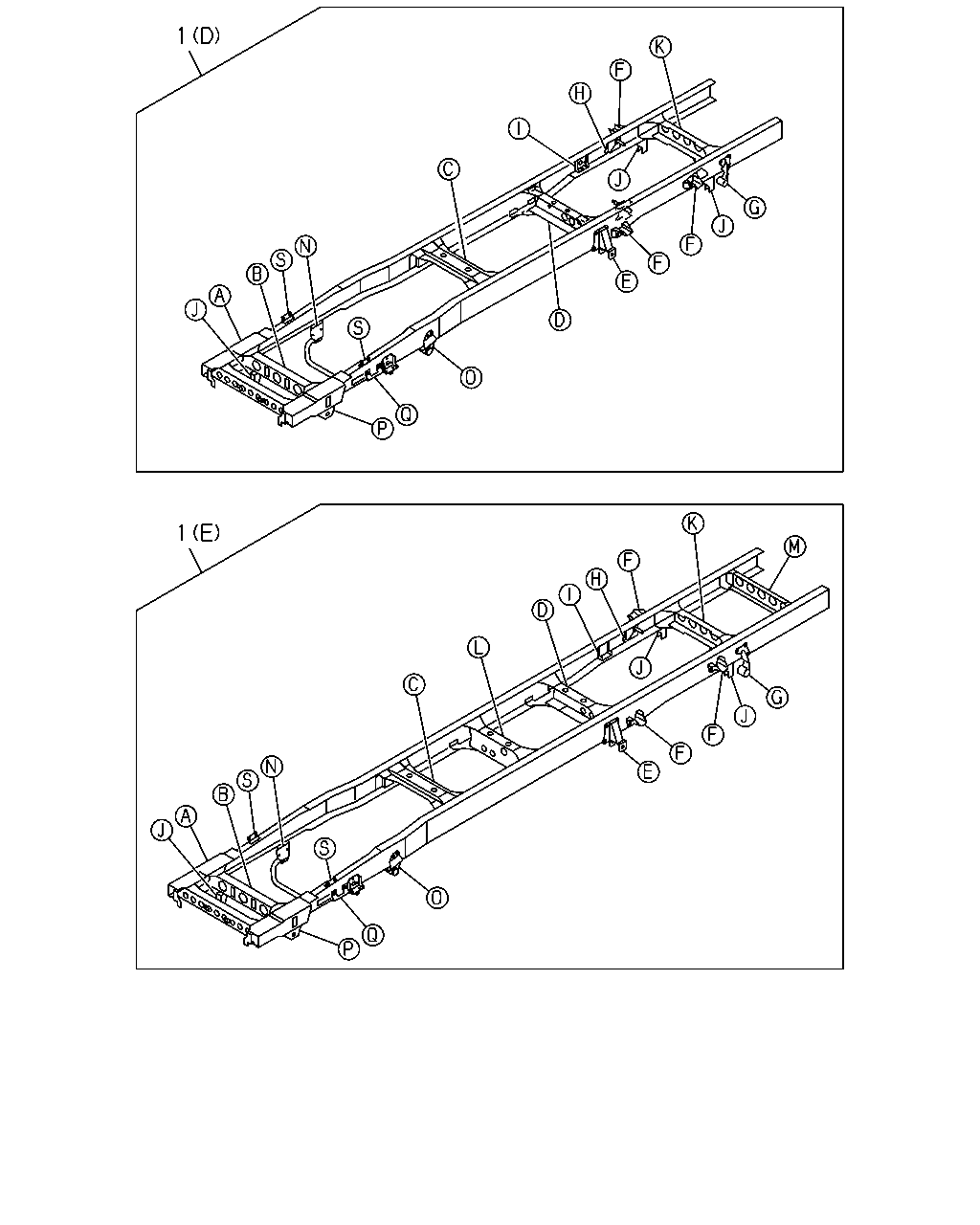

çizim 125327
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (C) 		8-98157-956-1 01 1 1109- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-621-4 01 1 1106- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-155-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-157-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98148-160-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98148-163-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-252-0 01 1 0909-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98071-658-5 01 1 0912- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-251-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-250-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-257-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-256-0 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98151-250-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98134-378-1 01 1 0911- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-253-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98071-514-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98071-513-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-521-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-520-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-527-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-526-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-619-3 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-620-7 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-639-4 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0907-0907 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POOR QUALITY DIESEL F UEL(KF0) (A) 		8-98071-638-4 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0911- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98088-880-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98088-879-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-533-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-532-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-628-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-649-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98071-670-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98071-674-2 01 1 0912- ●

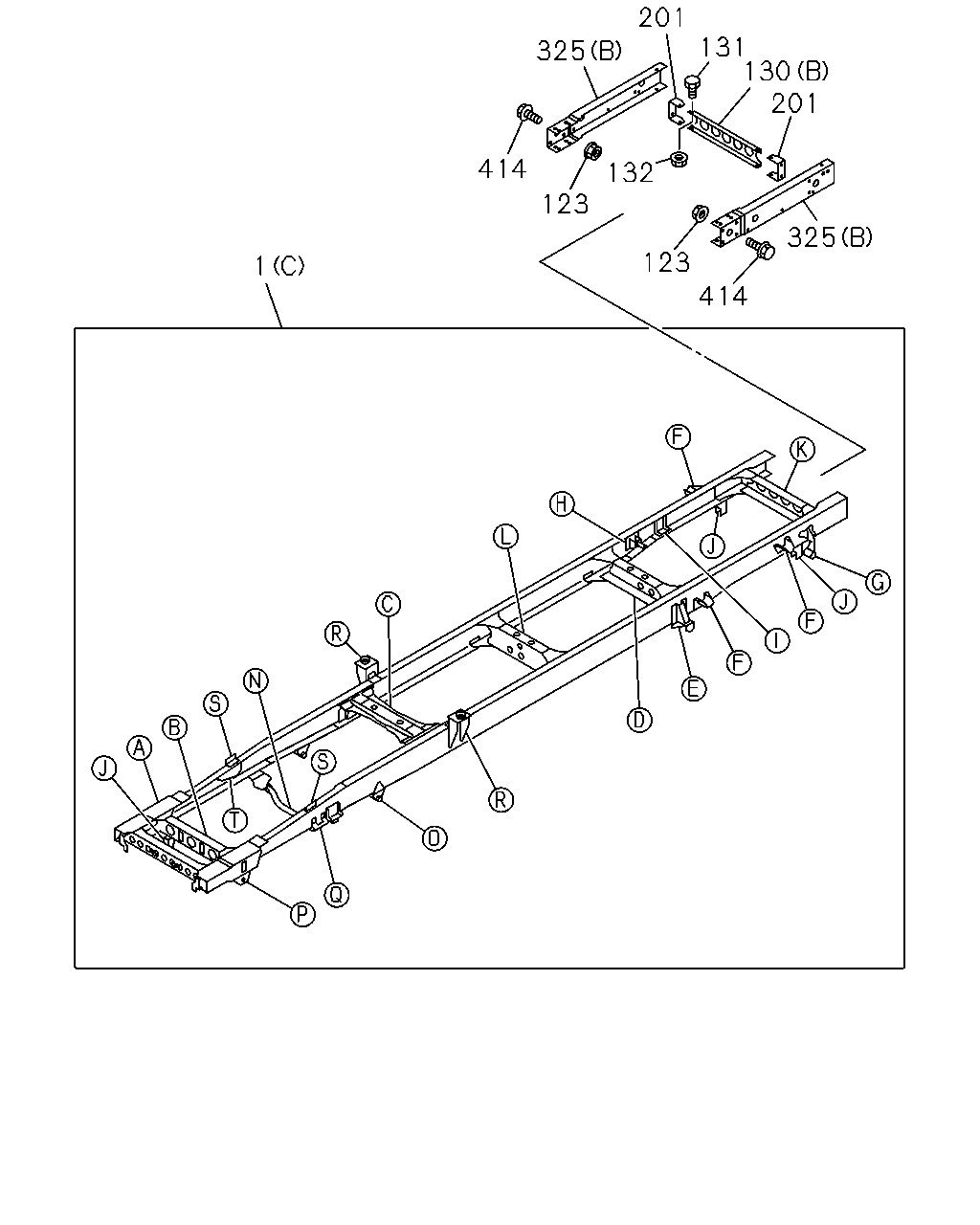

çizim 125361
1 414 123 123 414 325 201 130 131 201 325 132
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (C) 		8-98157-956-1 01 1 1109- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-621-4 01 1 1106- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-155-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-157-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98148-160-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98148-163-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-252-0 01 1 0909-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98071-658-5 01 1 0912- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-251-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-250-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-257-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-256-0 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98151-250-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98134-378-1 01 1 0911- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-253-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98071-514-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98071-513-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-521-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-520-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-527-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-526-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-619-3 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-620-7 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-639-4 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0907-0907 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POOR QUALITY DIESEL F UEL(KF0) (A) 		8-98071-638-4 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0911- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98088-880-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98088-879-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-533-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-532-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-628-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-649-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98071-670-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98071-674-2 01 1 0912- ●
123 07.039 NUT
WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 0905-0908 ● ●
123 07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 0909- ●
123 07.039 NUT
WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 0909- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98000-492-0 01 1 0907- ● ●
130 07.014 MEMBER; CROSS,END
(A) 		8-98000-492-0 01 1 0907- ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 0905-0906 ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97080-872-0 01 1 0907- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0905-0908 ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0909- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 0909- ●
131 07.014 BOLT; END C/MBR
WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 0905-0908 ● ●
131 07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 0909- ●
131 07.014 BOLT; END C/MBR
WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 0909- ●
132 07.014 NUT; END C/MBR
WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 0905-0908 ● ●
132 07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 0909- ●
132 07.014 NUT; END C/MBR
WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 0909- ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 0905-0910 ● ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 0911- ● ● ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 0909- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 0909- ●
325 07.039 EXTENSION; FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-342-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-342-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-343-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-343-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-346-0 01 1 0907-0911 ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-346-0 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98073-346-0 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-347-1 01 1 0907-0911 ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-347-1 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98073-347-1 01 1 0912- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-350-0 01 1 0905-0906 ● ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 1106- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 1106- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-351-1 01 1 0905-0906 ● ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 1106- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 1106- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 0905- ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 0905- ● ●
414 07.011 BOLT
WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 0905-0908 ● ●
414 07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 0909- ●
414 07.011 BOLT
WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 0909- ●

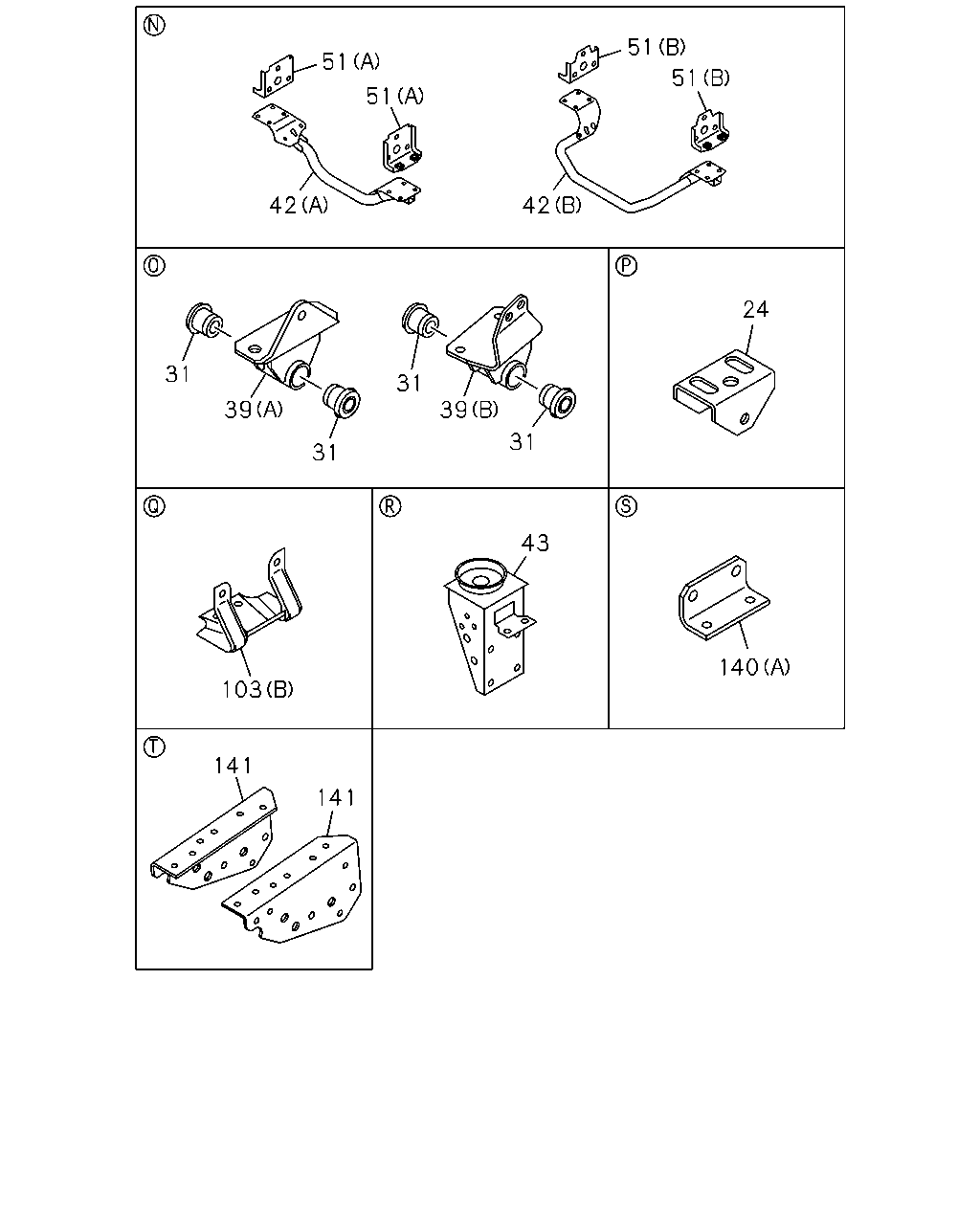

çizim 125448
51 51 42 42 51 51 24 31 39 31 31 39 31 103 43 140 141 141
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 0905-0906 ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 0907- ● ● ● ●
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 0905-0906 ● ●
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 0907- ● ● ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98064-729-0 01 1 0907- ● ●
39 07.112 BRACKET; FRT SPR,RR
(B) 		8-98064-729-0 01 1 0907- ● ●
39 07.112 BRACKET; FRT SPR,RR
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98064-731-0 01 1 0907- ● ●
39 07.112 BRACKET; FRT SPR,RR
(B) 		8-98064-731-0 01 1 0907- ● ●
39 07.112 BRACKET; FRT SPR,RR
(A) 		8-98014-125-0 02 1 0905-0906 ● ●
39 07.112 BRACKET; FRT SPR,RR
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98014-125-0 02 1 0907- ● ●
42 07.011 MEMBER; CROSS,ENG MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98049-111-0 01 1 0907- ● ●
42 07.011 MEMBER; CROSS,ENG MTG
(B) 		8-98049-111-0 01 1 0907- ● ●
42 07.011 MEMBER; CROSS,ENG MTG
(A) 		8-98032-389-0 01 1 0905-0906 ● ●
42 07.011 MEMBER; CROSS,ENG MTG
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98032-389-0 01 1 0907- ● ●
43 09.003 BRACKET; CAB MTG,RR 8-98061-560-1 01 1 0905-0906 ●
43 09.003 BRACKET; CAB MTG,RR 8-98061-560-1 01 1 0907- ● ●
43 09.003 BRACKET; CAB MTG,RR 8-98061-561-1 01 1 0905-0906 ●
43 09.003 BRACKET; CAB MTG,RR 8-98061-561-1 01 1 0907- ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98032-390-0 02 1 0907- ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
(B) 		8-98032-390-0 02 1 0907- ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
(A) 		8-98034-961-0 02 1 0905-0906 ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98034-961-0 02 1 0907- ● ●
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 0905-0906 ● ●
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 0907- ● ● ● ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 0905-0906 ● ●
103 07.420 STOPPER; SUB SPR
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97223-748-0 04 1 0907- ● ●
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97223-748-0 04 1 0907- ● ●
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97223-748-0 04 1 0907- ●
140 07.112 BRACKET; S/ABS,RR
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98000-587-1 02 1 0907- ● ●
140 07.112 BRACKET; S/ABS,RR
(C) 		8-98000-587-1 02 1 0907- ● ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97080-884-0 02 1 0905-0906 ● ●
140 07.112 BRACKET; S/ABS,RR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97080-884-1 02 1 0907- ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (A) 		8-97302-511-0 02 1 0905-0906 ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (A) 		8-97302-511-0 02 1 0907- ● ● ● ●
141 07.112 STIFFENER 8-98064-354-0 01 1 0905-0906 ● ●
141 07.112 STIFFENER
FRAME STRAIGHT TYPE<7KJ> 		8-98064-354-2 01 1 0907- ● ●
141 07.112 STIFFENER 8-98064-355-0 01 1 0905-0906 ● ●
141 07.112 STIFFENER
FRAME STRAIGHT TYPE<7KJ> 		8-98064-355-2 01 1 0907- ● ●
çizim 125587
376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 221 221 176 176 296 535 536 118 222 67 537 538
BalonParca AdiParca NoAdetTipApplied Date A B C D
67 07.011 NUT; C/MBR
EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0907- ● ●
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 0907- ● ●
67 07.011 NUT; C/MBR
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 18 1 0907- ●
67 07.011 NUT; C/MBR
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 15 1 0905-0906 ● ●
67 07.011 NUT; C/MBR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 15 1 0907- ● ●
67 07.011 NUT; C/MBR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 17 1 0905-0906 ● ●
67 07.011 NUT; C/MBR
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 17 1 0907- ● ●
118 07.529 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 0905-0906 ● ●
118 07.529 NUT; STOPPER
FRAME STRAIGHT TYPE<7KJ> M8 LOCK NUT 		0-91370-008-0 02 1 0907- ● ●
118 07.529 NUT; STOPPER
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> M8 LOCK NUT 		0-91370-008-0 02 1 0907- ● ●
118 07.529 NUT; STOPPER
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> M8 LOCK NUT 		0-91370-008-0 02 1 0907- ●
176 04.085 BOLT; C/MBR,ENG MTG
FRAME STRAIGHT TYPE<7KJ> 03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 0907- ● ●
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 0905-0906 ● ●
176 04.085 BOLT; C/MBR,ENG MTG
EXC. FRAME STRAIGHT TYPE<7KJ> 03.890 (B) M10X30 FLANGE 		0-28051-030-0 08 1 0907- ● ●
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 08 1 0907- ● ●
176 04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 0905-0906 ● ●
176 04.085 BOLT; C/MBR,ENG MTG
FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 0907- ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0907-0907 ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0907-0907 ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0907- ● ● ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0905-0906 ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0907-0911 ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0912- ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0912- ● ●
222 07.039 NUT; RAD MTG BRKT,FRAME
01.540 M8 FLANGE 		0-91180-208-0 02 1 0905-0906 ● ●
222 07.039 NUT; RAD MTG BRKT,FRAME
FRAME STRAIGHT TYPE<7KJ> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0907-0911 ● ●
222 07.039 NUT; RAD MTG BRKT,FRAME
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0912- ● ●
222 07.039 NUT; RAD MTG BRKT,FRAME
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0912- ● ●
296 07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 16 1 0905-0906 ● ●
296 07.039 BOLT; 3RD C/MBR
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 16 1 0907- ● ●
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
07.395 (B) D8X26 TAPER END 		9-06750-826-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
07.395 (B) D8X26 TAPER END 		9-06750-826-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(C) D10X22 TAPER END 		9-06751-022-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(C) D10X22 TAPER END 		9-06751-022-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(J) D11X26 TAPER END 		9-06751-126-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(J) D11X26 TAPER END 		9-06751-126-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
(K) D11X30 TAPER END 		9-06751-130-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
(K) D11X30 TAPER END 		9-06751-130-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
07.105 (L) D12X30 TAPER END 		9-06751-230-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
07.105 (L) D12X30 TAPER END 		9-06751-230-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
07.006 (M) D12X32 TAPER END 		9-06751-232-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
07.006 (M) D12X32 TAPER END 		9-06751-232-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
07.428 (N) D12X36 TAPER END 		9-06751-236-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
07.428 (N) D12X36 TAPER END 		9-06751-236-0 AR 1 0907- ● ● ● ●
376 07.039 RIVET; FRAME
07.112 (O) D12X40 TAPER END 		9-06751-240-0 AR 1 0905-0906 ● ●
376 07.039 RIVET; FRAME
07.112 (O) D12X40 TAPER END 		9-06751-240-0 AR 1 0907- ● ● ● ●
535 01.270 BOLT; FRAME UPPER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1409- ● ●
535 01.270 BOLT; FRAME UPPER
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 06 1 0907- ●
535 01.270 BOLT; FRAME UPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0907-1408 ● ● ●
535 01.270 BOLT; FRAME UPPER
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0907-1408 ●
535 01.270 BOLT; FRAME UPPER
WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0907-1408 ●
535 01.270 BOLT; FRAME UPPER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1409- ● ●
535 01.270 BOLT; FRAME UPPER
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1409- ● ●
535 01.270 BOLT; FRAME UPPER
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1409- ●
535 01.270 BOLT; FRAME UPPER
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1409- ●
536 01.270 BOLT; FRAME LOWER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1409- ● ●
536 01.270 BOLT; FRAME LOWER
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0907-1408 ● ●
536 01.270 BOLT; FRAME LOWER
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0907-1408 ● ●
536 01.270 BOLT; FRAME LOWER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1409- ● ●
536 01.270 BOLT; FRAME LOWER
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1409- ● ●
536 01.270 BOLT; FRAME LOWER
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1409- ●
536 01.270 BOLT; FRAME LOWER
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1409- ●
537 01.270 NUT; FRAME LOWER
EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0907- ● ●
537 01.270 NUT; FRAME LOWER
04.085 M10 FLANGE 		0-91180-210-0 08 1 0907- ● ●
538 01.270 NUT; FRAME UPPER
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 02 1 0907- ●
538 01.270 NUT; FRAME UPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0907- ● ● ●
538 01.270 NUT; FRAME UPPER
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 04 1 0907- ●
538 01.270 NUT; FRAME UPPER
WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE 		0-91180-210-0 04 1 0907- ●

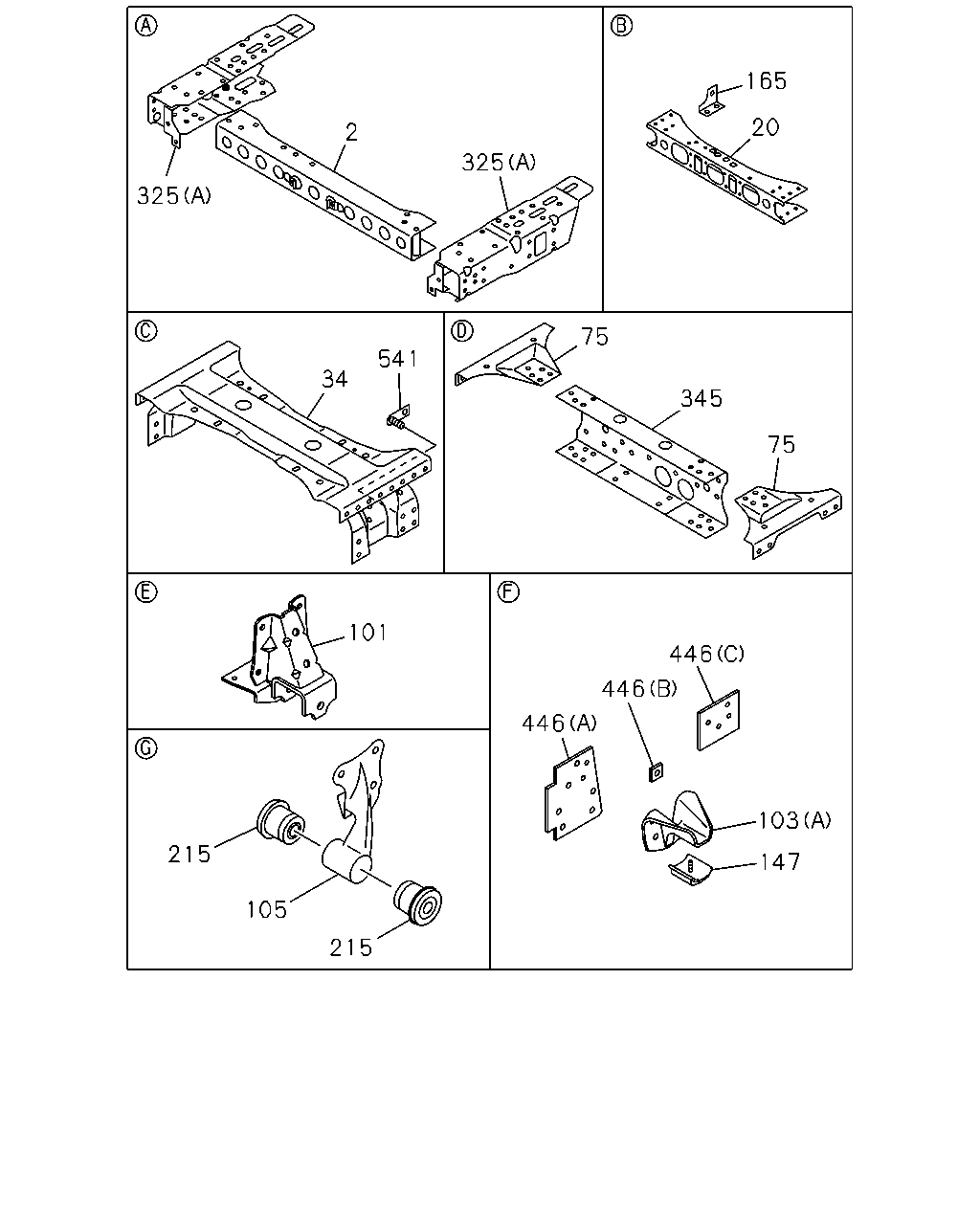

çizim 125618
165 20 2 325 325 75 541 34 345 75 101 446 446 446 103 215 147 105 215
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 07.010 MEMBER; CROSS,1ST 8-97387-866-3 01 1 0905-0906 ● ●
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 0907- ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 		8-98080-335-0 01 1 0907- ● ● ●
20 07.012 MEMBER; CROSS,2ND
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98066-045-4 01 1 0907- ● ● ● ●
20 07.012 MEMBER; CROSS,2ND 8-98014-074-3 01 1 0905-0906 ● ●
20 07.012 MEMBER; CROSS,2ND
FRAME STRAIGHT TYPE<7KJ> 		8-98014-074-7 01 1 0907- ● ●
34 07.012 MEMBER; CROSS,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98008-947-5 01 1 0907- ● ● ● ●
34 07.012 MEMBER; CROSS,3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98000-489-4 01 1 0907- ● ● ● ●
34 07.012 MEMBER; CROSS,3RD
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-640-2 01 1 0907- ●
34 07.012 MEMBER; CROSS,3RD
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98074-639-4 01 1 0907- ●
34 07.012 MEMBER; CROSS,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98014-078-6 01 1 0905-0906 ● ●
34 07.012 MEMBER; CROSS,3RD
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98014-078-6 01 1 0907- ● ●
34 07.012 MEMBER; CROSS,3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98072-038-0 01 1 0905-0906 ● ●
34 07.012 MEMBER; CROSS,3RD
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98072-038-1 01 1 0907- ● ●
75 07.039 GUSSET; 5TH C/MBR
EXC. FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER 		8-98000-585-1 02 1 0907- ● ●
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-585-1 02 1 0907- ● ●
75 07.039 GUSSET; 5TH C/MBR
EXC. FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER 		8-98000-586-1 02 1 0907- ● ●
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-586-1 02 1 0907- ● ●
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 0905-0906 ● ●
75 07.039 GUSSET; 5TH C/MBR
FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 0907- ● ●
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 0905-0906 ● ●
75 07.039 GUSSET; 5TH C/MBR
FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 0907- ● ●
101 07.112 BRACKET; RR SPR,FRT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-605-0 02 1 1409- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 0905-0906 ● ●
101 07.112 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 0907-1408 ● ● ● ●
101 07.112 BRACKET; RR SPR,FRT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97042-245-1 02 1 1409- ● ●
101 07.112 BRACKET; RR SPR,FRT
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97042-245-1 02 1 1409- ● ●
101 07.112 BRACKET; RR SPR,FRT
4HK1-TCS ENG(RJS) 		8-97042-245-1 02 1 1409- ●
101 07.112 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 1409- ● ●
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 0905-0906 ● ●
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 0907- ● ● ● ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 0905-0906 ● ●
103 07.420 STOPPER; SUB SPR
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97223-748-0 04 1 0907- ● ●
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97223-748-0 04 1 0907- ● ●
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97223-748-0 04 1 0907- ●
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 0905-0906 ● ●
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 0907- ● ● ● ●
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 0905-0906 ● ●
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 0907- ● ● ● ●
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 0905-0906 ● ●
147 07.535 RUBBER; SUB SPRING
FRAME STRAIGHT TYPE<7KJ> 		8-97254-387-0 04 1 0907- ● ●
147 07.535 RUBBER; SUB SPRING
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97254-387-0 04 1 0907- ● ●
147 07.535 RUBBER; SUB SPRING
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97254-387-0 04 1 0907- ●
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 0905-0906 ● ●
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 0907- ● ● ● ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0905-0906 ● ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0907- ● ● ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 0909- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 0909- ●
325 07.039 EXTENSION; FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-342-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-342-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-343-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-343-0 01 1 0907- ● ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-346-0 01 1 0907-0911 ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-346-0 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98073-346-0 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-347-1 01 1 0907-0911 ●
325 07.039 EXTENSION; FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-347-1 01 1 0912- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98073-347-1 01 1 0912- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-350-0 01 1 0905-0906 ● ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 1106- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 1106- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-351-1 01 1 0905-0906 ● ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 0907-1105 ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 1106- ●
325 07.039 EXTENSION; FRAME
M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 1106- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 0905- ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 0905- ● ●
345 07.012 MEMBER; CROSS,5TH
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98000-490-2 01 1 0907- ● ●
345 07.012 MEMBER; CROSS,5TH 8-98000-490-2 01 1 0907- ● ●
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 0905-0906 ● ●
345 07.012 MEMBER; CROSS,5TH
FRAME STRAIGHT TYPE<7KJ> 		8-97175-993-3 01 1 0907- ● ●
446 07.112 STIFFENER; SPRING STOPPER
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97170-790-0 02 1 0907- ●
446 07.112 STIFFENER; SPRING STOPPER
(B) 		8-97122-173-0 02 1 0905-0906 ● ●
446 07.112 STIFFENER; SPRING STOPPER
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97122-173-0 02 1 0907- ● ●
446 07.112 STIFFENER; SPRING STOPPER
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97122-173-0 02 1 0907- ●
446 07.112 STIFFENER; SPRING STOPPER
(A) 		8-98014-080-1 02 1 0905-0906 ● ●
446 07.112 STIFFENER; SPRING STOPPER
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98014-080-1 02 1 0907- ● ●
541 07.112 PLATE; STUD BOLT
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-650-0 01 1 0907- ●
çizim 186394
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (C) 		8-98157-956-1 01 1 1109- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-621-4 01 1 1106- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-155-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-157-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98148-160-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98148-163-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-252-0 01 1 0909-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98071-658-5 01 1 0912- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-251-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-250-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-257-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-256-0 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98151-250-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98134-378-1 01 1 0911- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-253-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98071-514-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98071-513-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-521-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-520-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-527-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-526-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-619-3 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-620-7 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-639-4 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0907-0907 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POOR QUALITY DIESEL F UEL(KF0) (A) 		8-98071-638-4 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0911- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98088-880-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98088-879-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-533-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-532-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-628-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-649-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98071-670-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98071-674-2 01 1 0912- ●
çizim 186412
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (C) 		8-98157-956-1 01 1 1109- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-621-4 01 1 1106- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-155-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98148-157-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98148-160-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98148-163-0 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-252-0 01 1 0909-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98071-658-5 01 1 0912- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-251-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D) 		8-98144-250-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-255-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (E) 		8-98144-254-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-257-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (F) 		8-98144-256-0 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98151-250-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98134-378-1 01 1 0911- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 		8-98151-253-0 01 1 0907-0910 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98071-514-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98071-513-2 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98088-878-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 5.0-5.5TON(RPT) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98088-877-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-521-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-520-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-527-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98071-526-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-619-3 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-620-7 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-639-4 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0907-0907 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,POOR QUALITY DIESEL F UEL(KF0) (A) 		8-98071-638-4 01 1 0907-0910 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) 		8-98071-638-4 01 1 0911- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98088-880-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98088-879-0 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-533-1 01 1 0907- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98071-532-1 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-629-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-628-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-628-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98071-650-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98071-649-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98071-649-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98071-671-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98071-670-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98071-670-2 01 1 0912- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98071-675-2 01 1 0907- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0905-0906 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98071-674-2 01 1 0907-0911 ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98071-674-2 01 1 0912- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
