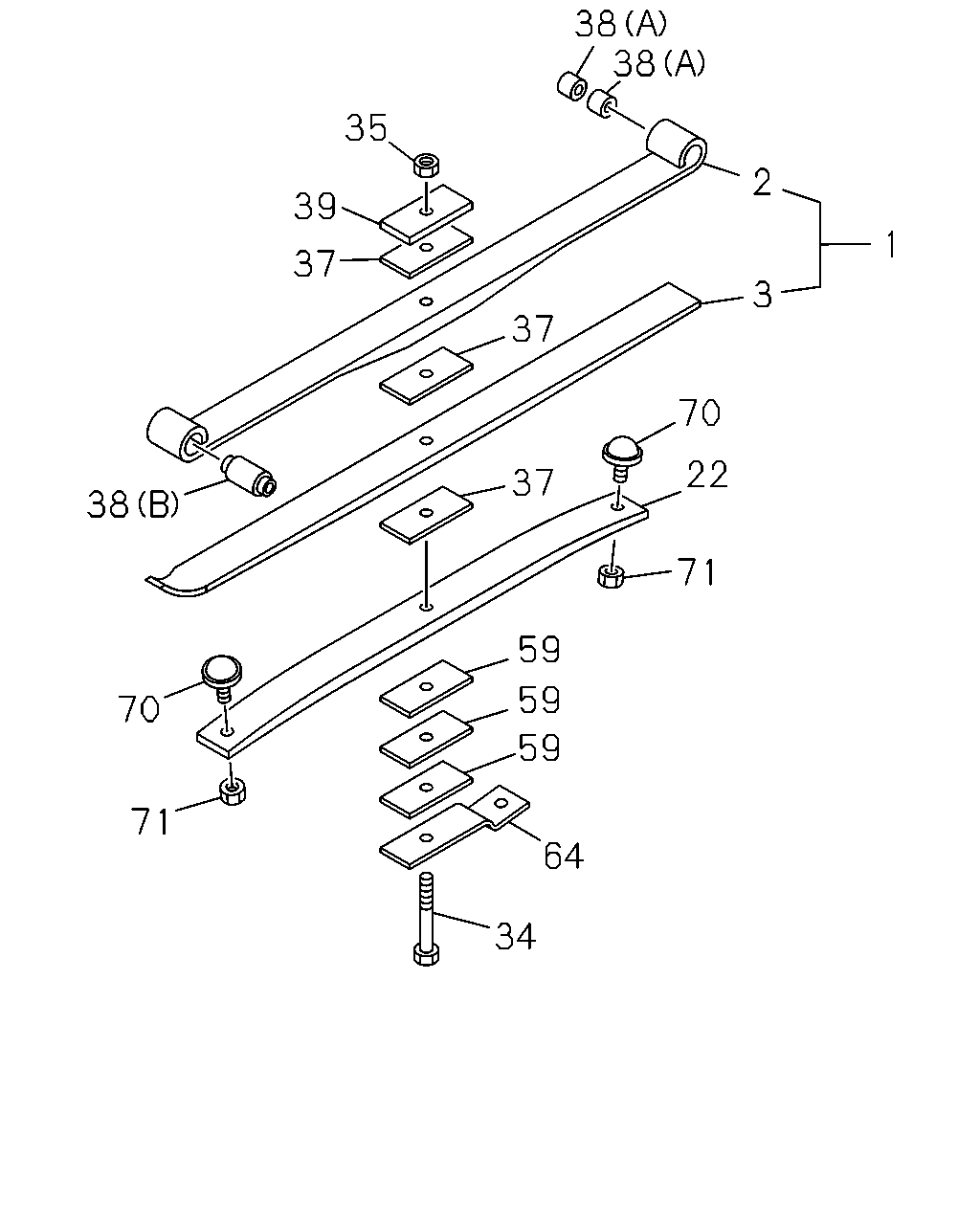

4-65B — REAR LEAF SPRING (#77221) — 16 parça

38 38 35 2 39 1 37 3 37 70 22 37 38 71 59 59 70 59 71 64 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-98094-305-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-98094-306-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-98094-307-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-98094-308-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-98080-315-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-94448-734-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=12 ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-94407-146-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB T=8 ASM PART: A = 8-98025-044-0, 98025044	1-51177-242-0	03	1	-
59	07.513 SEAT; RR SPRING,SUB T=8 ASM PART: B = 8-98025-045-0, 98025045	1-51177-242-0	02	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-98025-045-0, 98025045	8-94342-863-1	01	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	8-98040-323-0	02	1	-
71	07.505 NUT; RUBBER,RR LEAF SPR 07.506, M10 ASM PART: A = 8-98025-044-0, 98025044, B = 8-98025-045-0, 98025045	9-09110-010-0	02	1	-
