◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶

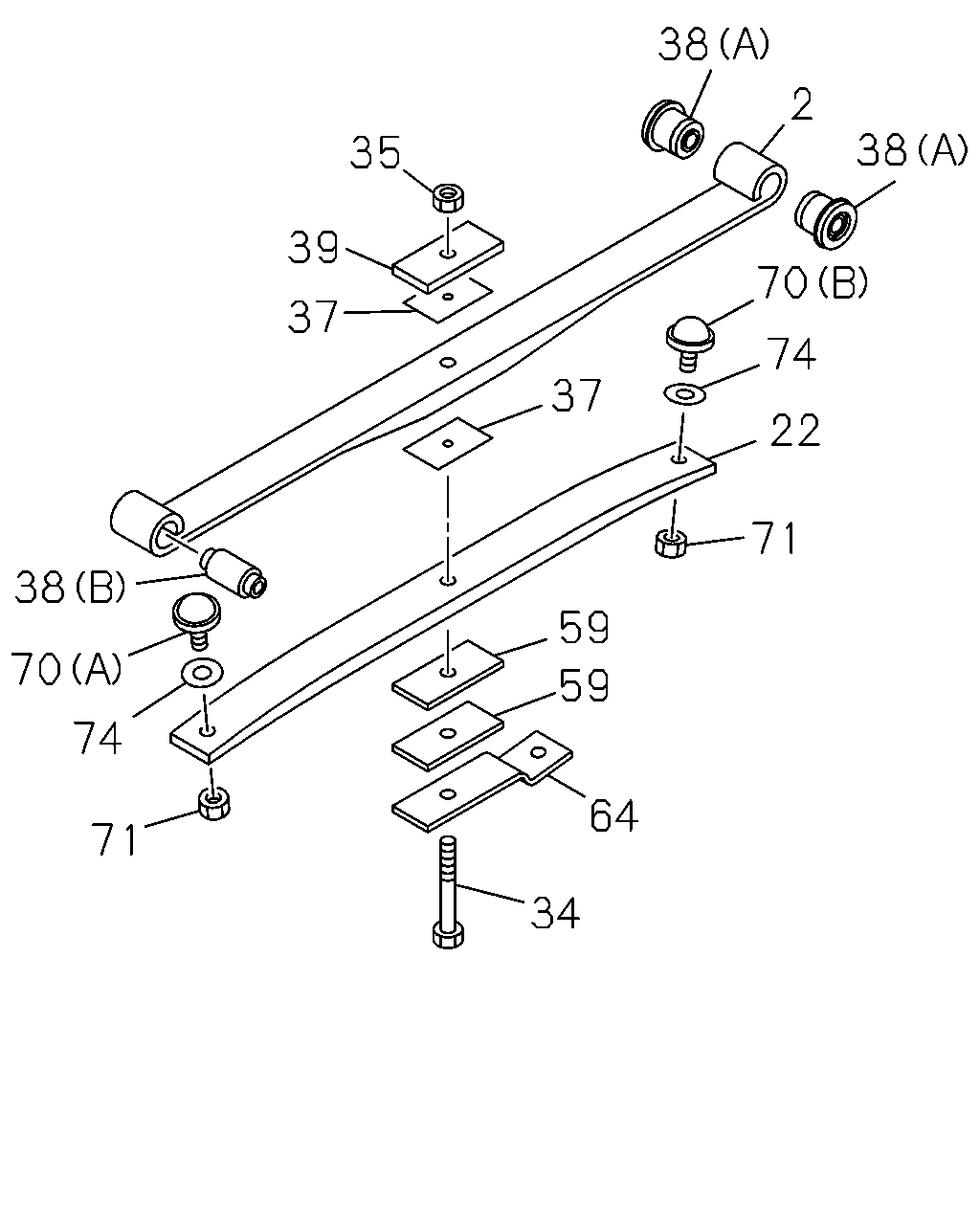

4-65A — REAR LEAF SPRING (#77220) — 19 parça
çizim 124937
38 2 38 35 39 70 37 74 37 22 71 38 59 70 59 74 64 71 34
BalonParca AdiParca NoAdetTipApplied Date
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98025-043-1, 98025043 		8-98054-473-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98025-042-1, 98025042 		8-98080-200-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-98025-043-1, 98025043 		8-98054-474-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98025-042-1, 98025042 		8-98080-201-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=85 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-98037-590-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-94448-734-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-94407-146-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
T=8 ASM PART: A = 8-98025-042-1, 98025042 		1-51177-242-0 02 1 -
59 07.513 SEAT; RR SPRING,SUB
T=7 ASM PART: B = 8-98025-043-1, 98025043 		8-98041-606-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: B = 8-98025-043-1, 98025043 		8-94342-863-1 01 1 -
70 07.505 RUBBER; LEAF SPR,RR
(A) ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-98039-335-0 01 1 -
70 07.505 RUBBER; LEAF SPR,RR
(B) ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-98039-336-0 01 1 -
71 07.505 NUT; RUBBER,RR LEAF SPR
07.506, M10 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		9-09110-010-0 02 1 -
74 07.518 SPACER; SILENSER
T=1 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-98069-694-0 AR 1 -
74 07.518 SPACER; SILENSER
T=2 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043 		8-98201-771-0 AR 1 1203-
