Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#7722) — 220 parça

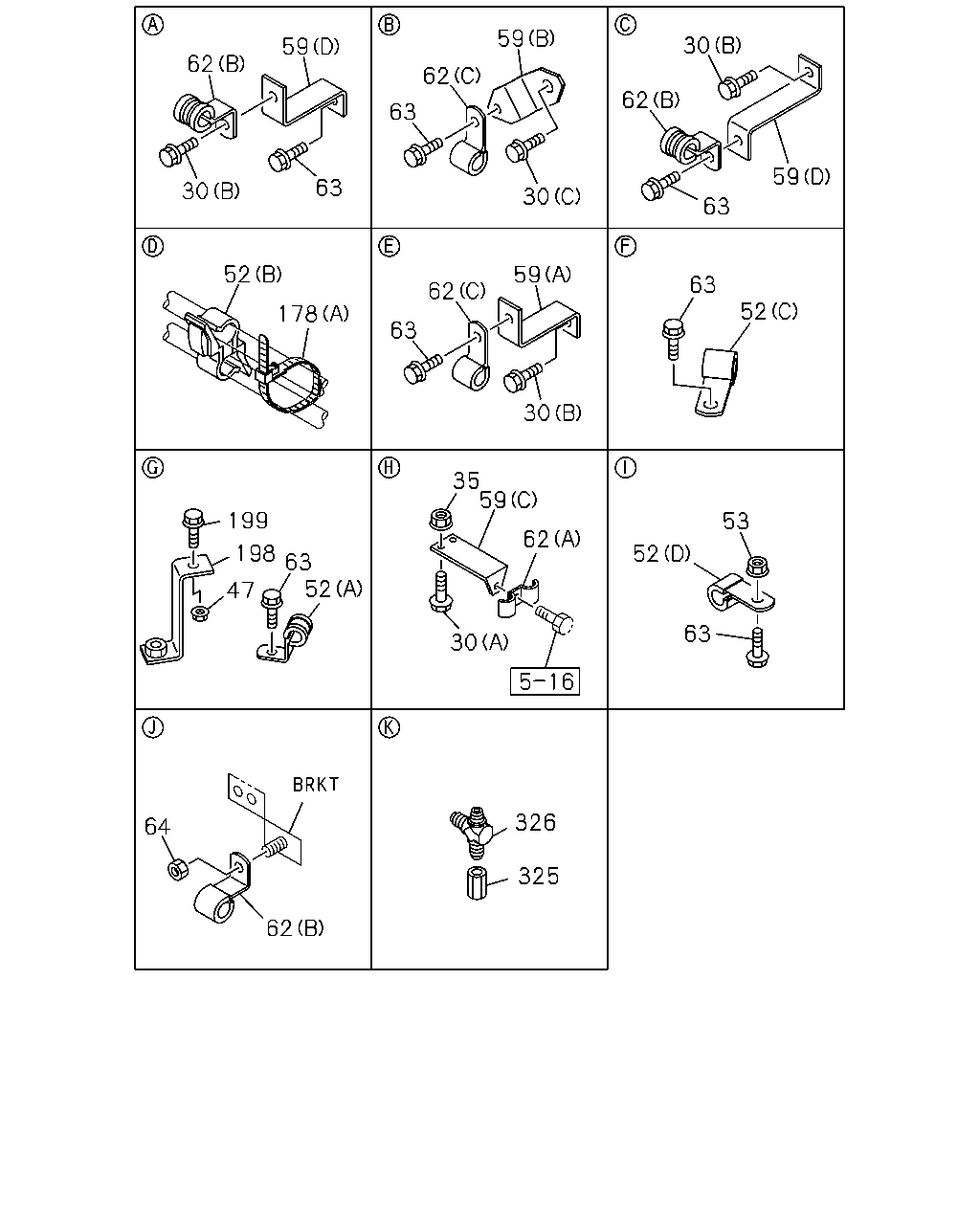

59 30 59 62 62 62 63 59 63 30 30 63 52 59 63 62 52 178 63 30 35 59 199 53 62 198 52 63 52 47 63 30 326 64 325 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	9902-9903	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0003	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
30	BOLT; BRKT FIX CAB UP +110MM<TGG> (B) M8X25 FLANGE	0-28680-825-0	04	1	9902-0003	●
30	BOLT; BRKT FIX CAB UP +110MM<TGG> (B) M8X25 FLANGE	0-28680-825-0	04	1	0004-	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	04	1	0004-		●
30	BOLT; BRKT FIX EXC. CAB UP +110MM<TGG> (B) M8X25 FLANGE	0-28680-825-0	03	1	9902-	●
30	BOLT; BRKT FIX EXC. CAB UP +110MM<TGG> (C) M12X25 FLANGE	0-28681-225-0	01	1	9902-	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
47	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9902-	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-0003	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	02	1	9902-9907	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9908-0003	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0004-	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	9902-0003	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	0004-	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	9902-0003	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	0004-	●	●
52	CLIP; CONT CABLE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9905-9907	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	9902-0003	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0004-	●	●
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	9902-0003	●
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	0004-	●	●
59	BRACKET; CLIP CAB UP +110MM<TGG> (A)	1-47476-200-0	02	1	9902-0003	●
59	BRACKET; CLIP CAB UP +110MM<TGG> (A)	1-47476-200-0	02	1	0004-	●
59	BRACKET; CLIP (A)	1-47476-200-0	02	1	0004-		●
59	BRACKET; CLIP EXC. CAB UP +110MM<TGG> (A)	1-47476-200-0	01	1	9902-	●
59	BRACKET; CLIP EXC. CAB UP +110MM<TGG> (B)	1-47477-631-1	01	1	9902-	●
62	CLIP; OIL PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9902-9902	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9903-0003	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0004-	●	●
62	CLIP; OIL PIPE (C) ID=11X2 L=16	9-09535-025-0	02	1	9902-9902	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	9903-0003	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0004-	●	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	03	1	9902-9905	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	9906-0003	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0004-	●	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-9902	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=6 H=20 L=20	1-09700-603-0	01	1	9903-	●
62	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	01	1	9902-9904	●
62	CLIP; OIL PIPE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	01	1	9905-9905	●
62	CLIP; OIL PIPE BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28	1-09700-860-0	01	1	9906-	●
62	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9902-9905	●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB<W16> (D) ID=8 H=20 L=20	1-09700-604-0	03	1	9902-9902	●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB<W16> (D) ID=6 H=20 L=20	1-09700-603-0	03	1	9903-	●
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	9902-0003	●
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	0004-	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
178	CLIP; FLEX HOSE (A) L=140	5-09707-031-1	01	1	9908-0003	●
178	CLIP; FLEX HOSE (A) L=140	5-09707-031-1	01	1	0004-	●	●
178	CLIP; FLEX HOSE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0004-		●
198	BRACKET; CABLE EXC. ANTI NOISE EQUIPMENT<SV9>	1-46147-101-0	01	1	9902-	●
199	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	01	1	9902-	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9903-0003	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0004-	●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9903-0003	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0004-	●	●

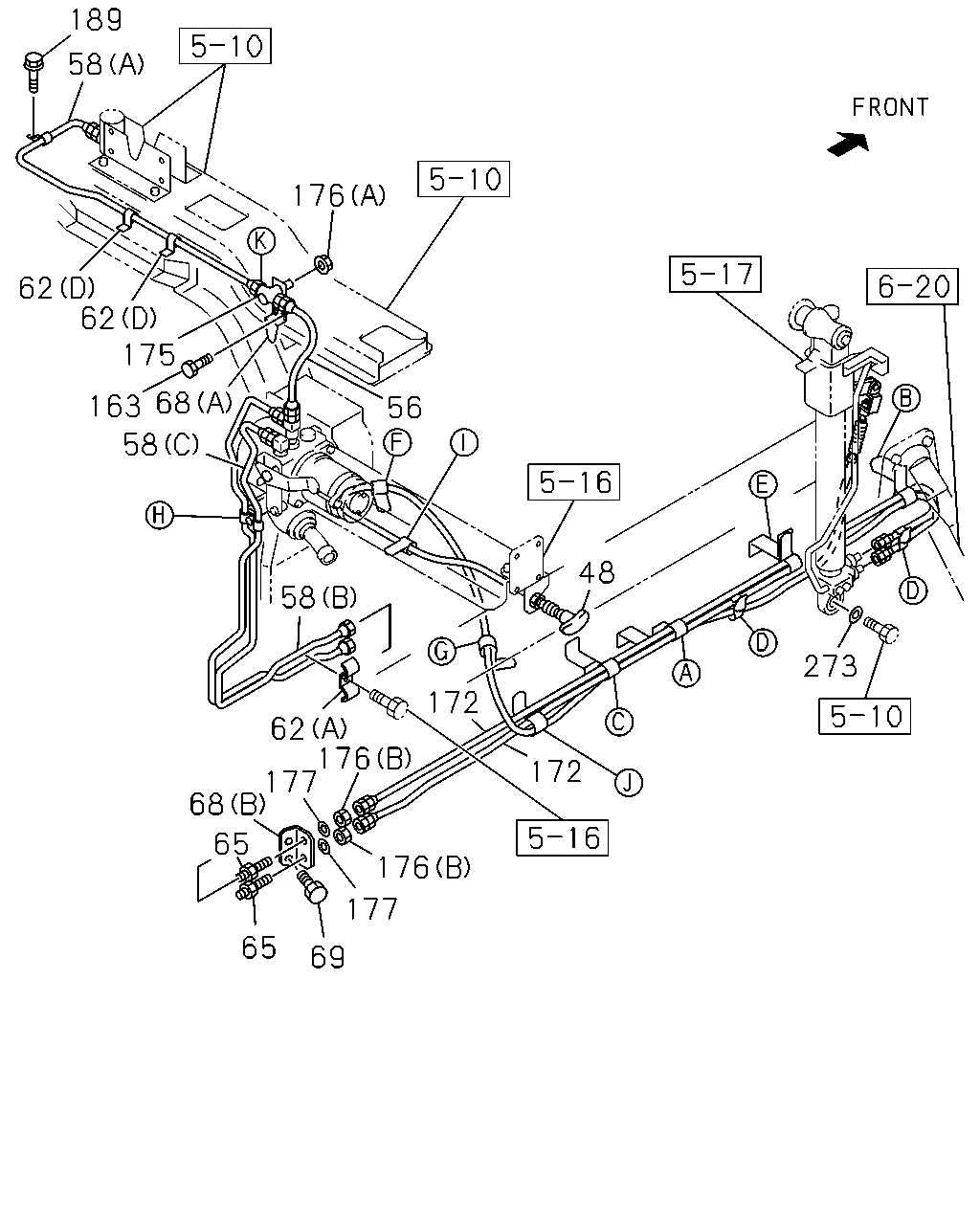

189 58 176 62 62 175 68 163 56 58 48 58 273 172 62 176 177 68 172 65 176 177 65 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	CABLE ASM; CONT L=2688	1-62500-684-2	01	1	9902-9904	●
48	CABLE ASM; CONT BRAKE SYSTEM SPRING BRAKE(BCR) L=2688	1-62500-684-2	01	1	9905-	●
48	CABLE ASM; CONT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457	1-62500-670-6	01	1	9905-9910	●
48	CABLE ASM; CONT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457	1-62500-730-0	01	1	9911-0003	●
48	CABLE ASM; CONT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457	1-62500-730-0	01	1	0004-	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0004-		●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=400	1-09364-835-1	01	1	9902-9902	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=400	1-09365-060-0	01	1	9903-	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=300	1-09364-545-2	01	1	9902-9902	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=300	1-09365-059-0	01	1	9903-	●
56	HOSE; FLEX,OIL PIPE L=750	1-09365-058-0	01	1	0004-		●
58	PIPE; OIL,POWER UNIT (A) L=1390	1-47428-967-0	01	1	9902-9902	●
58	PIPE; OIL,POWER UNIT (A) L=1050	1-49163-340-0	01	1	9903-9903	●
58	PIPE; OIL,POWER UNIT (A) L=1054	1-49164-150-0	01	1	9904-	●
58	PIPE; OIL,POWER UNIT (B) L=1025	1-47429-627-0	01	1	9902-9902	●
58	PIPE; OIL,POWER UNIT (B) L=1116	1-49163-346-0	01	1	9903-9903	●
58	PIPE; OIL,POWER UNIT (B) L=1120	1-49164-151-0	01	1	9904-9910	●
58	PIPE; OIL,POWER UNIT (B) L=1006	1-49165-034-0	01	1	9911-	●
58	PIPE; OIL,POWER UNIT (C) L=997	1-47429-806-0	01	1	9902-9902	●
58	PIPE; OIL,POWER UNIT (C) L=1396	1-49163-351-0	01	1	9903-	●
58	PIPE; OIL,POWER UNIT (A)	1-49163-338-0	01	1	0004-		●
58	PIPE; OIL,POWER UNIT (B)	1-49163-344-0	01	1	0004-		●
62	CLIP; OIL PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9902-9902	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9903-0003	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0004-	●	●
62	CLIP; OIL PIPE (C) ID=11X2 L=16	9-09535-025-0	02	1	9902-9902	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	9903-0003	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0004-	●	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	03	1	9902-9905	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	9906-0003	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0004-	●	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-9902	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=6 H=20 L=20	1-09700-603-0	01	1	9903-	●
62	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	01	1	9902-9904	●
62	CLIP; OIL PIPE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	01	1	9905-9905	●
62	CLIP; OIL PIPE BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28	1-09700-860-0	01	1	9906-	●
62	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9902-9905	●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB<W16> (D) ID=8 H=20 L=20	1-09700-604-0	03	1	9902-9902	●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB<W16> (D) ID=6 H=20 L=20	1-09700-603-0	03	1	9903-	●
65	UNION; OIL PIPE M14	9-09223-308-1	02	1	9902-9902	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	9903-0003	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	0004-	●	●
68	BRACKET; UNION (B)	1-47477-751-0	01	1	9902-9902	●
68	BRACKET; UNION (B)	1-47478-384-0	01	1	9903-	●
68	BRACKET; UNION	1-47478-383-0	01	1	0004-		●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	9902-	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	9902-	●
172	HOSE; FLEX,OIL TILT L=1600	1-09364-825-1	02	1	9902-9902	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	9903-0003	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	0004-	●	●
175	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	9902-9902	●
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	9903-	●
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9902-	●
176	NUT; UNION (B) M14	9-99111-414-0	02	1	9902-9902	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	9903-0003	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0004-	●	●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9902-9902	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9903-0003	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0004-	●	●
189	BOLT; CLIP CAB UP +110MM<TGG> FULL FLOATING CAB<W16> M8X20 FLANGE	0-28680-820-0	01	1	9902-	●
189	BOLT; CLIP EXC. FULL FLOATING CAB<W16> M8X20 FLANGE	0-28680-820-0	03	1	9902-	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	9902-0003	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0004-	●	●

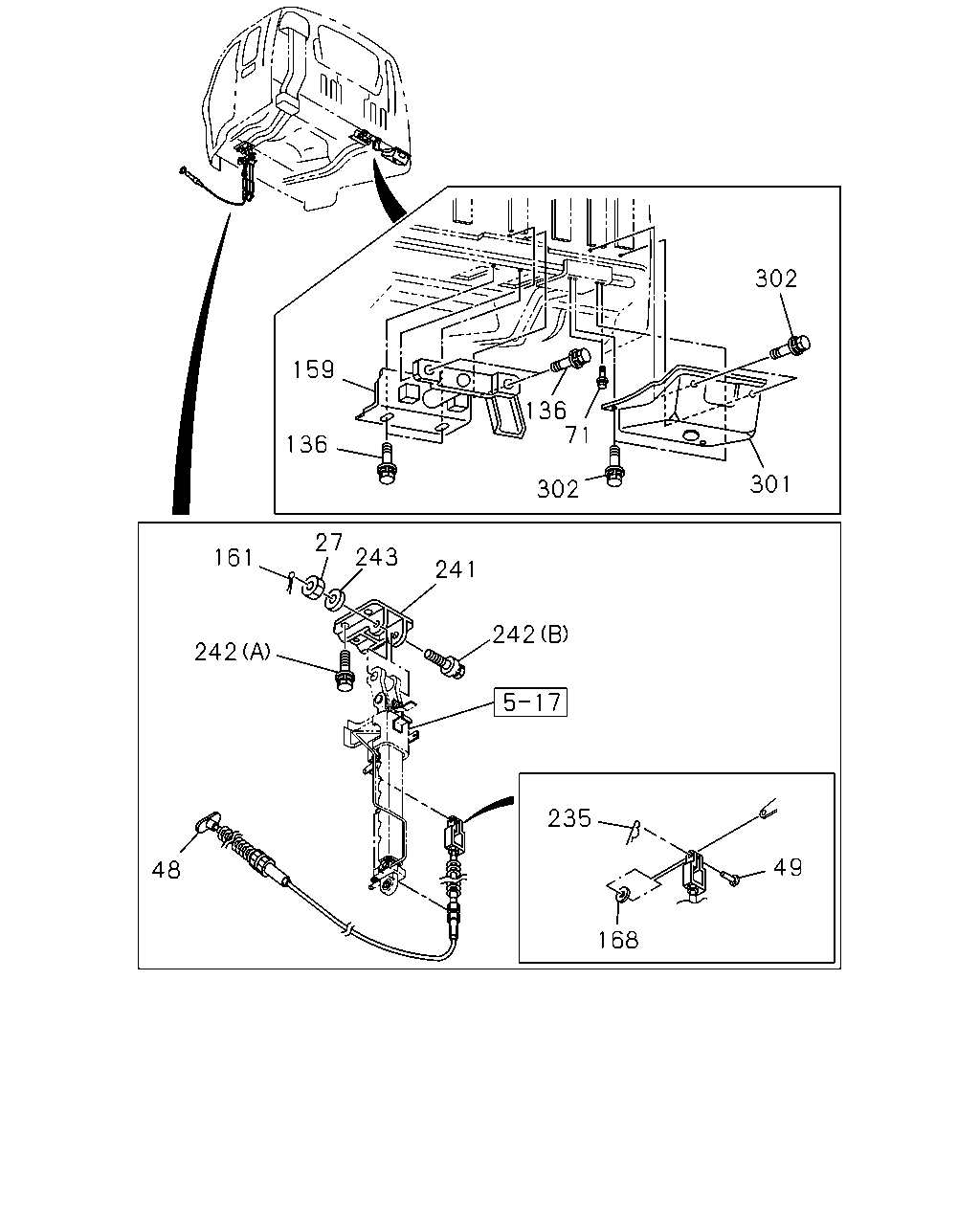

302 159 136 71 136 301 302 27 243 161 241 242 242 235 49 48 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	NUT; OIL CYL M14	9-99116-414-0	01	1	9902-0003	●
27	NUT; OIL CYL M14	9-99116-414-0	01	1	0004-	●	●
48	CABLE ASM; CONT L=2688	1-62500-684-2	01	1	9902-9904	●
48	CABLE ASM; CONT BRAKE SYSTEM SPRING BRAKE(BCR) L=2688	1-62500-684-2	01	1	9905-	●
48	CABLE ASM; CONT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457	1-62500-670-6	01	1	9905-9910	●
48	CABLE ASM; CONT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457	1-62500-730-0	01	1	9911-0003	●
48	CABLE ASM; CONT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) L=2457	1-62500-730-0	01	1	0004-	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0004-		●
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	9902-0003	●
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	0004-	●	●
71	BOLT M10X25 W/LK&PL WASHER	8-94279-220-0	02	1	9902-0003	●
71	BOLT M10X25 W/LK&PL WASHER	8-94279-220-0	02	1	0004-	●	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	9902-0003	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0004-	●	●
159	PIN	1-79717-627-1	01	1	9902-0003	●
159	PIN	1-79717-627-1	01	1	0004-	●	●
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	9902-0003	●
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	0004-	●	●
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	9902-0003	●
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	0004-	●	●
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	9902-0003	●
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	0004-	●	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-660-0	01	1	9902-	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-0	01	1	0004-		●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30	1-09980-546-0	05	1	9902-0003	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30	1-09980-546-0	05	1	0004-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	9902-0003	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0004-	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	9902-0003	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	0004-	●	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	9902-0003	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0004-	●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	8-94279-220-0	08	1	9902-0003	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	8-94279-220-0	08	1	0004-	●	●

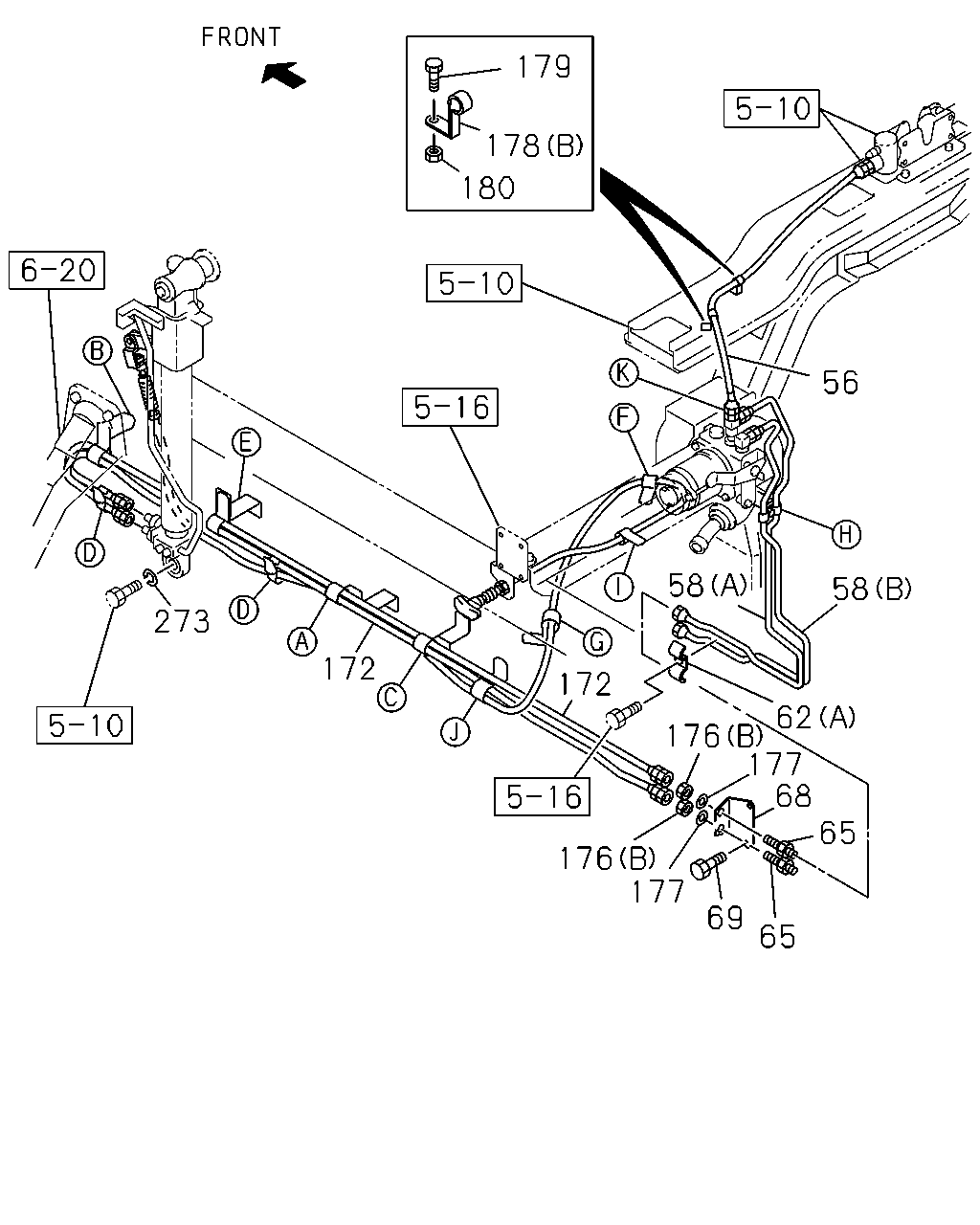

179 178 180 56 58 58 273 172 172 62 176 177 68 65 176 177 69 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=400	1-09364-835-1	01	1	9902-9902	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=400	1-09365-060-0	01	1	9903-	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=300	1-09364-545-2	01	1	9902-9902	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=300	1-09365-059-0	01	1	9903-	●
56	HOSE; FLEX,OIL PIPE L=750	1-09365-058-0	01	1	0004-		●
58	PIPE; OIL,POWER UNIT (A) L=1390	1-47428-967-0	01	1	9902-9902	●
58	PIPE; OIL,POWER UNIT (A) L=1050	1-49163-340-0	01	1	9903-9903	●
58	PIPE; OIL,POWER UNIT (A) L=1054	1-49164-150-0	01	1	9904-	●
58	PIPE; OIL,POWER UNIT (B) L=1025	1-47429-627-0	01	1	9902-9902	●
58	PIPE; OIL,POWER UNIT (B) L=1116	1-49163-346-0	01	1	9903-9903	●
58	PIPE; OIL,POWER UNIT (B) L=1120	1-49164-151-0	01	1	9904-9910	●
58	PIPE; OIL,POWER UNIT (B) L=1006	1-49165-034-0	01	1	9911-	●
58	PIPE; OIL,POWER UNIT (C) L=997	1-47429-806-0	01	1	9902-9902	●
58	PIPE; OIL,POWER UNIT (C) L=1396	1-49163-351-0	01	1	9903-	●
58	PIPE; OIL,POWER UNIT (A)	1-49163-338-0	01	1	0004-		●
58	PIPE; OIL,POWER UNIT (B)	1-49163-344-0	01	1	0004-		●
62	CLIP; OIL PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9902-9902	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9903-0003	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0004-	●	●
62	CLIP; OIL PIPE (C) ID=11X2 L=16	9-09535-025-0	02	1	9902-9902	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	9903-0003	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0004-	●	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	03	1	9902-9905	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	9906-0003	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0004-	●	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-9902	●
62	CLIP; OIL PIPE CAB UP +110MM<TGG> FULL FLOATING CAB<W16> (D) ID=6 H=20 L=20	1-09700-603-0	01	1	9903-	●
62	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	01	1	9902-9904	●
62	CLIP; OIL PIPE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	01	1	9905-9905	●
62	CLIP; OIL PIPE BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=18 H=23 L=28	1-09700-860-0	01	1	9906-	●
62	CLIP; OIL PIPE EXC. CAB UP +110MM<TGG> (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9902-9905	●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB<W16> (D) ID=8 H=20 L=20	1-09700-604-0	03	1	9902-9902	●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB<W16> (D) ID=6 H=20 L=20	1-09700-603-0	03	1	9903-	●
65	UNION; OIL PIPE M14	9-09223-308-1	02	1	9902-9902	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	9903-0003	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	0004-	●	●
68	BRACKET; UNION (B)	1-47477-751-0	01	1	9902-9902	●
68	BRACKET; UNION (B)	1-47478-384-0	01	1	9903-	●
68	BRACKET; UNION	1-47478-383-0	01	1	0004-		●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	9902-	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09364-825-1	02	1	9902-9902	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	9903-0003	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	0004-	●	●
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9902-	●
176	NUT; UNION (B) M14	9-99111-414-0	02	1	9902-9902	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	9903-0003	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0004-	●	●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9902-9902	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9903-0003	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0004-	●	●
178	CLIP; FLEX HOSE (A) L=140	5-09707-031-1	01	1	9908-0003	●
178	CLIP; FLEX HOSE (A) L=140	5-09707-031-1	01	1	0004-	●	●
178	CLIP; FLEX HOSE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0004-		●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
180	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0004-		●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	9902-0003	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
