◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#77219) — 26 parça

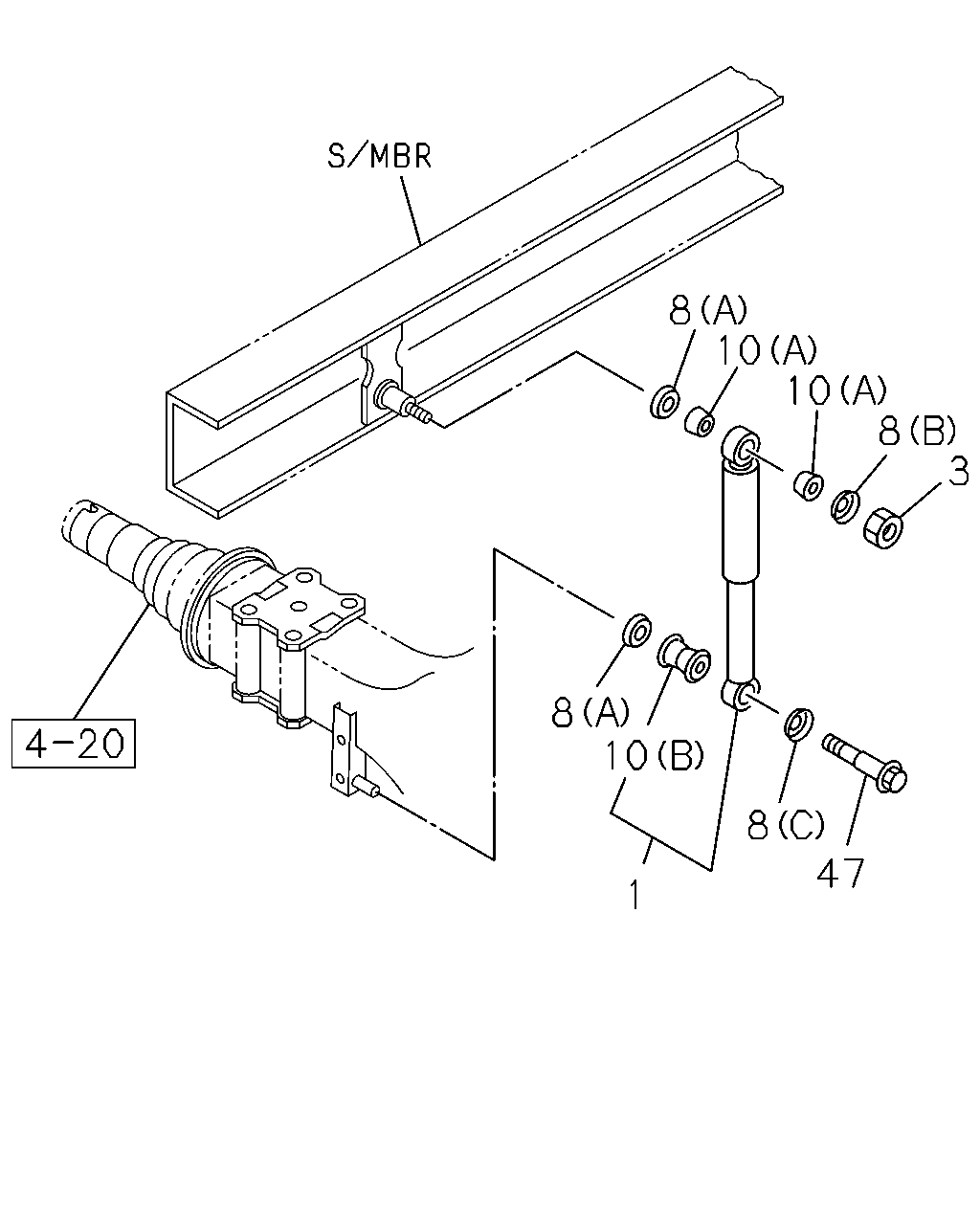

çizim 124742
8 10 10 8 3 8 10 8 47 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-654-2 02 1 0907- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0907-0907 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0907-0907 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) 		8-97253-651-0 02 1 0907-0907 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0907-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0907-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-98079-868-0 02 1 0905-0906 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98079-868-1 02 1 0907- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-133-0 02 1 1304- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98316-233-0 02 1 1507- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98316-233-0 02 1 1507- ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 0905-0906 ● ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 0907- ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0905-0906 ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0907- ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0905-0906 ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0907- ● ● ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0905-0906 ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0907- ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0910- ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0905-0906 ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0907- ● ● ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0905-0906 ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0907- ● ● ● ●
