◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51237 - NNR/NPR(EU)-LHD EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55A - FRONT LEAF SPRING ▶
4-55A — FRONT LEAF SPRING (#77216) — 33 parça

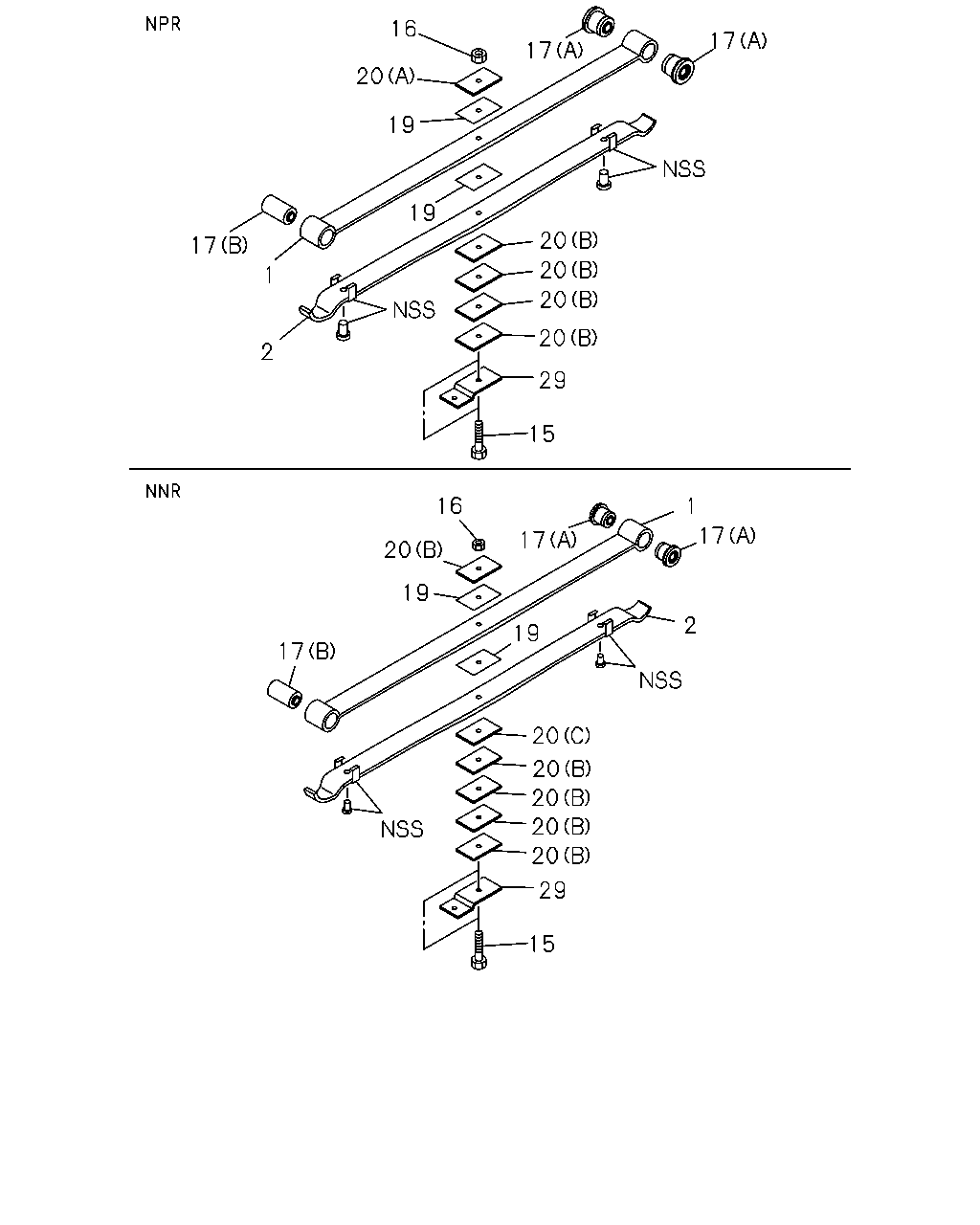

çizim 124979
16 17 17 20 19 19 20 17 20 1 20 20 2 29 15 16 1 17 17 20 19 2 19 17 20 20 20 20 20 29 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98025-016-0, 98025016 		8-98077-689-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98025-017-0, 98025017 		8-98077-691-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98025-018-0, 98025018 		8-98080-917-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98025-019-0, 98025019 		8-98080-919-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-98079-906-0, 98079906, G = 8-98079-908-0, 98079908 		8-98081-579-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98079-907-0, 98079907, H = 8-98079-909-0, 98079909 		8-98081-589-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98197-602-0, 98197602, K = 8-98197-604-0, 98197604 		8-98198-647-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: J = 8-98197-603-0, 98197603, L = 8-98197-605-0, 98197605 		8-98198-649-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98025-016-0, 98025016 		8-98077-690-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98025-017-0, 98025017 		8-98077-692-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98025-018-0, 98025018 		8-98080-918-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98025-019-0, 98025019 		8-98080-920-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-98079-906-0, 98079906, G = 8-98079-908-0, 98079908 		8-98081-580-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98079-907-0, 98079907, H = 8-98079-909-0, 98079909 		8-98081-590-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98197-602-0, 98197602, K = 8-98197-604-0, 98197604 		8-98198-648-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: J = 8-98197-603-0, 98197603, L = 8-98197-605-0, 98197605 		8-98198-650-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=85 ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017, C = 8-98025-018-0, 98025018, D = 8-98025-019-0, 98025019 		8-98040-305-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: E = 8-98079-906-0, 98079906, F = 8-98079-907-0, 98079907, G = 8-98079-908-0, 98079908, H = 8-98079-909-0, 98079909, I = 8-98197-602-0, 98197602, J = 8-98197-603-0, 98197603, K = 8-98197-604-0, 98197604, L = 8-98197-605-0, 98197605 		8-98081-401-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017, C = 8-98025-018-0, 98025018, D = 8-98025-019-0, 98025019, E = 8-98079-906-0, 98079906, F = 8-98079-907-0, 98079907, G = 8-98079-908-0, 98079908, H = 8-98079-909-0, 98079909, I = 8-98197-602-0, 98197602, J = 8-98197-603-0, 98197603, K = 8-98197-604-0, 98197604, L = 8-98197-605-0, 98197605 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017, C = 8-98025-018-0, 98025018, D = 8-98025-019-0, 98025019, E = 8-98079-906-0, 98079906, F = 8-98079-907-0, 98079907, G = 8-98079-908-0, 98079908, H = 8-98079-909-0, 98079909, I = 8-98197-602-0, 98197602, J = 8-98197-603-0, 98197603, K = 8-98197-604-0, 98197604, L = 8-98197-605-0, 98197605 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017, C = 8-98025-018-0, 98025018, D = 8-98025-019-0, 98025019 		8-94130-354-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: E = 8-98079-906-0, 98079906, F = 8-98079-907-0, 98079907, G = 8-98079-908-0, 98079908, H = 8-98079-909-0, 98079909, I = 8-98197-602-0, 98197602, J = 8-98197-603-0, 98197603, K = 8-98197-604-0, 98197604, L = 8-98197-605-0, 98197605 		8-97081-586-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017, C = 8-98025-018-0, 98025018, D = 8-98025-019-0, 98025019, E = 8-98079-906-0, 98079906, F = 8-98079-907-0, 98079907, G = 8-98079-908-0, 98079908, H = 8-98079-909-0, 98079909, I = 8-98197-602-0, 98197602, J = 8-98197-603-0, 98197603, K = 8-98197-604-0, 98197604, L = 8-98197-605-0, 98197605 		8-97084-845-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017, C = 8-98025-018-0, 98025018, D = 8-98025-019-0, 98025019 		8-98034-521-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: C = 8-98025-018-0, 98025018, D = 8-98025-019-0, 98025019 		8-98034-522-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98025-016-0, 98025016, B = 8-98025-017-0, 98025017 		8-98034-522-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C) ASM PART: I = 8-98197-602-0, 98197602, J = 8-98197-603-0, 98197603 		8-98039-233-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C) ASM PART: G = 8-98079-908-0, 98079908, H = 8-98079-909-0, 98079909, K = 8-98197-604-0, 98197604, L = 8-98197-605-0, 98197605 		8-98039-233-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: G = 8-98079-908-0, 98079908, H = 8-98079-909-0, 98079909, I = 8-98197-602-0, 98197602, J = 8-98197-603-0, 98197603, K = 8-98197-604-0, 98197604, L = 8-98197-605-0, 98197605 		8-98041-368-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: E = 8-98079-906-0, 98079906, F = 8-98079-907-0, 98079907 		8-98041-368-0 05 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C) ASM PART: E = 8-98079-906-0, 98079906, F = 8-98079-907-0, 98079907 		8-98041-370-0 01 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: G = 8-98079-908-0, 98079908, H = 8-98079-909-0, 98079909, K = 8-98197-604-0, 98197604, L = 8-98197-605-0, 98197605 		8-94342-292-1 01 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: C = 8-98025-018-0, 98025018, D = 8-98025-019-0, 98025019 		8-97141-927-1 01 1 -
