4-36 — POWER STEERING CONTROL; ENGINE SIDE (#77212) — 10 parça

çizim 124321

23 24 42 1 7

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (B)	8-98043-204-4	01	1	0907-	●	●	●	●
	1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (A)	8-98055-007-2	01	1	0905-		●		●
	7	09.181 BOLT; OIL PUMP,P/S 4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0905-		●		●
	23	06.660 GEAR; OIL PUMP 4HK1-TCS ENG(RJS)	8-97114-550-1	01	1	0905-		●		●
	24	06.673 NUT; GEAR,P/S PUMP 4HK1-TCS ENG(RJS) 05.816 M12 FLANGE	0-91180-212-0	01	1	0905-		●		●
	42	06.672 NUT; ADJ PLATE 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-0906		●		●
	42	06.672 NUT; ADJ PLATE 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-		●		●

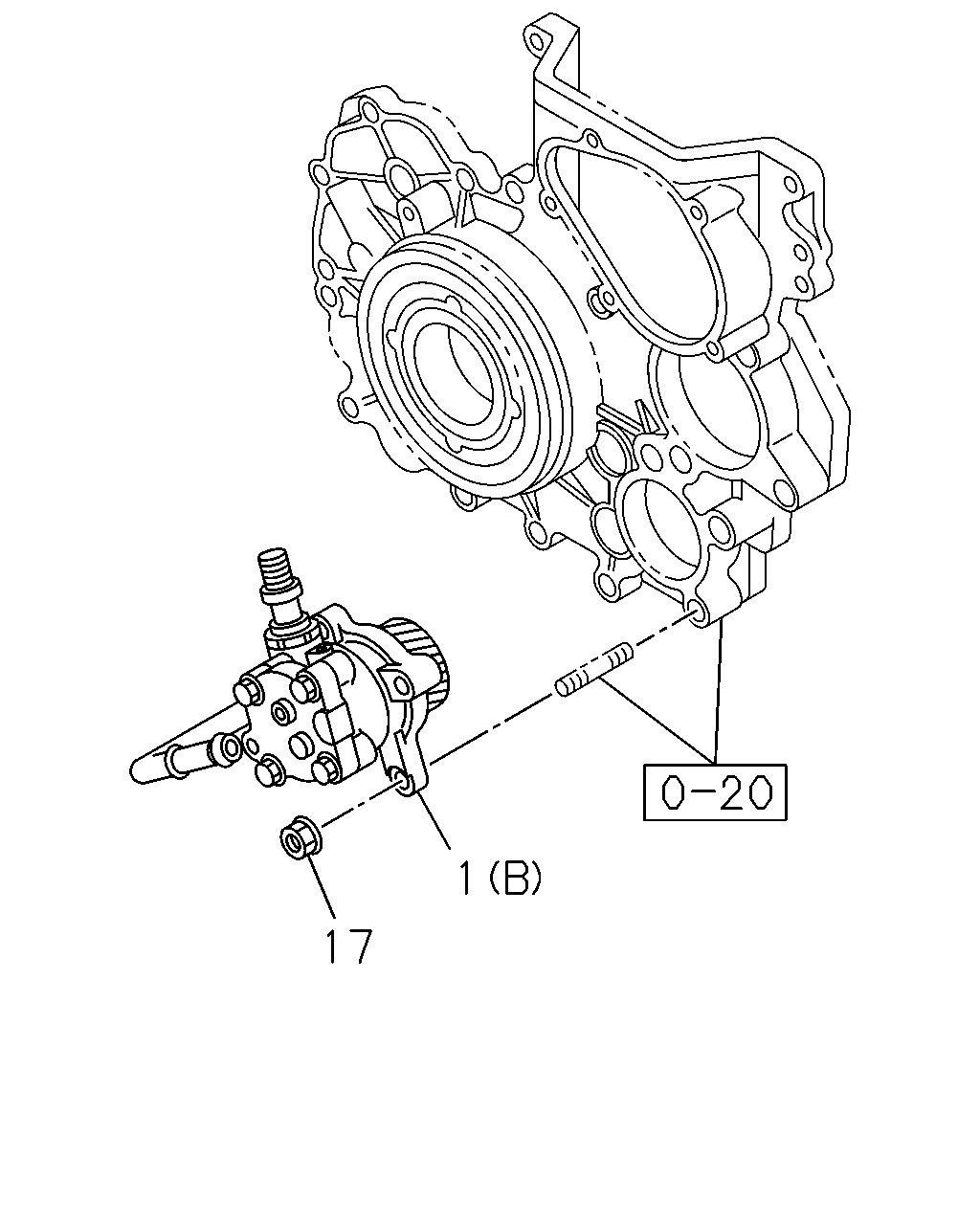

çizim 186430

1 17

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (B)	8-98043-204-4	01	1	0907-	●	●	●	●
	1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (A)	8-98055-007-2	01	1	0905-		●		●
	17	06.606 NUT; POWER STRG PUMP 4JJ1-TCS ENG(LFB) 01.540 M8 FLANGE	0-91180-208-0	03	1	0907-	●	●	●	●
